WayinTop Automatic Irrigation DIY Kit Self Watering System with Capacitive Soil Moisture Sensor 1 Channel 5V Relay Module and Water Pump + 1M Vinyl Tubing for Garden Plant Flower Herb Potted
WayinTop Automatic Irrigation DIY Kit Self Watering System with Capacitive Soil Moisture Sensor 1 Channel 5V Relay Module and Water Pump + 1M Vinyl Tubing for Garden Plant Flower Herb Potted

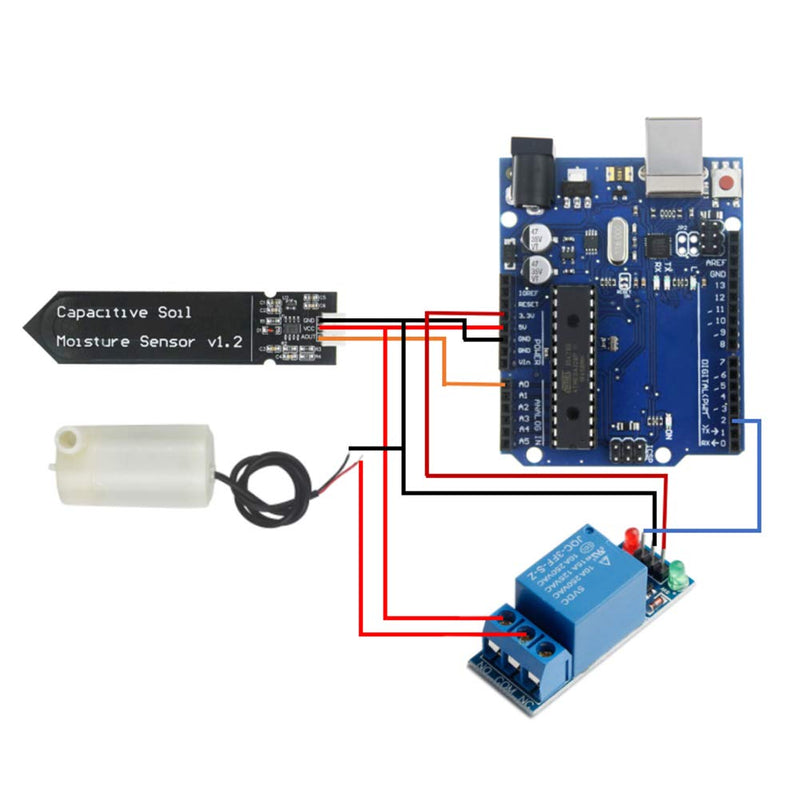

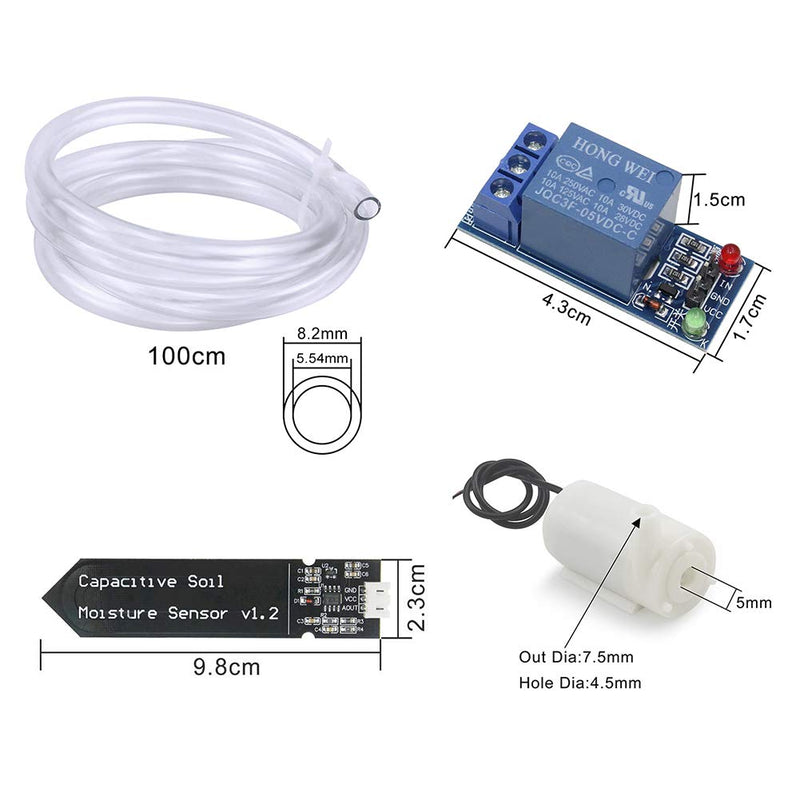

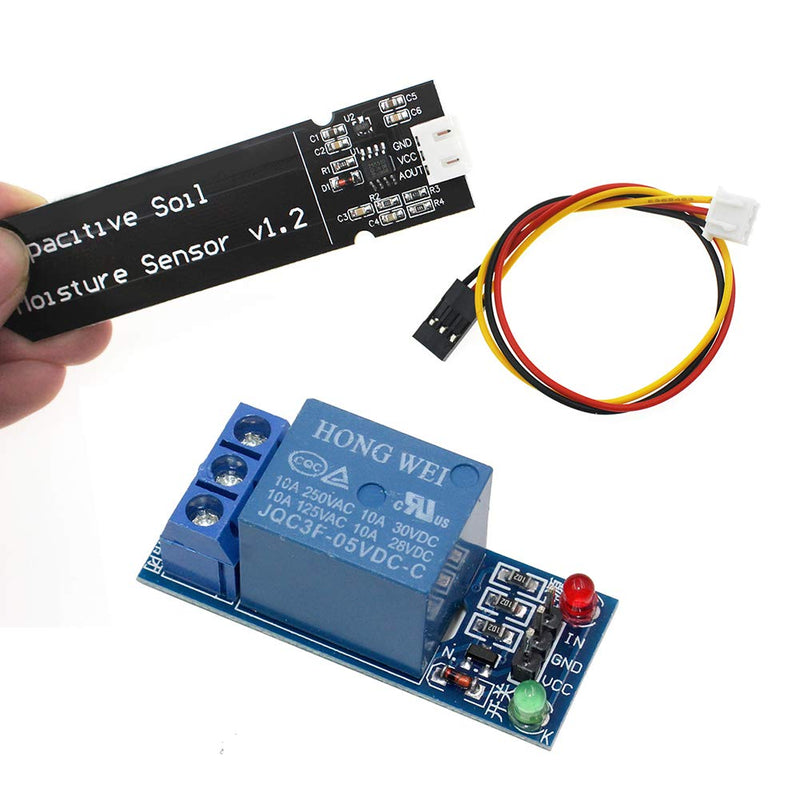

If you have a window garden and are going to be away from home, or you chronically forget to water your plants, the WayinTop's smart watering kit might be a relatively easy high-tech solution. This kit combines Pump, Tubing, Soil Moisture Sensor and 1Channel 5V Relay Module in one for arduino plant watering system, you can simply plant your flower or your herbs in the pot and insert the soil moisture sensor in the soil. Soil moisture sensor senses the moisture level of the soil. If soil will get dry then sensor senses low moisture level and automatically switches on the water pump to supply water to the plant. Specifications: Capacitive Soil Moisture Sensor: -Operating voltage: 3.3 ~ 5.5 VDC -Output voltage: 0 ~ 3.0 VDC -Interface: PH2.54-3P -Size: 98 x 23mm (LxW) -Pin: Analog signal output, GND, VCC 1 Channel 5V Relay Module: -VCC: Connect 5V Positive Pole Power Supply -GND: Connect 5V Negative Pole Power Supply Mini Water Pump: -DC Voltage: 3-5 V -Outside diameter of water outlet: 0.29"/7.5mm -Inside diameter of water outlet: 0.17"/4.5mm -Water inlet diameter: 0.19"/5mm -Driving mode: brushless dc design, magnetic driving -Continuous working life of 300 hours Vinyl Tubing: -Material: PVC -I.D. Size: 0.22"/5.54mm -O.D. Size: 0.32"/8.20mm -Length: 39.37inch/100cm Package Included: 1 x Capacitive Soil Moisture Sensor 1 x 1 Channel 5V Relay Module 1 x Mini Water Pump 1 x 1M Vinyl Tubing
Product Features
- Easy to UseThis automated watering DIY Kit has become extremely popular since it automatically waters your plants and flowers according to monitor the soil moisture in a very efficient way.
- Automatic Watering SystemCombine Pump, Tubing, Soil Moisture Sensor and 1Channel 5V Relay Module in one plant watering system, including kits for a whole for Arduino DIY drip irrigating system.
- Capacitive SensorInsert it in to the soil around your plants and With a screen and a motherboard, you can talk to your plants. To see if your plants is thirsty, do they need more water to moisten it?

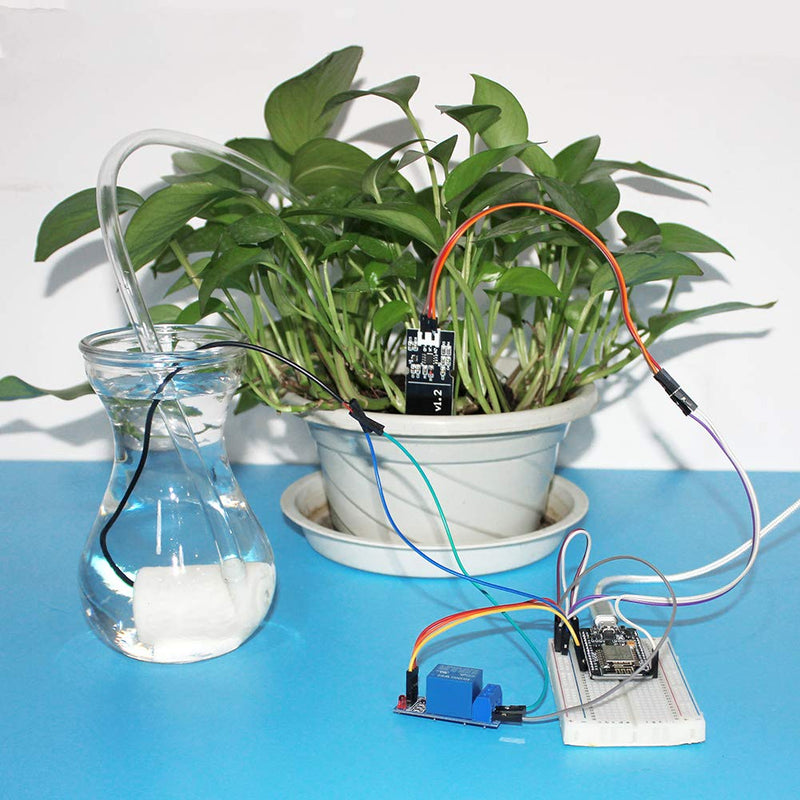

- Take Care of Your Plants Anytime You can have the system to water your plant automatically. Whenever your soil becomes too dry, the pump is set into motion and water flows up the tube and into the pot. You dont have to worry about your plants while going for vacations.
Buy with confidence as this product comes with 18 months full local warranty in Australia & New Zealand (unless otherwise stated in the overview).
This product also comes with the benefits of the CocoonPower Warranty. For further details please read our Warranty Guidelines.
You can also purchase 3 Year Extended Care. If you are interested please see our Extended Care Information.
