1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft 1 long output shaft

In Stock. Leaves warehouse within 2 - 3 business days

$269.00 AUD
Maximum quantity available reached.
Shop with Confidence — Free Shipping, Always
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft

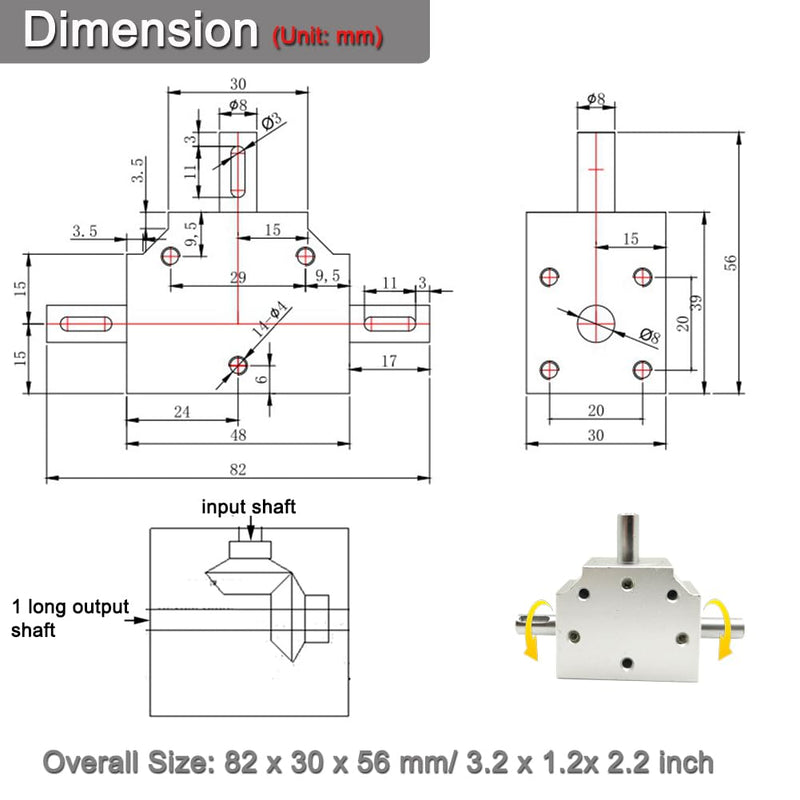

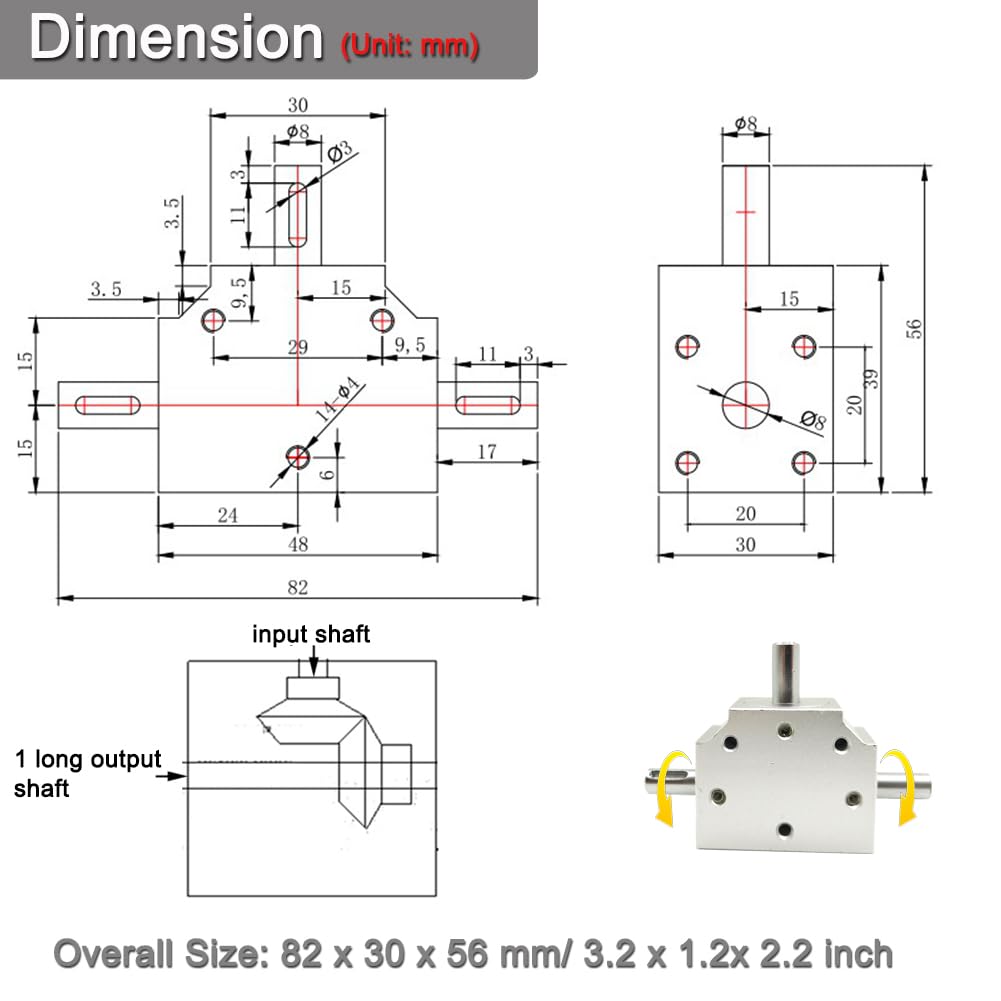

1:1 T-shaped Right Angle Bevel Gearbox for Simple DIY Mechanical Application, 1 Input Shaft Drives 1 Co-rotating Output Shaft,( refer to the size diagram picture to know the inner structure and rotating directions). Specification: built-in 1 module 20 teeth bevel gears, 8 mm/ 0.3" shaft, max torque rating: 5 N.M/ 3.6 ft.lbs , max rotation speed: 1500 rpm Motor drive can be realized with coupling and belt pulley gear. Material: Aluminum alloy with sandblasting oxidation & Stainless Steel Shaft, Overall Size: 82 x 30 x 56.2 mm/ 3.2 x 1.2 x 2.2 inch. Note: it's simple steering gear, not recommended for high torque and high accuracy CNC application, and the input & output shaft is not avaliable to replace. Note: the scratches on the shaft were left for installation, it's not used, pls do not buy if you mind.

Product Features

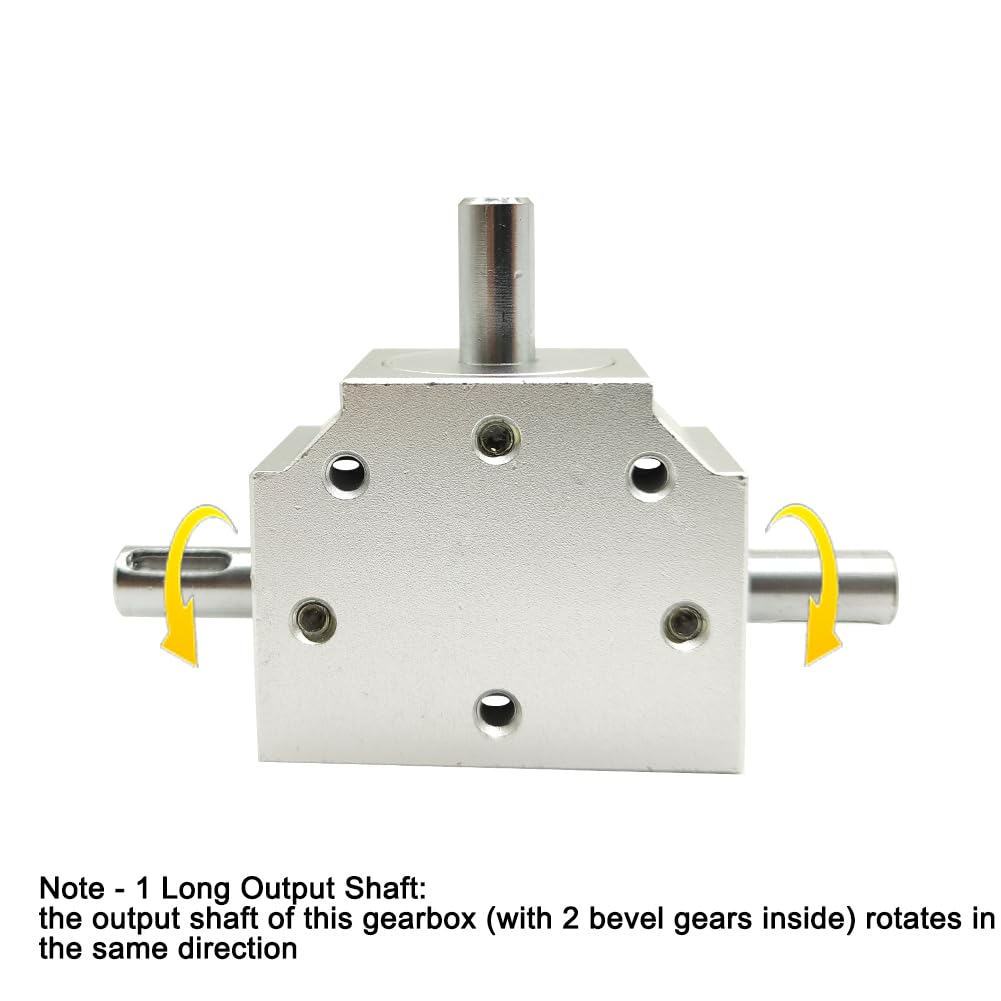

  • 1:1 T-shaped Right Angle Bevel Gearbox for Simple DIY Mechanical Application, 1 Input Shaft Drives 1 Co-rotating Output Shaft,( refer to the size diagram picture to know the inner structure and rotating directions).
  • Specification: built-in 1 module 20 teeth bevel gears, 8 mm/ 0.3" shaft, max torque rating: 5 N.M/ 3.6 ft.lbs , max rotation speed: 1500 rpm, backlash: 5 degree, if 3D file(stp) is needed, free to contact us.
  • Motor drive can be realized with coupling and belt pulley gear.
  • Material: Aluminum alloy with sandblasting oxidation & Stainless Steel Shaft, Overall Size: 82 x 30 x 56.2 mm/ 3.2 x 1.2 x 2.2 inch.
  • Note: it's simple steering gear, not recommended for high torque and high accuracy CNC application.
