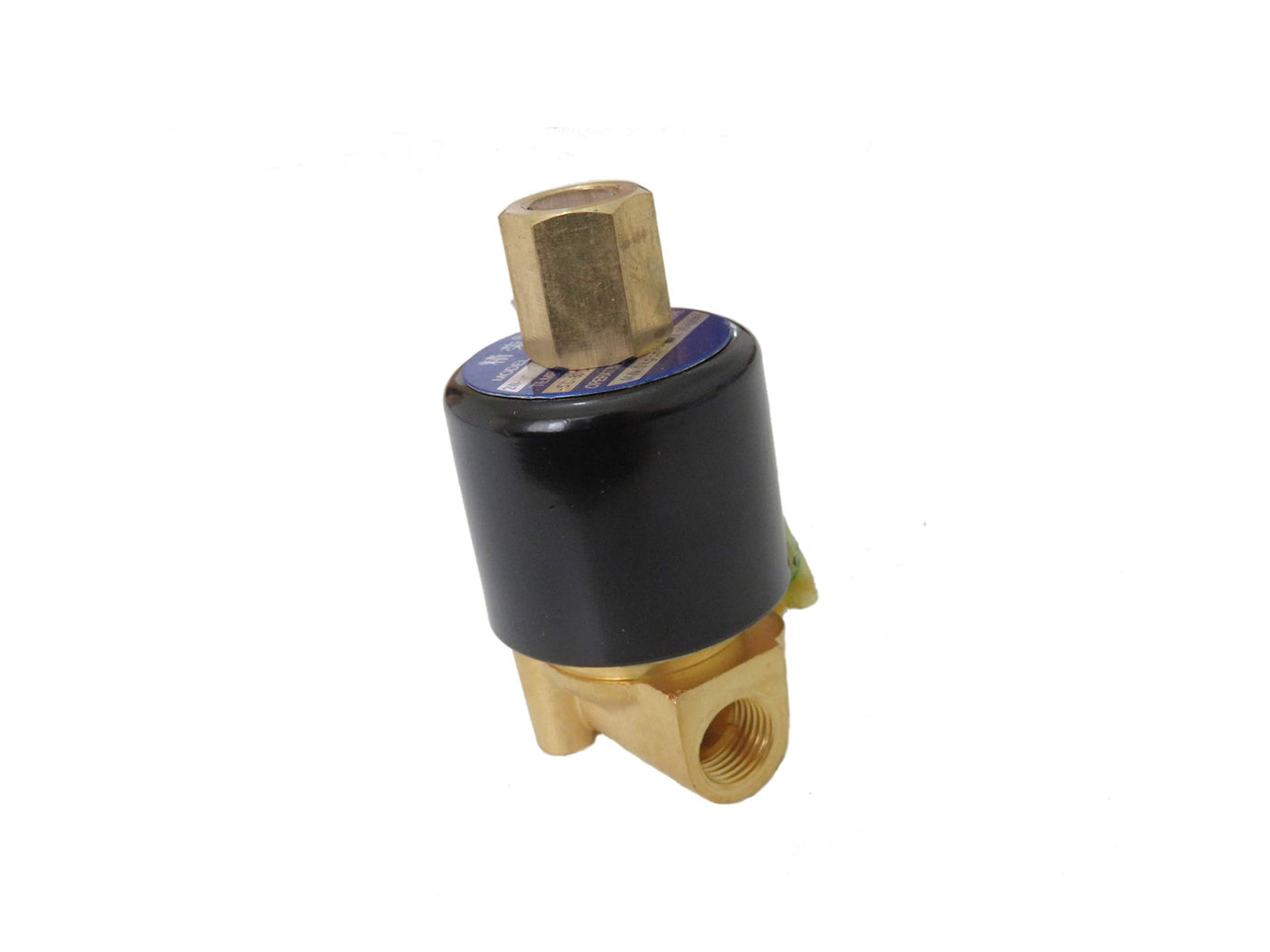

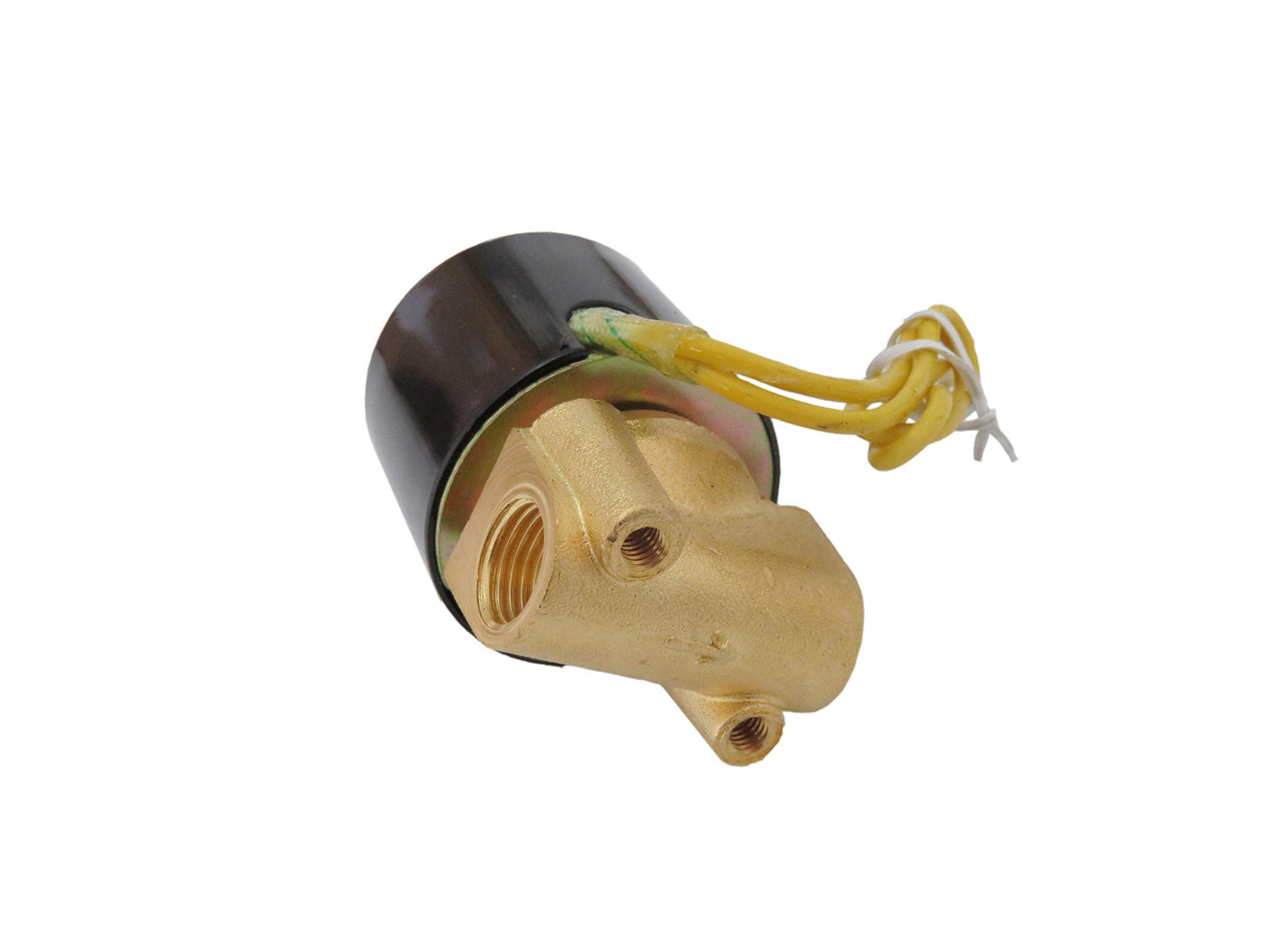

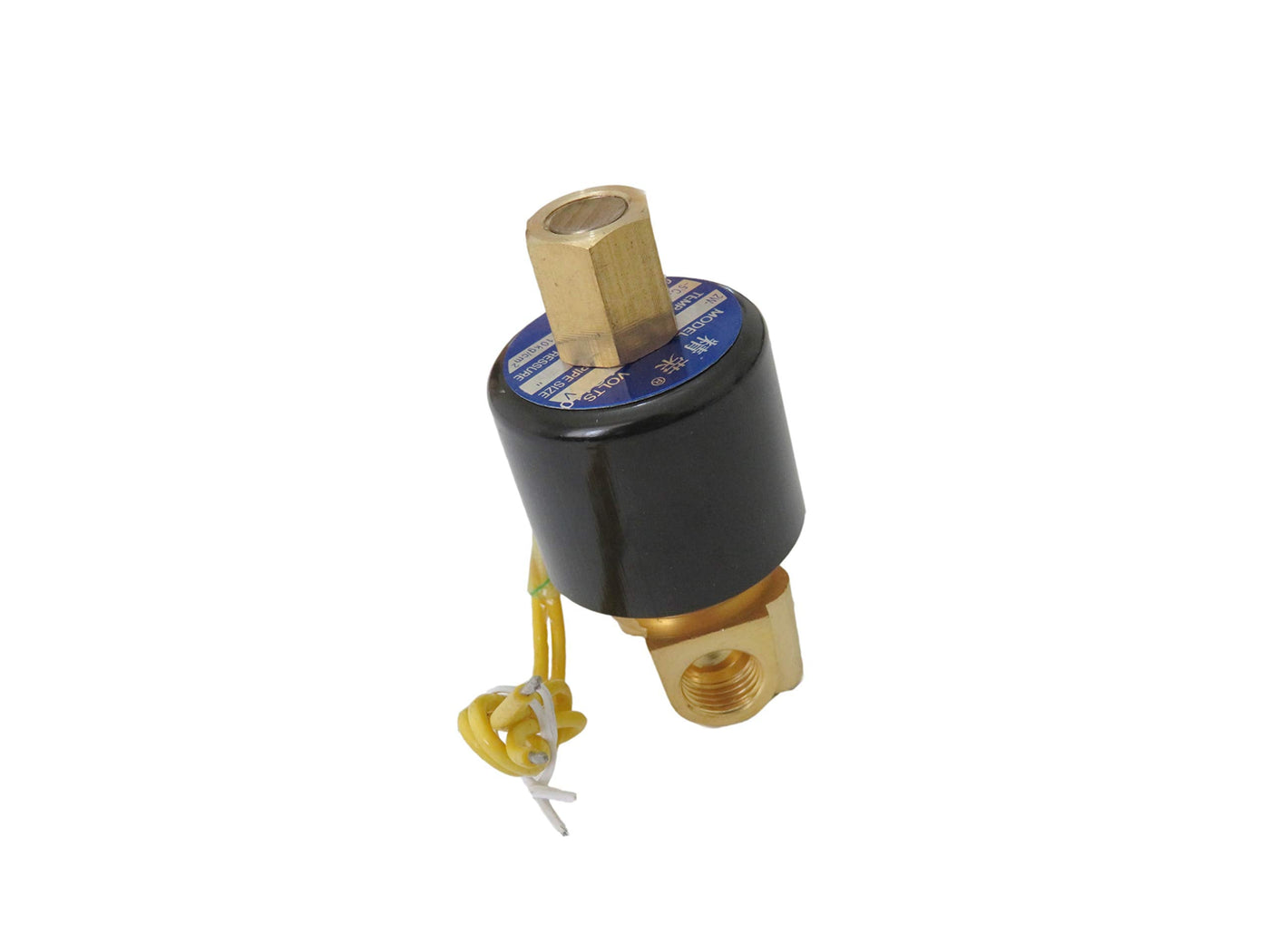

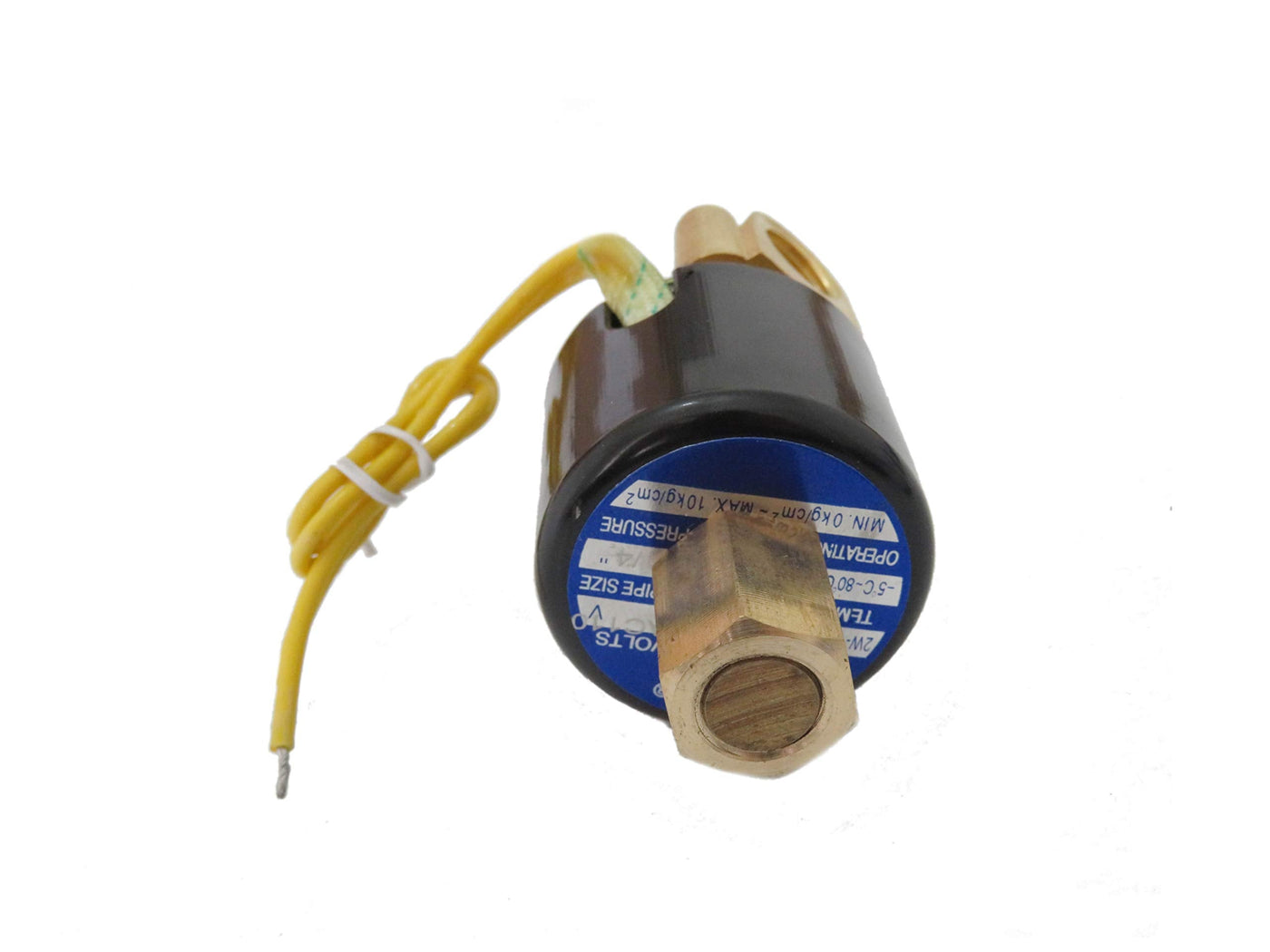

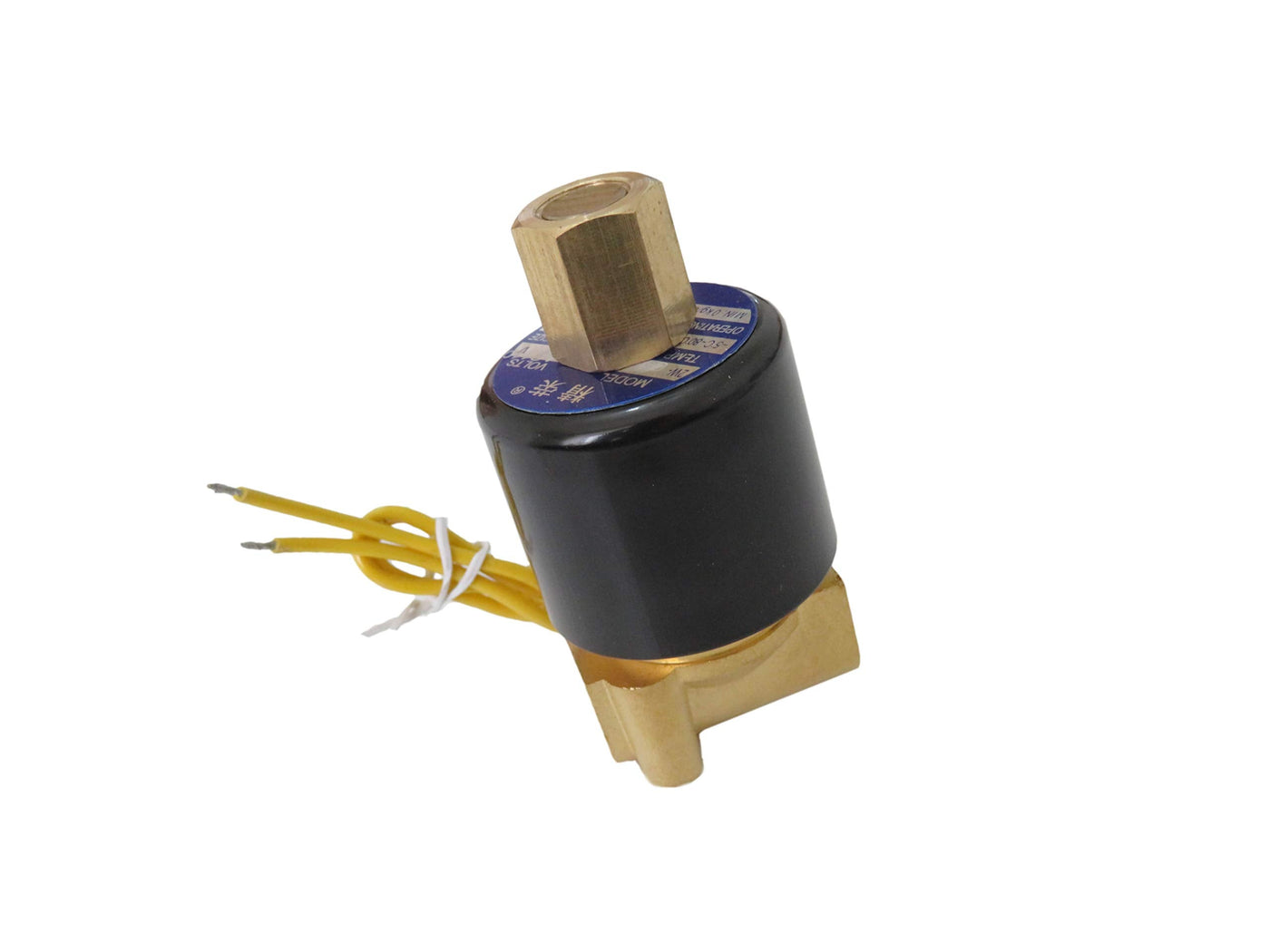

{"id":9519816802455,"title":"1\/4 inch Normally Open 110V-120V AC Brass Solenoid Valve NPT","handle":"1-4-inch-normally-open-110v-120v-ac-brass-solenoid-valve-npt","description":"\u003ch3\u003e1\/4 inch Normally Open 110V-120V AC Brass Solenoid Valve NPT\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e1\/4 Inch 110-120 VAC Normally Open Brass Solenoid Valve Each valve is\r\nindividually tested! Highlight: Body Material: Forged high-quality solid brass\r\n-Operation Mode: N\/O (normally open) -Pipe Size: 1\/4\" NPT -Voltage: 110-120\r\nVAC Diaphragm\/Seal Material NBR Applications: Industrial grade highly reliable\r\n-Mechanical Operation Type: 2-way 2-position direct acting -Operation Mode:\r\nNormally open (valve closes when coil is energized) -Pipe Size: 1\/4\" NPT\r\nfemale (18 TPI) -Orifice Diameter: 5\/32\" (4 mm) - Flow Rate: Cv = 0.5 -Flow\r\nDirection: Unidirectional (follow the arrow on valve body) -Media: Water, air,\r\nnatural gas, propane, butane, petroleum oil, mineral oils, diesel, low\r\nviscosity fluid, etc. (Do NOT use with gasoline) -Operating Pressure\r\nDifferential: 0-145 psi (0-1 MPa, gravity-feed capable) -Operating\r\nTemperature: 15-125 °F (-10~50 °C) -Media Temperature: 15-180 °F (-10~80 °C)\r\n-Dimensions: See product diagrams -Weight: 14 oz Mounting Threads (Base) M4\r\nElectrical -Voltage: 110-120 VAC Current 0.2 Amp -Wattage: 24 Watt -Coil:\r\nCopper wire in resin-molded casing -Connectors: DIN Material: -Body: Brass\r\n-Insert: Stainless steel (plunger, spring, etc.) -Seal NBR (aka Buna-N,\r\nPerbunan, and nitrile rubber) -Diaphragm: NBR (fiber-reinforced) Additional\r\nInfo: Available Coil Voltages 110\/120VAC, Available Port Sizes 1\/4\" Available\r\nTypes of Operation: Normally Closed and Normally Open Replacement\/Spare Parts:\r\nCoil\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e100% brand-new, never ever been utilized, all parts are tested and quality controlled prior to shipment\u003c\/li\u003e\r\n \u003cli\u003e110\/120 VAC, 50\/60 Hz 12 Watts, Normally Closed (Valve opens when energized)\u003c\/li\u003e\r\n \u003cli\u003eOperating Pressure: 0 PSI Min, 102 PSI Max;1\/4\"NPT Female Port\u003c\/li\u003e\r\n \u003cli\u003eSingle-Direction \/ Brass Body \/ Viton Seal \/ Stainless Steel Armature and Spring \u0026amp; Plunger\u003c\/li\u003e\r\n \u003cli\u003eWorking media: Air, Gas, Liquid, Water \/ Operation Model: Direct Lift Piston, Normally Closed\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-03-31T01:44:44+11:00","created_at":"2026-03-31T01:44:41+11:00","vendor":"JEM\u0026JULES","type":"Solenoid Valves","tags":["home_improvement_Apr2026"],"price":18400,"price_min":18400,"price_max":18400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":47570418860183,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07KQTPGG3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1\/4 inch Normally Open 110V-120V AC Brass Solenoid Valve NPT","public_title":null,"options":["Default Title"],"price":18400,"weight":338,"compare_at_price":null,"inventory_management":"shopify","barcode":"123456","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B07KQTPGG3.jpg?v=1775823379","\/\/newnestshop.com\/cdn\/shop\/files\/71x8GQ1sUQL.jpg?v=1774881884","\/\/newnestshop.com\/cdn\/shop\/files\/71nOmZSf-AL.jpg?v=1774881883","\/\/newnestshop.com\/cdn\/shop\/files\/615iXZQLm7L.jpg?v=1774881883","\/\/newnestshop.com\/cdn\/shop\/files\/61kT8lR7DxL.jpg?v=1774881883"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B07KQTPGG3.jpg?v=1775823379","options":["Title"],"media":[{"alt":null,"id":41282125267095,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B07KQTPGG3.jpg?v=1775823379"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B07KQTPGG3.jpg?v=1775823379","width":2560},{"alt":null,"id":41282125299863,"position":2,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71x8GQ1sUQL.jpg?v=1774881884"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71x8GQ1sUQL.jpg?v=1774881884","width":2560},{"alt":null,"id":41282125332631,"position":3,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71nOmZSf-AL.jpg?v=1774881883"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71nOmZSf-AL.jpg?v=1774881883","width":2560},{"alt":null,"id":41282125365399,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/615iXZQLm7L.jpg?v=1774881883"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/615iXZQLm7L.jpg?v=1774881883","width":2560},{"alt":null,"id":41282125398167,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61kT8lR7DxL.jpg?v=1774881883"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61kT8lR7DxL.jpg?v=1774881883","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e1\/4 inch Normally Open 110V-120V AC Brass Solenoid Valve NPT\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e1\/4 Inch 110-120 VAC Normally Open Brass Solenoid Valve Each valve is\r\nindividually tested! Highlight: Body Material: Forged high-quality solid brass\r\n-Operation Mode: N\/O (normally open) -Pipe Size: 1\/4\" NPT -Voltage: 110-120\r\nVAC Diaphragm\/Seal Material NBR Applications: Industrial grade highly reliable\r\n-Mechanical Operation Type: 2-way 2-position direct acting -Operation Mode:\r\nNormally open (valve closes when coil is energized) -Pipe Size: 1\/4\" NPT\r\nfemale (18 TPI) -Orifice Diameter: 5\/32\" (4 mm) - Flow Rate: Cv = 0.5 -Flow\r\nDirection: Unidirectional (follow the arrow on valve body) -Media: Water, air,\r\nnatural gas, propane, butane, petroleum oil, mineral oils, diesel, low\r\nviscosity fluid, etc. (Do NOT use with gasoline) -Operating Pressure\r\nDifferential: 0-145 psi (0-1 MPa, gravity-feed capable) -Operating\r\nTemperature: 15-125 °F (-10~50 °C) -Media Temperature: 15-180 °F (-10~80 °C)\r\n-Dimensions: See product diagrams -Weight: 14 oz Mounting Threads (Base) M4\r\nElectrical -Voltage: 110-120 VAC Current 0.2 Amp -Wattage: 24 Watt -Coil:\r\nCopper wire in resin-molded casing -Connectors: DIN Material: -Body: Brass\r\n-Insert: Stainless steel (plunger, spring, etc.) -Seal NBR (aka Buna-N,\r\nPerbunan, and nitrile rubber) -Diaphragm: NBR (fiber-reinforced) Additional\r\nInfo: Available Coil Voltages 110\/120VAC, Available Port Sizes 1\/4\" Available\r\nTypes of Operation: Normally Closed and Normally Open Replacement\/Spare Parts:\r\nCoil\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e100% brand-new, never ever been utilized, all parts are tested and quality controlled prior to shipment\u003c\/li\u003e\r\n \u003cli\u003e110\/120 VAC, 50\/60 Hz 12 Watts, Normally Closed (Valve opens when energized)\u003c\/li\u003e\r\n \u003cli\u003eOperating Pressure: 0 PSI Min, 102 PSI Max;1\/4\"NPT Female Port\u003c\/li\u003e\r\n \u003cli\u003eSingle-Direction \/ Brass Body \/ Viton Seal \/ Stainless Steel Armature and Spring \u0026amp; Plunger\u003c\/li\u003e\r\n \u003cli\u003eWorking media: Air, Gas, Liquid, Water \/ Operation Model: Direct Lift Piston, Normally Closed\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
