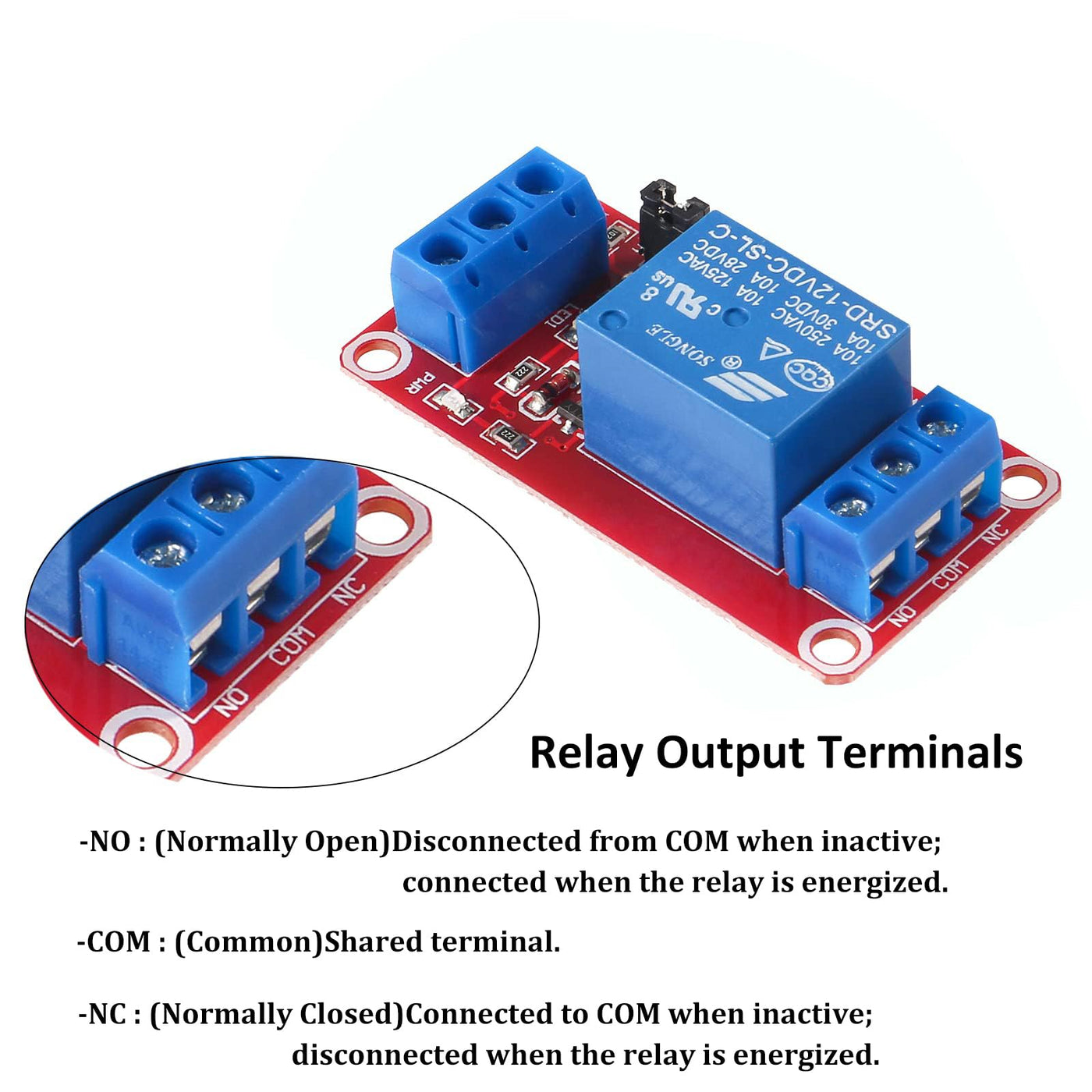

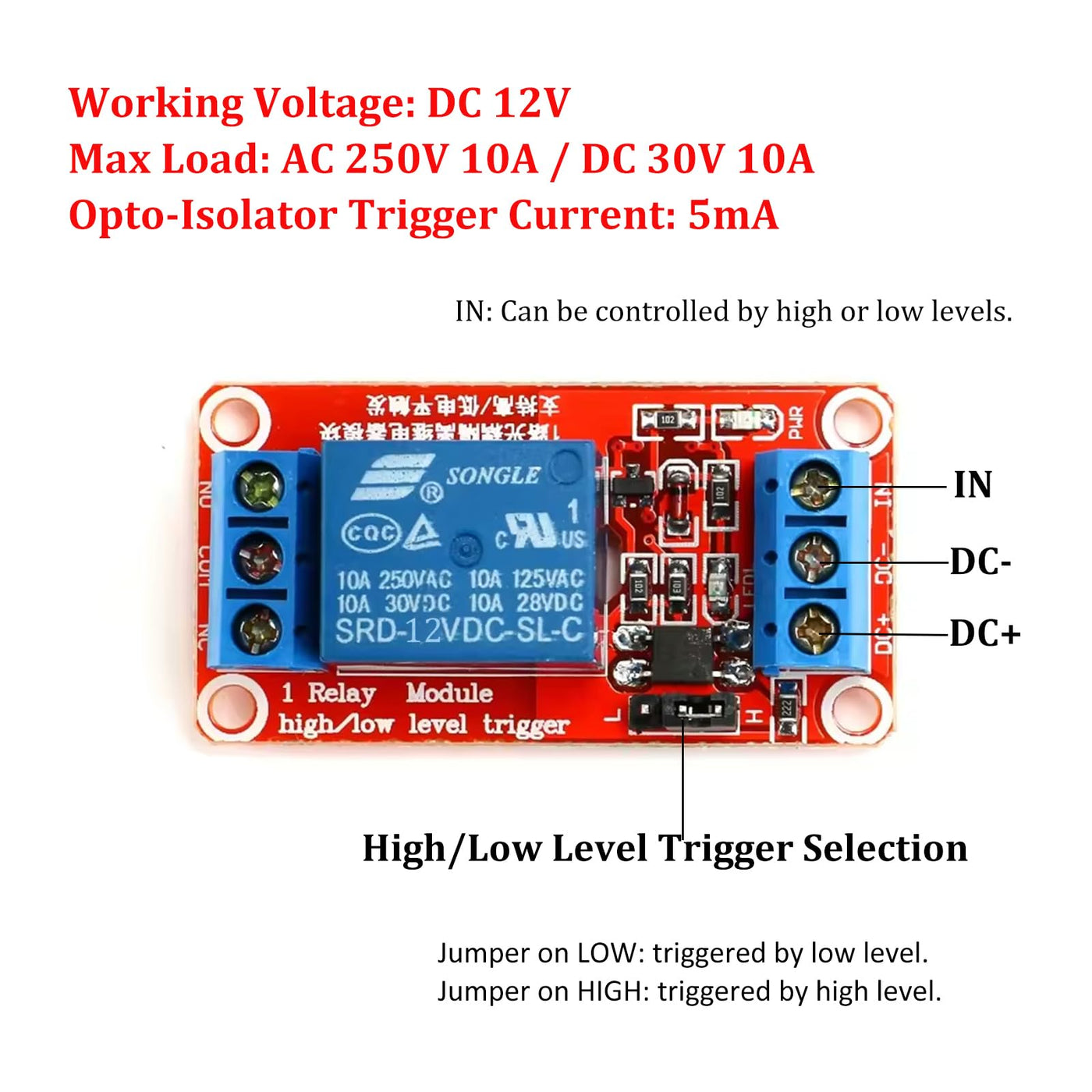

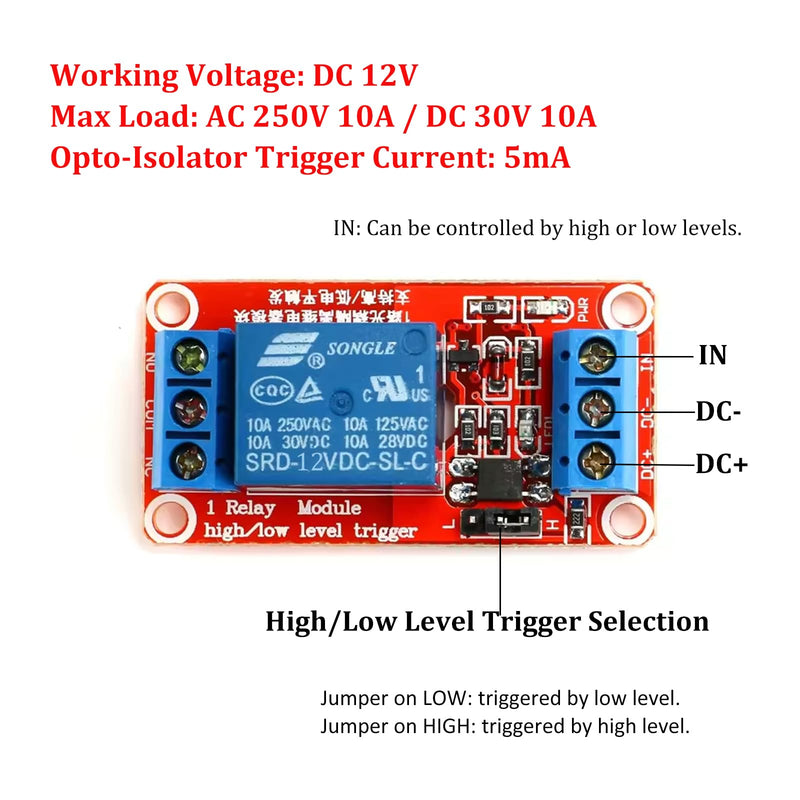

{"id":9561763610775,"title":"10 PCS 12V 1 Channel Relay Module with Optocoupler Isolation, Relay Board with High\/Low Level Trigger Jumper, 250V\/10A AC or 30V\/10A DC Load, Fault-Tolerant Design 1 Channel 12V-10Pcs","handle":"10-pcs-12v-1-channel-relay-module-with-optocoupler-isolation-relay-board-with-high-low-level-trigger-jumper-250v-10a-ac-or-30v-10a-dc-load-fault-tolerant-design-1-channel-12v-10pcs","description":"\u003ch3\u003e10 PCS 12V 1 Channel Relay Module with Optocoupler Isolation, Relay Board with High\/Low Level Trigger Jumper, 250V\/10A AC or 30V\/10A DC Load, Fault-Tolerant Design\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSPECIFICATION:-Relay Channels: 1 Channel-Working Voltage: DC 12V-Trigger\r\nCurrent: 5mA-Max Load (AC): 250V \/ 10A-Max Load (DC): 30V \/ 10A-Trigger Mode:\r\nHigh-level or Low-level (jumper selectable)-Isolation Type: Optocoupler\r\n(Photoelectric Isolation)-Indicators: Power LED (Green), Relay Status LED\r\n(Red)-Output Terminals: NO (Normally Open), COM (Common), NC (Normally\r\nClosed)-Input Terminals: DC+, DC-, IN (Signal)-Compatible Logic Voltage: 12V\r\nSystems (Arduino, Raspberry Pi, AVR, PIC, ARM, etc.)-Module Type:\r\nElectromechanical Relay Module-Terminal Type: Screw Terminals – No soldering\r\nrequired-Operating Temperature: -40°C to +85°C (typical)Package:-10 PCS 12V 1\r\nChannel Relay ModuleRelay Output Terminals:-NO (Normally Open): Disconnected\r\nfrom COM when inactive; connected when the relay is energized.-COM (Common):\r\nShared terminal.-NC (Normally Closed): Connected to COM when inactive;\r\ndisconnected when the relay is energized.High and low level trigger selection\r\nterminal:-Jumper on LOW: triggered by low level.-Jumper on HIGH: triggered by\r\nhigh level.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e12V Relay Module with Optocoupler Isolation Operating at DC 12V, this relay supports a max load of AC 250V\/10A or DC 30V\/10A. Built-in opto-isolator provides strong drive capability, stable performance, and protects your controller from voltage spikes.\u003c\/li\u003e\r\n \u003cli\u003eFault-Tolerant \u0026amp; Safe Design Designed to avoid misoperation: even if the control signal line breaks, the relay remains inactive. Power (green) and relay status (red) indicator LEDs allow easy monitoring.\u003c\/li\u003e\r\n \u003cli\u003eHigh\/Low Level Trigger Jumper A configurable jumper enables you to easily set the trigger mode (HIGH or LOW level), accommodating various microcontroller signal outputs. Compatible with 5V logic levels.\u003c\/li\u003e\r\n \u003cli\u003eUser-Friendly Wiring Terminals Features screw terminals for all relay connections: NO (Normally Open), NC (Normally Closed), and COM (Common). All input\/output pins are accessible via terminal blocksno soldering required.\u003c\/li\u003e\r\n \u003cli\u003eVersatile for DIY \u0026amp; Industrial Use Works seamlessly with Arduino, Raspberry Pi, AVR, PIC, ARM, CNC machines, PS4 power control, and more. Ideal for smart home automation, robotic controls, or electrical projects.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-04-06T14:46:04+10:00","created_at":"2026-04-06T14:46:01+10:00","vendor":"XUGERIP","type":"Relays","tags":["home_improvement_Apr2026"],"price":9300,"price_min":9300,"price_max":9300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":47623067828375,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0FDB2K66X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"10 PCS 12V 1 Channel Relay Module with Optocoupler Isolation, Relay Board with High\/Low Level Trigger Jumper, 250V\/10A AC or 30V\/10A DC Load, Fault-Tolerant Design 1 Channel 12V-10Pcs","public_title":null,"options":["Default Title"],"price":9300,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"KUU293","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0FDB2K66X.jpg?v=1775832931","\/\/newnestshop.com\/cdn\/shop\/files\/711A3C68xpL.jpg?v=1775450764","\/\/newnestshop.com\/cdn\/shop\/files\/71L47SPEGjL.jpg?v=1775450764","\/\/newnestshop.com\/cdn\/shop\/files\/71VYRLk70vL.jpg?v=1775450764","\/\/newnestshop.com\/cdn\/shop\/files\/71cactmNVXL.jpg?v=1775450764"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0FDB2K66X.jpg?v=1775832931","options":["Title"],"media":[{"alt":null,"id":41412915134615,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0FDB2K66X.jpg?v=1775832931"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0FDB2K66X.jpg?v=1775832931","width":1600},{"alt":null,"id":41412915167383,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/711A3C68xpL.jpg?v=1775450764"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/711A3C68xpL.jpg?v=1775450764","width":1600},{"alt":null,"id":41412915200151,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71L47SPEGjL.jpg?v=1775450764"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71L47SPEGjL.jpg?v=1775450764","width":1600},{"alt":null,"id":41412915232919,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71VYRLk70vL.jpg?v=1775450764"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71VYRLk70vL.jpg?v=1775450764","width":1600},{"alt":null,"id":41412915265687,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71cactmNVXL.jpg?v=1775450764"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71cactmNVXL.jpg?v=1775450764","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e10 PCS 12V 1 Channel Relay Module with Optocoupler Isolation, Relay Board with High\/Low Level Trigger Jumper, 250V\/10A AC or 30V\/10A DC Load, Fault-Tolerant Design\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSPECIFICATION:-Relay Channels: 1 Channel-Working Voltage: DC 12V-Trigger\r\nCurrent: 5mA-Max Load (AC): 250V \/ 10A-Max Load (DC): 30V \/ 10A-Trigger Mode:\r\nHigh-level or Low-level (jumper selectable)-Isolation Type: Optocoupler\r\n(Photoelectric Isolation)-Indicators: Power LED (Green), Relay Status LED\r\n(Red)-Output Terminals: NO (Normally Open), COM (Common), NC (Normally\r\nClosed)-Input Terminals: DC+, DC-, IN (Signal)-Compatible Logic Voltage: 12V\r\nSystems (Arduino, Raspberry Pi, AVR, PIC, ARM, etc.)-Module Type:\r\nElectromechanical Relay Module-Terminal Type: Screw Terminals – No soldering\r\nrequired-Operating Temperature: -40°C to +85°C (typical)Package:-10 PCS 12V 1\r\nChannel Relay ModuleRelay Output Terminals:-NO (Normally Open): Disconnected\r\nfrom COM when inactive; connected when the relay is energized.-COM (Common):\r\nShared terminal.-NC (Normally Closed): Connected to COM when inactive;\r\ndisconnected when the relay is energized.High and low level trigger selection\r\nterminal:-Jumper on LOW: triggered by low level.-Jumper on HIGH: triggered by\r\nhigh level.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e12V Relay Module with Optocoupler Isolation Operating at DC 12V, this relay supports a max load of AC 250V\/10A or DC 30V\/10A. Built-in opto-isolator provides strong drive capability, stable performance, and protects your controller from voltage spikes.\u003c\/li\u003e\r\n \u003cli\u003eFault-Tolerant \u0026amp; Safe Design Designed to avoid misoperation: even if the control signal line breaks, the relay remains inactive. Power (green) and relay status (red) indicator LEDs allow easy monitoring.\u003c\/li\u003e\r\n \u003cli\u003eHigh\/Low Level Trigger Jumper A configurable jumper enables you to easily set the trigger mode (HIGH or LOW level), accommodating various microcontroller signal outputs. Compatible with 5V logic levels.\u003c\/li\u003e\r\n \u003cli\u003eUser-Friendly Wiring Terminals Features screw terminals for all relay connections: NO (Normally Open), NC (Normally Closed), and COM (Common). All input\/output pins are accessible via terminal blocksno soldering required.\u003c\/li\u003e\r\n \u003cli\u003eVersatile for DIY \u0026amp; Industrial Use Works seamlessly with Arduino, Raspberry Pi, AVR, PIC, ARM, CNC machines, PS4 power control, and more. Ideal for smart home automation, robotic controls, or electrical projects.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
