100PCS Heat Shrink Female/Male Connectors Kit,Insulated 22-10AWG Spade Crimp Terminals,Quick Disconnect Connectors for Marine 100PCS(40PCS Red + 40PCS Blue + 20PCS yellow)
100PCS Heat Shrink Female/Male Connectors Kit,Insulated 22-10AWG Spade Crimp Terminals,Quick Disconnect Connectors for Marine

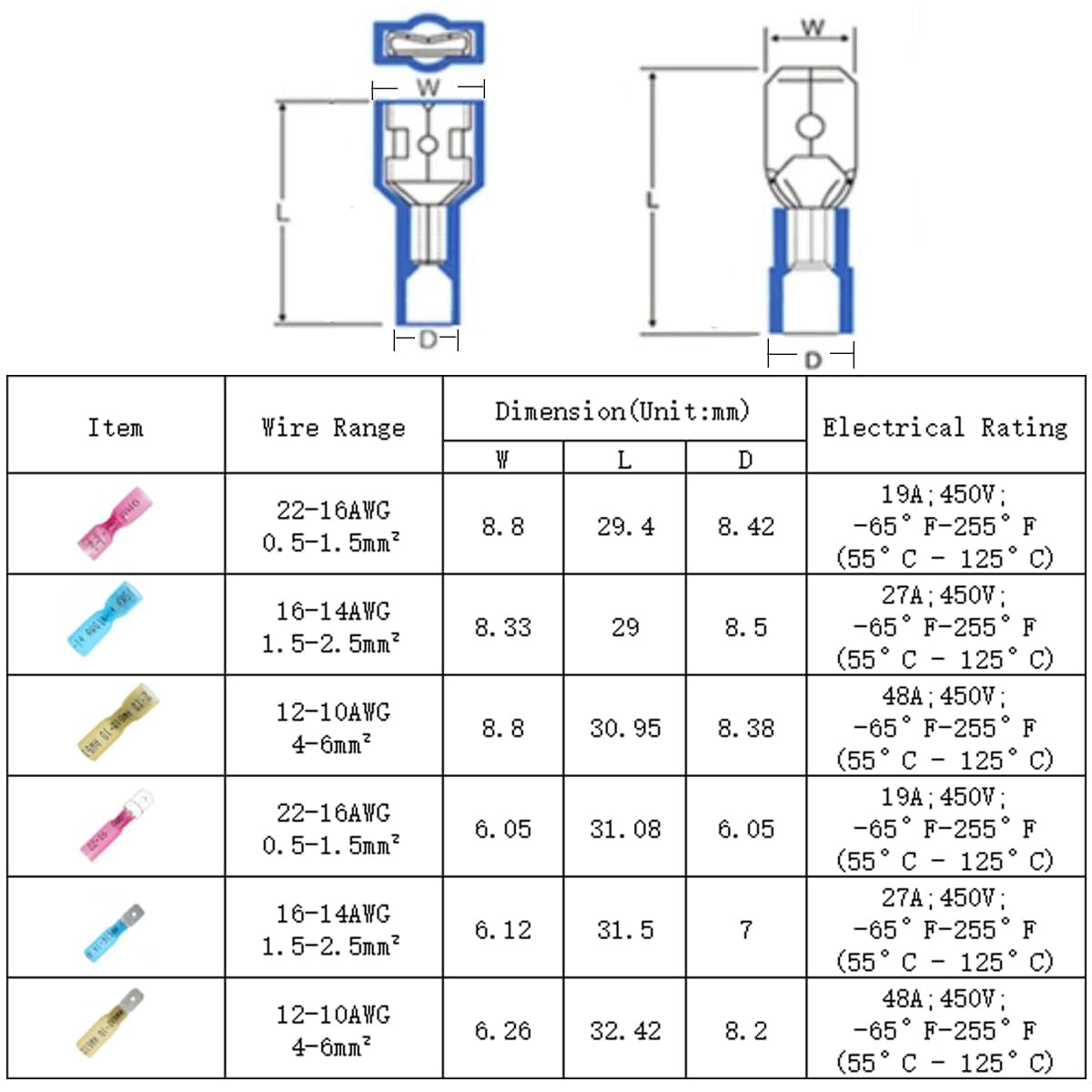

Name: Heat Shrink Spade Connector, Fully Insulated Tabbed Butt Terminal Specification: Type: spade terminal connector Material: Copper + PE Shrinkage ratio 3: 1 Minimum shrink temperature: 175°F (80°C) Full recovery temperature: 265°F (130°C) Operating temperature: -65°F-255°F (55°C - 125°C) Color: Red A.W.G.: 22-16 Wire range: 0.5-1.5mm² Maximum current: 19A Color: Blue A.W.G.: 16-14 Wire range: 1.5-2.5mm² Maximum current: 27A Color: Yellow A.W.G.: 12-10 Wire range: 4-6mm² Maximum current: 48A Features: 1. Made of high quality red copper with strong electrical conductivity; 2. Waterproof rating up to IP67, can be used on ships, sea and other places where there is water; 3. male and female matching design makes the use more convenient and faster. Package Contents: 20 sets of red = 20pcs red female + 20pcs red male 20 sets of blue = 20pcs blue females + 20pcs blue male 10 sets of yellow = 10pcs yellow females + 10pcs yellow male
Product Features

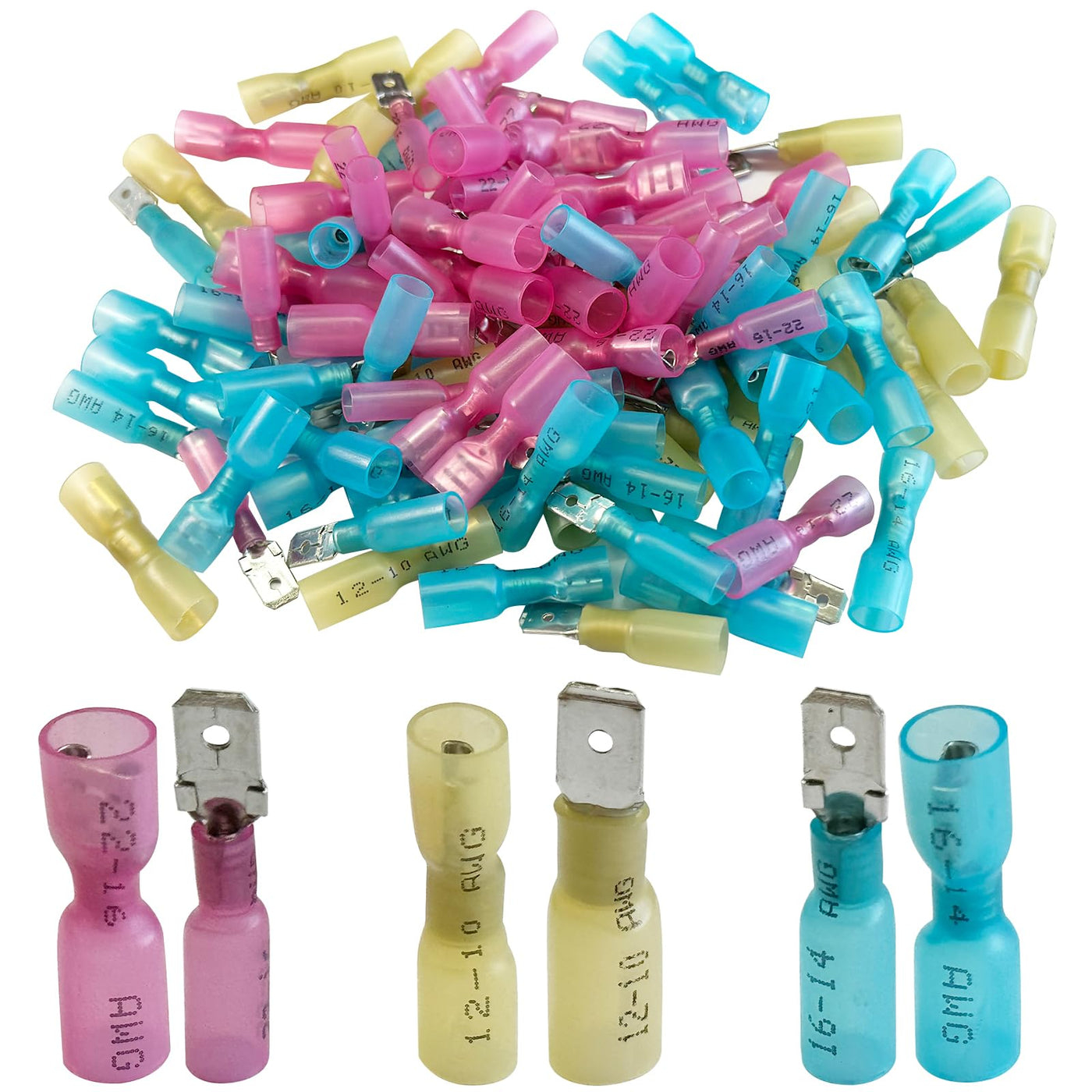

- Plug in Male & Female Butt Terminals -- The heat shrink butt terminal kit includes 20 sets red + 20 sets blue + 10 sets yellow (each set is 1pcs male + 1pcs female), total 100 pcs,which can Insertion and removal many times for quick replacement of failed components.

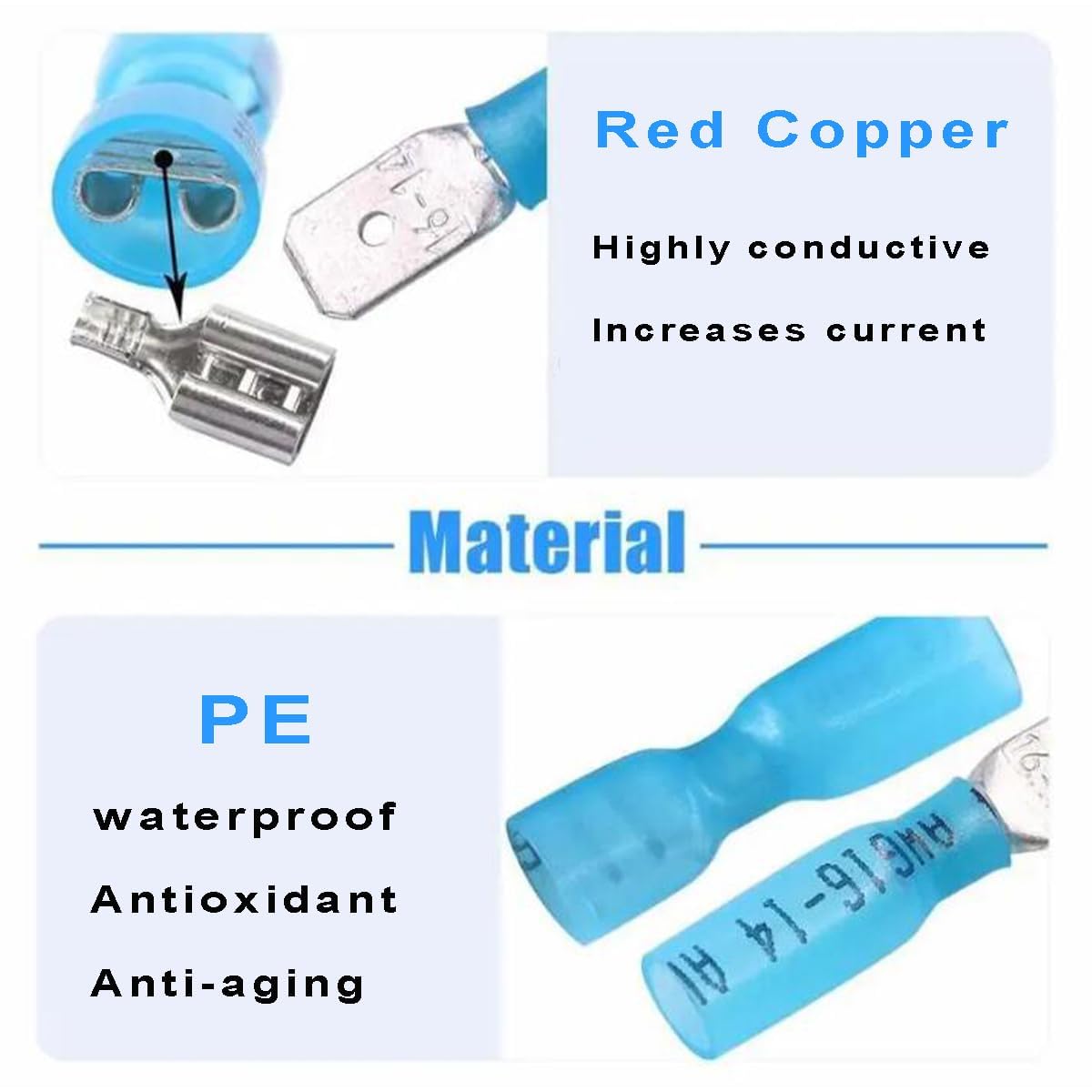

- Premium Quality Materials -- The terminations of the heat shrink connectors are made of red copper with excellent electrical conductivity, which increases current flow and reduces wiring failures and equipment downtime.
- Waterproof Heat Shrink Design -- The heat shrink tubing is made of PE material,contained within gel inside, which will stick tightly to the wires after heat shrinking to make the wiring more tightly, and also can effectively delay the aging and oxidation of the wires. The connecting part of the wire to the wire connector can reach IP67 waterproof rating.

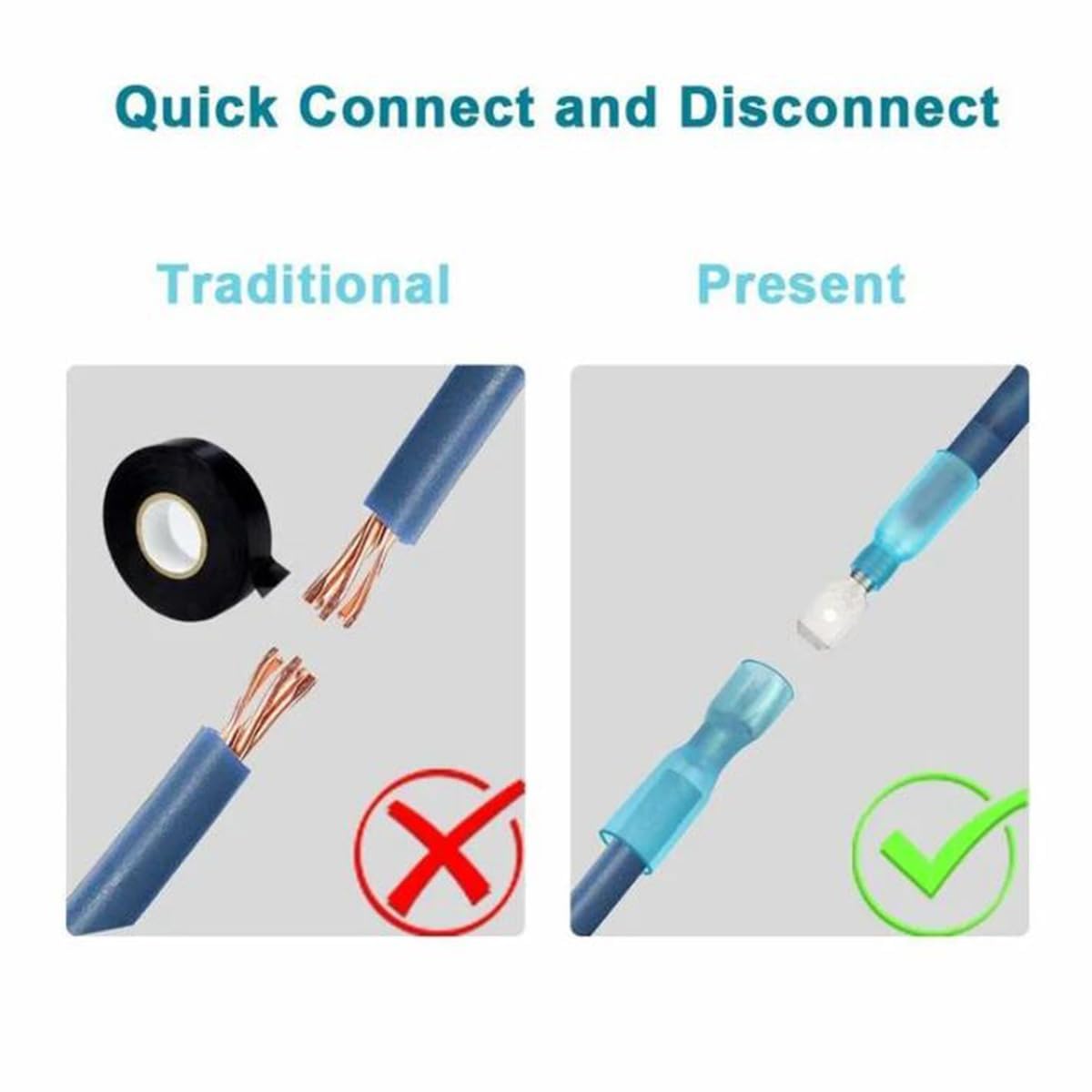

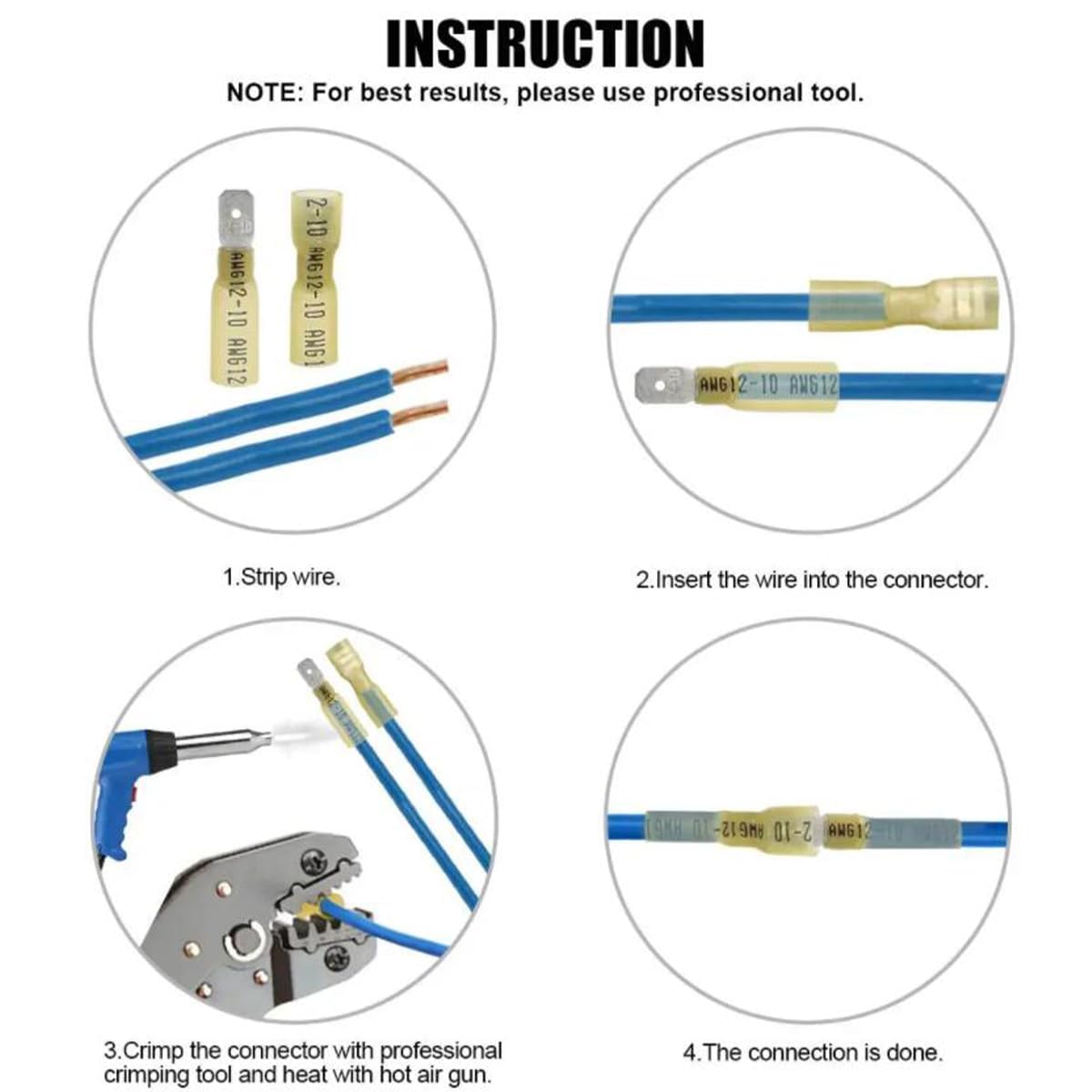

- Quick and Easy to Use -- Use the heat gun to heat the wire and tubing connections, then connect the male and female connectors, the male and female butt joints can be connected and disconnected several times, compared with the traditional wiring method to save time. When wiring, the semi-transparent tube sleeve design allows you to see inside, ensuring that the wires are not exposed and avoiding arcing.
- Wide Applications -- Female/Male Insulated Heat Shrink Spade Connectors can be used not only in marine/watercraft, automotive/automotive, electrical and other industries, but also in lighting, motorcycles, automobiles, washing machines and other household appliances.
