1x40 0.1 Inch Pitch Bread Board PCB Connector Extra Tall Female Stacking Header，Needle Length 0.43in(Pack of 10) 1x40pin
1x40 0.1 Inch Pitch Bread Board PCB Connector Extra Tall Female Stacking Header，Needle Length 0.43in(Pack of 10)

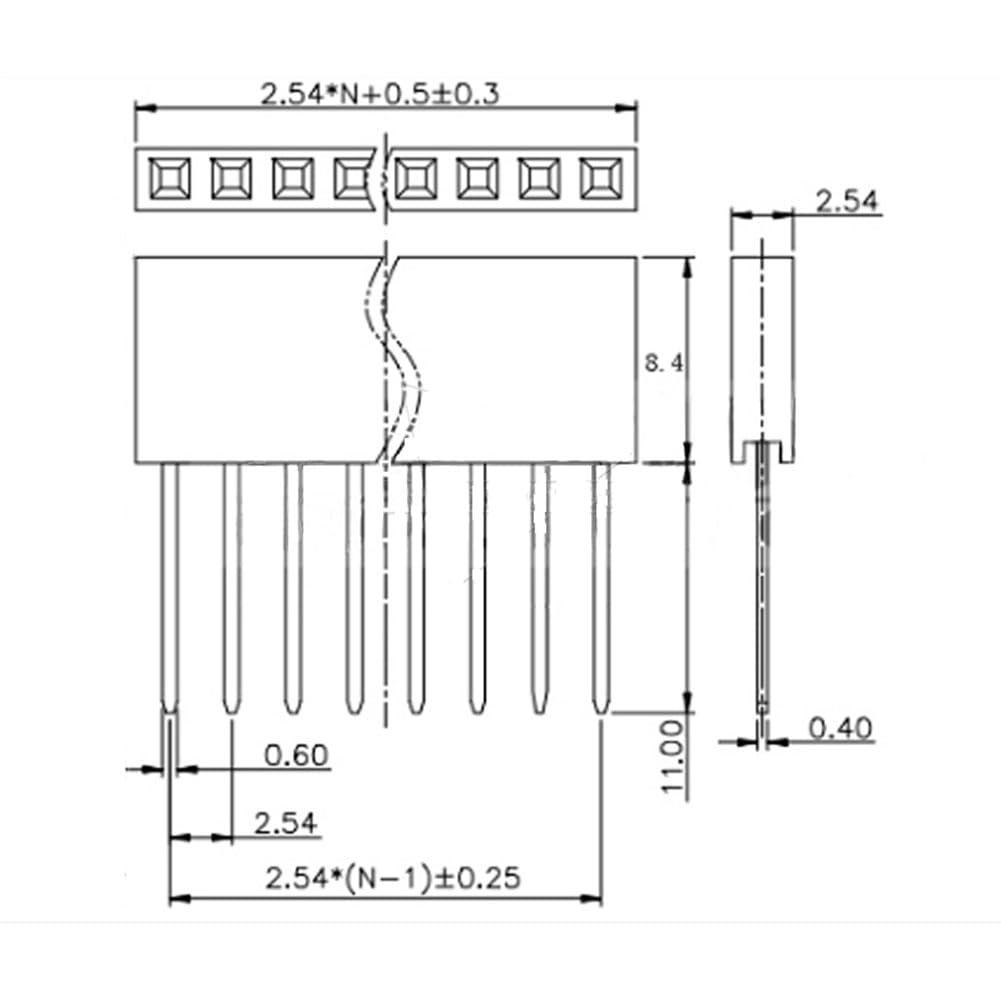

Row pins are generally widely used in the connection of PCB boards, with the reputation of universal connector. Generally, they are paired with connectors such as busbar and wire end. Rated current: 3A Contact resistance: 20mΩ Max Insulation resistance: 1000mΩ Withstand voltage: AC 1000V Operating temperature: - 105 ℃ to + 40 ℃ Color: as picture shows Pin spacing: 2.54 mm/ 0.1 inch pin pitch Pin length: 11 mm/ 0.43 inch Pin Thickness: 0.6 mm / 0.02 inch The size of the header pins should correspond to the same of the header holes, otherwise the connection is not tight enough and easy to loosen. Choose the header according to the required number of pins and the pin spacing, and insert it directly into the breadboard to connect or form a connector with the header to achieve the purpose of connection Application---Used to connect the PCB prototype and the breadboard, the docking of the small board and the breadboard, as a through stacking head on the PCB Package comes with 10 pieces break-away 0.1 inch 1 x 40-pin
Product Features
- 1x 40pin, Pin spacing: 2.54mm / 0.1' , Number of Rows: Single row of 40-holes, Contact Shape: Square, Degrees:180, Straight, Long pin length: 11 mm / 0.43 inch.
- Contact material - Gold plated; Insulation Material - PA6T, high temperature resistant
- Cuttable: you can cut them, or score them with some electronic tool, like soldering iron, and snap them off; They can be cut to any size if needed.
- Widely applied in the computer, breadboard and electronic DIY.
- Package quantity: you will receive 10 pieces 0.1 inch pitch stacking header, enough quantity to meet your different needs, for replacement or as backup
