2 Set 24MHz 8CH 24MHz 8 Channel USB Logic Analyzer Device with EMI Ferrite Ring USB Cable UART IIC SPI Debug Compatible with Ar-duino ARM FPGA M100 SCM

In Stock. Leaves warehouse within 2 - 3 business days

$116.00 AUD
Maximum quantity available reached.
Shop with Confidence — Free Shipping, Always
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

2 Set 24MHz 8CH 24MHz 8 Channel USB Logic Analyzer Device with EMI Ferrite Ring USB Cable UART IIC SPI Debug Compatible with Ar-duino ARM FPGA M100 SCM

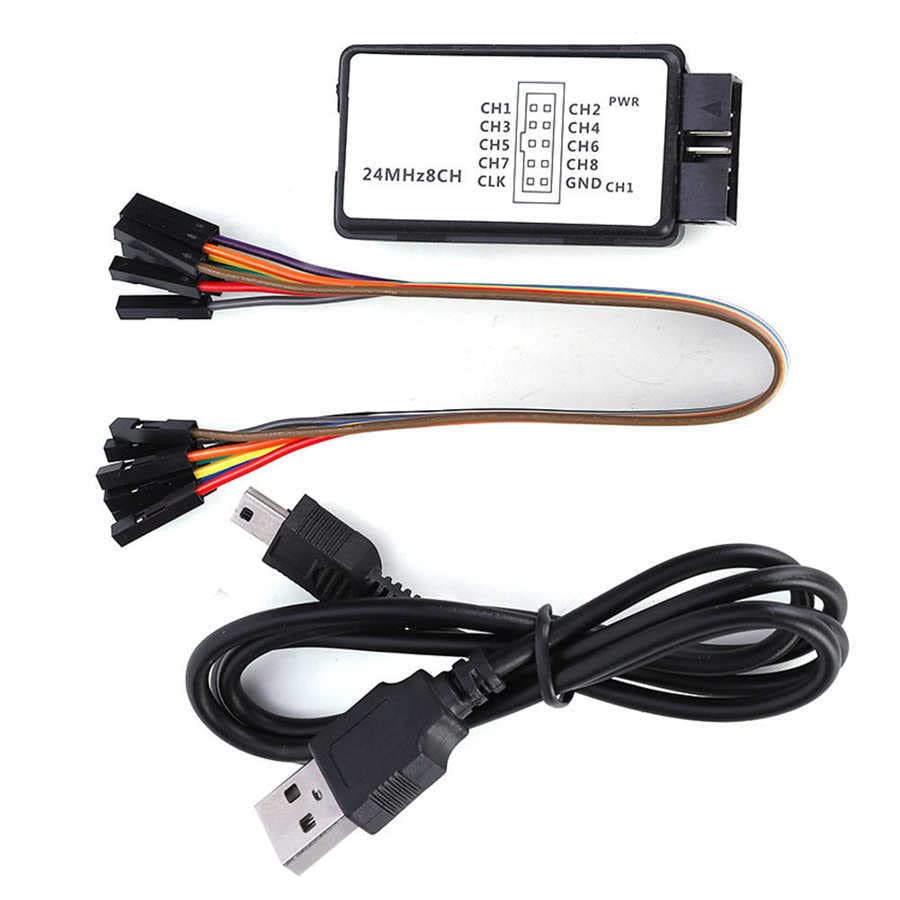

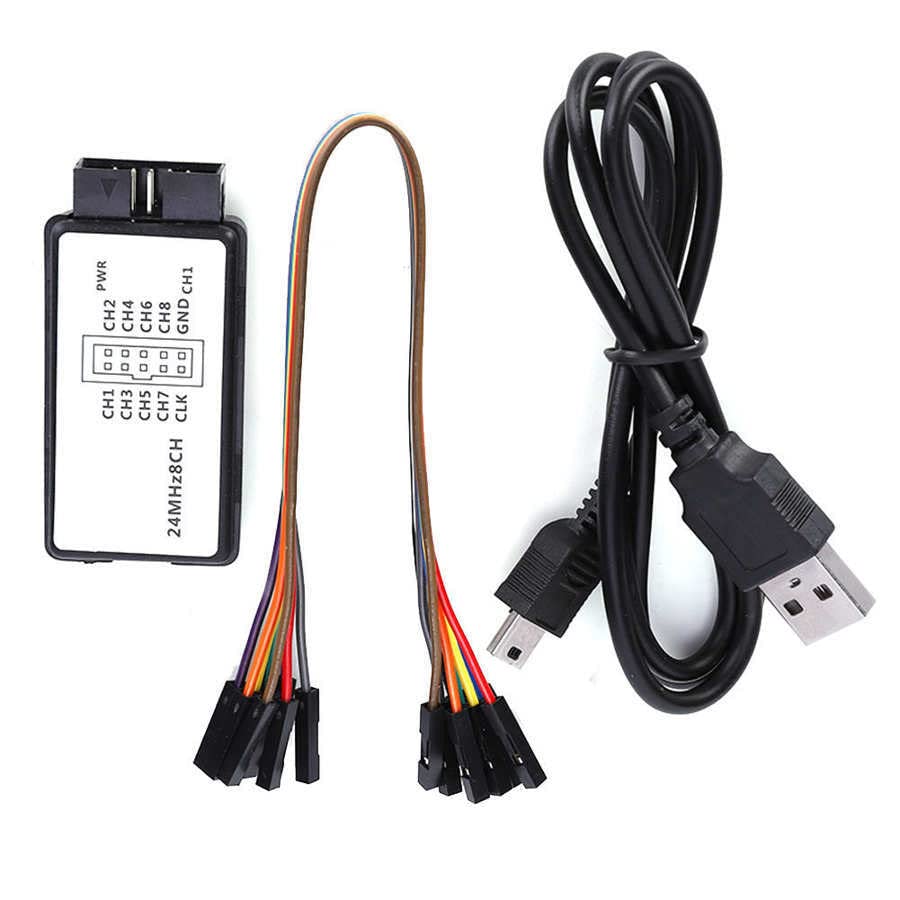

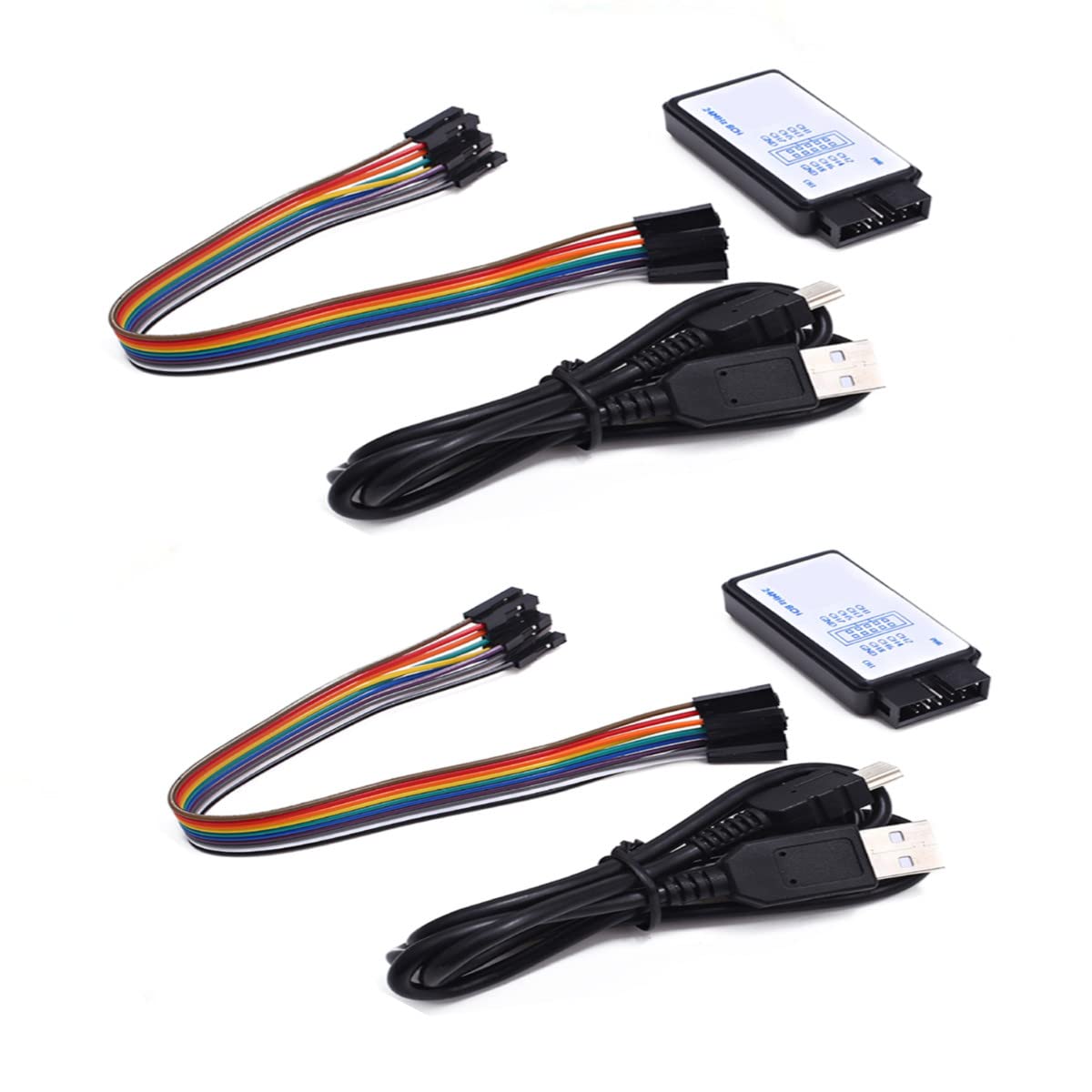

USB Logic Analyzer Device With USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI DebugSampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions;8-channel;Voltage range:Input voltage range: -0.5V to 5.25VInput Low Voltage: -0.5V to 0.8VInput High Voltage: 2.0V to 5.25VWorks with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended.Input Impedance: 1Mohm || 10pF (typical, approximate)Crystal: +/-20ppm, 24MHzError/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz).Packing Included:2 Logic Analyser2 USB Cable2 Dupont Cable

Product Features

  • The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions; 8-channel
  • Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
  • The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions;
  • Input voltage range: -0.5V to 5.25V; Input Low Voltage: -0.5V to 0.8V; Input High Voltage: 2.0V to 5.25V
  • Input Impedance: 1Mohm || 10pF (typical, approximate); Crystal: +/-20ppm, 24MHz
