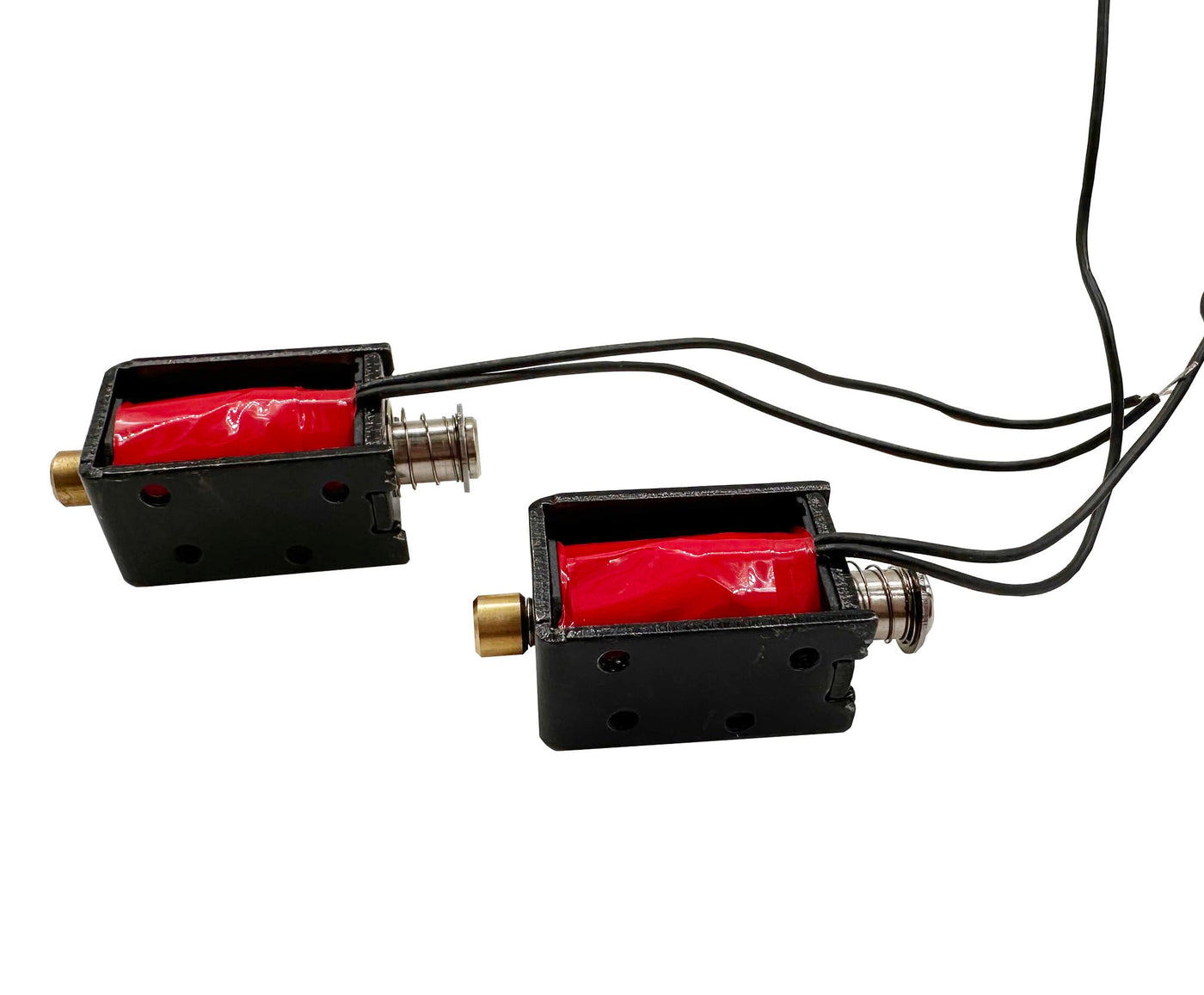

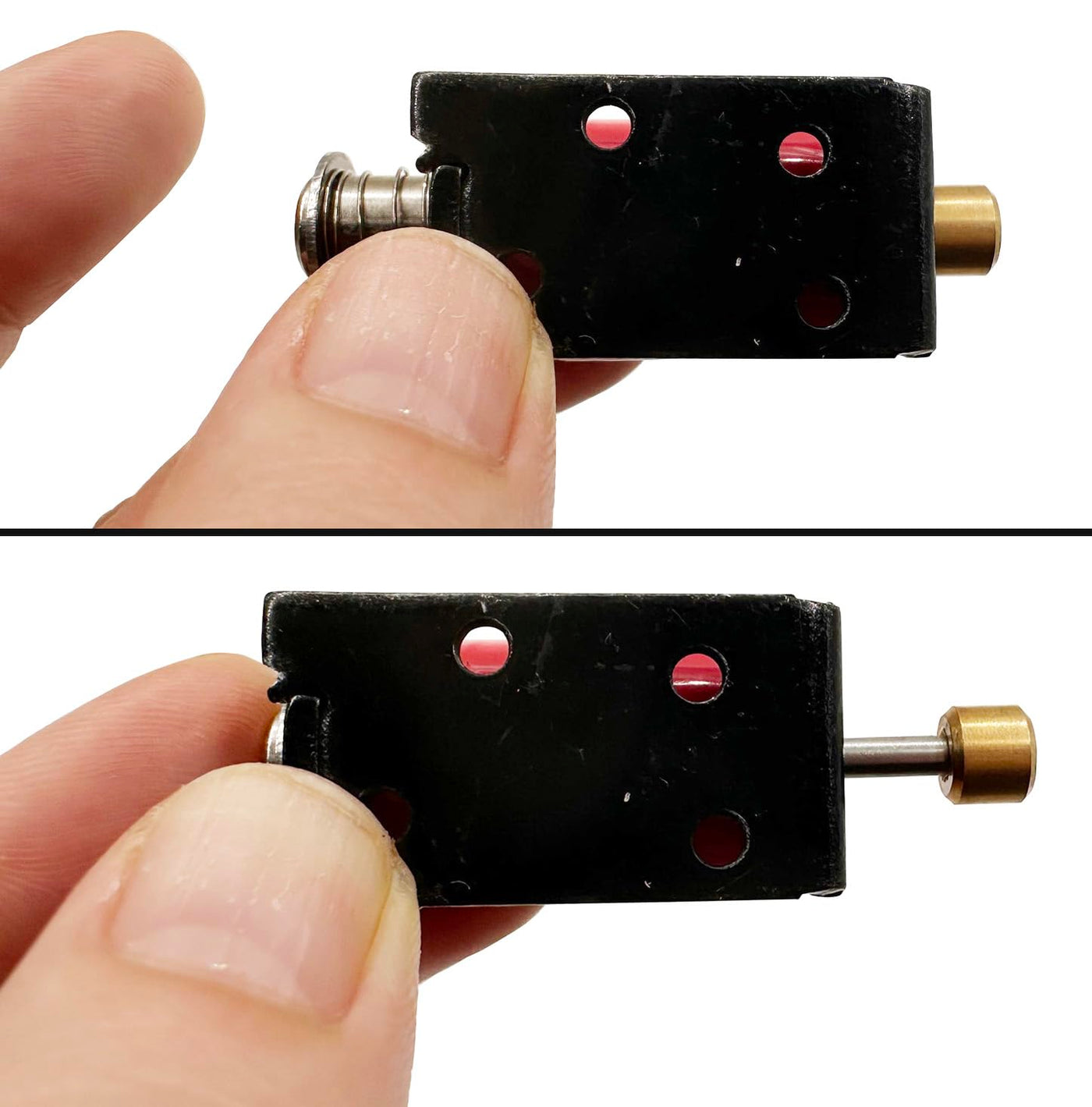

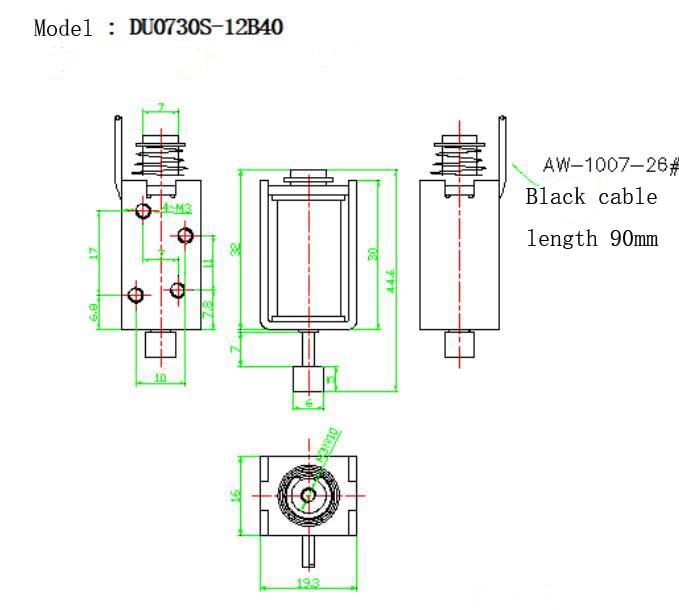

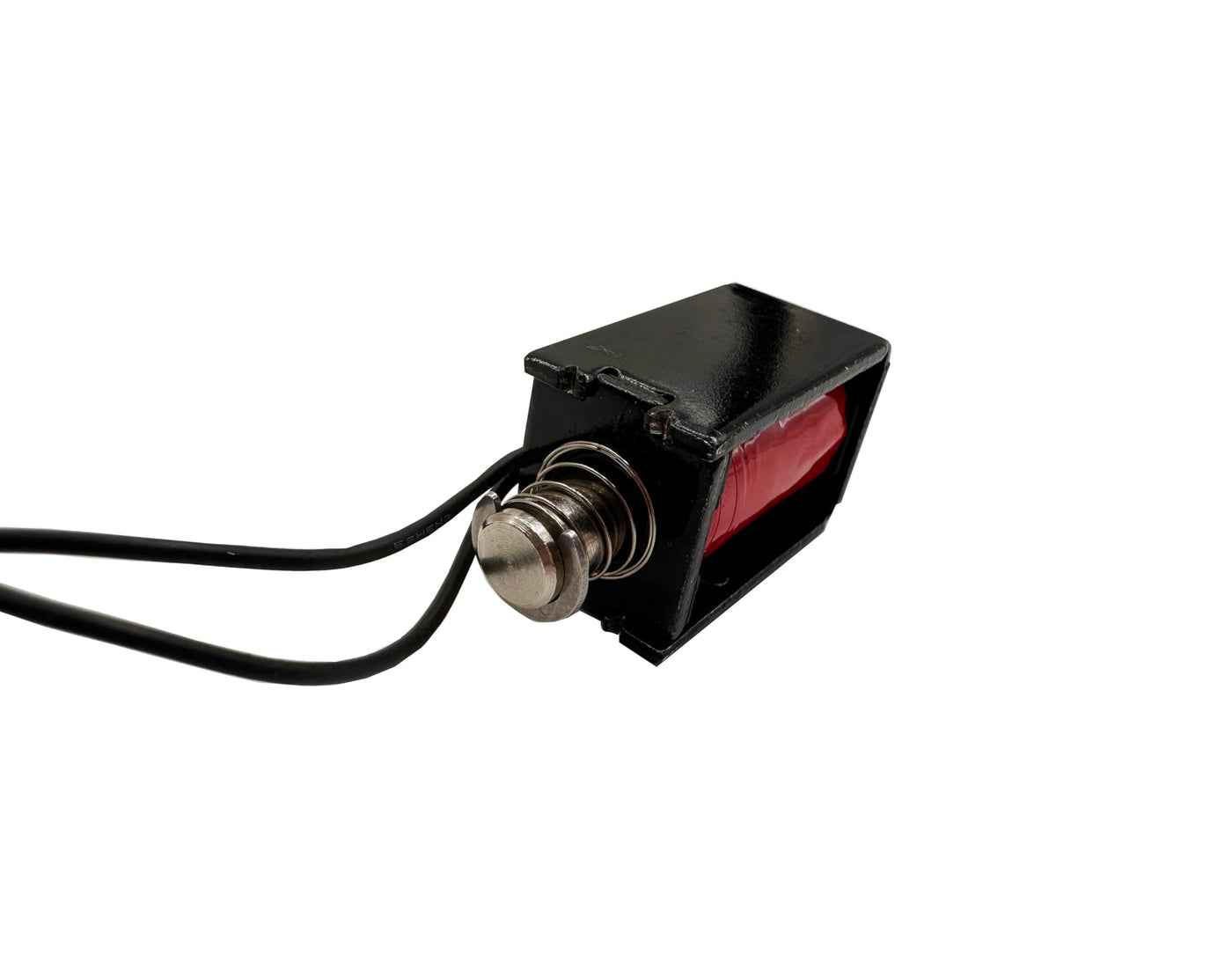

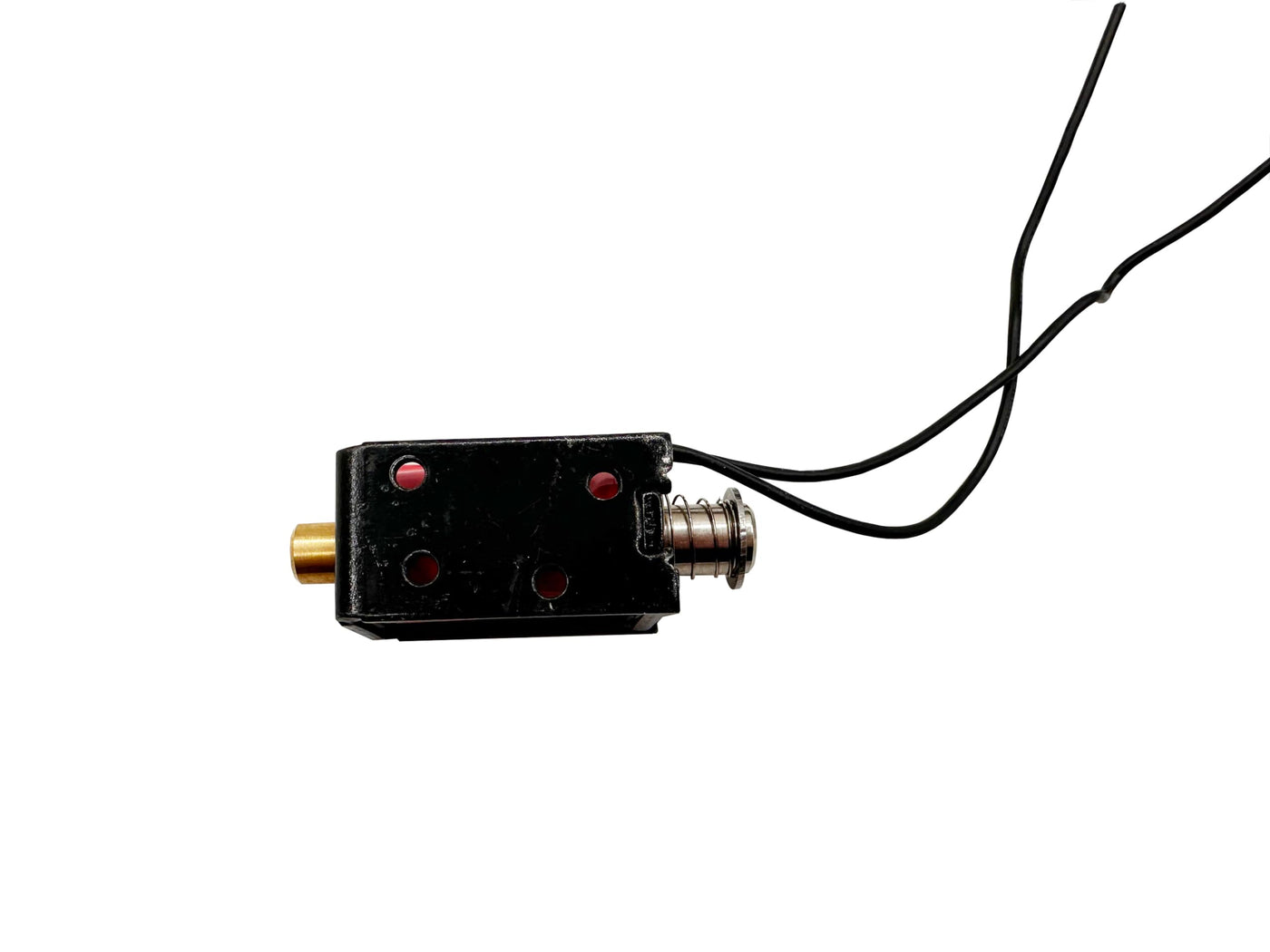

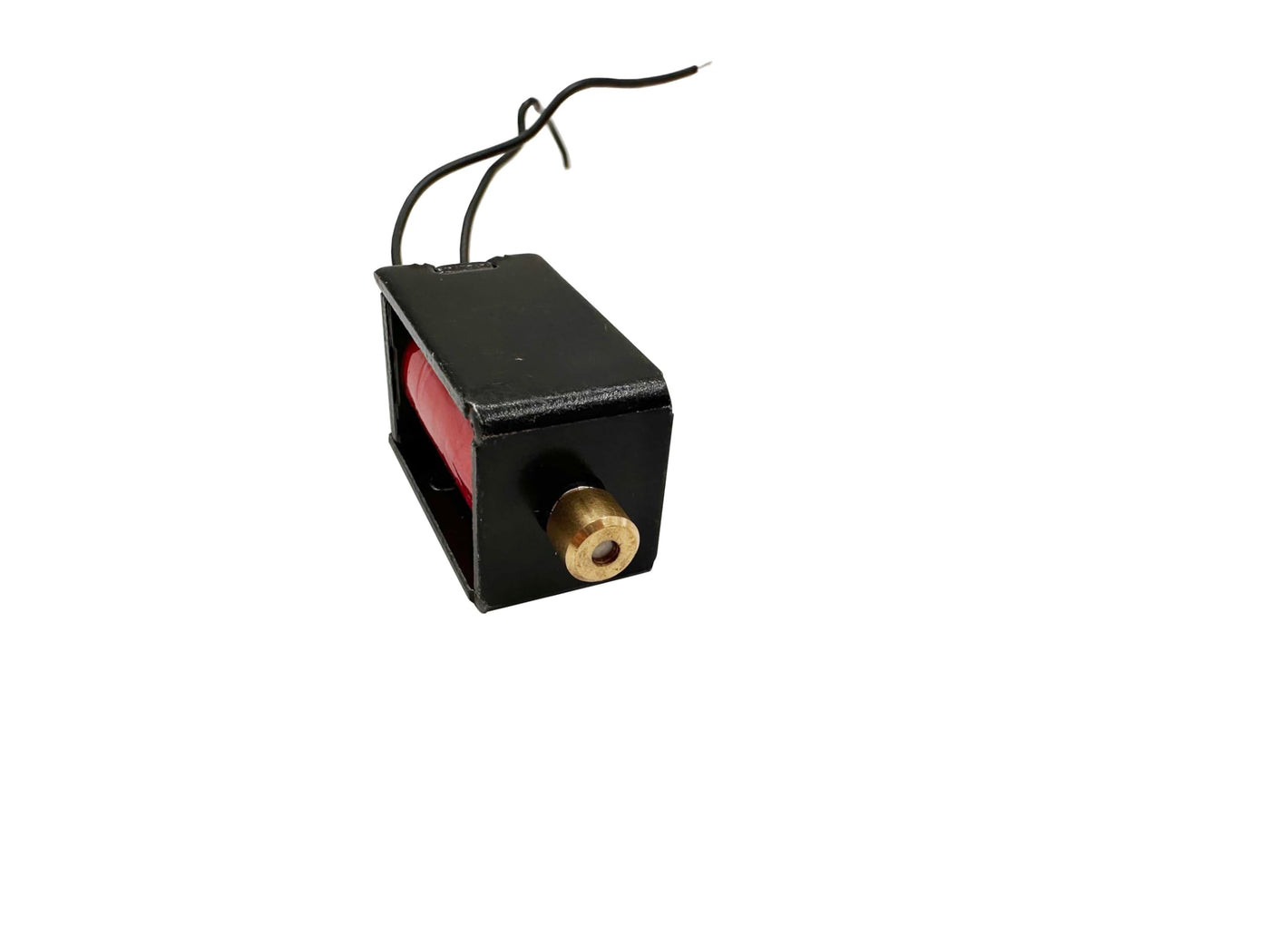

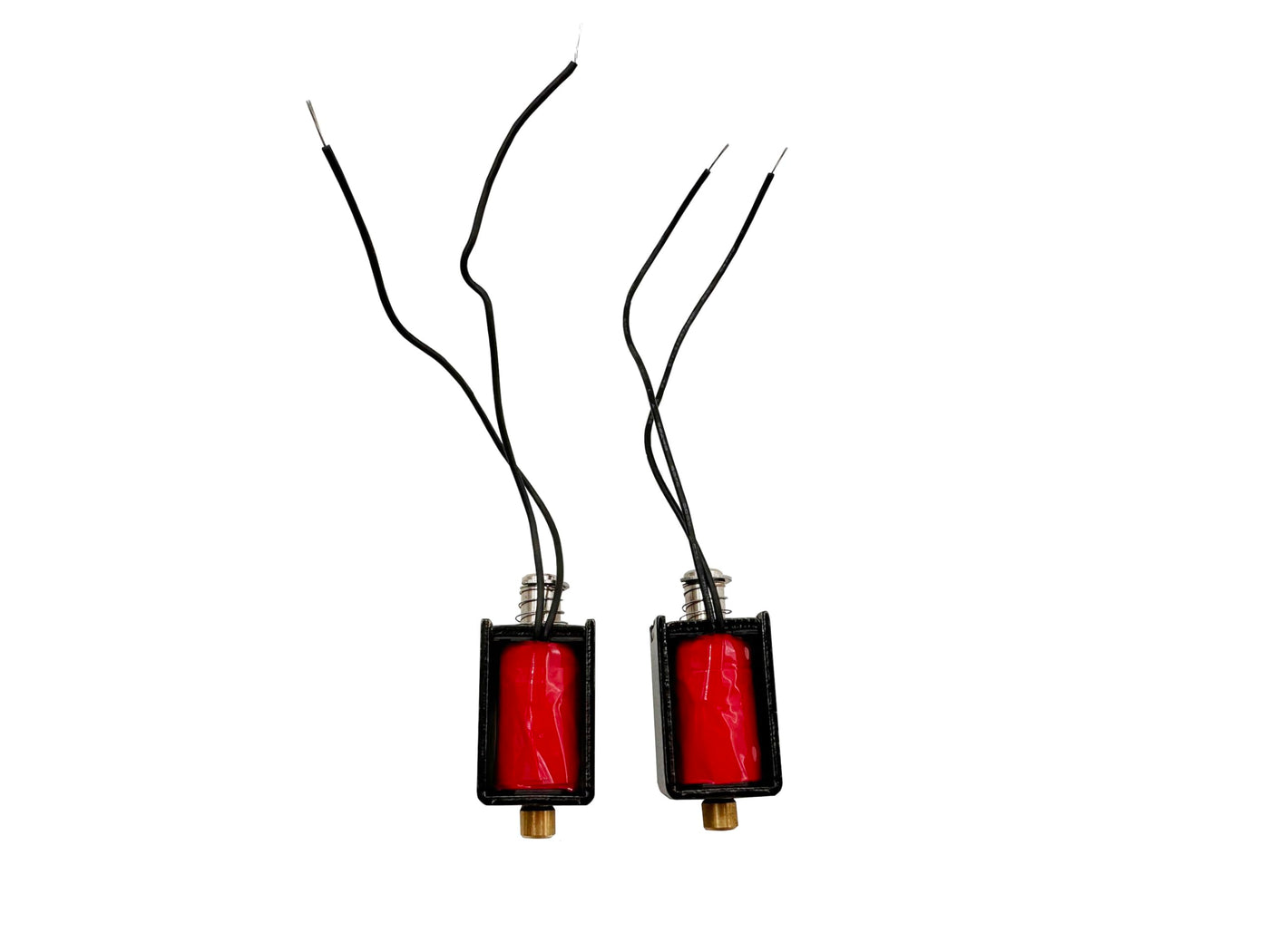

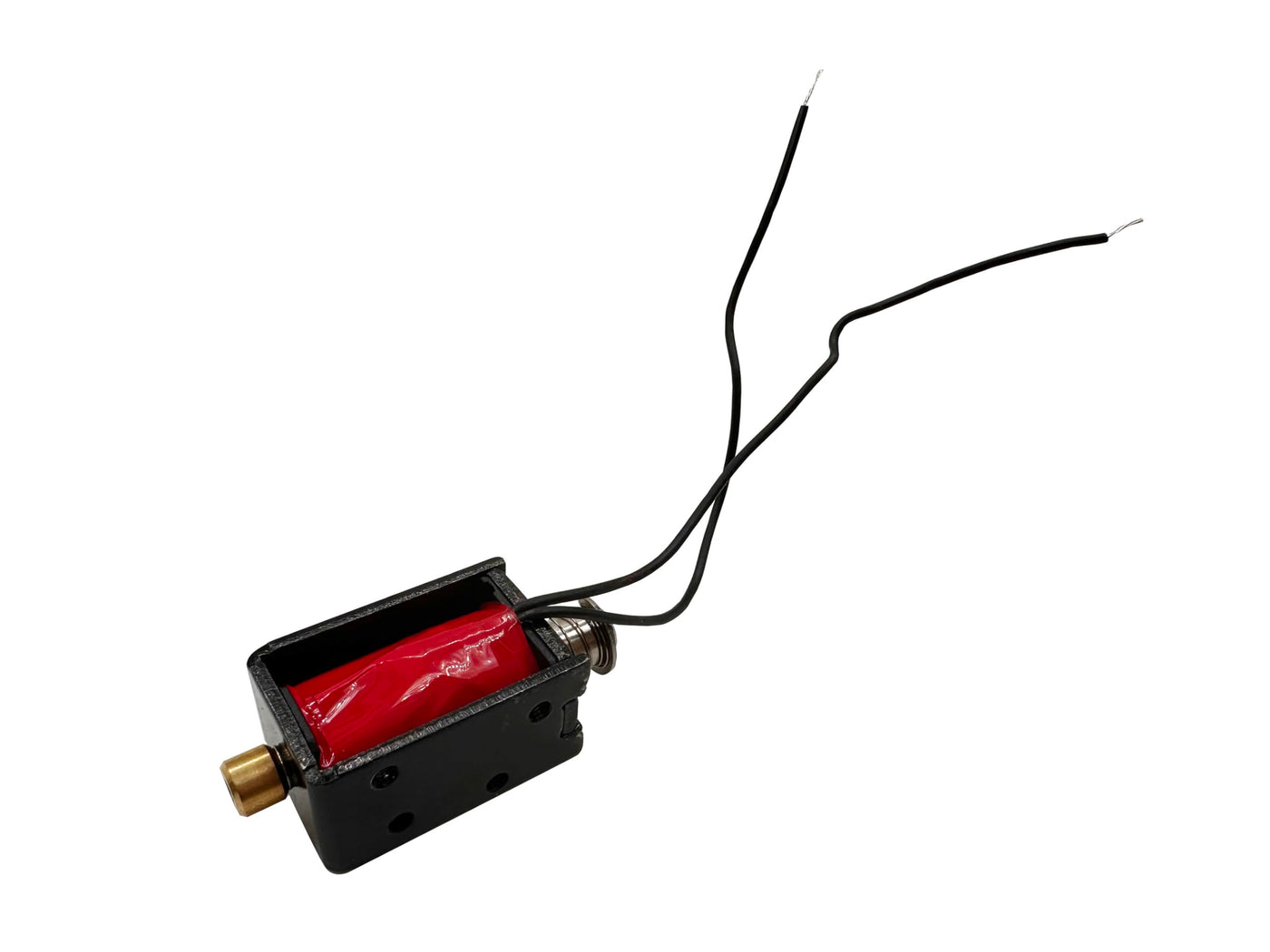

{"id":8771871998103,"title":"2PCS Mini Push Pull Linear Solenoid Electromagnet 6mm Stroke DC 6V ~ 12V 10 Ω or 12V ~ 24V 40Ω Open Frame Mini Frames Actuator Electric DC Magnet Solenoid DU0730S (DU0730S-12B40 (DC 12V-24V 40 Ω)) DU0730S-12B40 ( DC 12V-24V 40 Ω)","handle":"2pcs-mini-push-pull-linear-solenoid-electromagnet-6mm-stroke-dc-6v-12v-10-ω-or-12v-24v-40ω-open-frame-mini-frames-actuator-electric-dc-magnet-solenoid-du0730s-du0730s-12b40-dc-12v-24v-40-ω-du0730s-12b40-dc-12v-24v-40-ω","description":"\u003ch3\u003e2PCS Mini Push Pull Linear Solenoid Electromagnet 6mm Stroke DC 6V ~ 12V 10 Ω or 12V ~ 24V 40Ω Open Frame Mini Frames Actuator Electric DC Magnet Solenoid DU0730S (DU0730S-12B40 (DC 12V-24V 40 Ω))\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectromagnet specification: DU0730S-06A10 yellow black colour Type : Push\nPull Size: 44.6mm x 16mm x 19.3 mm \/ 1.76\" x 0.63\" x 0.76\" Colour : yellow\nblack colour Current: 0.6A (at 20 ° C) Voltage: DC 6V~12V( DU0730S-06A10)\nVoltage withstand: AC1200V(50\/60Hz) 1Sec (Breakdown current 10mA) Resistance:\nabout 10 Ω ±10% Power : 3.6W Insulation level: B Cable length: about\n90mm\/3.54\" Stroke : 6mm Weight : 6V-12V 10 Ω 45g\/ 1.59Ounce. Residual\nattraction: At DC-6V, the weight of the sliding rod plus 10gf (vertical\ndirection) Temperature rise: At rated voltage DC6V, the temperature rise is 65\n° C MAX DU0730S-12B40 red black colour Type : Push Pull Colour : red black\ncolour Size: 44.6mm x 16mm x 19.3 mm \/ 1.76\" x 0.63\" x 0.76\" Current: 0.3A (at\n20 ° C) Voltage: DC 12V-24V(DU0730S-12B40) Voltage withstand: AC1200V(50\/60Hz)\n1Sec (Breakdown current 10mA) Resistance: about 40 Ω ±10% Power : 3.6W\nInsulation level: B Cable length: about 90mm\/3.54\" Stroke : 6mm Weight\n:12V-24V 40Ω 40g\/1.41 Ounce. Residual attraction: At DC-24V, the weight of the\nsliding rod plus 10gf (vertical direction) Temperature rise: At rated voltage\nDC24V, the temperature rise is 65 ° C MAX Insulation resistance: 220MΩ between\ncoil and frame (DC500V conventional temperature\/humidity) Lifetime: Typical\nvalue is 500000 times (25% powered) Terminal strength: When applying pressure\nof 0.5kgf (in any direction), it is not allowed to fall off Working\ntemperature and humidity -5 ° C -55 ° C, 5% RH-85% RH Testing method:\nEnvironment: ambient temperature: 20 ± 2 ° C, Relative humidity: 65RH ± 5%,\nAtmospheric pressure: 1013mbar Power supply: Stable power supply Test load:\nload Testing Attraction: The sliding rod is in a vertical position, with the\nload facing downwards. Residual attraction: The sliding rod is in a vertical\nposition and the load is downward. Holding force: The sliding rod is in a\nvertical position, and the load is downward. When the voltage is higher,will\nbe more powerful, but also relatively easy to heat up, please decide the\nworking voltage according to your needs. Note: Please don't power for a long\ntime because the temperature rises quickly, it can only be powered on for\nabout 1 seconds. Package Included: 2 x Solenoid Electromagnet\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDC Solenoid Electromagnet Rated Voltage : DC 6V~12V( DU0730S-06A10 the yellow black colour ) \/ DC 12V-24V(DU0730S-12B40 the red black colour )\u003c\/li\u003e\n \u003cli\u003eStroke : 6mm; Type : Push Pul;Material : Iron,Electronic Parts;\u003c\/li\u003e\n \u003cli\u003eBody Size : 44.6mm x 16mm x 19.3 mm \/ 1.76\" x 0.63\" x 0.76\". Cable Length : 90mm\/3.54\"\u003c\/li\u003e\n \u003cli\u003eWeight : 6V-12V (DU0730S-06A10) 10 45g\/ 1.59Ounce. 12V-24V (DU0730S-12B40) 40 40g\/1.41 Ounce.\u003c\/li\u003e\n \u003cli\u003eUses: used as limit switch,push-pull, etc. Note: Please don't power for a long time because the temperature rises quickly, it can only be powered on for about 1 seconds.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-04T17:14:25+11:00","created_at":"2025-02-03T03:18:58+11:00","vendor":"BUBQD","type":"Solenoids","tags":["industrial_best_sellers_Jan2025"],"price":11300,"price_min":11300,"price_max":11300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45102316519575,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0D1TSF6PM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2PCS Mini Push Pull Linear Solenoid Electromagnet 6mm Stroke DC 6V ~ 12V 10 Ω or 12V ~ 24V 40Ω Open Frame Mini Frames Actuator Electric DC Magnet Solenoid DU0730S (DU0730S-12B40 (DC 12V-24V 40 Ω)) DU0730S-12B40 ( DC 12V-24V 40 Ω)","public_title":null,"options":["Default Title"],"price":11300,"weight":82,"compare_at_price":null,"inventory_management":"shopify","barcode":"677222653897","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0D1TSF6PM.jpg?v=1775762259","\/\/newnestshop.com\/cdn\/shop\/files\/61rjsdRrUhL.jpg?v=1738513140","\/\/newnestshop.com\/cdn\/shop\/files\/41_1ZSchFEL.jpg?v=1738513140","\/\/newnestshop.com\/cdn\/shop\/files\/61TLFsLmT9L.jpg?v=1738513140","\/\/newnestshop.com\/cdn\/shop\/files\/614MCnbR1PL.jpg?v=1738513140","\/\/newnestshop.com\/cdn\/shop\/files\/61UZu8i7r2L.jpg?v=1738513140","\/\/newnestshop.com\/cdn\/shop\/files\/61WyUvW0UkL.jpg?v=1738513141","\/\/newnestshop.com\/cdn\/shop\/files\/51-6jUqYoCL.jpg?v=1738513140"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0D1TSF6PM.jpg?v=1775762259","options":["Title"],"media":[{"alt":null,"id":36876639240343,"position":1,"preview_image":{"aspect_ratio":1.21,"height":1680,"width":2032,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0D1TSF6PM.jpg?v=1775762259"},"aspect_ratio":1.21,"height":1680,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0D1TSF6PM.jpg?v=1775762259","width":2032},{"alt":null,"id":36876639273111,"position":2,"preview_image":{"aspect_ratio":0.986,"height":1466,"width":1446,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61rjsdRrUhL.jpg?v=1738513140"},"aspect_ratio":0.986,"height":1466,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61rjsdRrUhL.jpg?v=1738513140","width":1446},{"alt":null,"id":36876639305879,"position":3,"preview_image":{"aspect_ratio":1.113,"height":610,"width":679,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41_1ZSchFEL.jpg?v=1738513140"},"aspect_ratio":1.113,"height":610,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41_1ZSchFEL.jpg?v=1738513140","width":679},{"alt":null,"id":36876639338647,"position":4,"preview_image":{"aspect_ratio":1.281,"height":1999,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61TLFsLmT9L.jpg?v=1738513140"},"aspect_ratio":1.281,"height":1999,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61TLFsLmT9L.jpg?v=1738513140","width":2560},{"alt":null,"id":36876639371415,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/614MCnbR1PL.jpg?v=1738513140"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/614MCnbR1PL.jpg?v=1738513140","width":2560},{"alt":null,"id":36876639404183,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61UZu8i7r2L.jpg?v=1738513140"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61UZu8i7r2L.jpg?v=1738513140","width":2560},{"alt":null,"id":36876639436951,"position":7,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61WyUvW0UkL.jpg?v=1738513141"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61WyUvW0UkL.jpg?v=1738513141","width":2560},{"alt":null,"id":36876639469719,"position":8,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51-6jUqYoCL.jpg?v=1738513140"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51-6jUqYoCL.jpg?v=1738513140","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2PCS Mini Push Pull Linear Solenoid Electromagnet 6mm Stroke DC 6V ~ 12V 10 Ω or 12V ~ 24V 40Ω Open Frame Mini Frames Actuator Electric DC Magnet Solenoid DU0730S (DU0730S-12B40 (DC 12V-24V 40 Ω))\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectromagnet specification: DU0730S-06A10 yellow black colour Type : Push\nPull Size: 44.6mm x 16mm x 19.3 mm \/ 1.76\" x 0.63\" x 0.76\" Colour : yellow\nblack colour Current: 0.6A (at 20 ° C) Voltage: DC 6V~12V( DU0730S-06A10)\nVoltage withstand: AC1200V(50\/60Hz) 1Sec (Breakdown current 10mA) Resistance:\nabout 10 Ω ±10% Power : 3.6W Insulation level: B Cable length: about\n90mm\/3.54\" Stroke : 6mm Weight : 6V-12V 10 Ω 45g\/ 1.59Ounce. Residual\nattraction: At DC-6V, the weight of the sliding rod plus 10gf (vertical\ndirection) Temperature rise: At rated voltage DC6V, the temperature rise is 65\n° C MAX DU0730S-12B40 red black colour Type : Push Pull Colour : red black\ncolour Size: 44.6mm x 16mm x 19.3 mm \/ 1.76\" x 0.63\" x 0.76\" Current: 0.3A (at\n20 ° C) Voltage: DC 12V-24V(DU0730S-12B40) Voltage withstand: AC1200V(50\/60Hz)\n1Sec (Breakdown current 10mA) Resistance: about 40 Ω ±10% Power : 3.6W\nInsulation level: B Cable length: about 90mm\/3.54\" Stroke : 6mm Weight\n:12V-24V 40Ω 40g\/1.41 Ounce. Residual attraction: At DC-24V, the weight of the\nsliding rod plus 10gf (vertical direction) Temperature rise: At rated voltage\nDC24V, the temperature rise is 65 ° C MAX Insulation resistance: 220MΩ between\ncoil and frame (DC500V conventional temperature\/humidity) Lifetime: Typical\nvalue is 500000 times (25% powered) Terminal strength: When applying pressure\nof 0.5kgf (in any direction), it is not allowed to fall off Working\ntemperature and humidity -5 ° C -55 ° C, 5% RH-85% RH Testing method:\nEnvironment: ambient temperature: 20 ± 2 ° C, Relative humidity: 65RH ± 5%,\nAtmospheric pressure: 1013mbar Power supply: Stable power supply Test load:\nload Testing Attraction: The sliding rod is in a vertical position, with the\nload facing downwards. Residual attraction: The sliding rod is in a vertical\nposition and the load is downward. Holding force: The sliding rod is in a\nvertical position, and the load is downward. When the voltage is higher,will\nbe more powerful, but also relatively easy to heat up, please decide the\nworking voltage according to your needs. Note: Please don't power for a long\ntime because the temperature rises quickly, it can only be powered on for\nabout 1 seconds. Package Included: 2 x Solenoid Electromagnet\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDC Solenoid Electromagnet Rated Voltage : DC 6V~12V( DU0730S-06A10 the yellow black colour ) \/ DC 12V-24V(DU0730S-12B40 the red black colour )\u003c\/li\u003e\n \u003cli\u003eStroke : 6mm; Type : Push Pul;Material : Iron,Electronic Parts;\u003c\/li\u003e\n \u003cli\u003eBody Size : 44.6mm x 16mm x 19.3 mm \/ 1.76\" x 0.63\" x 0.76\". Cable Length : 90mm\/3.54\"\u003c\/li\u003e\n \u003cli\u003eWeight : 6V-12V (DU0730S-06A10) 10 45g\/ 1.59Ounce. 12V-24V (DU0730S-12B40) 40 40g\/1.41 Ounce.\u003c\/li\u003e\n \u003cli\u003eUses: used as limit switch,push-pull, etc. Note: Please don't power for a long time because the temperature rises quickly, it can only be powered on for about 1 seconds.\u003c\/li\u003e\n \u003c\/ul\u003e"}
