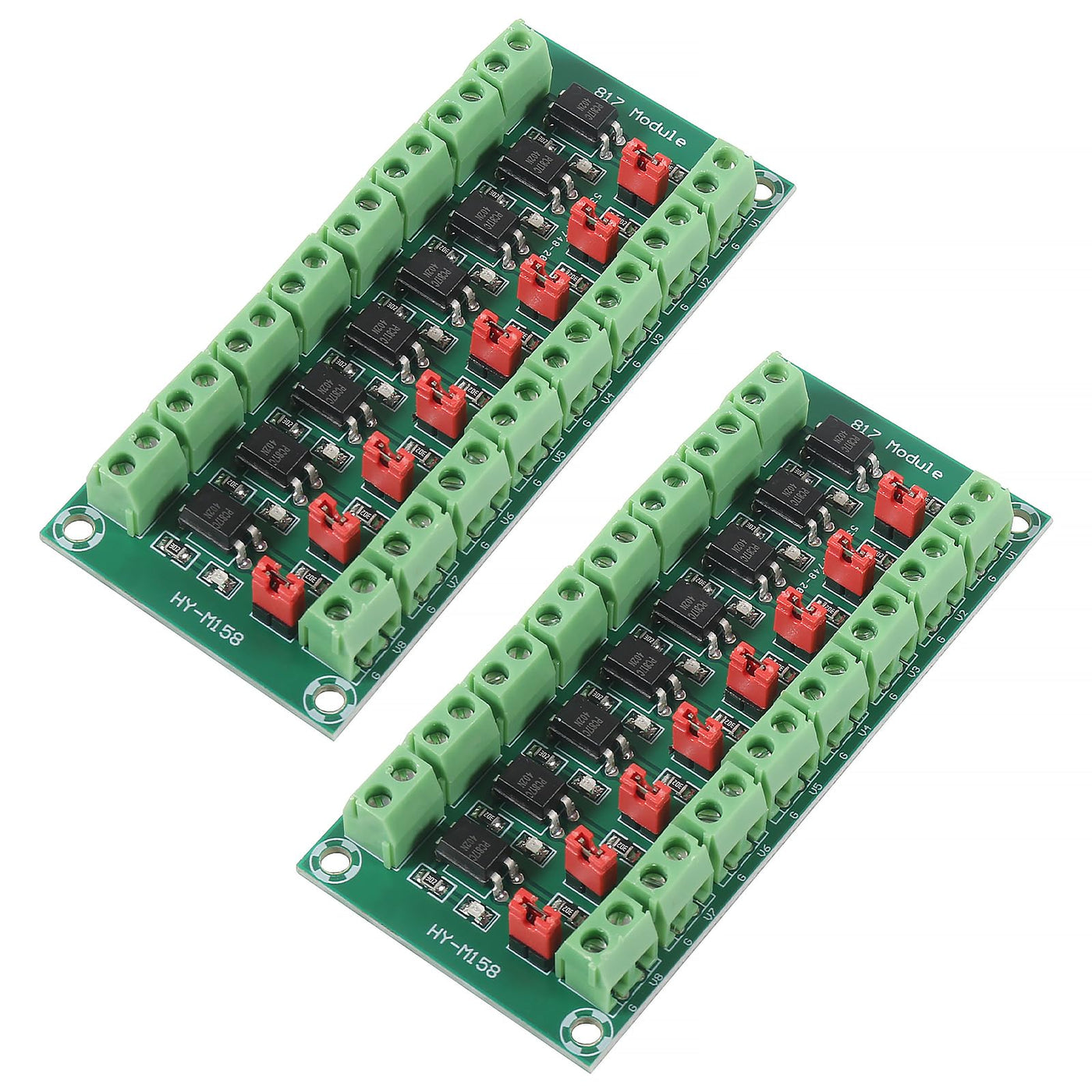

{"id":8822118416535,"title":"2pcs PC817 8 Channel Optocoupler Isolation Board Voltage Converter Module 3.6-30V Photoelectric Isolated Module 817 Voltage Isolation Module","handle":"2pcs-pc817-8-channel-optocoupler-isolation-board-voltage-converter-module-3-6-30v-photoelectric-isolated-module-817-voltage-isolation-module","description":"\u003ch3\u003e2pcs PC817 8 Channel Optocoupler Isolation Board Voltage Converter Module 3.6-30V Photoelectric Isolated Module 817 Voltage Isolation Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePC817 Optocoupler Module can achieve an interface with a voltage level of\n3.6-24V controlled by 3.3V or 5V. After the control terminal is connected, the\ncontrolled terminal will also be connected. Strong photoelectric isolation and\nanti-interference ability. Later, it can drive high-power transistors, MOS\ntransistors, and other occasions that require high voltage driving, or\ndirectly drive low-power 24V relays to work. If it is a pulse signal, please\nnote that the limit of 817 is below 4KHZ. For control signals greater than\n4KHZ, please do not use this module as it will not work properly. PC817\nParameters: Driving Port Signal Voltage:3.6-24V Output Port Voltage Port:\n3.6-30V The jumper cap can be used to determine whether the output terminal is\nhigh potential output or low output. Each channel of PC817 optocoupler\nisolation board is independent, can control different voltage at then same\ntime. Package include: 2pcs PC817 8 Channel Optocoupler Isolation Board Note:\nThe input port is shared with GND; The output ports are independent of each\nother; It is optocoupler output.V and G will be connected after input valid\nsigna in input port.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePC817 8 channel optocoupler isolation board is independent, can control different voltage at then same time.\u003c\/li\u003e\n \u003cli\u003e8-way 817 optocoupler driving port signal voltage:3.6-24V; Output voltage range: 3.6-30V(The output current depends on the specific situation but not over 10MA. When the total power is fixed, the voltage and current are inversely proportional).\u003c\/li\u003e\n \u003cli\u003ePC817 optocoupler module can realize 3.3V or 5V control the interface of 3.6-30V voltage level.After the control terminal is turned on, the controlled terminal will also be turned on.Voltage conversion,and can realize to drive a high level from a low level.\u003c\/li\u003e\n \u003cli\u003ePhotoelectric isolation has strong anti-interference ability. It can drive high-power triodes, MOS tubes and other applications that require high-voltage driving, and can also directly drive low-power 24V relays.\u003c\/li\u003e\n \u003cli\u003eIf it is a pulse signal, please note that the limit of 817 is 4KHZ or less. If the control signal is greater than 4KHZ, please do not use this module, it will not work properly.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-10T11:30:03+11:00","created_at":"2025-02-09T17:42:33+11:00","vendor":"AOICRIE","type":"Optocouplers","tags":["industrial_best_sellers_Jan2025"],"price":9600,"price_min":9600,"price_max":9600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45162797924503,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0DD3KFSVR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2pcs PC817 8 Channel Optocoupler Isolation Board Voltage Converter Module 3.6-30V Photoelectric Isolated Module 817 Voltage Isolation Module","public_title":null,"options":["Default Title"],"price":9600,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"687117711465","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0DD3KFSVR.jpg?v=1775769892","\/\/newnestshop.com\/cdn\/shop\/files\/71czWyFpaOL.jpg?v=1739083356","\/\/newnestshop.com\/cdn\/shop\/files\/71VYV3GBC9L.jpg?v=1739083356","\/\/newnestshop.com\/cdn\/shop\/files\/81XI5tpr03L.jpg?v=1739083356","\/\/newnestshop.com\/cdn\/shop\/files\/71sUOVG54rL.jpg?v=1739083356","\/\/newnestshop.com\/cdn\/shop\/files\/61VDvjFchgL.jpg?v=1739083356","\/\/newnestshop.com\/cdn\/shop\/files\/71DLBdFB0IL.jpg?v=1739083356"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0DD3KFSVR.jpg?v=1775769892","options":["Title"],"media":[{"alt":null,"id":36968571175063,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0DD3KFSVR.jpg?v=1775769892"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0DD3KFSVR.jpg?v=1775769892","width":1600},{"alt":null,"id":36968571207831,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71czWyFpaOL.jpg?v=1739083356"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71czWyFpaOL.jpg?v=1739083356","width":1600},{"alt":null,"id":36968571240599,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71VYV3GBC9L.jpg?v=1739083356"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71VYV3GBC9L.jpg?v=1739083356","width":1600},{"alt":null,"id":36968571273367,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/81XI5tpr03L.jpg?v=1739083356"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/81XI5tpr03L.jpg?v=1739083356","width":1600},{"alt":null,"id":36968571338903,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71sUOVG54rL.jpg?v=1739083356"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71sUOVG54rL.jpg?v=1739083356","width":1600},{"alt":null,"id":36968571371671,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61VDvjFchgL.jpg?v=1739083356"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61VDvjFchgL.jpg?v=1739083356","width":1600},{"alt":null,"id":36968571404439,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71DLBdFB0IL.jpg?v=1739083356"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71DLBdFB0IL.jpg?v=1739083356","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2pcs PC817 8 Channel Optocoupler Isolation Board Voltage Converter Module 3.6-30V Photoelectric Isolated Module 817 Voltage Isolation Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePC817 Optocoupler Module can achieve an interface with a voltage level of\n3.6-24V controlled by 3.3V or 5V. After the control terminal is connected, the\ncontrolled terminal will also be connected. Strong photoelectric isolation and\nanti-interference ability. Later, it can drive high-power transistors, MOS\ntransistors, and other occasions that require high voltage driving, or\ndirectly drive low-power 24V relays to work. If it is a pulse signal, please\nnote that the limit of 817 is below 4KHZ. For control signals greater than\n4KHZ, please do not use this module as it will not work properly. PC817\nParameters: Driving Port Signal Voltage:3.6-24V Output Port Voltage Port:\n3.6-30V The jumper cap can be used to determine whether the output terminal is\nhigh potential output or low output. Each channel of PC817 optocoupler\nisolation board is independent, can control different voltage at then same\ntime. Package include: 2pcs PC817 8 Channel Optocoupler Isolation Board Note:\nThe input port is shared with GND; The output ports are independent of each\nother; It is optocoupler output.V and G will be connected after input valid\nsigna in input port.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePC817 8 channel optocoupler isolation board is independent, can control different voltage at then same time.\u003c\/li\u003e\n \u003cli\u003e8-way 817 optocoupler driving port signal voltage:3.6-24V; Output voltage range: 3.6-30V(The output current depends on the specific situation but not over 10MA. When the total power is fixed, the voltage and current are inversely proportional).\u003c\/li\u003e\n \u003cli\u003ePC817 optocoupler module can realize 3.3V or 5V control the interface of 3.6-30V voltage level.After the control terminal is turned on, the controlled terminal will also be turned on.Voltage conversion,and can realize to drive a high level from a low level.\u003c\/li\u003e\n \u003cli\u003ePhotoelectric isolation has strong anti-interference ability. It can drive high-power triodes, MOS tubes and other applications that require high-voltage driving, and can also directly drive low-power 24V relays.\u003c\/li\u003e\n \u003cli\u003eIf it is a pulse signal, please note that the limit of 817 is 4KHZ or less. If the control signal is greater than 4KHZ, please do not use this module, it will not work properly.\u003c\/li\u003e\n \u003c\/ul\u003e"}
