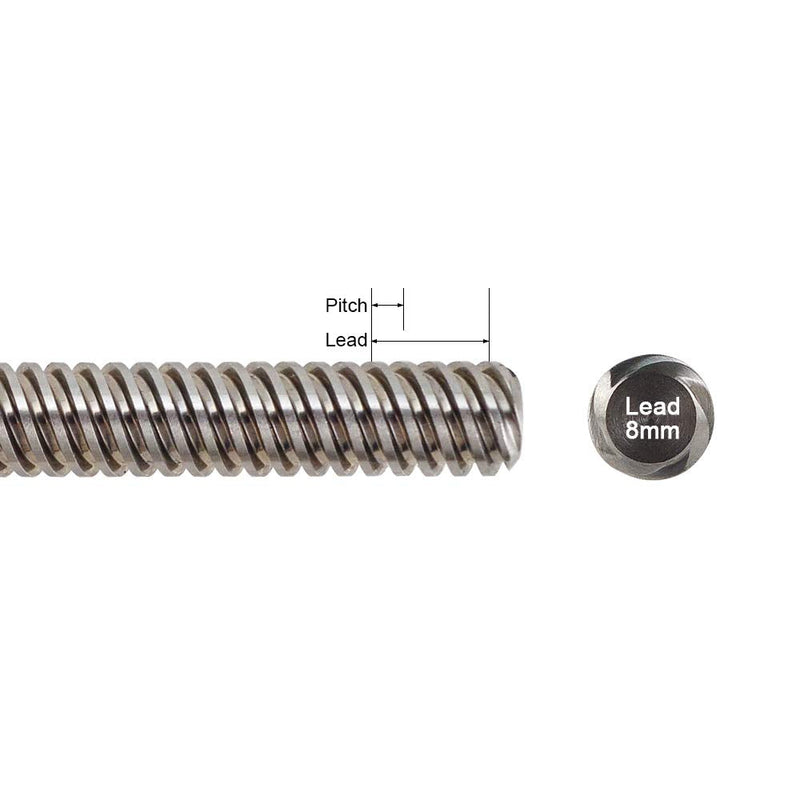

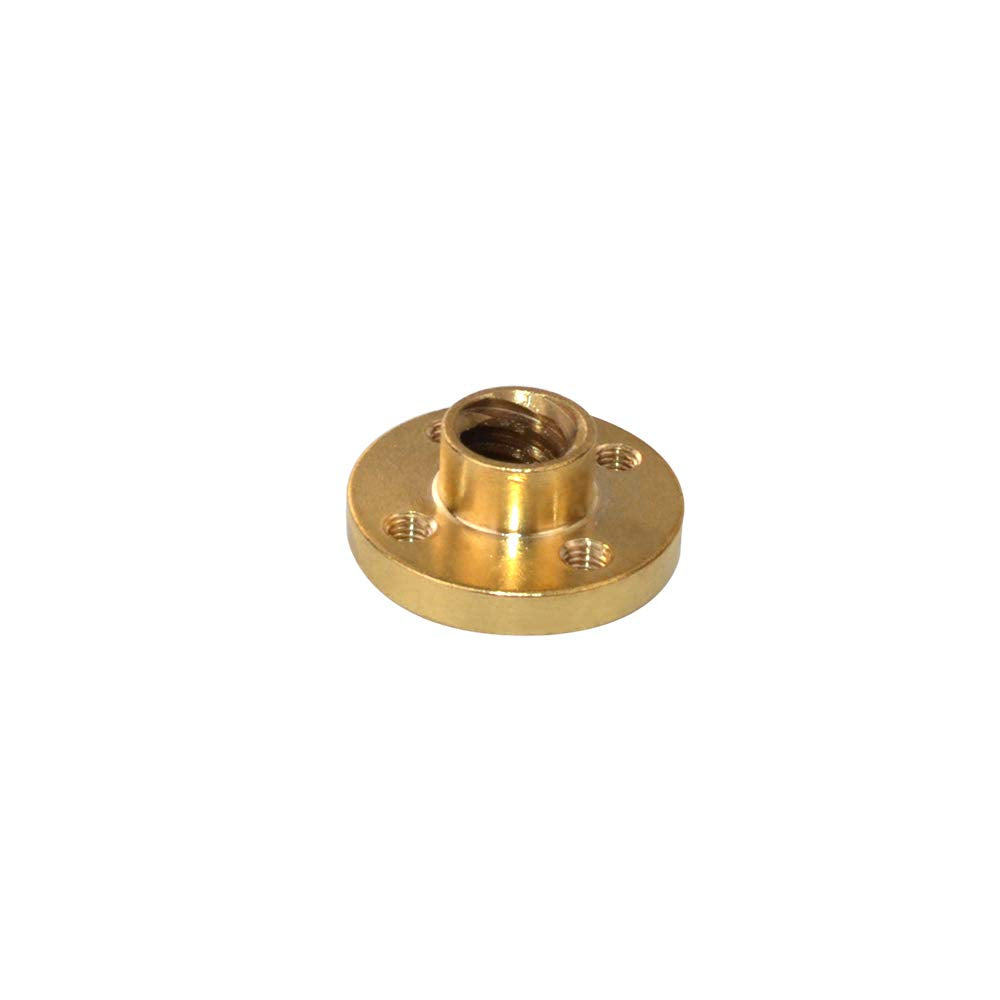

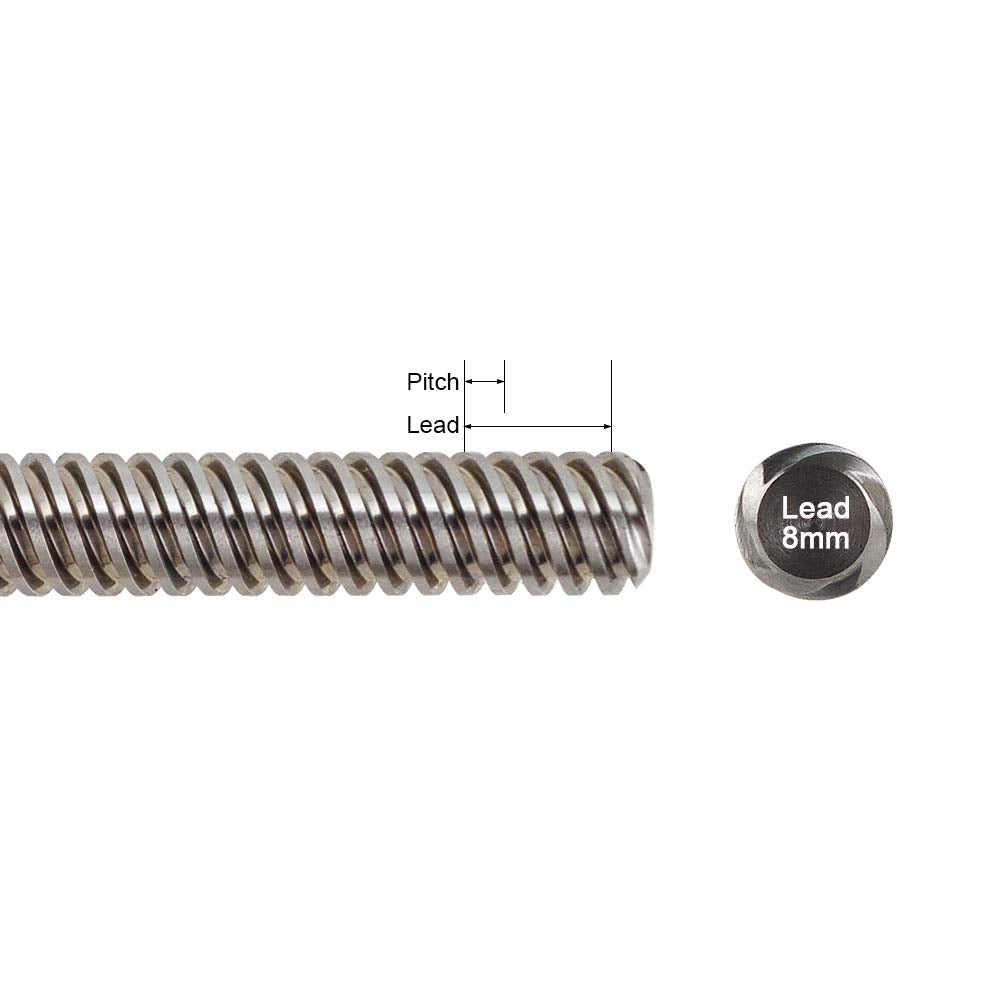

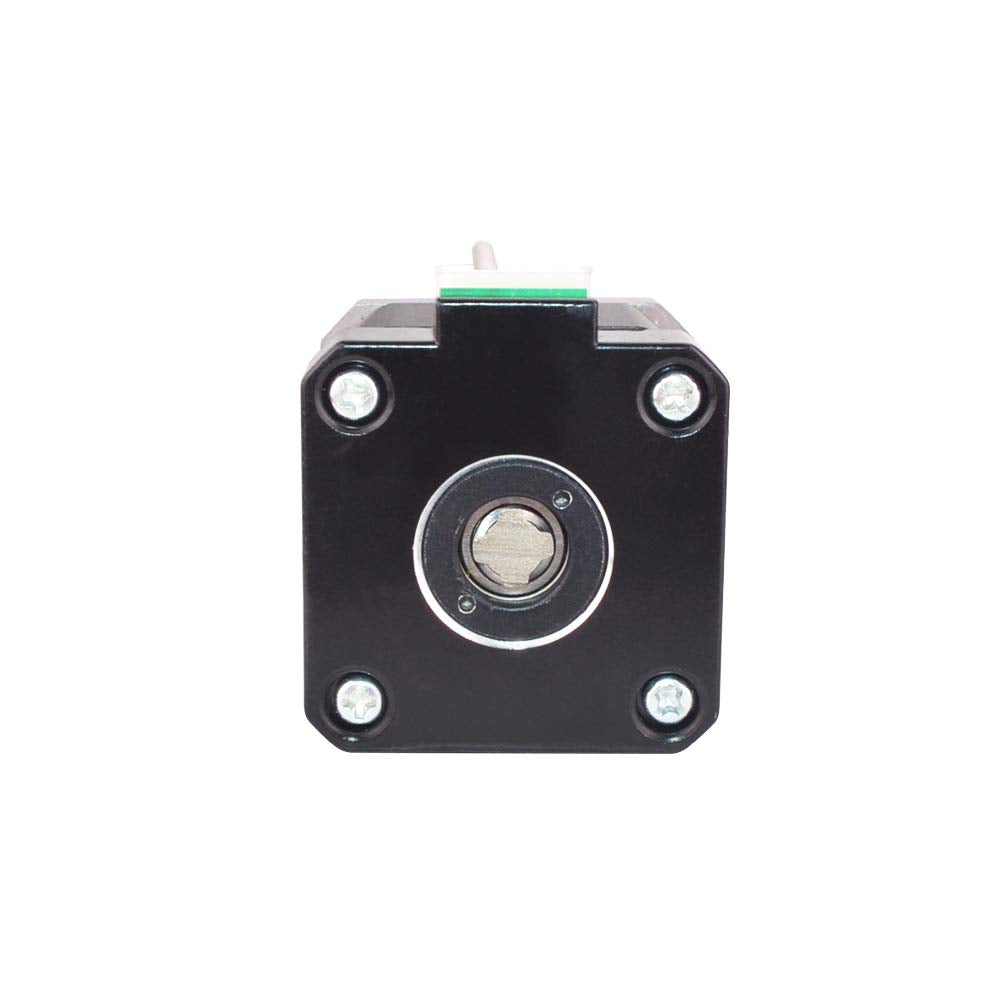

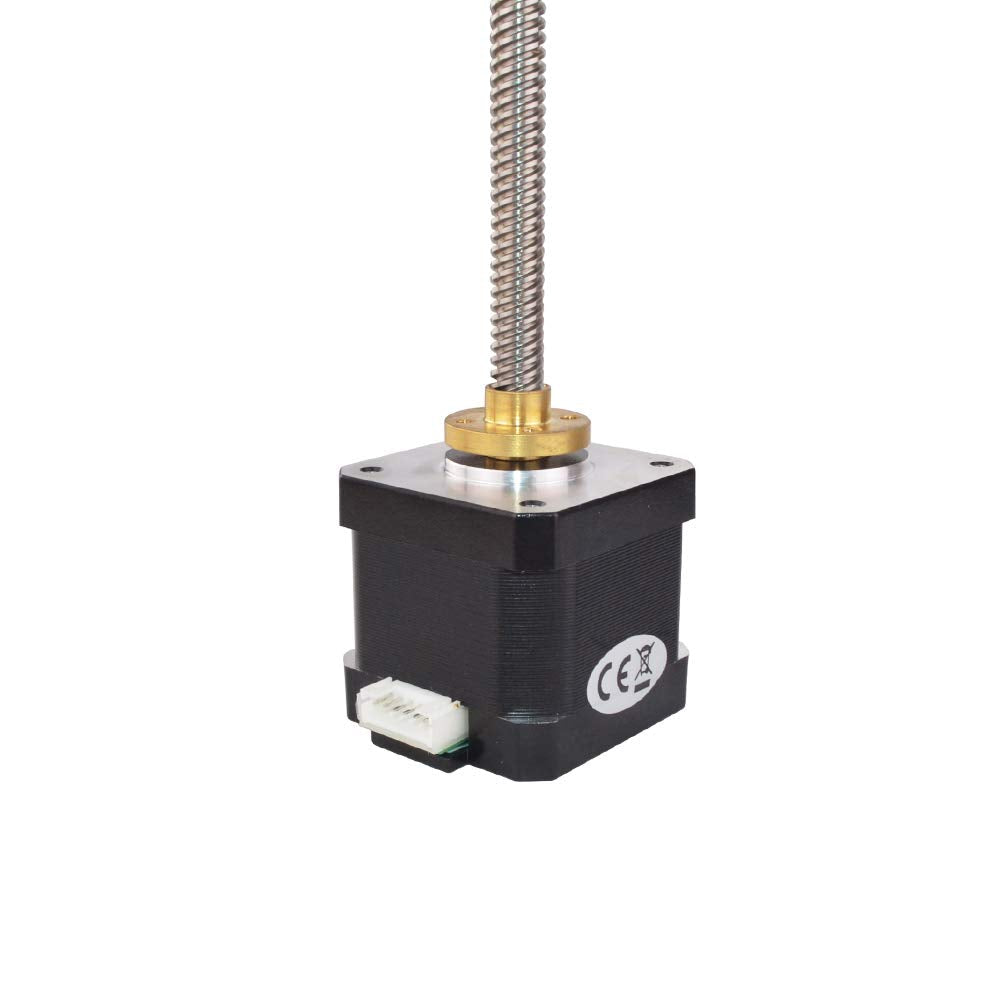

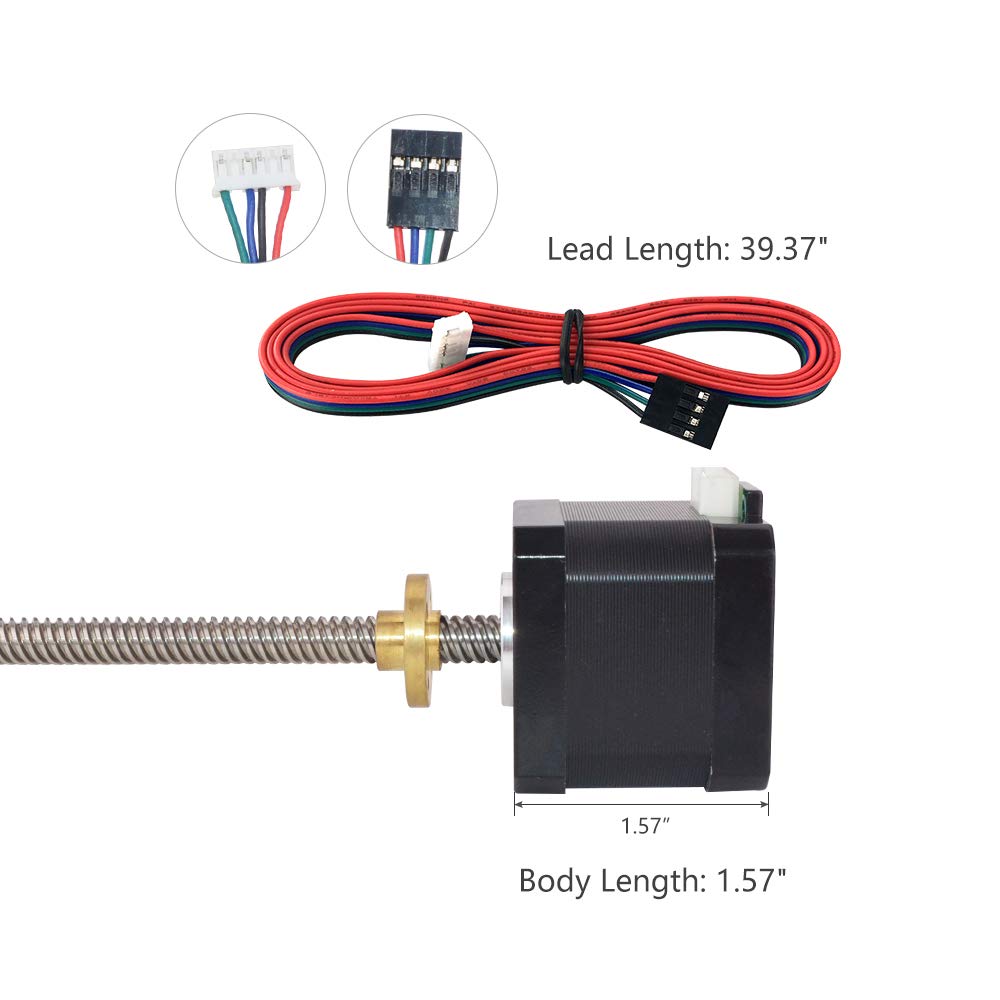

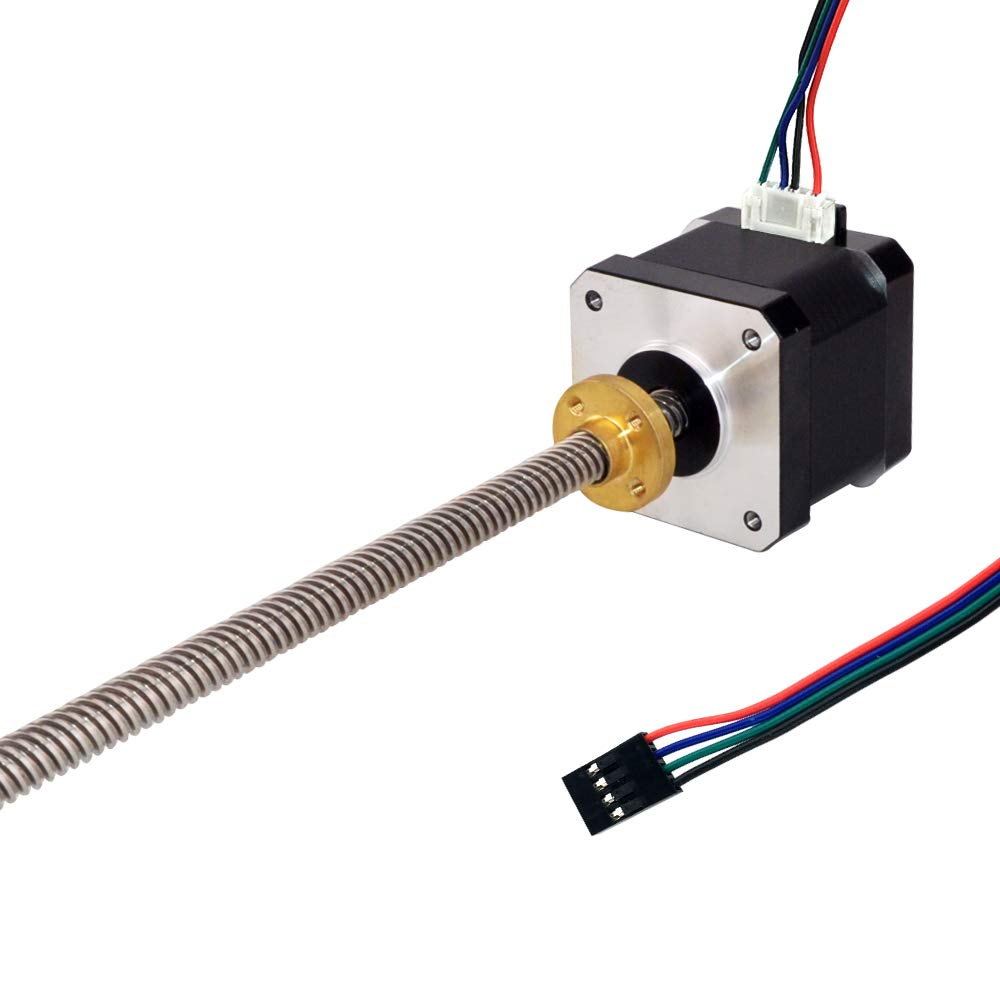

{"id":9681246584983,"title":"310mm Tr8x8 Lead Screw Nema 17 Integrated Linear Actuator Stepper Motor with External Brass Nut 1.5A 59oz-in for RepRap Prusa i3 3D Printers Z Axis CNC","handle":"310mm-tr8x8-lead-screw-nema-17-integrated-linear-actuator-stepper-motor-with-external-brass-nut-1-5a-59oz-in-for-reprap-prusa-i3-3d-printers-z-axis-cnc","description":"\u003ch3\u003e310mm Tr8x8 Lead Screw Nema 17 Integrated Linear Actuator Stepper Motor with External Brass Nut 1.5A 59oz-in for RepRap Prusa i3 3D Printers Z Axis CNC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eNEMA 17 External Linear Actuator Stepper, creates translational motion with\nthe simple operation of a stepper motor resulting in a cost effective and\nreliable motion solution, develops a force and a motion through a straight\nline. Popular choice for DIY maker and 3d printer Electrical Specification: \nManufacturer Part Number: MY-17LS16-1504E-310G Motor Type: External Linear\nStepper Step Angle: 1.8 deg. Holding Torque: 59.49 oz-in(42 Ncm) Rated\nCurrent\/phase: 1.5A Phase Resistance: 1.6ohms Inductance:\n3.2mH+\/-20%(1KHz) Physical Specification: Frame Size: 1.65 x 1.65 inches(42\nx 42 mm) Body Length: 1.57 inches(40 mm) Lead Screw Length: 12.21\"(310 mm)\n Lead Screw Diameter: Φ0.31\"( Φ8 mm) Lead \/Step: 0.0016\"(0.04 mm) \nLead\/Revolution: 0.315\"(8 mm) Number of Leads: 4 Lead Length: 39.37\ninches(1000 mm) Weight: 13.76oz(390 g) Connection: Red(A+), Blue(A-),\nBlack(B+), Green(B-) Packing List: 1 x NEMA 17 stepper motor with 310mm lead\nscrew 1 x 39.37\" motor wire 1 x Brass nut\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e310mm Tr8x8 Nema 17 stepper motor, up to 59.49oz-in(42Ncm) holding torque. Less heat, less noise and more accuracy\u003c\/li\u003e\n \u003cli\u003eFlange Type: Circular. Nut Style: Free Running. Nut materia: brass. Lead screw length: 12.21\"(310mm), trapezoidal lead screw diameter: 0.32\"(8mm), lead\/Step: 0.00157\", lead\/revolution: 0.315\"(8mm)\u003c\/li\u003e\n \u003cli\u003eRated current: 1.5 A. Phase Resistance: 1.6 ohms. Step angle: 1.8(200 steps\/rev). Frame size: 1.65\"(42 mm)\u003c\/li\u003e\n \u003cli\u003e39.37\"(1m) 4-pin cable and 2.54mm(0.1\") connector. Easy to install. Connection: Red(A+), Blue(A-), Black(B+), Green(B-) Tips: Not only swap your old motor out but aslo the wire\u003c\/li\u003e\n \u003cli\u003eRoHS and CE Certified. Wide range applications: 3D printer, CNC milling, small robotics, stage lighting, laser engraving, textile machinery, medical equipment, placement machine, automation equipment. After-sales Service: , defective motor free replacement or refund. Any question feel free to message or QA us, we and our engineers will try our best to assist you\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-30T17:41:29+10:00","created_at":"2026-07-27T00:14:40+10:00","vendor":"MybotOnline","type":"3D Printer Motors","tags":["home_improvement_Aug2026"],"price":17500,"price_min":17500,"price_max":17500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48068579066007,"title":"Tr8x8","option1":"Tr8x8","option2":null,"option3":null,"sku":"B07T7N362R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"310mm Tr8x8 Lead Screw Nema 17 Integrated Linear Actuator Stepper Motor with External Brass Nut 1.5A 59oz-in for RepRap Prusa i3 3D Printers Z Axis CNC - Tr8x8","public_title":"Tr8x8","options":["Tr8x8"],"price":17500,"weight":508,"compare_at_price":null,"inventory_management":"shopify","barcode":"769937035362","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B07T7N362R.jpg?v=1785075283","\/\/newnestshop.com\/cdn\/shop\/files\/51ygpQn3nKL.jpg?v=1785075283","\/\/newnestshop.com\/cdn\/shop\/files\/51VTEdQyHaL.jpg?v=1785075283","\/\/newnestshop.com\/cdn\/shop\/files\/51O1GmKxwZL.jpg?v=1785075283","\/\/newnestshop.com\/cdn\/shop\/files\/41WYuopYsdL.jpg?v=1785075283","\/\/newnestshop.com\/cdn\/shop\/files\/51NC9CMGi1L.jpg?v=1785075283","\/\/newnestshop.com\/cdn\/shop\/files\/51pzTpXHSqL.jpg?v=1785075283","\/\/newnestshop.com\/cdn\/shop\/files\/51NpH6ATbHL.jpg?v=1785075283"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B07T7N362R.jpg?v=1785075283","options":["Style"],"media":[{"alt":null,"id":42460559376535,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B07T7N362R.jpg?v=1785075283"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B07T7N362R.jpg?v=1785075283","width":1000},{"alt":null,"id":42460559409303,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51ygpQn3nKL.jpg?v=1785075283"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51ygpQn3nKL.jpg?v=1785075283","width":1000},{"alt":null,"id":42460559442071,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51VTEdQyHaL.jpg?v=1785075283"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51VTEdQyHaL.jpg?v=1785075283","width":1000},{"alt":null,"id":42460559474839,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51O1GmKxwZL.jpg?v=1785075283"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51O1GmKxwZL.jpg?v=1785075283","width":1000},{"alt":null,"id":42460559507607,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41WYuopYsdL.jpg?v=1785075283"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41WYuopYsdL.jpg?v=1785075283","width":1000},{"alt":null,"id":42460559540375,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51NC9CMGi1L.jpg?v=1785075283"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51NC9CMGi1L.jpg?v=1785075283","width":1000},{"alt":null,"id":42460559573143,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51pzTpXHSqL.jpg?v=1785075283"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51pzTpXHSqL.jpg?v=1785075283","width":1000},{"alt":null,"id":42460559605911,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51NpH6ATbHL.jpg?v=1785075283"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51NpH6ATbHL.jpg?v=1785075283","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e310mm Tr8x8 Lead Screw Nema 17 Integrated Linear Actuator Stepper Motor with External Brass Nut 1.5A 59oz-in for RepRap Prusa i3 3D Printers Z Axis CNC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eNEMA 17 External Linear Actuator Stepper, creates translational motion with\nthe simple operation of a stepper motor resulting in a cost effective and\nreliable motion solution, develops a force and a motion through a straight\nline. Popular choice for DIY maker and 3d printer Electrical Specification: \nManufacturer Part Number: MY-17LS16-1504E-310G Motor Type: External Linear\nStepper Step Angle: 1.8 deg. Holding Torque: 59.49 oz-in(42 Ncm) Rated\nCurrent\/phase: 1.5A Phase Resistance: 1.6ohms Inductance:\n3.2mH+\/-20%(1KHz) Physical Specification: Frame Size: 1.65 x 1.65 inches(42\nx 42 mm) Body Length: 1.57 inches(40 mm) Lead Screw Length: 12.21\"(310 mm)\n Lead Screw Diameter: Φ0.31\"( Φ8 mm) Lead \/Step: 0.0016\"(0.04 mm) \nLead\/Revolution: 0.315\"(8 mm) Number of Leads: 4 Lead Length: 39.37\ninches(1000 mm) Weight: 13.76oz(390 g) Connection: Red(A+), Blue(A-),\nBlack(B+), Green(B-) Packing List: 1 x NEMA 17 stepper motor with 310mm lead\nscrew 1 x 39.37\" motor wire 1 x Brass nut\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e310mm Tr8x8 Nema 17 stepper motor, up to 59.49oz-in(42Ncm) holding torque. Less heat, less noise and more accuracy\u003c\/li\u003e\n \u003cli\u003eFlange Type: Circular. Nut Style: Free Running. Nut materia: brass. Lead screw length: 12.21\"(310mm), trapezoidal lead screw diameter: 0.32\"(8mm), lead\/Step: 0.00157\", lead\/revolution: 0.315\"(8mm)\u003c\/li\u003e\n \u003cli\u003eRated current: 1.5 A. Phase Resistance: 1.6 ohms. Step angle: 1.8(200 steps\/rev). Frame size: 1.65\"(42 mm)\u003c\/li\u003e\n \u003cli\u003e39.37\"(1m) 4-pin cable and 2.54mm(0.1\") connector. Easy to install. Connection: Red(A+), Blue(A-), Black(B+), Green(B-) Tips: Not only swap your old motor out but aslo the wire\u003c\/li\u003e\n \u003cli\u003eRoHS and CE Certified. Wide range applications: 3D printer, CNC milling, small robotics, stage lighting, laser engraving, textile machinery, medical equipment, placement machine, automation equipment. After-sales Service: , defective motor free replacement or refund. Any question feel free to message or QA us, we and our engineers will try our best to assist you\u003c\/li\u003e\n \u003c\/ul\u003e"}
