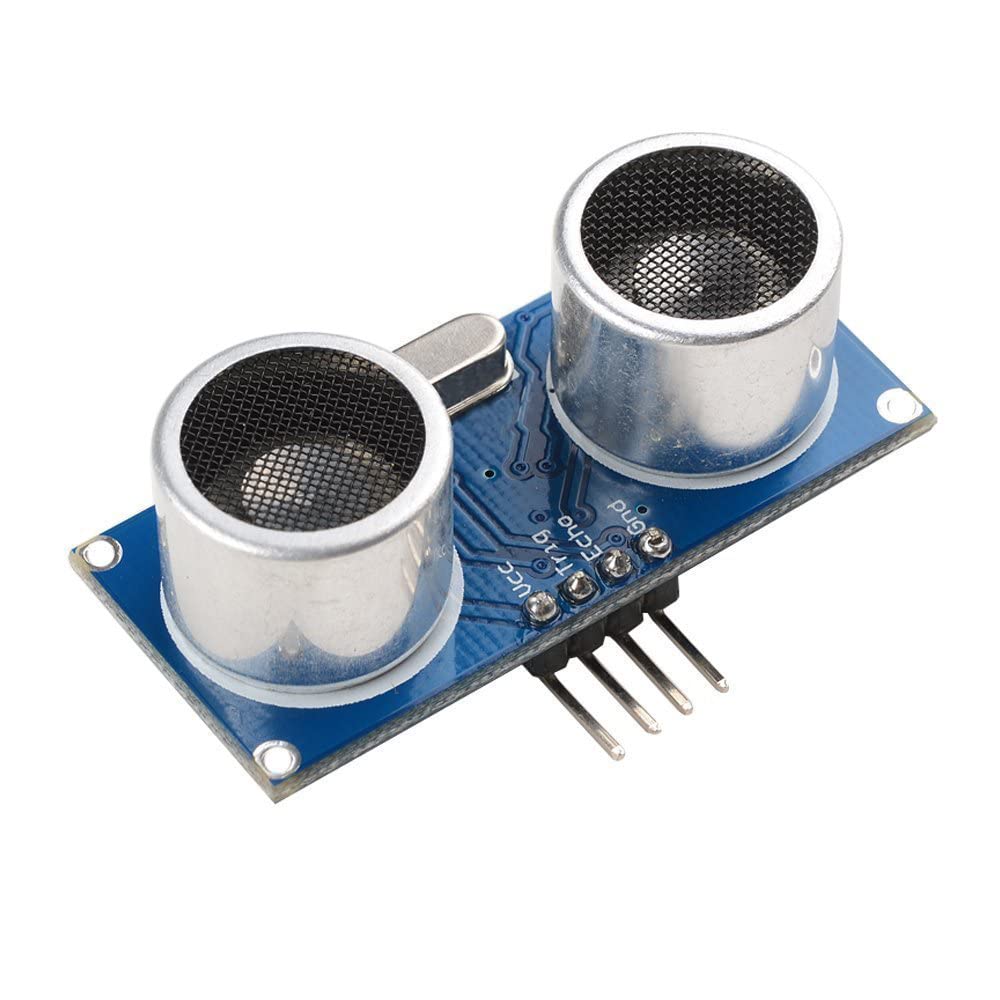

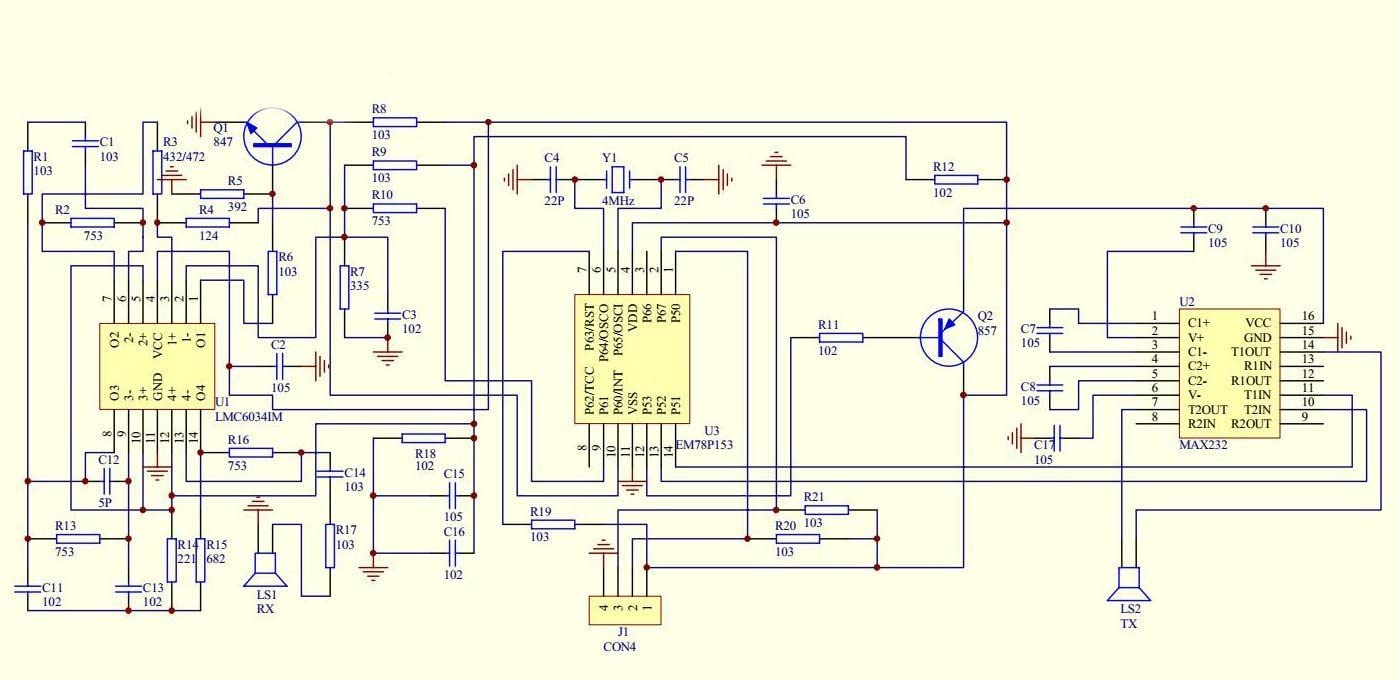

Characteristic: The HC-SR04 ultrasonic distance measuring module provides non- contact distance measuring function from 2cm to 450cm and high distance accuracy up to 3mm. Module consisting of ultrasonic transmitter, receiver and control circuit. Basic working principle: 1. Use IO mouth TRIG trigger distance, at least 10 high level US signals; 2. The module automatically sends eight 40KHz square waves and automatically detects whether a signal is returned. 3. I returned the signal, through the IO mouth, ECHO output a high level, the duration of the high level is the time of the ultrasonic wave from start to return. 4. Distance = test (high level time speed of sound (340 m/s)) / 2; Operating voltage: DC 5V Operating current: less than 2mA Working frequency: 40Hz maximum range: 450CM Minimum range: 2 CM Measuring point: 15 degrees Input trigger signal: 10US TTL pulse Echo signal output: Output the TTL level signal, proportional to the range. Document link: Note 1: The TRIP pin is an internal pull-up resistor of 10K. Use the IO port of the microcontroller to pull the TRIP pin low, and then give a pulse signal of more than 10us. The OUT pin is the switching output pin when this module is used as an anti-theft module. This pin is not used in the ranging module. Note 2: The module should be plugged into the circuit board first and then powered on to avoid high- level malfunction. If it occurs, it can be solved by repowering it. Delivery content: 3 X 4 Pin Ultrasonic Distance Measuring Sensor Module HC-SR04 3 X Mounting Bracket Female to Female Cable Male to Female Cable
Product Features
- Power supply: 5 V DC; static current: < 2 mA; Effective angle: < 15 ; Level output: bottom 0V; Recognition distance: 2 cm ~ 450 cm; Resolution: 0.3 cm.
- Test removal: high timeline of the sound (340 m /s) /2

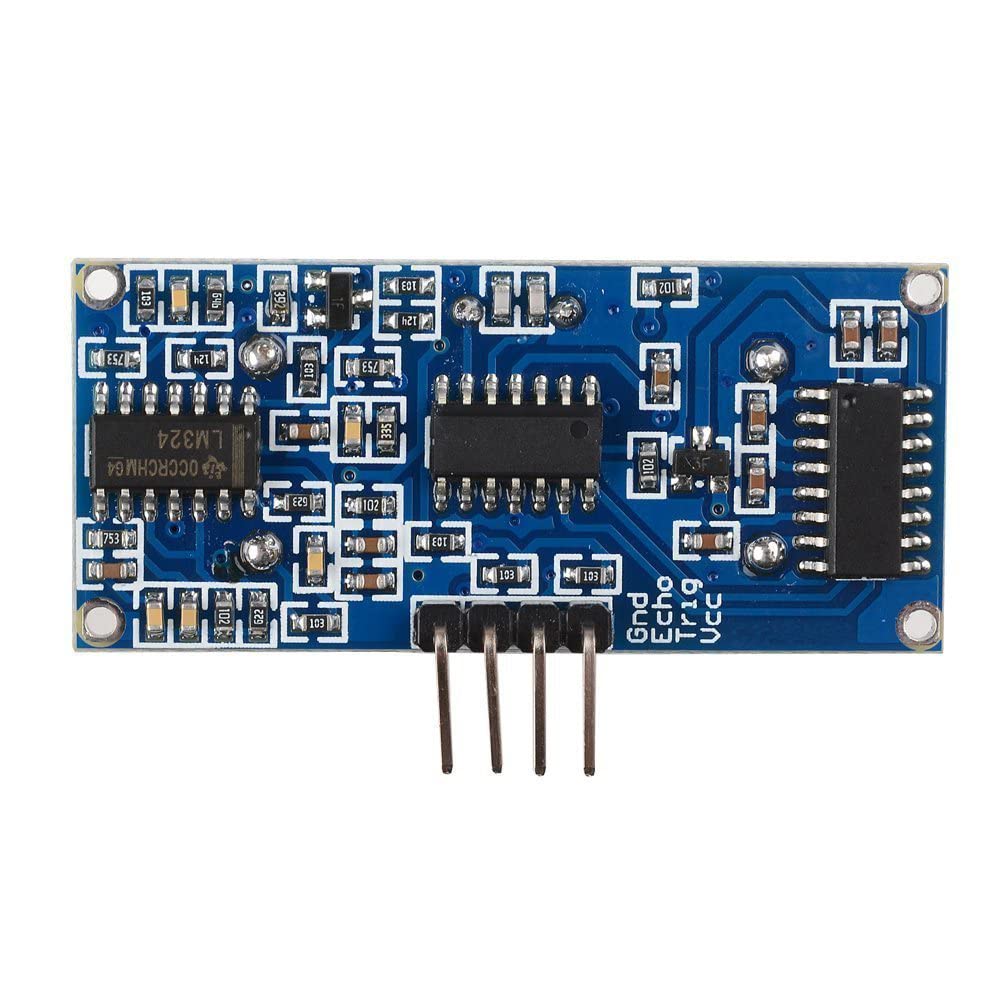

- On-board wiring methods: VCC, trig (control terminal), echo (receiving terminal), out (empty pin), GND.
- Equipped with an anti-reverse pin socket, which makes the cabling much closer and more convenient.

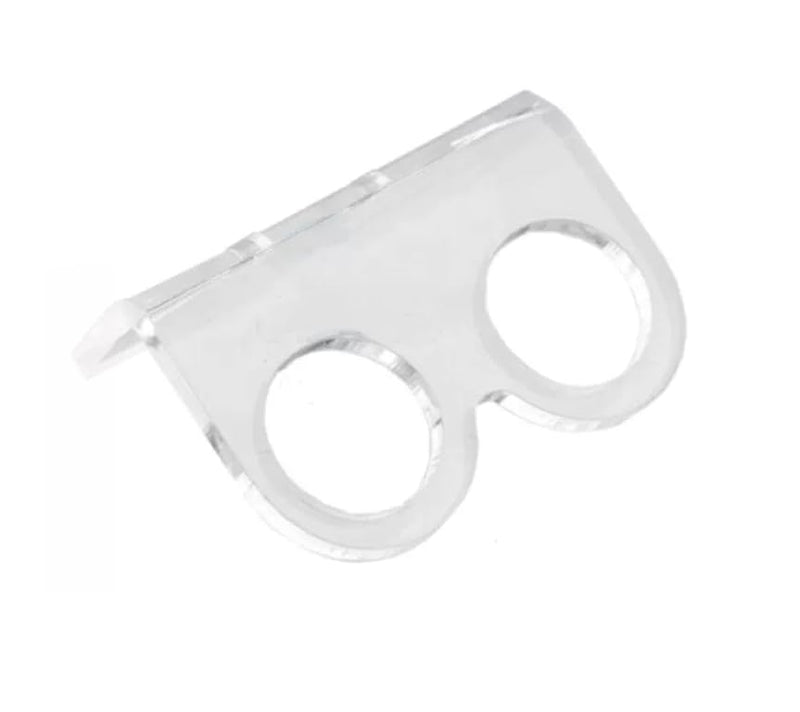

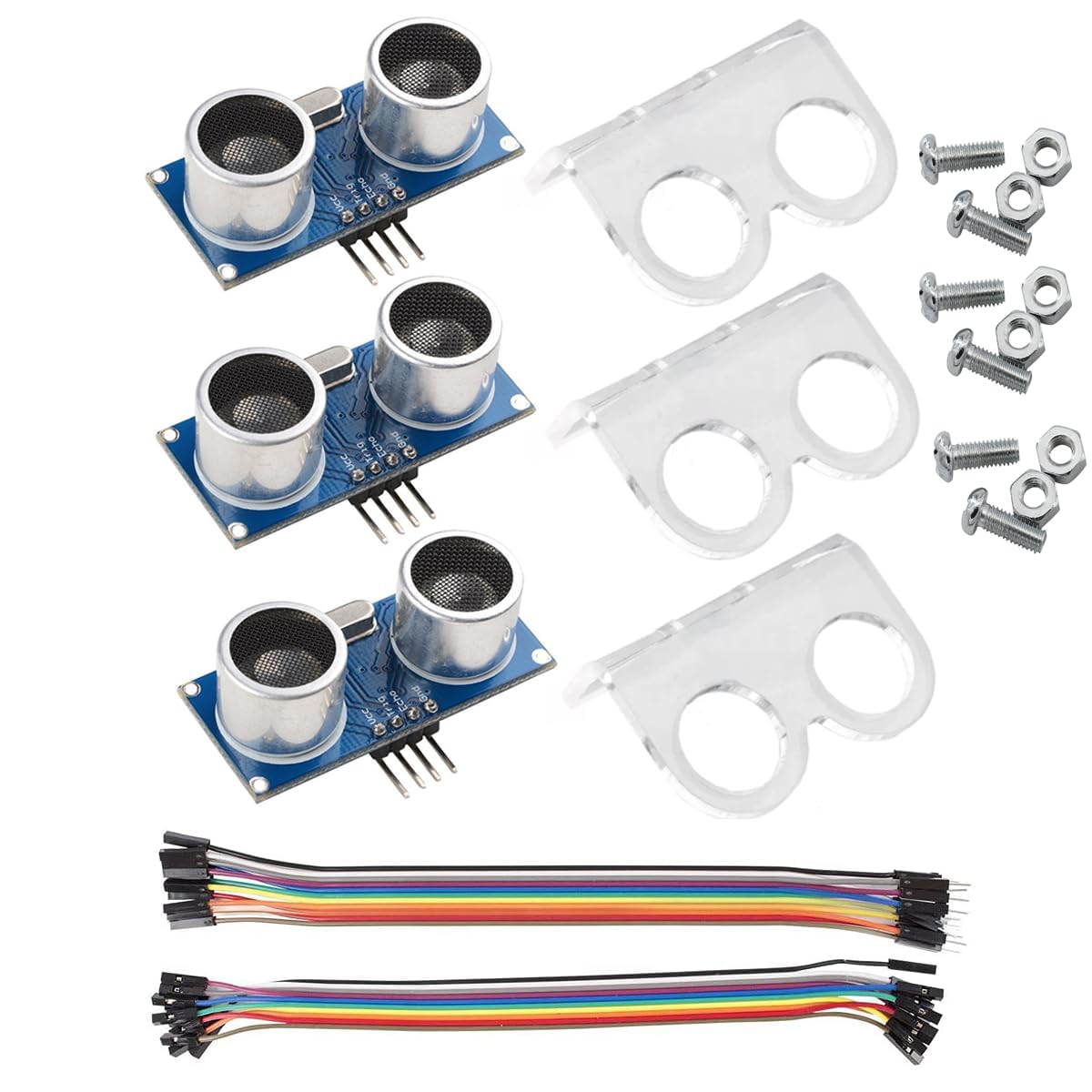

- Complete set, with 3PCS HC-SR04 Ultrasonic sensor module and 3 sets of Mounting Bracket and Cable.
