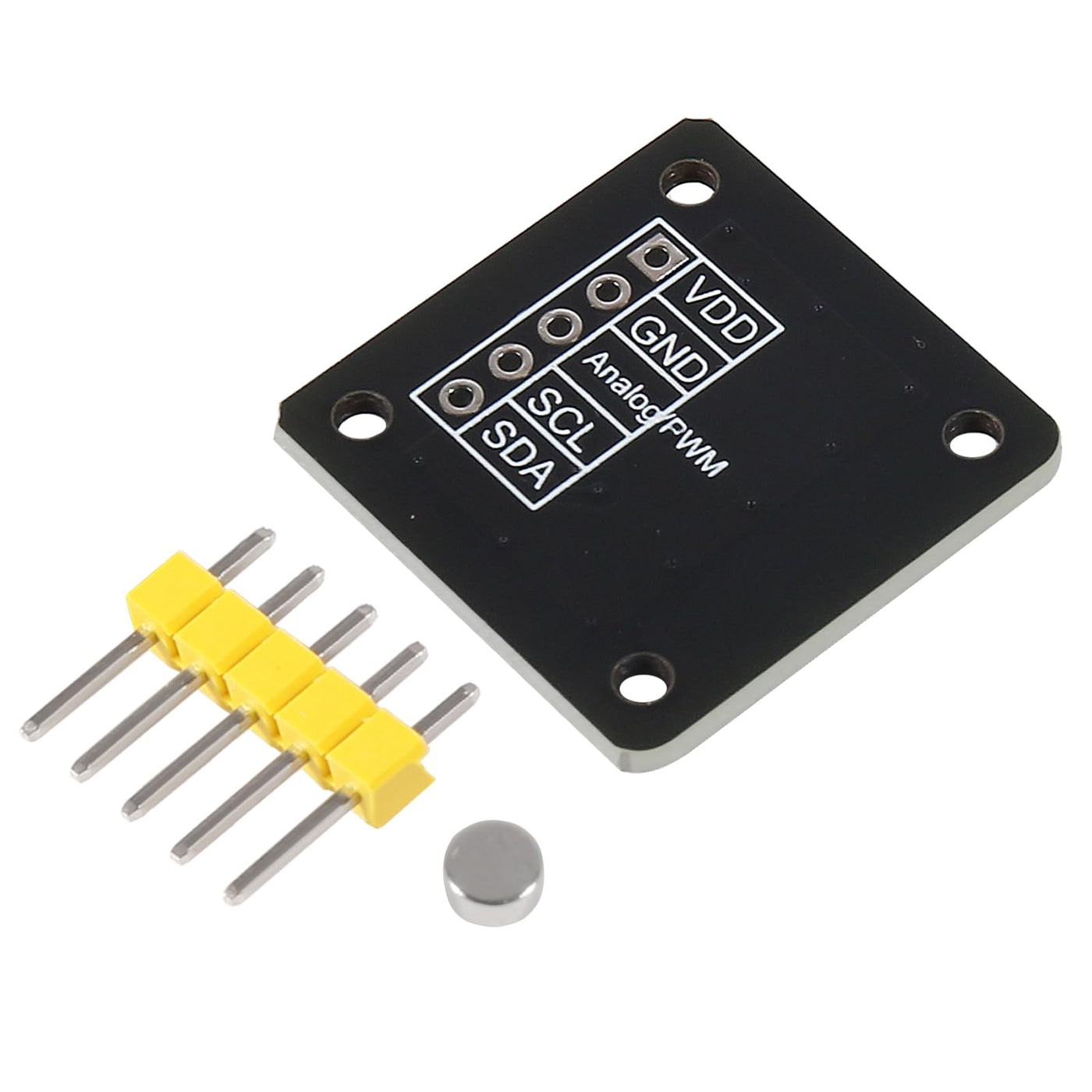

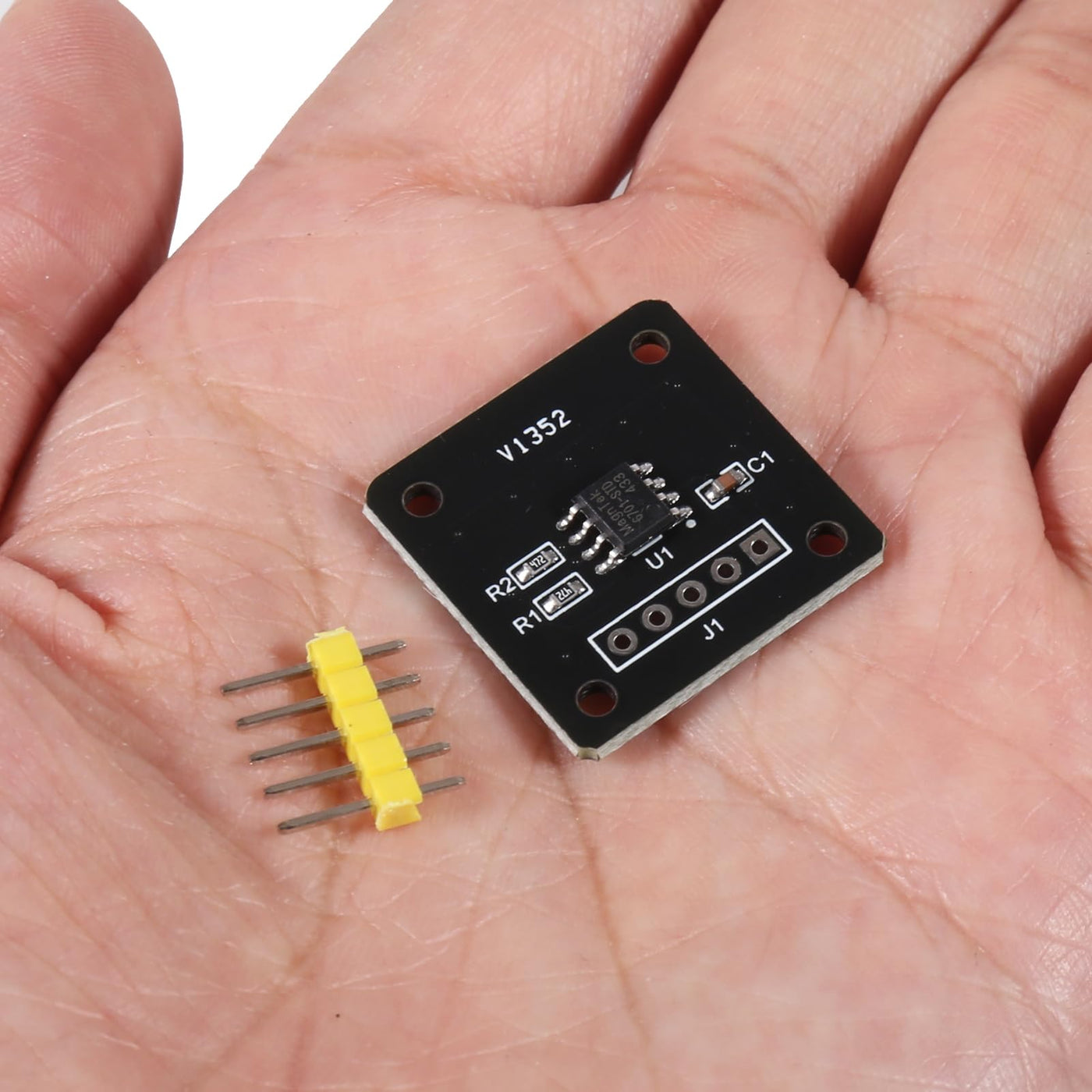

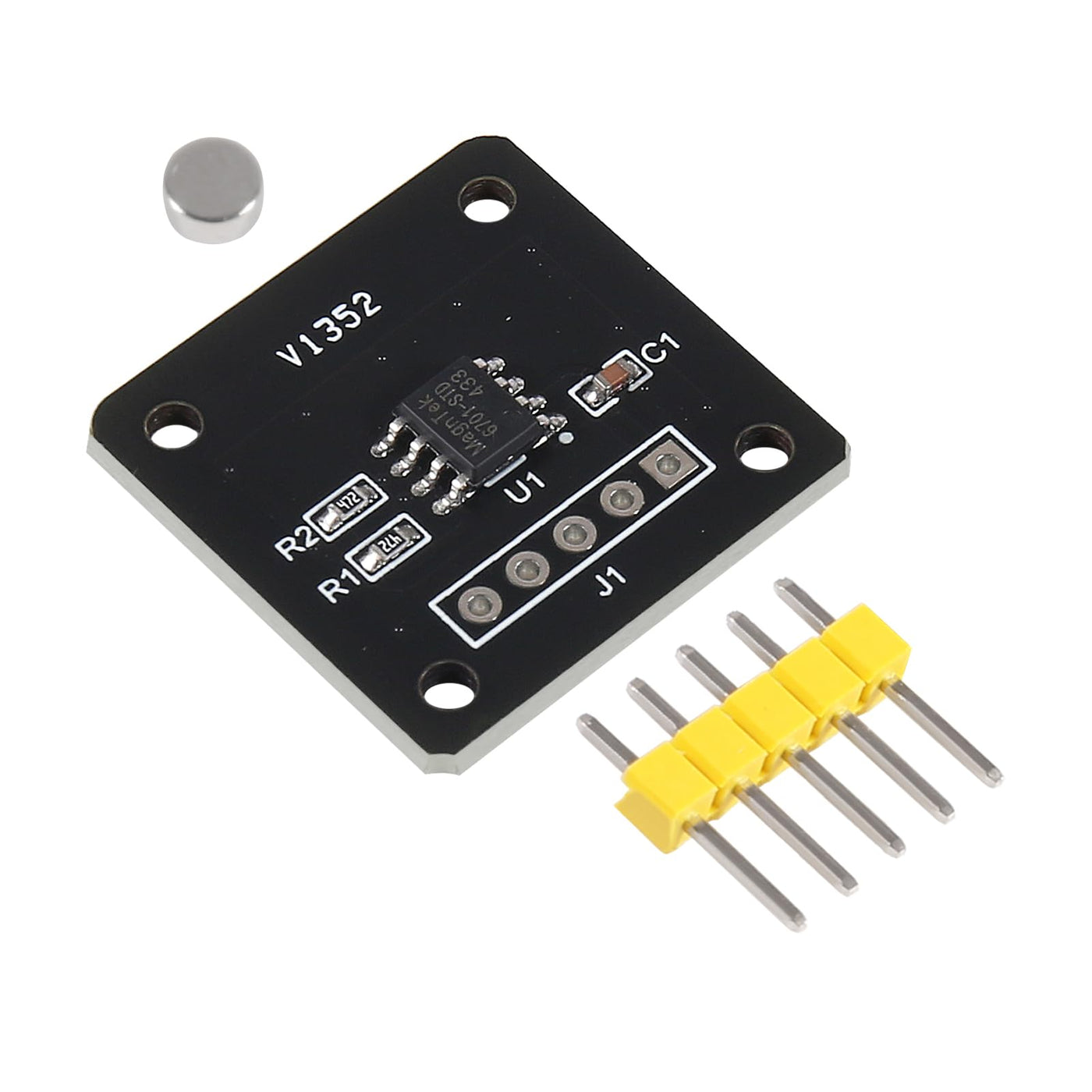

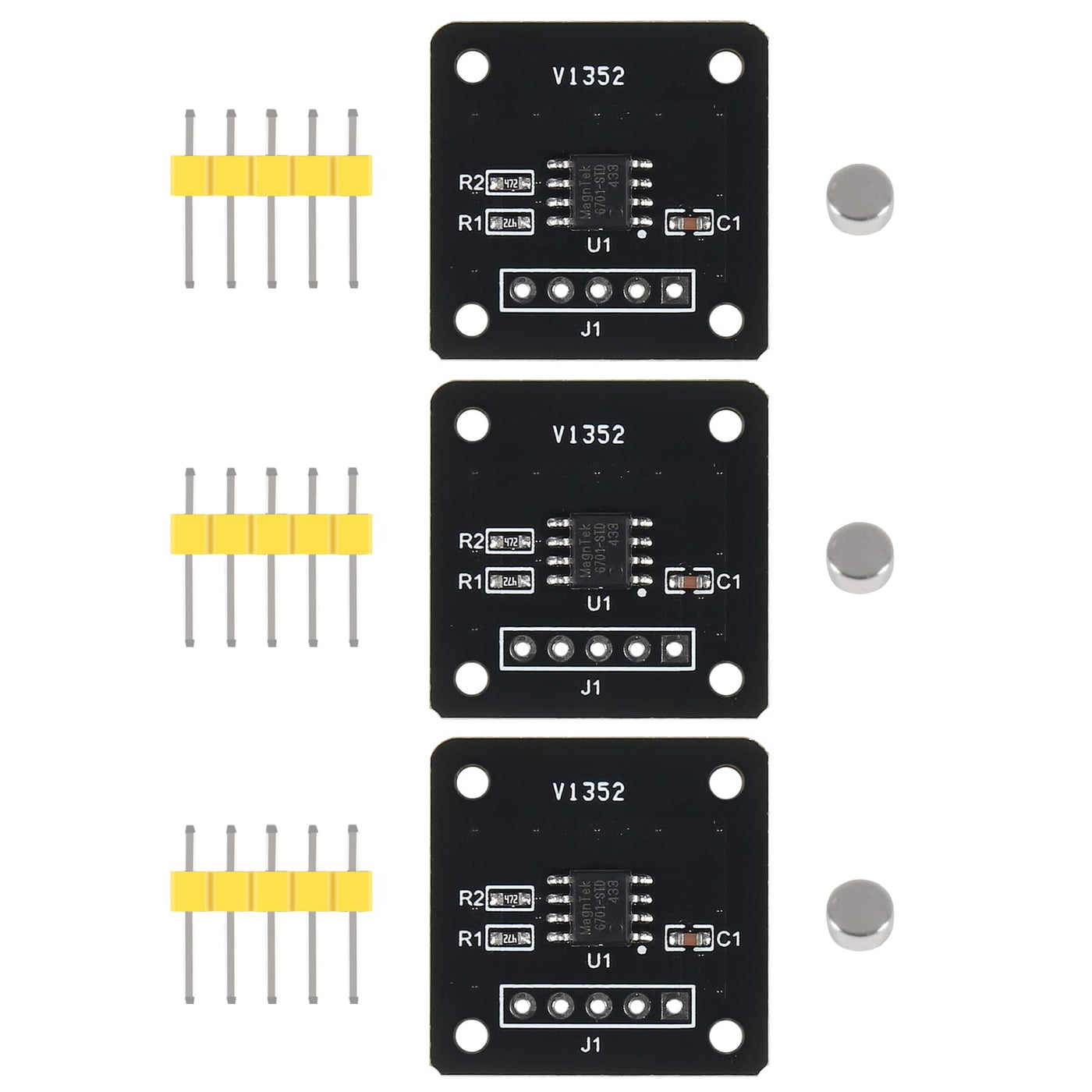

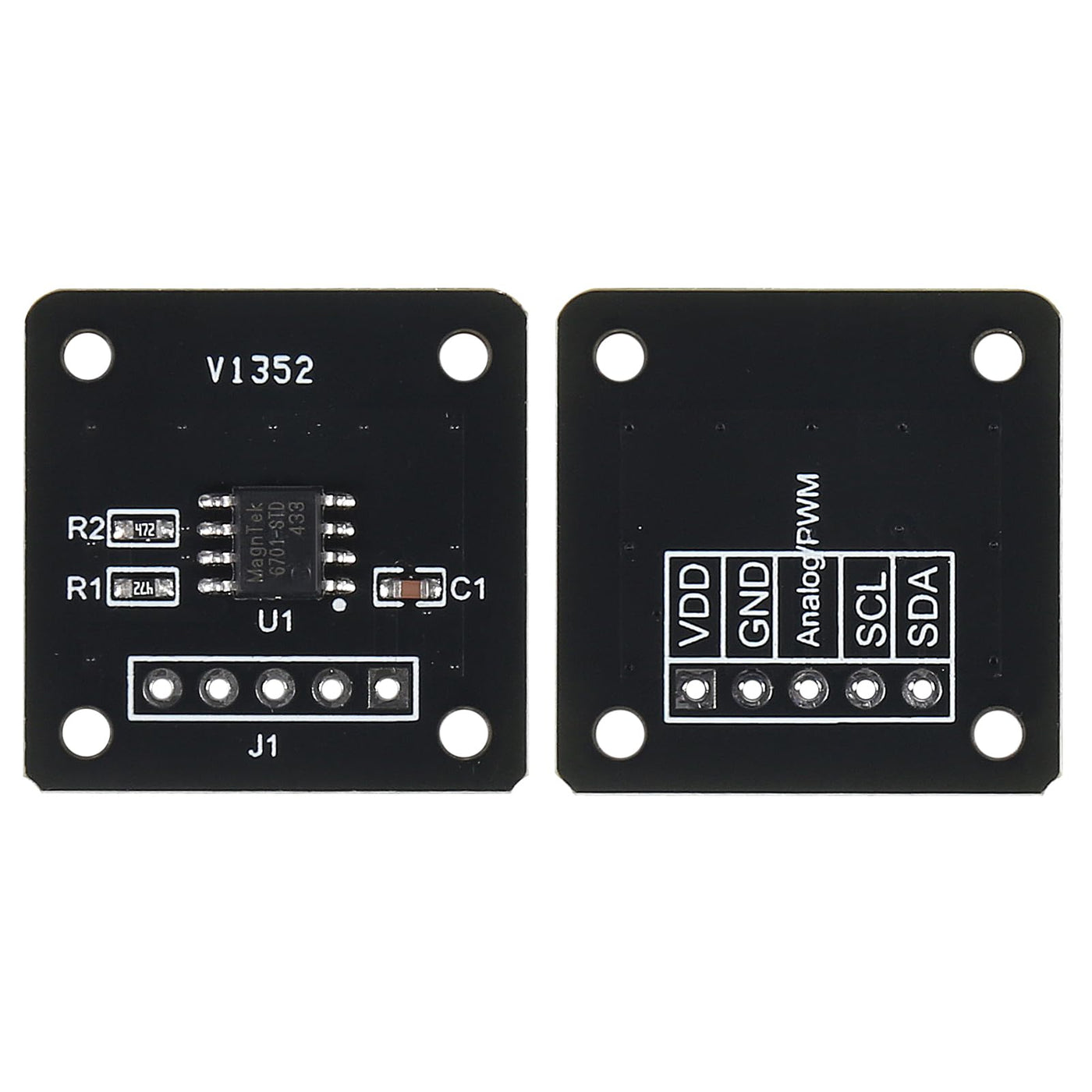

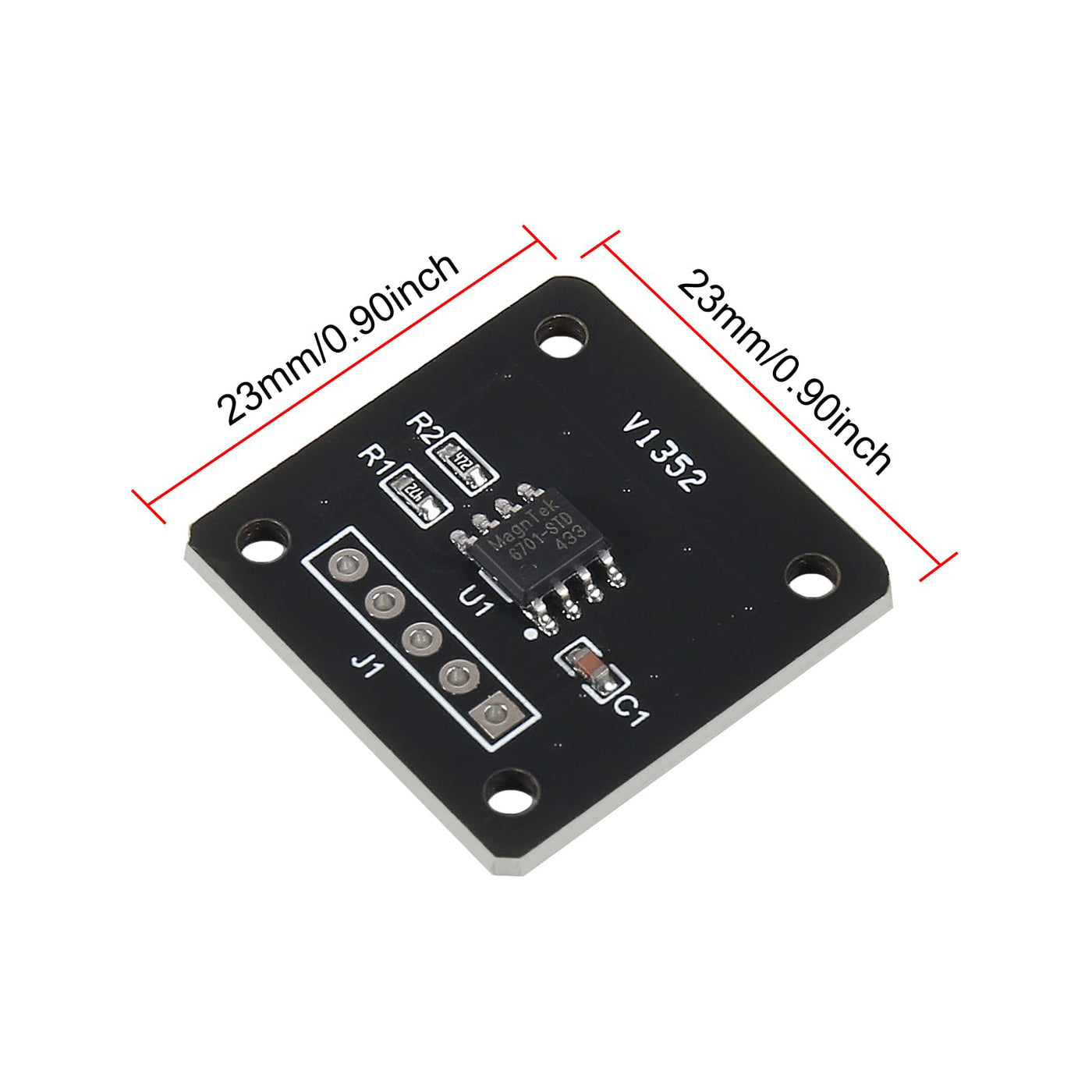

3PCS MT6701 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 14bit High Precision Replacement AS5600
3PCS MT6701 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 14bit High Precision Replacement AS5600
Descriptions:MT6701 is a new generation of magnetic Angle encoder chip based on differential Hall induction principle. MT6701 senses the component of the magnetic field perpendicular to the chip surface, and with the rotation of a pair of magnetic radial magnets on the chip surface,The MT6701 corresponding output Angle signal of 0~360°. In addition to providing ABZ/UVW incremental output and Analog/PWM absolute Angle output, the MT6701 provides 14 bit digital Angle output via the I2C/SSI interface. In addition to rotation Angle measurement, the MT6701 also offers a "push" output to enable single-chip button (rotation + press) functionality.Product features:Based on differential Hall technology, absolute Angle measurement from 0° to 360° is providedOperating voltage 3.3~5.0V, operating temperature -40℃~125℃Typical linearity deviation <±1°, <±1.5° over the whole temperature rangeSystem delay is as low as 5us and can support speeds up to 55,000 RPMProvides I²C/SSI interface to read 14-bit Angle data inside the chipIncremental output ABZ supports any resolution of 1 to 1024 linesIncremental output The UVW supports any polarity from 1 to 16Provides 12-bit PWM output or analog output (12-bit DAC)Dedicated press detection output (sensing changes in magnet and chip spacing) for single-chip button applicationsBuilt-in EEPROM, >1000 iterations of programmingPackage： 3PCS Magnetic Encoder MT6701 Magnetic Induction Angle Measurement Sensor Module
Product Features
- High precision, a variety of output modes like IIC,PWM and voltage
- Sensing range: 100mT
- ABZ mode 1024 lines
- Function type: position detection
- Applications: Suitable for electronic equipment, IC Component,machinery, instruments, lighting, home appliances.
