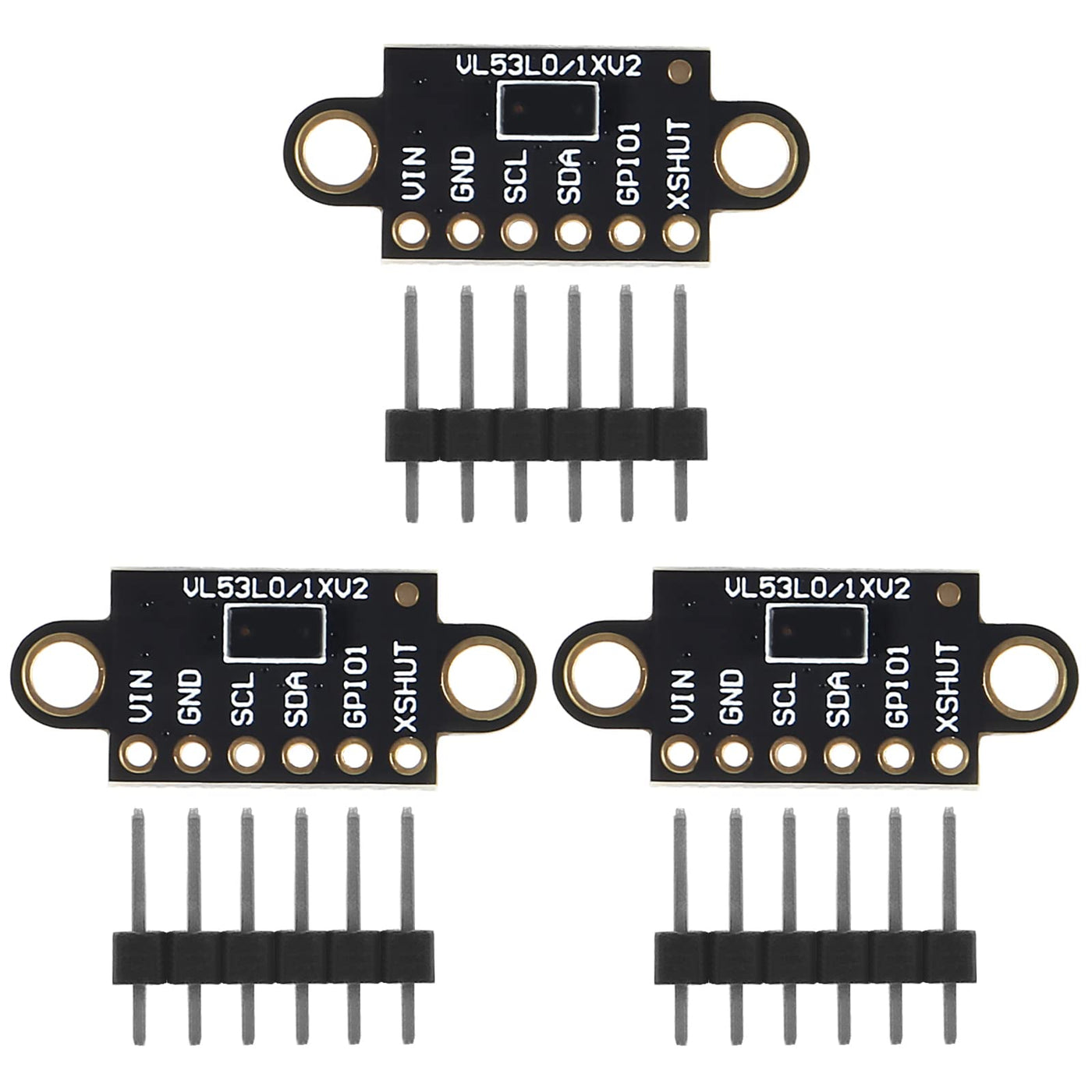

3PCS VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Breakout 940nm GY-VL53L0XV2 Laser Distance Module I2C IIC
3PCS VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Breakout 940nm GY-VL53L0XV2 Laser Distance Module I2C IIC

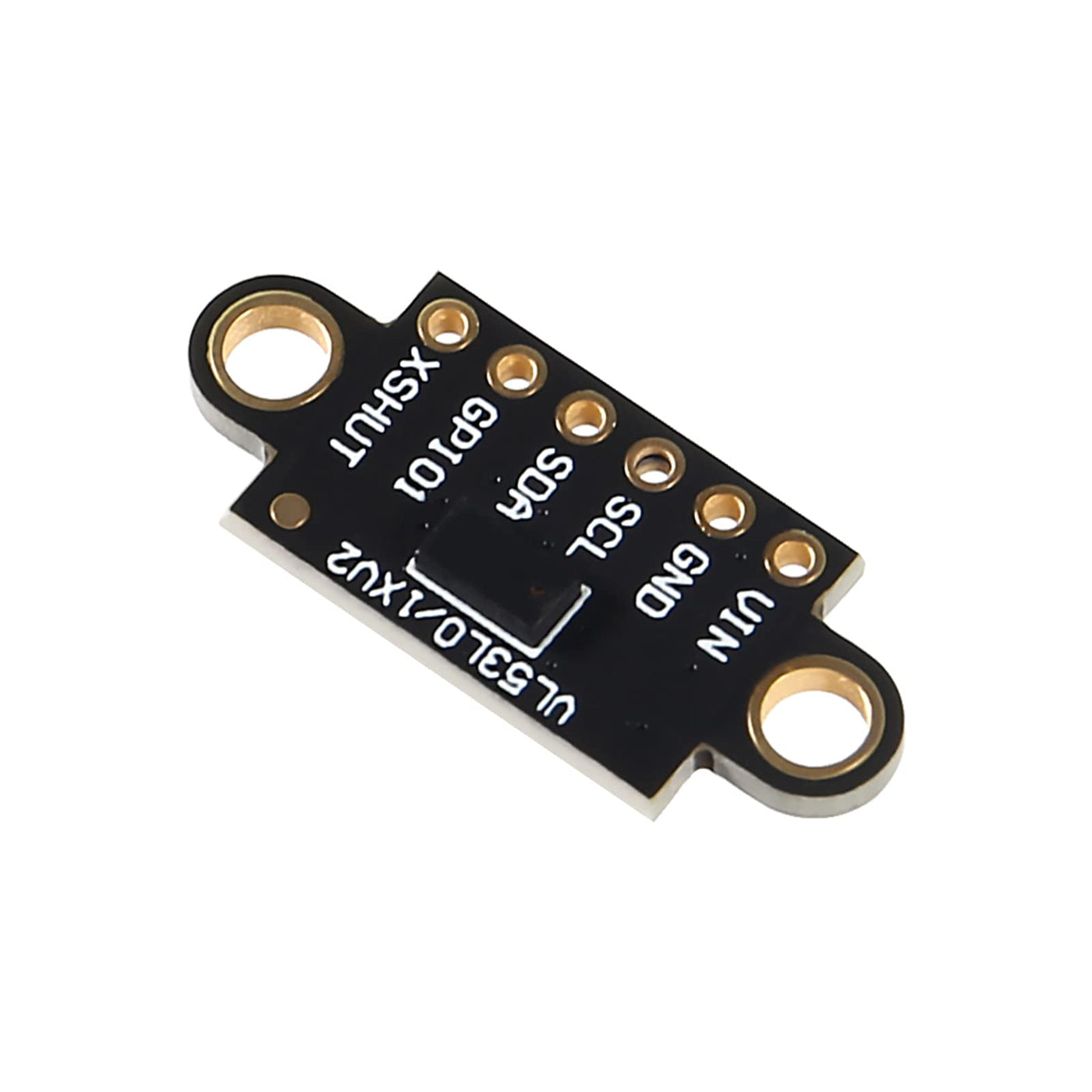

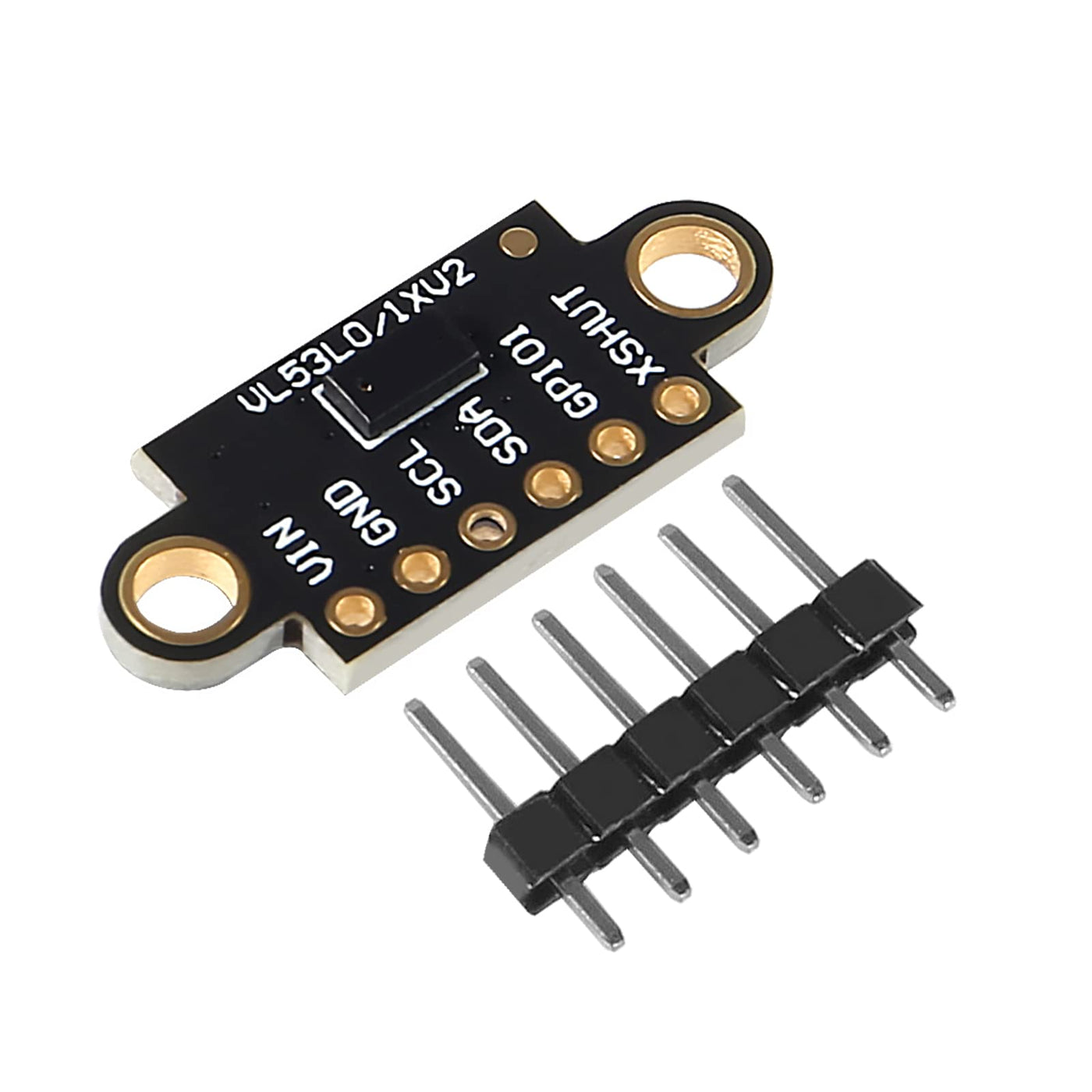

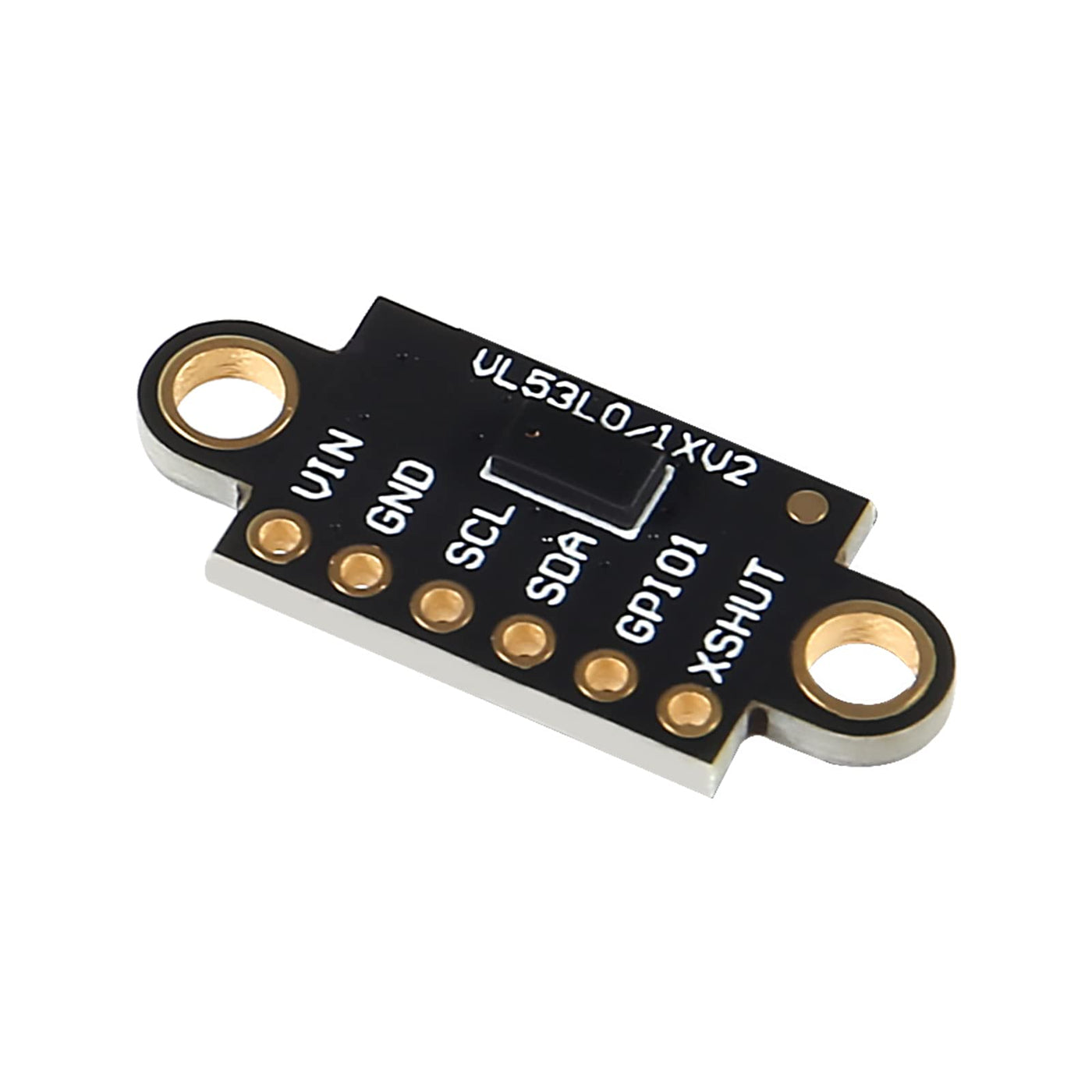

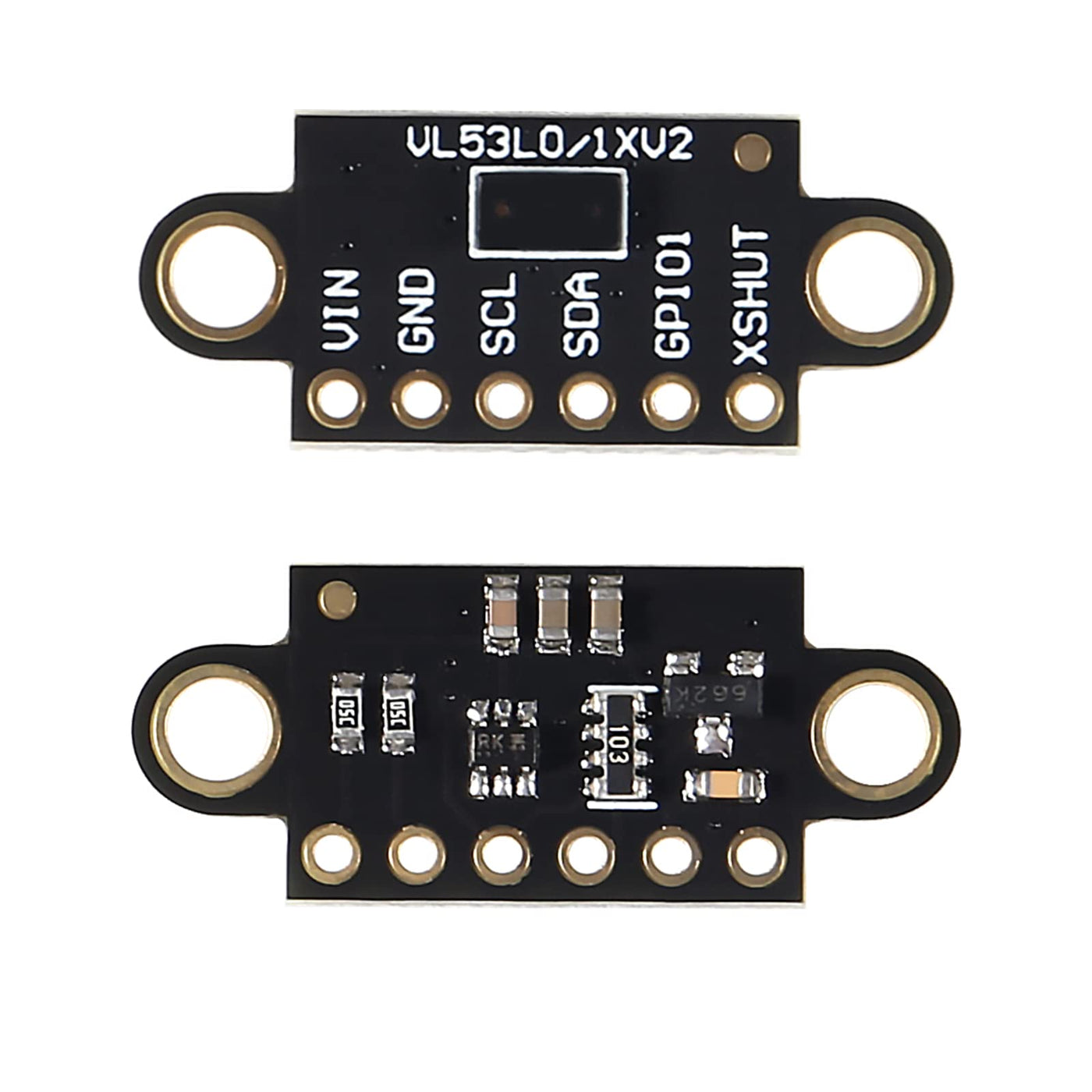

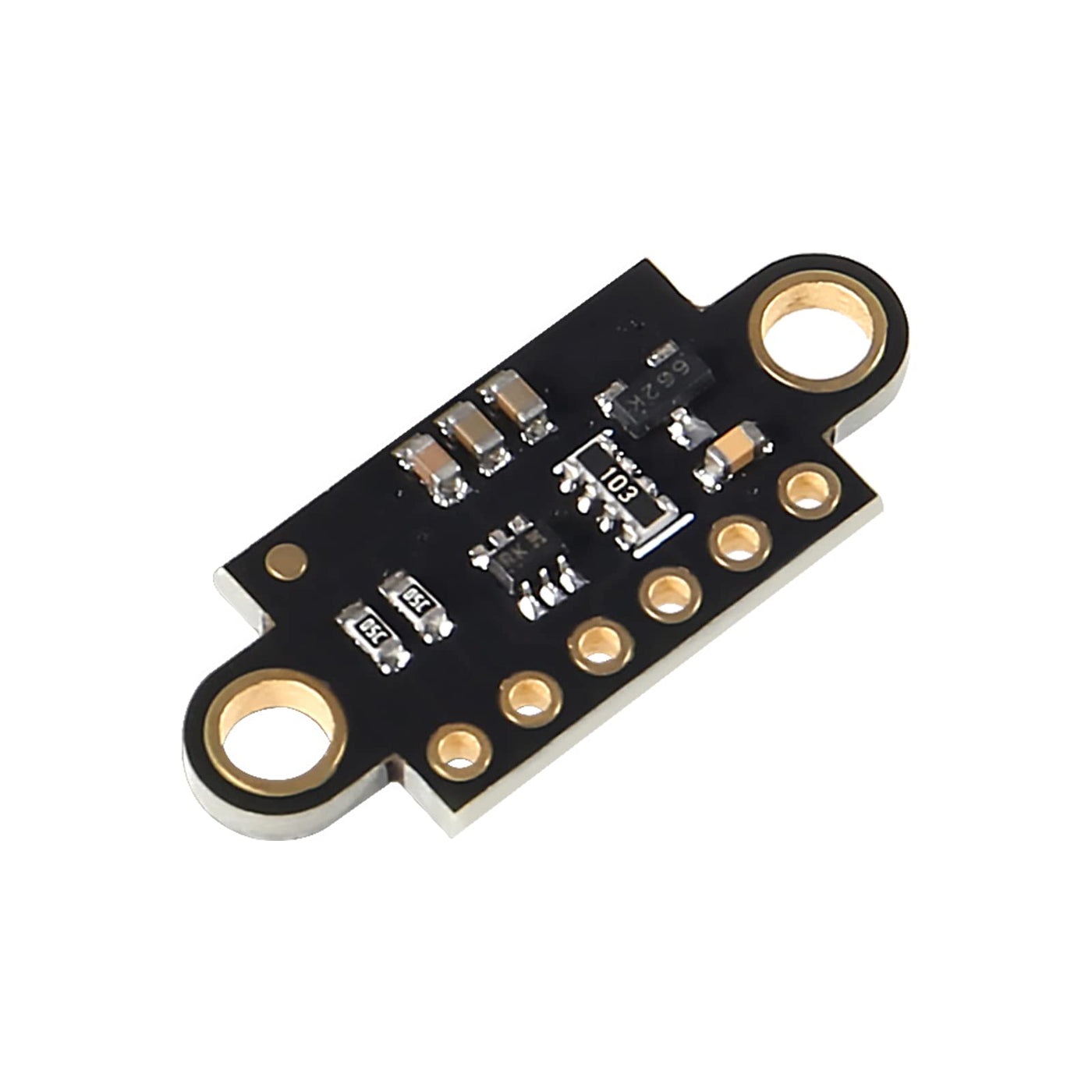

VL53L0X Time-of-Flight Flight Distance Measurement Sensor Breakout Descriptions:Ranging measurements are available through the sensors I²C (TWI) interface, which is also used to configure sensor settings,and the sensor provides two additional pins: a shutdown input and an interrupt output.The VL53L0X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use.It also operates at a recommended voltage of 2.8 V, which can make interfacing difficult for microcontrollers operating at 3.3 V or 5 V.Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible. PIN DescriptionVDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator,you can instead use this pin as a 2.8 V input with VIN disconnected.)VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I²C lines high to this level.GND The ground (0 V) connection for your power supply. Your I²C control source must also share a common ground with this board.SDA Level-shifted I²C data line: HIGH is VIN, LOW is 0 VSCL Level-shifted I²C clock line: HIGH is VIN, LOW is 0 VXSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin lowputs the sensor into hardware standby. This input is not level-shifted. Package included:3 VL53L0X Time-of-Flight Flight Distance Measurement Sensor Breakout
Product Features
- Strong point: A carrier for the VL53L0X
- Advantage: A time-of-flight ranging system integrated into a compact module
- Accuracy: Range from 3% at best to over 10% in less optimal conditions
- Maximum Sensoring Distance: 2m
- Working Voltage: 2.6V - 5.5V
