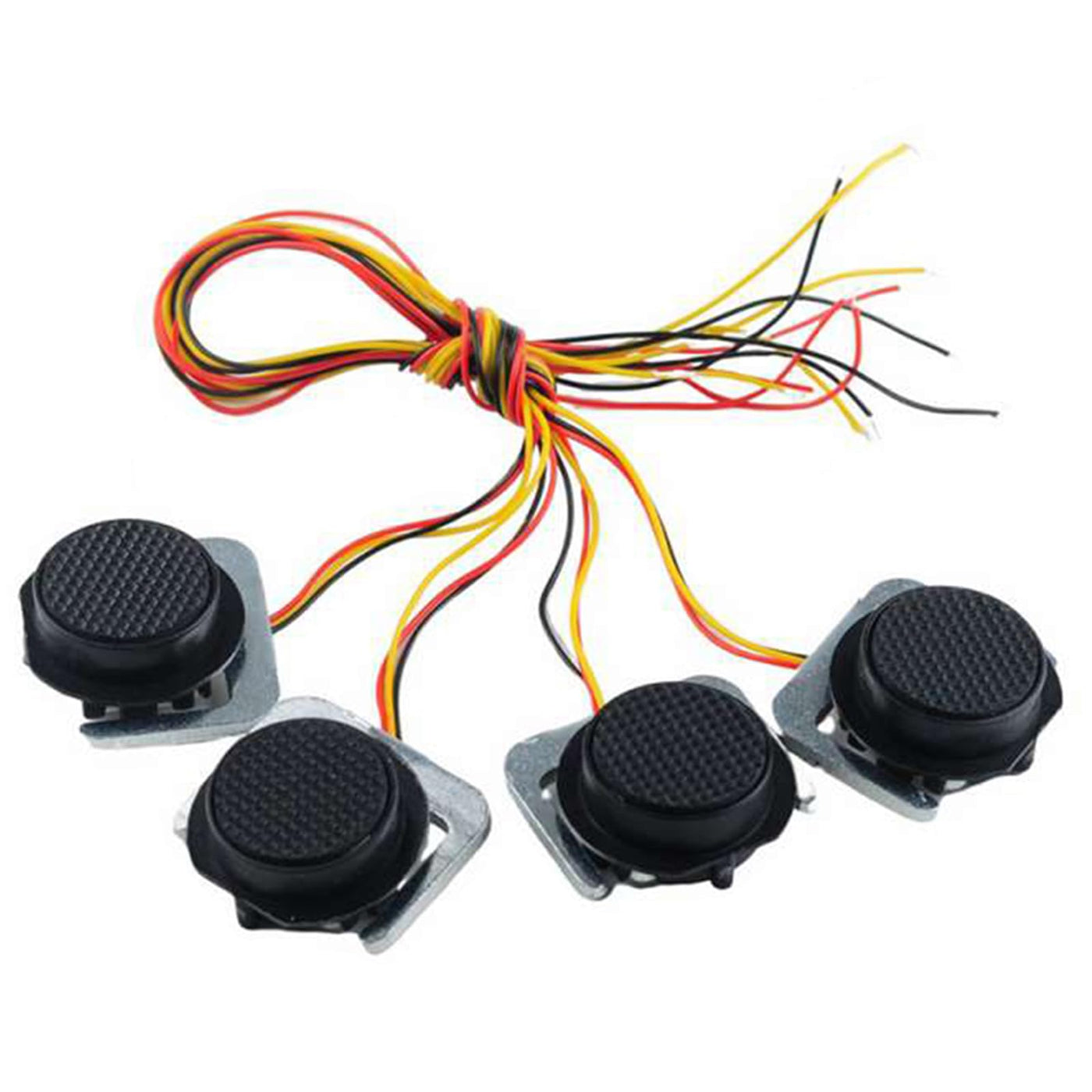

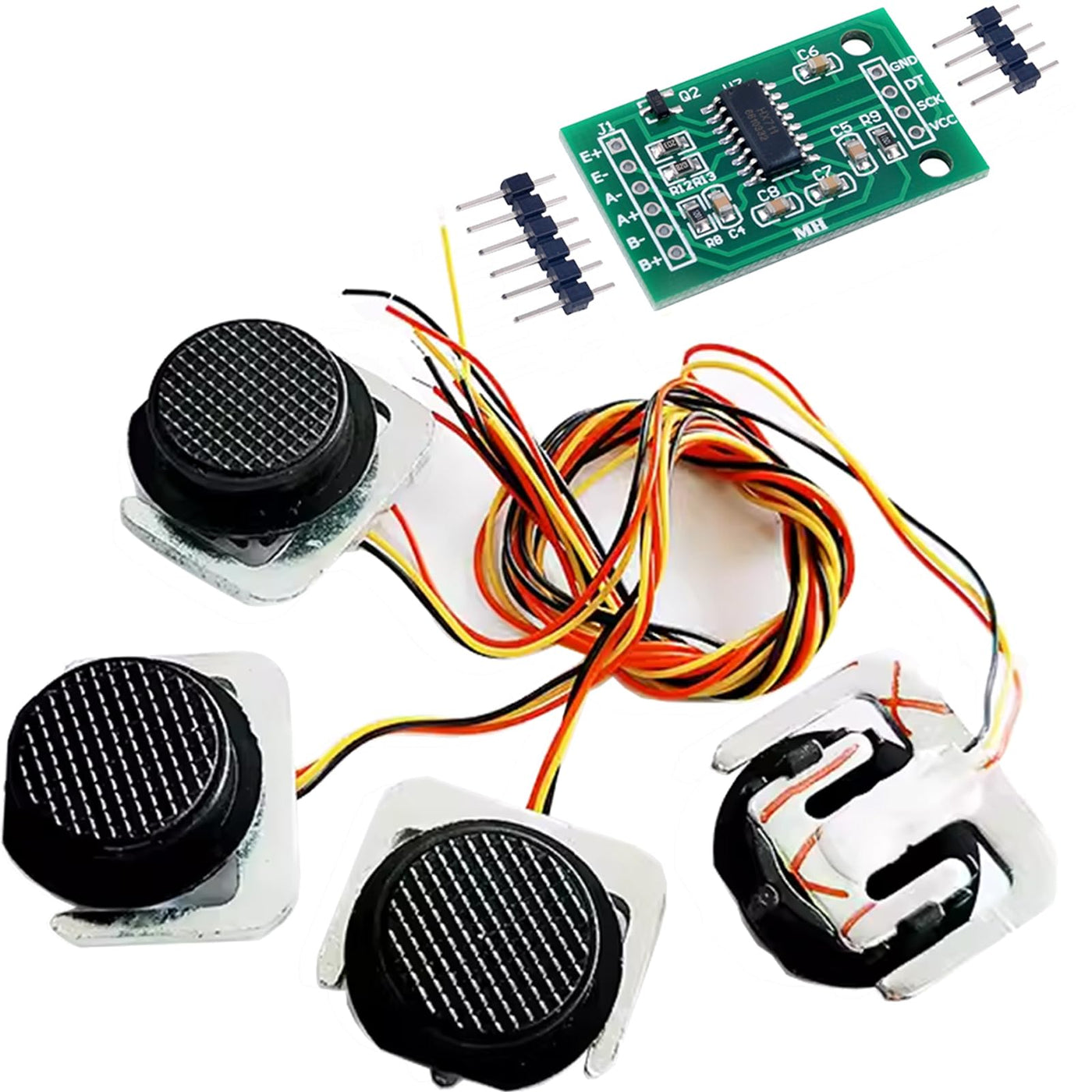

4PCS 50KG Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale Pressure Sensors + HX711 Amplifier AD Module (4sensor 1module)

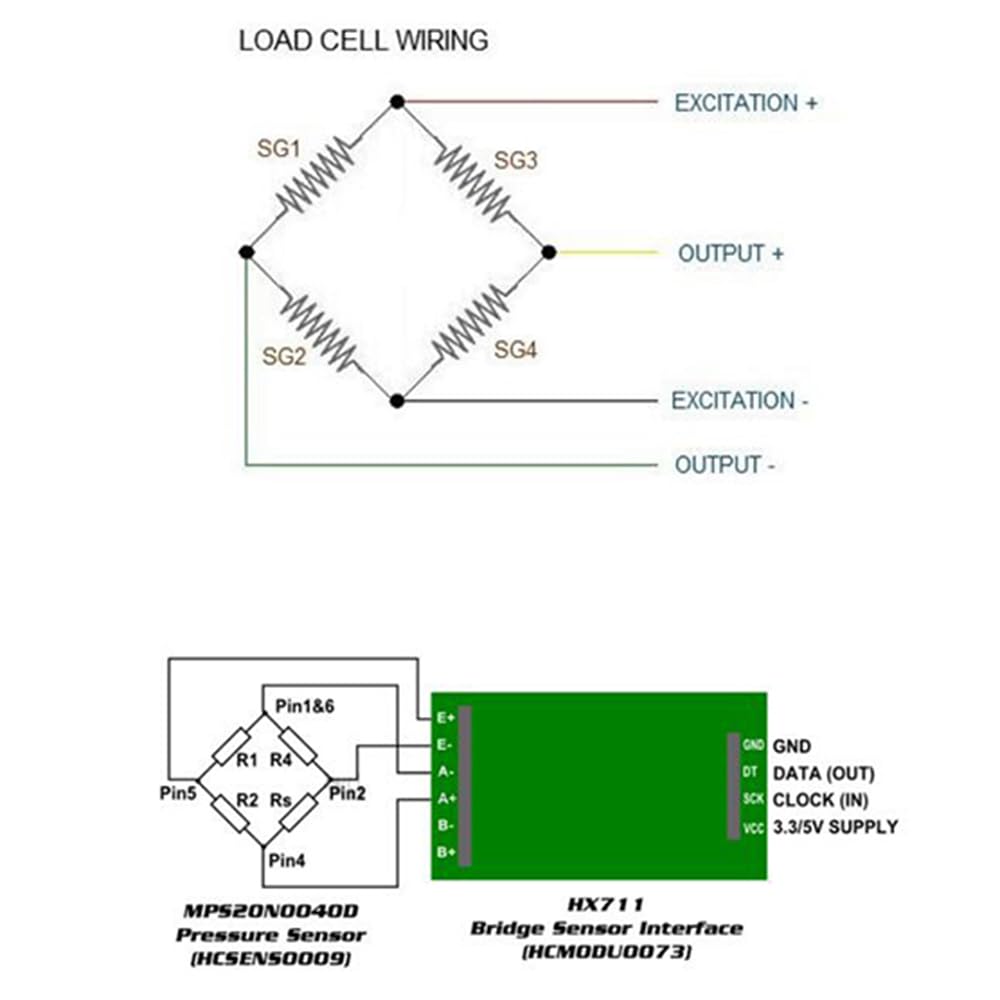

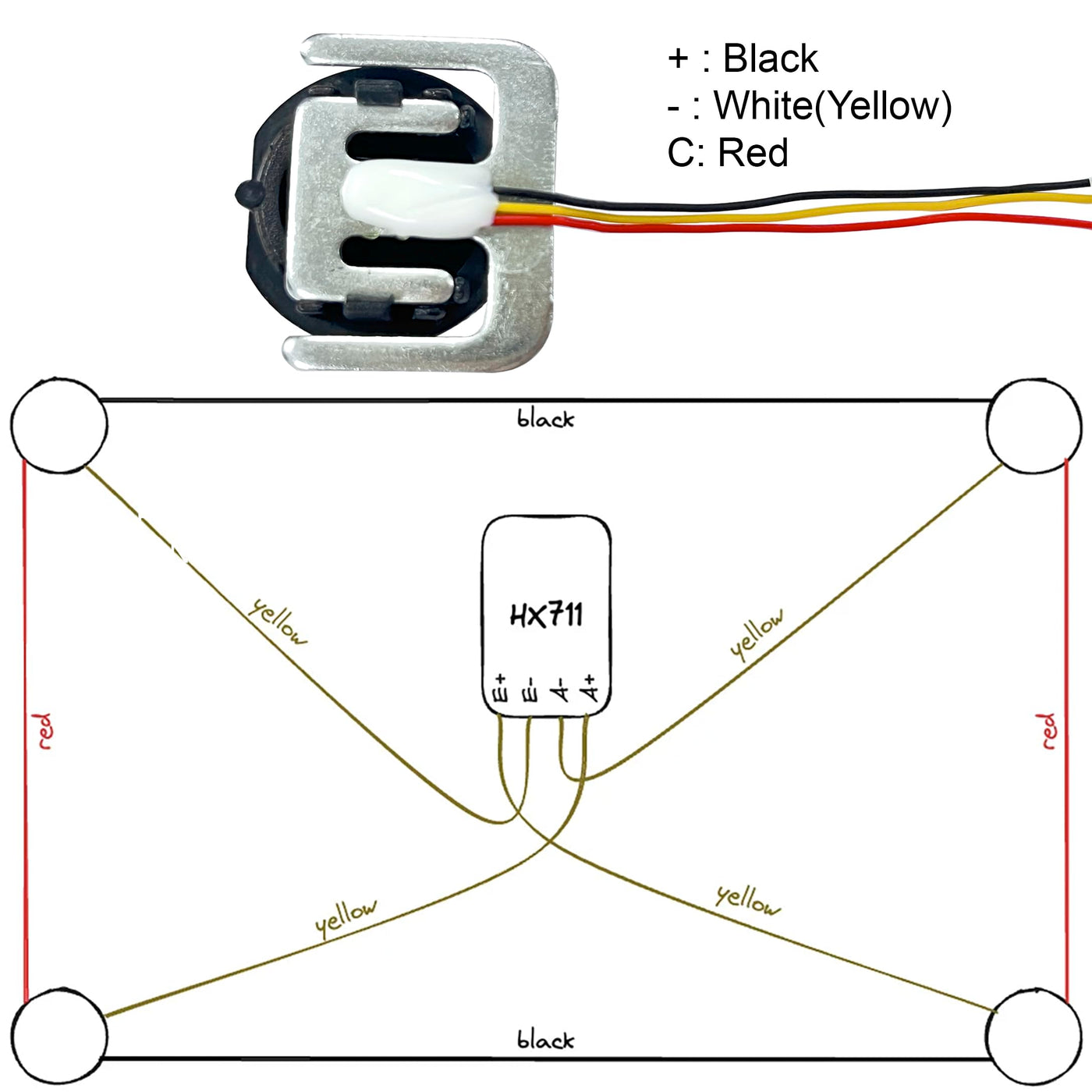

This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales (you know, the ones you use in January for your New Year’s resolutions, and then forget about a month later). The sensor is a group of half-bridge strain gauge, there are 3 ways to use it : 1. Use one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements. 2.Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg 3.Use four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg Product Parameter Range: 50kg Zero Output: ±0.3mV/V Output sensitivity: 1.0±0.15mV/V Linearity: 0.2%F.S Hysteresis: 0.2%F.S Repeatability: 0.1%F.S Creep: 0.1%F.S(3min) Output (Input) Impedance: 1000±10Ω Operating temperature: -10C~+40°C Quadrature error: 0.15%F.S Zero temperature drift: 0.3%F.S/10°C Temperature sensitivity drift: 0.3%F.S/10°C Insulation resistance: ≥2000MΩ Excitation voltage: 5-10V DC Limit overload: 150%F.S Overall Accuracy: 0.3%F.S Wire length parameter: 45cm Package Includes: 4 X 50kg load cell 1 X HX711 Ad Module

Product Features

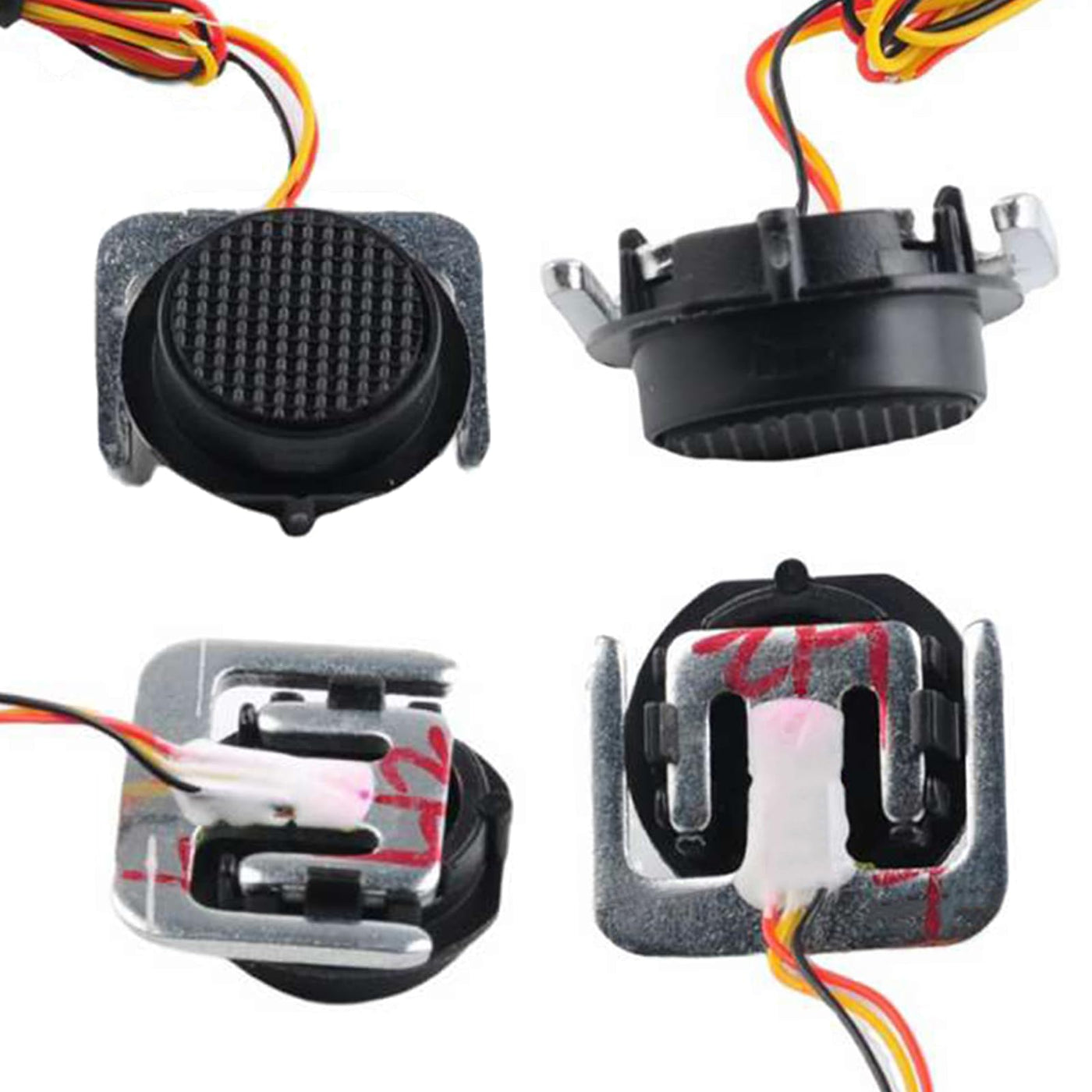

  • 1.New 50kg load cell with foot pads to increase friction and prevent sliding caused by measurement errors

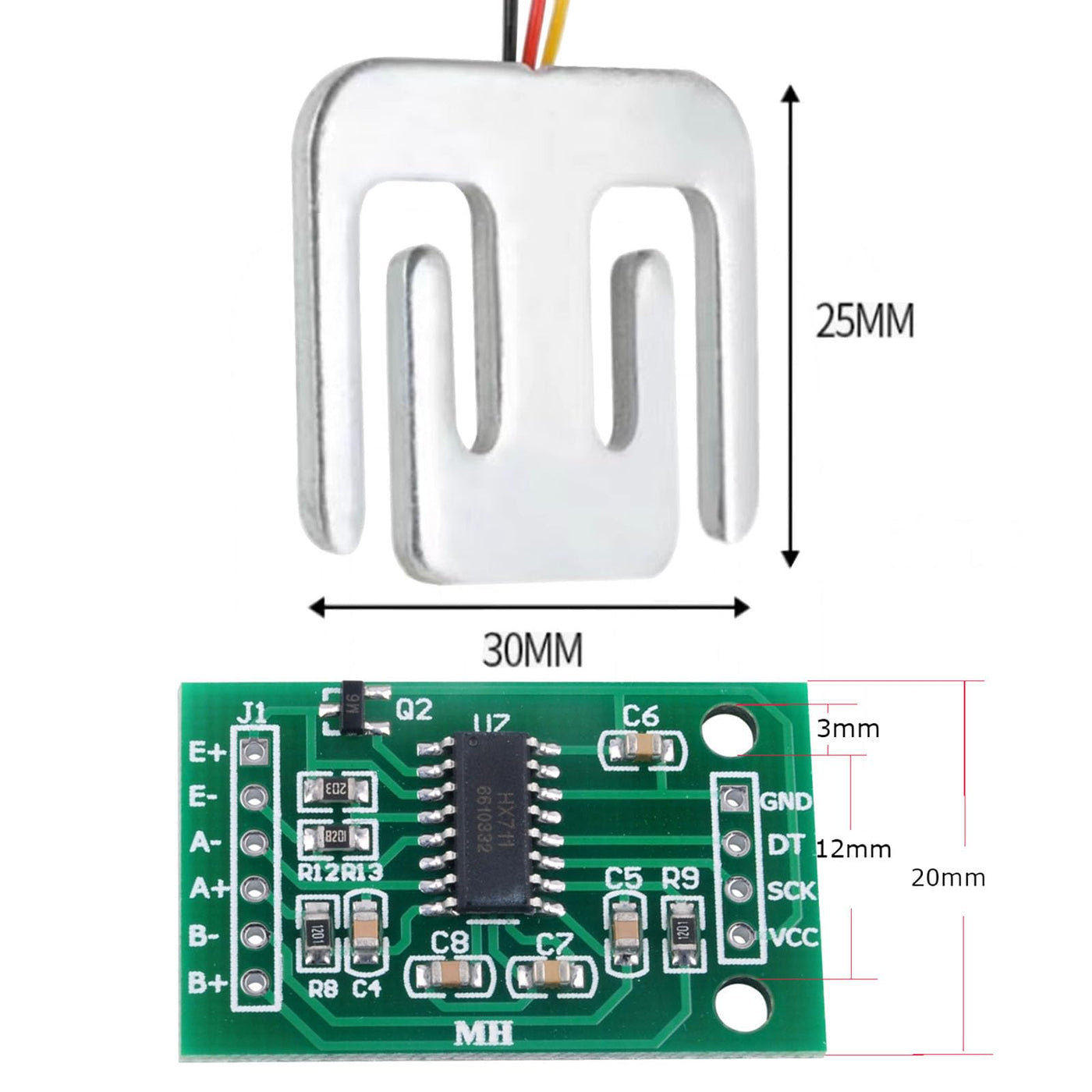

  • 2.30*25*13mm, small size, easy to install in various scenes
  • 3.Variable use, can be combined to 50kg/100kg/200kg
  • 4. Comprehensive accuracy: 0.3% F.S, output (in) impedance: 1000 10
  • 5. Any questions?Please click Wishiot(you can find "Sold by Wishiot" under Buy Now button), in the new page, click Ask a question
