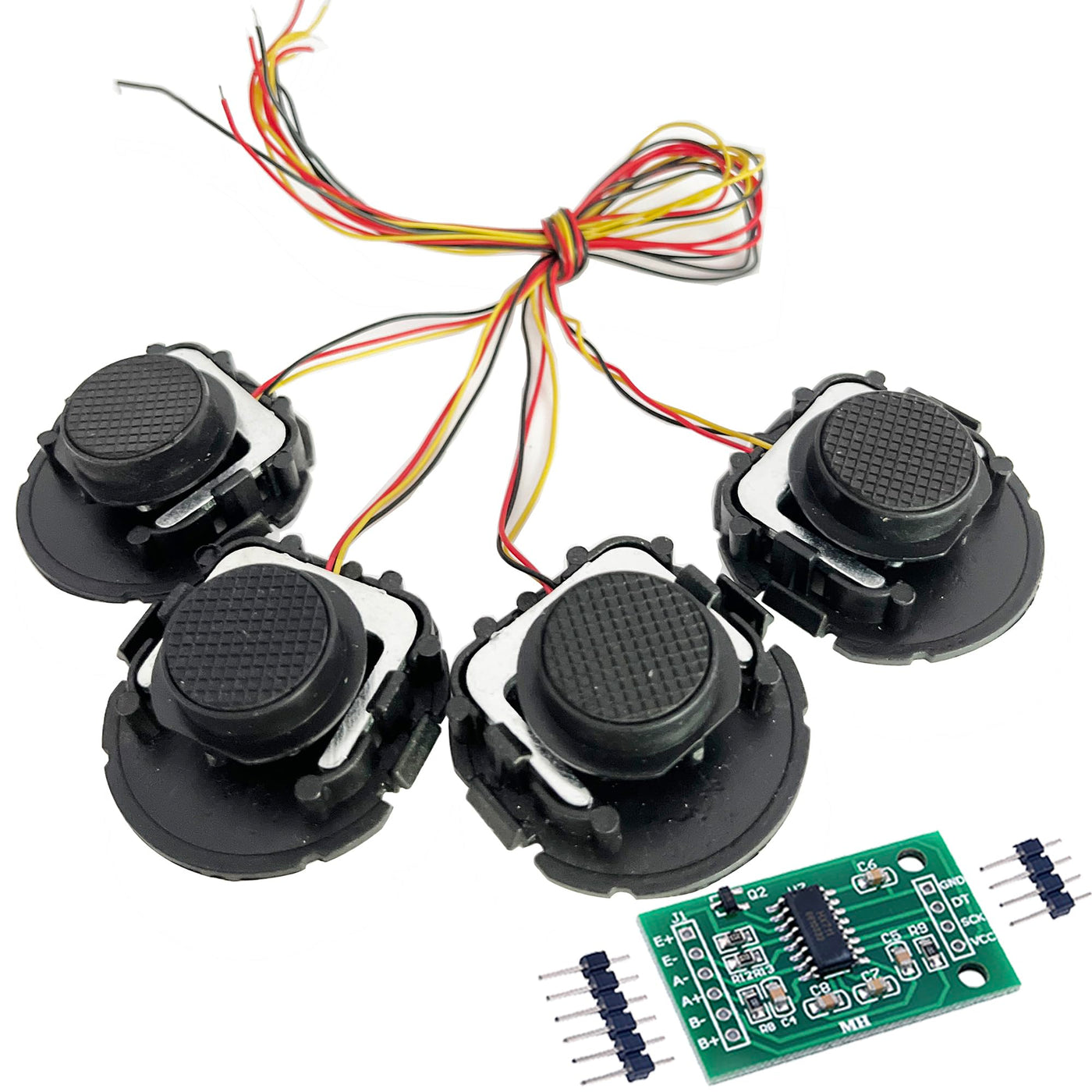

4PCS 50KG Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale with Bracket + HX711 Amplifier AD Module
4PCS 50KG Load Cell Weighing Sensor Half-Bridge Strain Gauge Human Body Scale with Bracket + HX711 Amplifier AD Module
Product Parameter Range: 50kg Zero Output: ±0.3mV/V Output sensitivity: 1.0±0.15mV/V Linearity: 0.2%F.S Hysteresis: 0.2%F.S Repeatability: 0.1%F.S Creep: 0.1%F.S(3min) Output (Input) Impedance: 1000±10Ω Operating temperature: -10C~+40°C Quadrature error: 0.15%F.S Zero temperature drift: 0.3%F.S/10°C Temperature sensitivity drift: 0.3%F.S/10°C Insulation resistance: ≥2000MΩ Excitation voltage: 5-10V DC Limit overload: 150%F.S Overall Accuracy: 0.3%F.S Wire length parameter: 26cm HX711 Ad Module Load Cell Amplifier Green PCB for Arduino Description: This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale design with two analog input channel the internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module. Features: ●Two selectable differential input channels ●On-chip active low noise PGA with selectable gain of 3264 and 128 ●On-chip power supply regulator for load-cell and ADC analog power supply On-chip oscillator requiring no external component with optional external crystal ●On-chip power-on-reset ●Simple digital control and serial interface: pin-driven controlsno programming needed ●Simultaneous 50 and 60Hz supply rejection ●Current consumption including on-chip analog power supply regulator: normal operation <1.5mApower down <1uA ●Operation supply voltage range: 2.6 ~ 5.5V ●Operating Temperature Range:-20 degree ~ +85 degree Package Includes: 4 X 50kg load cell with mounting bracket 1 X HX711 Ad Module
Product Features

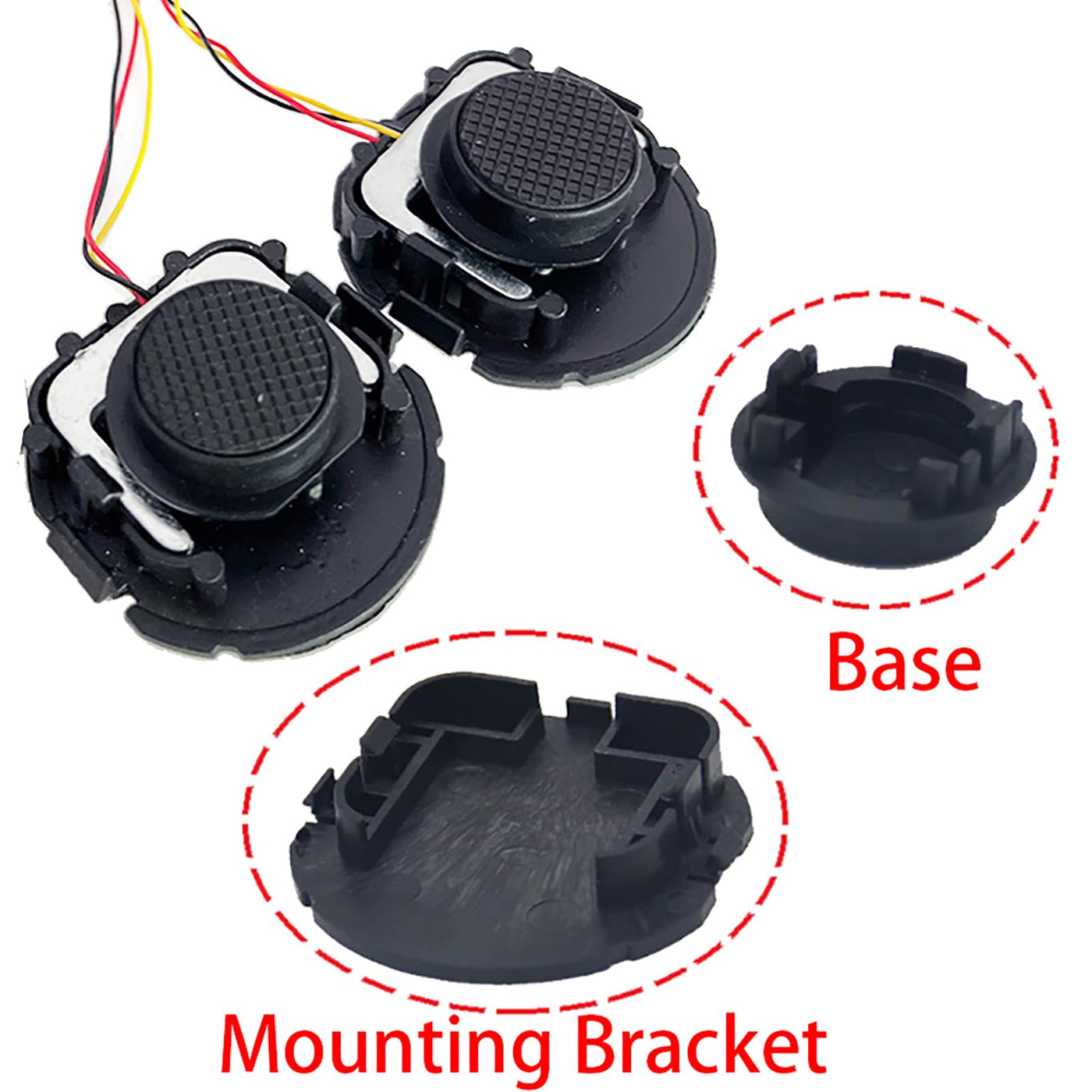

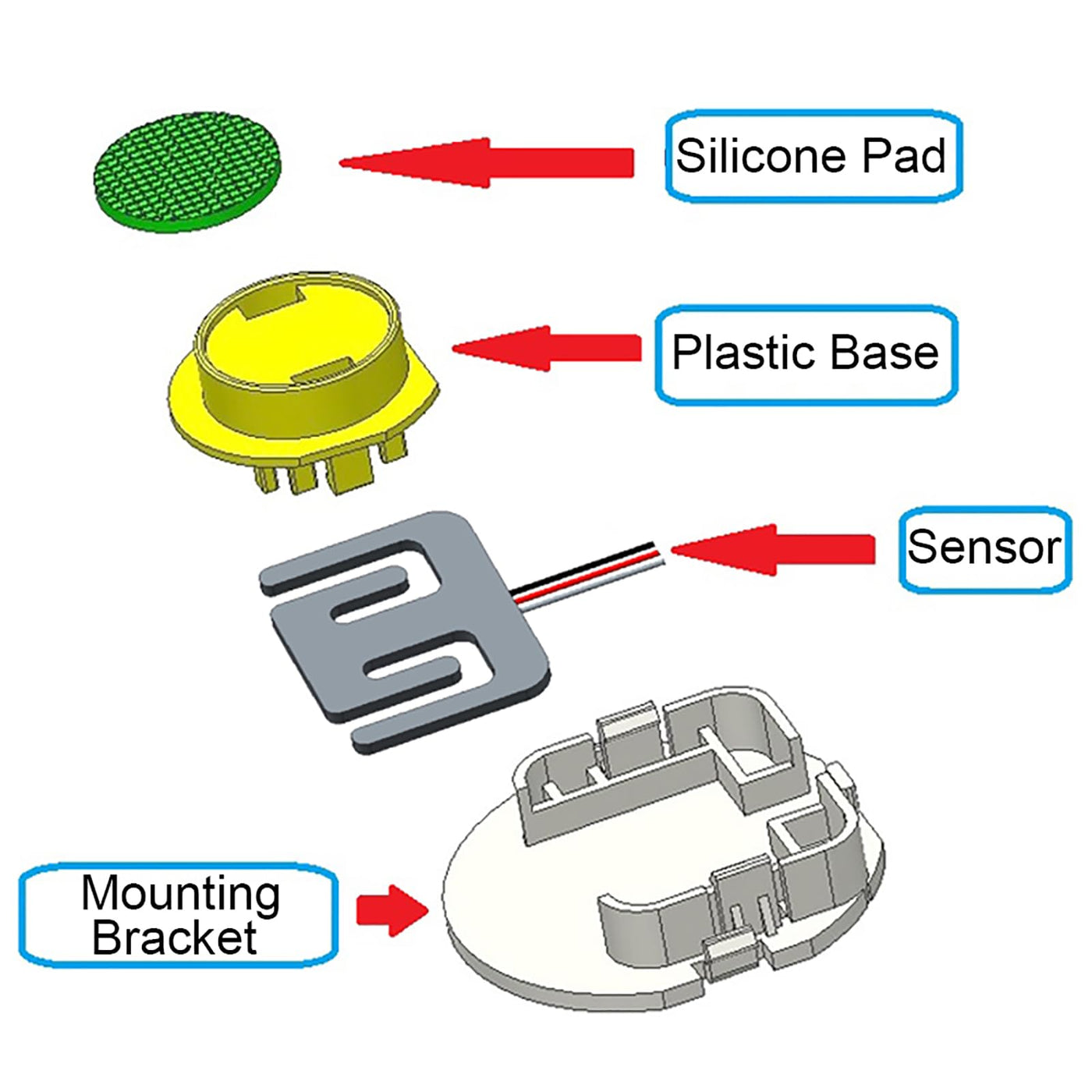

- 1. New 50 kg load cell with feet and mounting bracket for direct mounting to increase friction and prevent slipping due to measurement errors

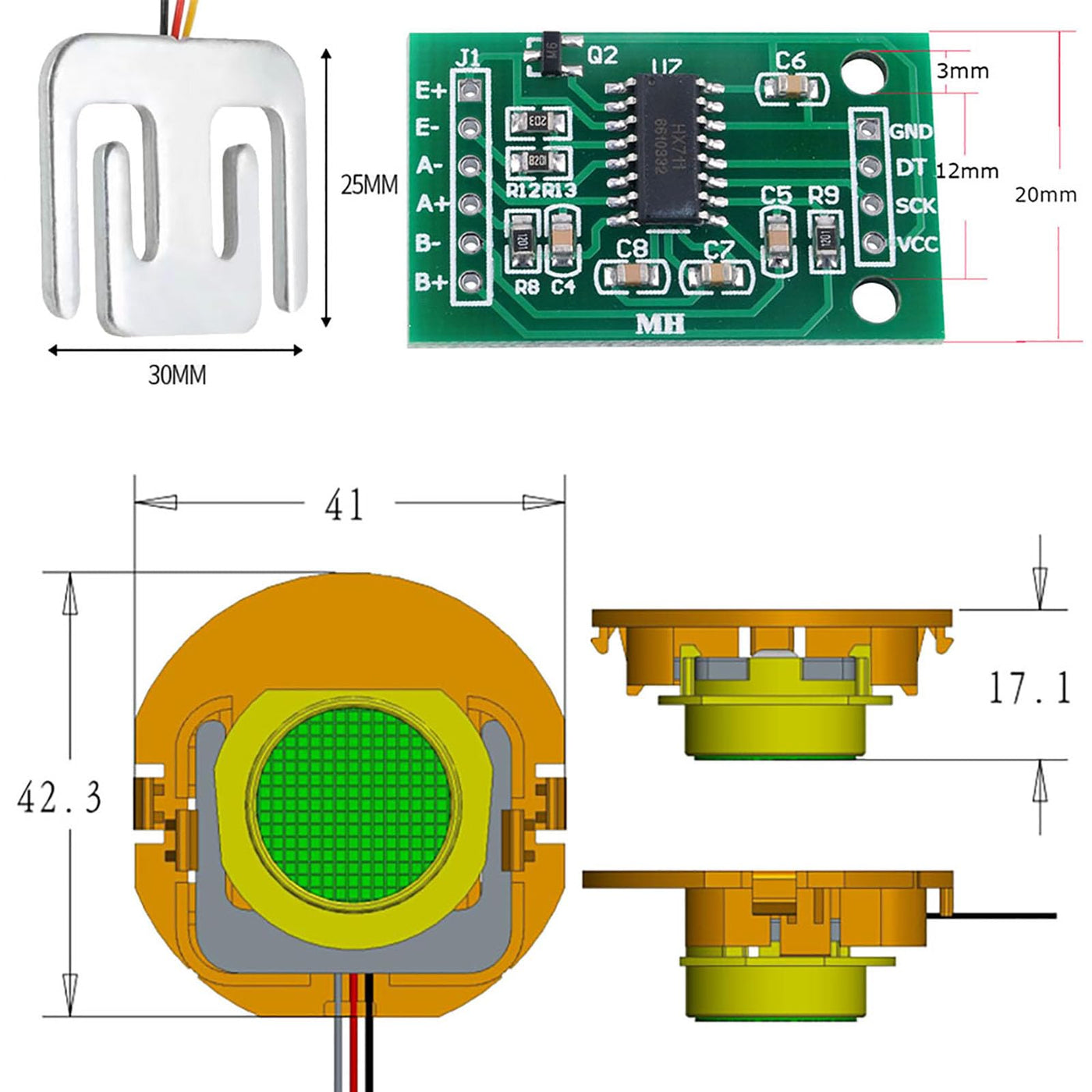

- 2.30*25*13mm, small size, easy to install in various scenes
- 3.Variable use, can be combined to 50kg/100kg/200kg
- 4. Comprehensive accuracy: 0.3% F.S, output (in) impedance: 1000 +- 10
- Please feel free to ask us any questions and we will do our best to help you solve the problem
