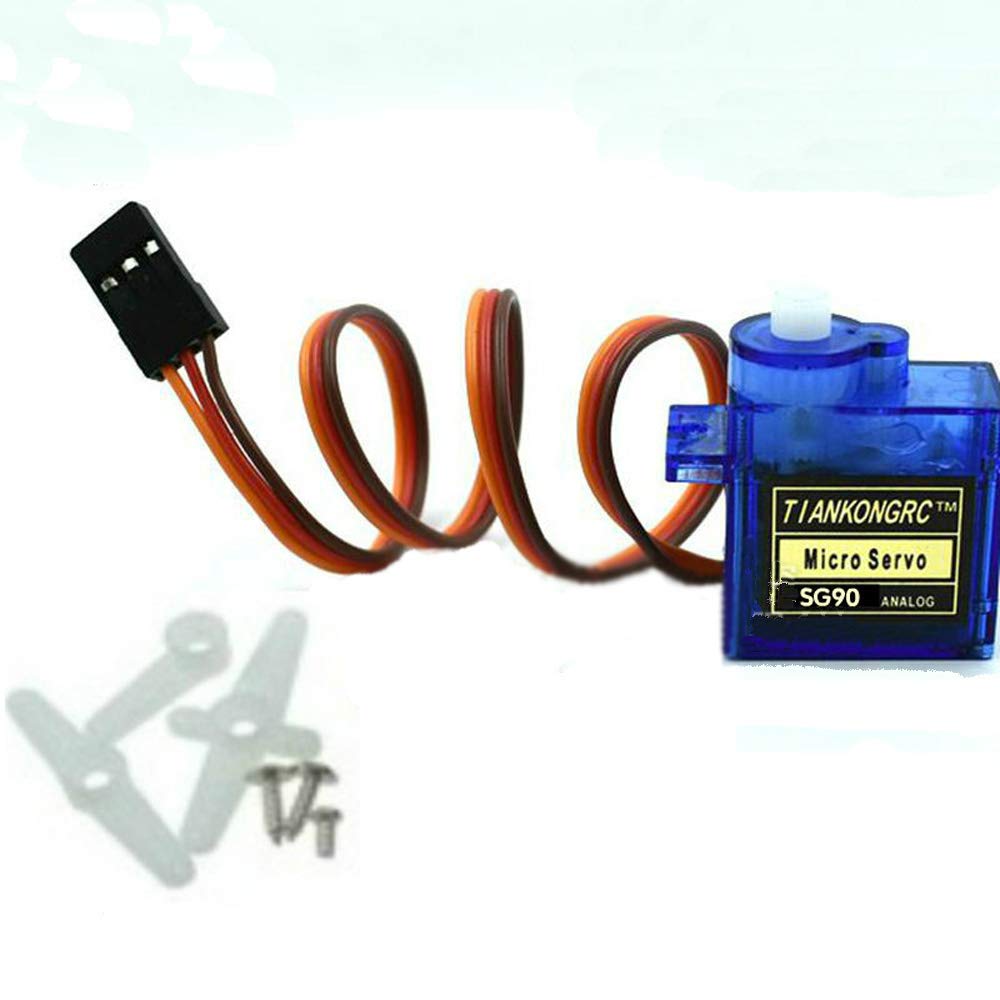

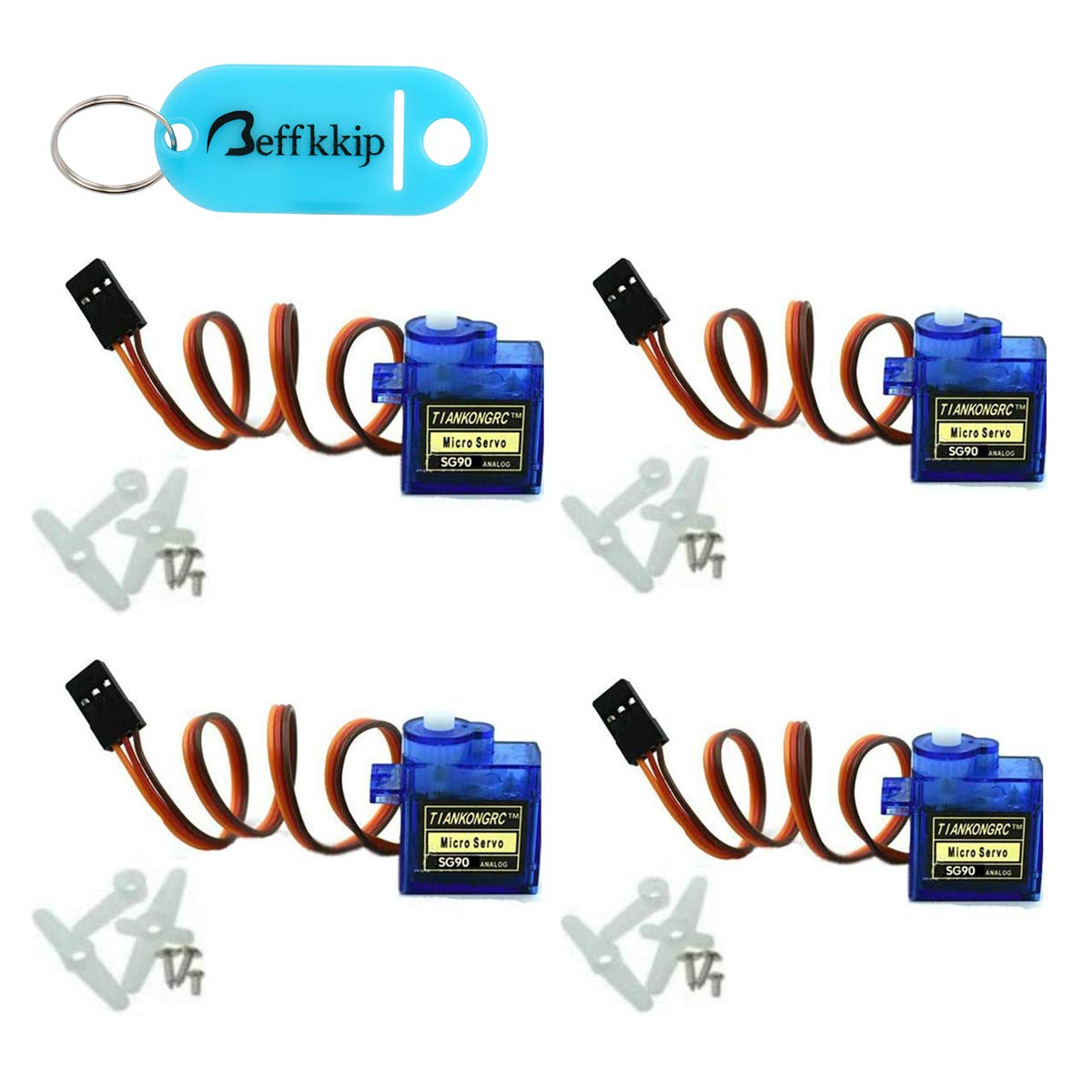

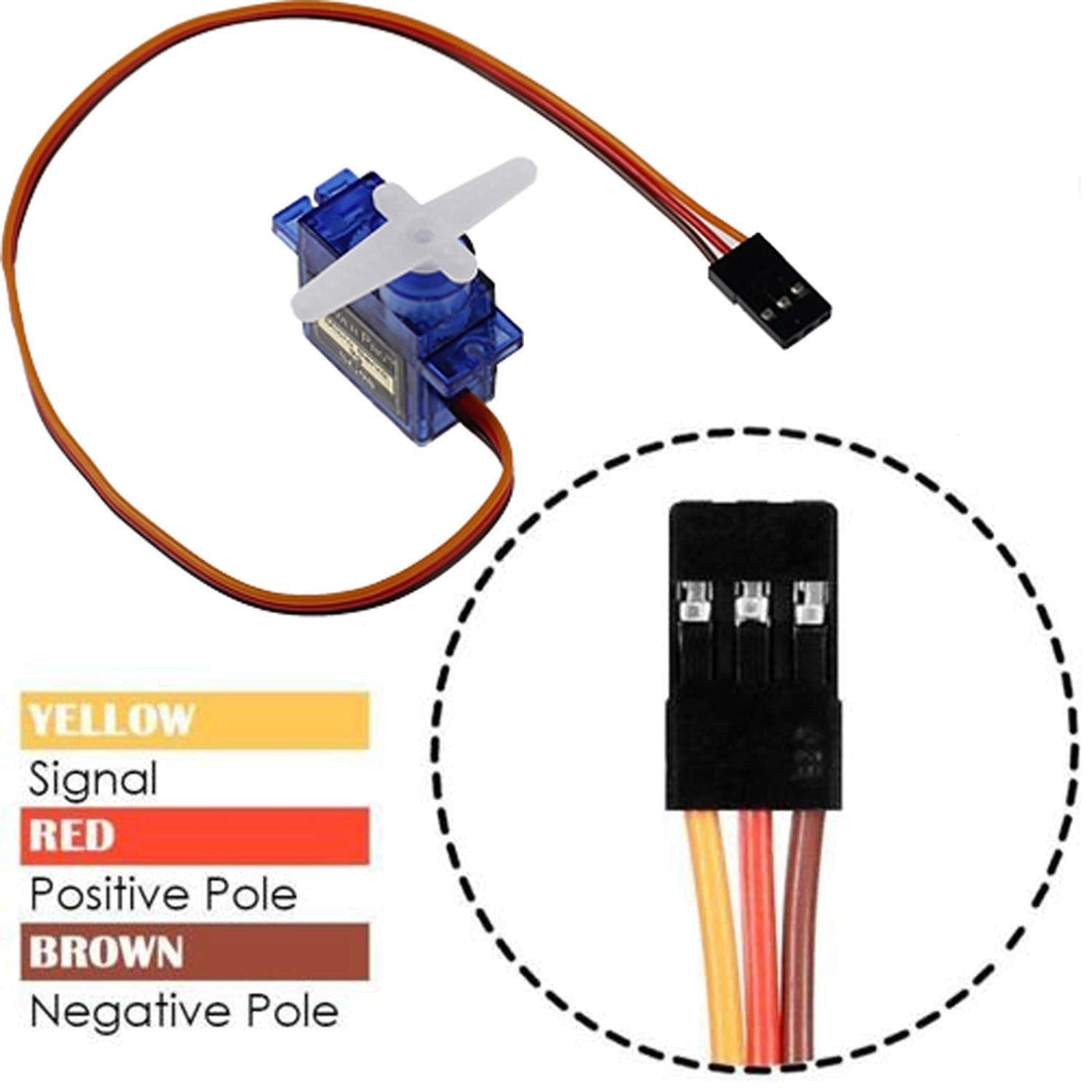

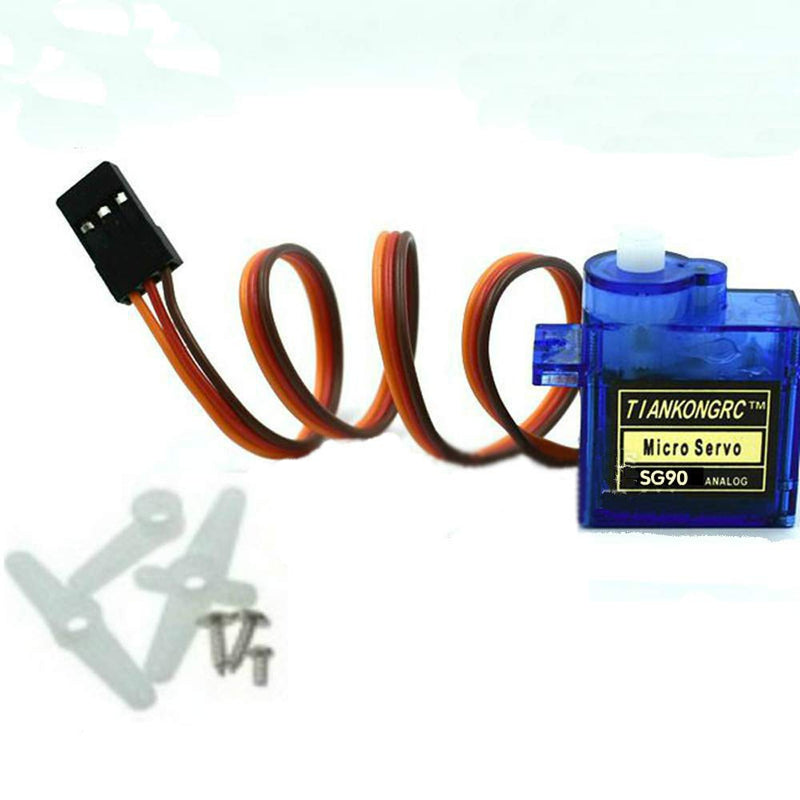

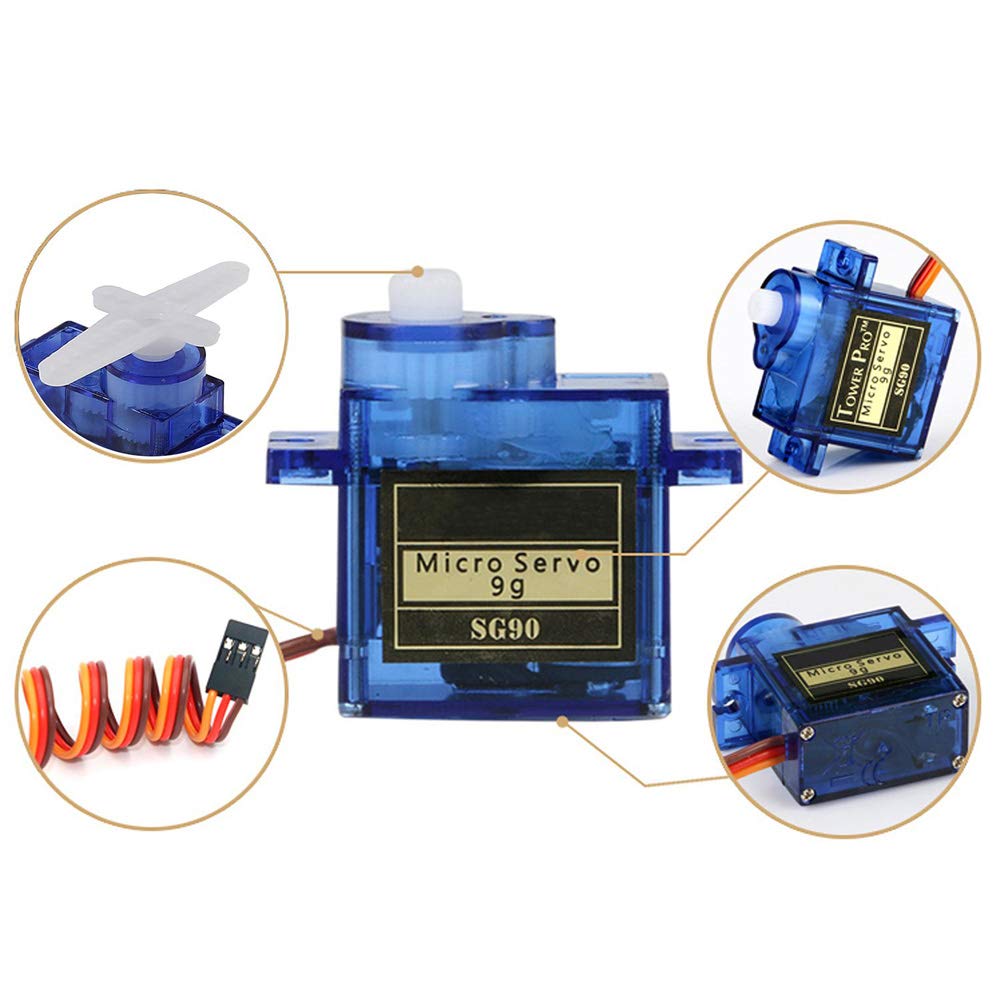

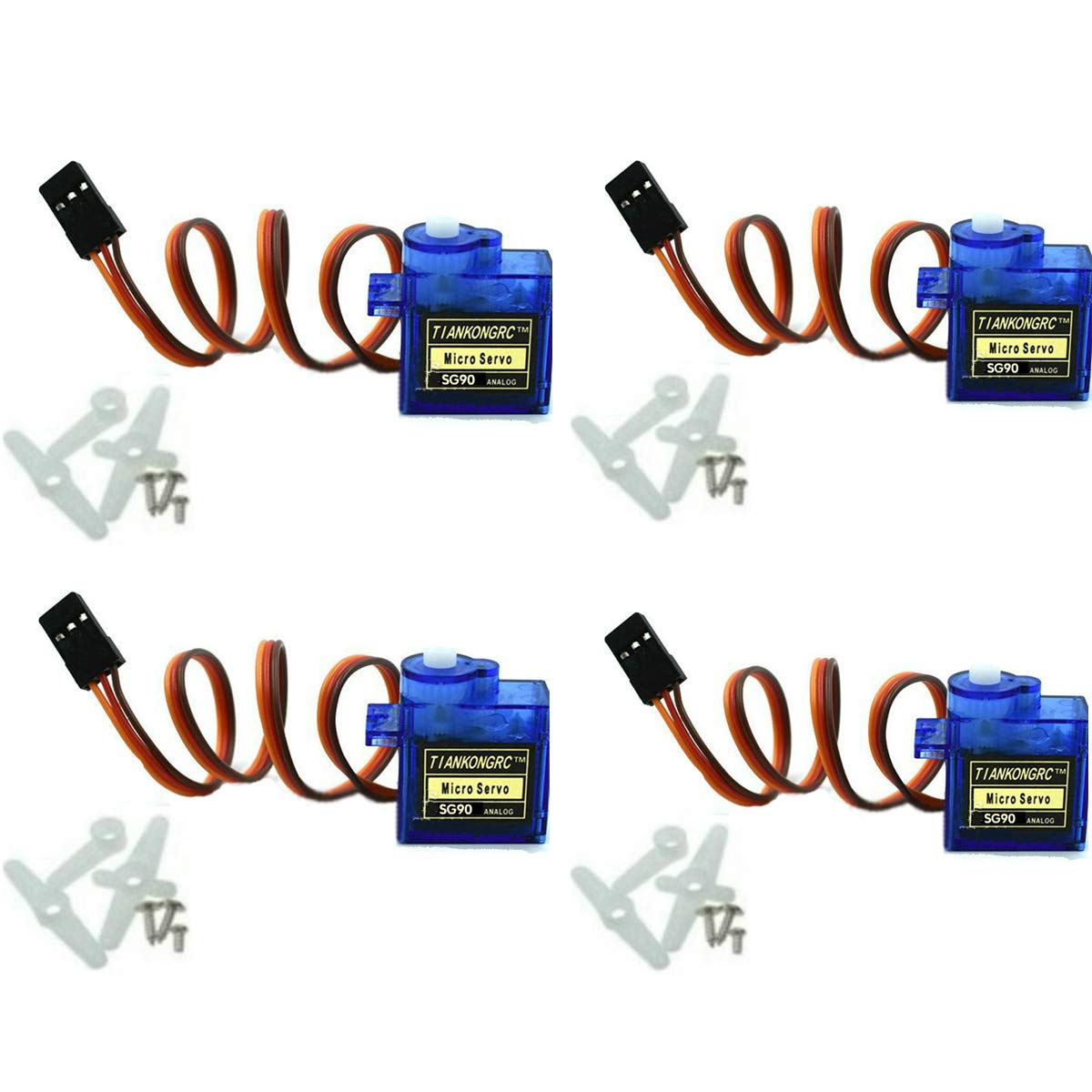

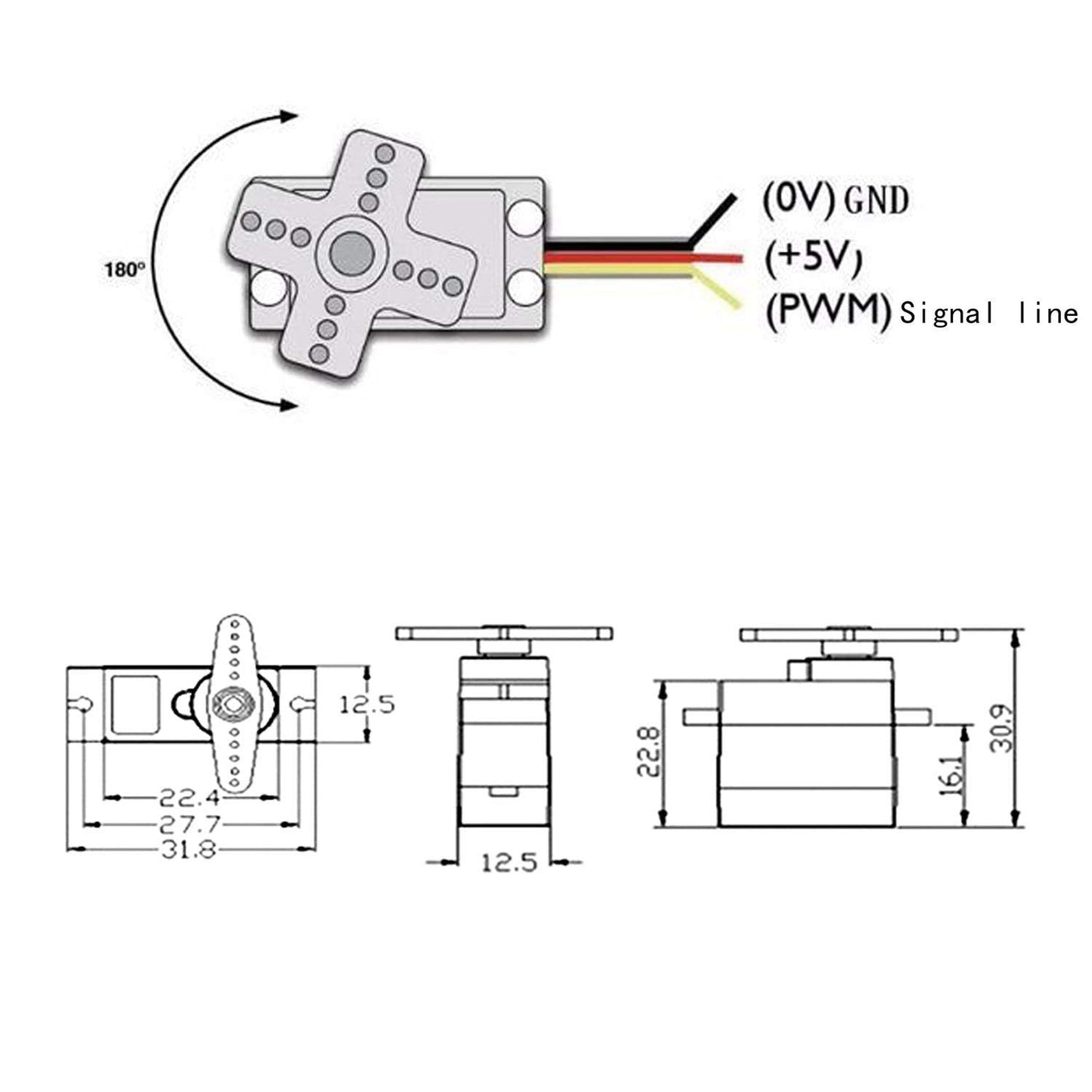

{"id":7843299459223,"title":"4Pcs SG90 9g Micro Servos for RC Robot Helicopter Airplane Controls Car Boat 4PCS","handle":"4pcs-sg90-9g-micro-servos-for-rc-robot-helicopter-airplane-controls-car-boat-4pcs","description":"\u003ch3\u003e4Pcs SG90 9g Micro Servos for RC Robot Helicopter Airplane Controls Car Boat\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis kind of micro servos can be used for helicopter, airplane, car and boat.\nIt owns high quality and high cost performance. In the meanwhile, it is light\nweight and has a small size. I believe it is a good tool for you.\nSpecification: Model: SG90 Weight: 9g Stall torque: 1.8kg\/cm Operating speed:\n0.1sec\/60degree Operating voltage: 4.8V Temperature range: 0℃ ~ +55℃ Dead band\nwidth: 10us Maximum rotation angle: 180 degrees Gear medium: nylon Working\nmode: Simulation Circuit connection: Yellow line (signal line) Red line (power\nline) Brown (ground) Package includes: 4 SG90 9g Micro Servos How to connect\nSG90 micro servo motor to Arduino Uno? The connection with Arduino is\nextremely easy. The servo has three leads. The brown one is the Ground so\nconnect to it Arduino Ground. The red one is VCC which usually requires a\nvoltage between four points eight to seven point two volts. So connect it to\nArduino 5V. The last lead, the orange one is the control signal which needs to\nbe a PWM signal with a periodic time of twenty milliseconds aka 50 Hertz and a\nduty cycle of one to two milliseconds so five to ten percent. While an on time\nof one millisecond represents the -90° position of the motor shafts, one point\nfive milliseconds represent 0° position and two milliseconds the plus 90°\nposition. That means you can rotate the shaft a total of 180°.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh quality and high cost performance.\u003c\/li\u003e\n \u003cli\u003eOperating speed: 0.1second\/ 60degree ( 4.8V no load)\u003c\/li\u003e\n \u003cli\u003eOperating voltage: 4.8-6V\u003c\/li\u003e\n \u003cli\u003eSmall size and light weight.\u003c\/li\u003e\n \u003cli\u003eApplication: Used for fixed-wing, helicopter, KT, glider, small robot, robotic arm and other models.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-11-07T18:30:39+11:00","created_at":"2022-11-07T18:30:45+11:00","vendor":"Deegoo-FPV","type":"Servos","tags":["industrial_Oct2022"],"price":9500,"price_min":9500,"price_max":9500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42691744333975,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07MLR1498","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4Pcs SG90 9g Micro Servos for RC Robot Helicopter Airplane Controls Car Boat 4PCS","public_title":null,"options":["Default Title"],"price":9500,"weight":50,"compare_at_price":null,"inventory_management":null,"barcode":"608603912258","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/products\/B07MLR1498.jpg?v=1667866089","\/\/newnestshop.com\/cdn\/shop\/products\/51K9P79OajL.jpg?v=1667806245","\/\/newnestshop.com\/cdn\/shop\/products\/613P7d1oj_L.jpg?v=1667806245","\/\/newnestshop.com\/cdn\/shop\/products\/619ipYYnwsL.jpg?v=1667806245","\/\/newnestshop.com\/cdn\/shop\/products\/61nZkZYIX9L.jpg?v=1667806245","\/\/newnestshop.com\/cdn\/shop\/products\/61Br4l4jPxL.jpg?v=1667806245"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/products\/B07MLR1498.jpg?v=1667866089","options":["Title"],"media":[{"alt":"4Pcs SG90 9g Micro Servos for RC Robot Helicopter Airplane Controls Car Boat 4PCS - NewNest Australia","id":30335053430935,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/B07MLR1498.jpg?v=1667866089"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/B07MLR1498.jpg?v=1667866089","width":1200},{"alt":"4Pcs SG90 9g Micro Servos for RC Robot Helicopter Airplane Controls Car Boat 4PCS - NewNest Australia","id":30328409227415,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/51K9P79OajL.jpg?v=1667806245"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/51K9P79OajL.jpg?v=1667806245","width":1000},{"alt":"4Pcs SG90 9g Micro Servos for RC Robot Helicopter Airplane Controls Car Boat 4PCS - NewNest Australia","id":30328409260183,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/613P7d1oj_L.jpg?v=1667806245"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/613P7d1oj_L.jpg?v=1667806245","width":1000},{"alt":"4Pcs SG90 9g Micro Servos for RC Robot Helicopter Airplane Controls Car Boat 4PCS - NewNest Australia","id":30328409292951,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/619ipYYnwsL.jpg?v=1667806245"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/619ipYYnwsL.jpg?v=1667806245","width":1500},{"alt":"4Pcs SG90 9g Micro Servos for RC Robot Helicopter Airplane Controls Car Boat 4PCS - NewNest Australia","id":30328409325719,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/61nZkZYIX9L.jpg?v=1667806245"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/61nZkZYIX9L.jpg?v=1667806245","width":1500},{"alt":"4Pcs SG90 9g Micro Servos for RC Robot Helicopter Airplane Controls Car Boat 4PCS - NewNest Australia","id":30328409358487,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/61Br4l4jPxL.jpg?v=1667806245"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/61Br4l4jPxL.jpg?v=1667806245","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e4Pcs SG90 9g Micro Servos for RC Robot Helicopter Airplane Controls Car Boat\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis kind of micro servos can be used for helicopter, airplane, car and boat.\nIt owns high quality and high cost performance. In the meanwhile, it is light\nweight and has a small size. I believe it is a good tool for you.\nSpecification: Model: SG90 Weight: 9g Stall torque: 1.8kg\/cm Operating speed:\n0.1sec\/60degree Operating voltage: 4.8V Temperature range: 0℃ ~ +55℃ Dead band\nwidth: 10us Maximum rotation angle: 180 degrees Gear medium: nylon Working\nmode: Simulation Circuit connection: Yellow line (signal line) Red line (power\nline) Brown (ground) Package includes: 4 SG90 9g Micro Servos How to connect\nSG90 micro servo motor to Arduino Uno? The connection with Arduino is\nextremely easy. The servo has three leads. The brown one is the Ground so\nconnect to it Arduino Ground. The red one is VCC which usually requires a\nvoltage between four points eight to seven point two volts. So connect it to\nArduino 5V. The last lead, the orange one is the control signal which needs to\nbe a PWM signal with a periodic time of twenty milliseconds aka 50 Hertz and a\nduty cycle of one to two milliseconds so five to ten percent. While an on time\nof one millisecond represents the -90° position of the motor shafts, one point\nfive milliseconds represent 0° position and two milliseconds the plus 90°\nposition. That means you can rotate the shaft a total of 180°.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh quality and high cost performance.\u003c\/li\u003e\n \u003cli\u003eOperating speed: 0.1second\/ 60degree ( 4.8V no load)\u003c\/li\u003e\n \u003cli\u003eOperating voltage: 4.8-6V\u003c\/li\u003e\n \u003cli\u003eSmall size and light weight.\u003c\/li\u003e\n \u003cli\u003eApplication: Used for fixed-wing, helicopter, KT, glider, small robot, robotic arm and other models.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
