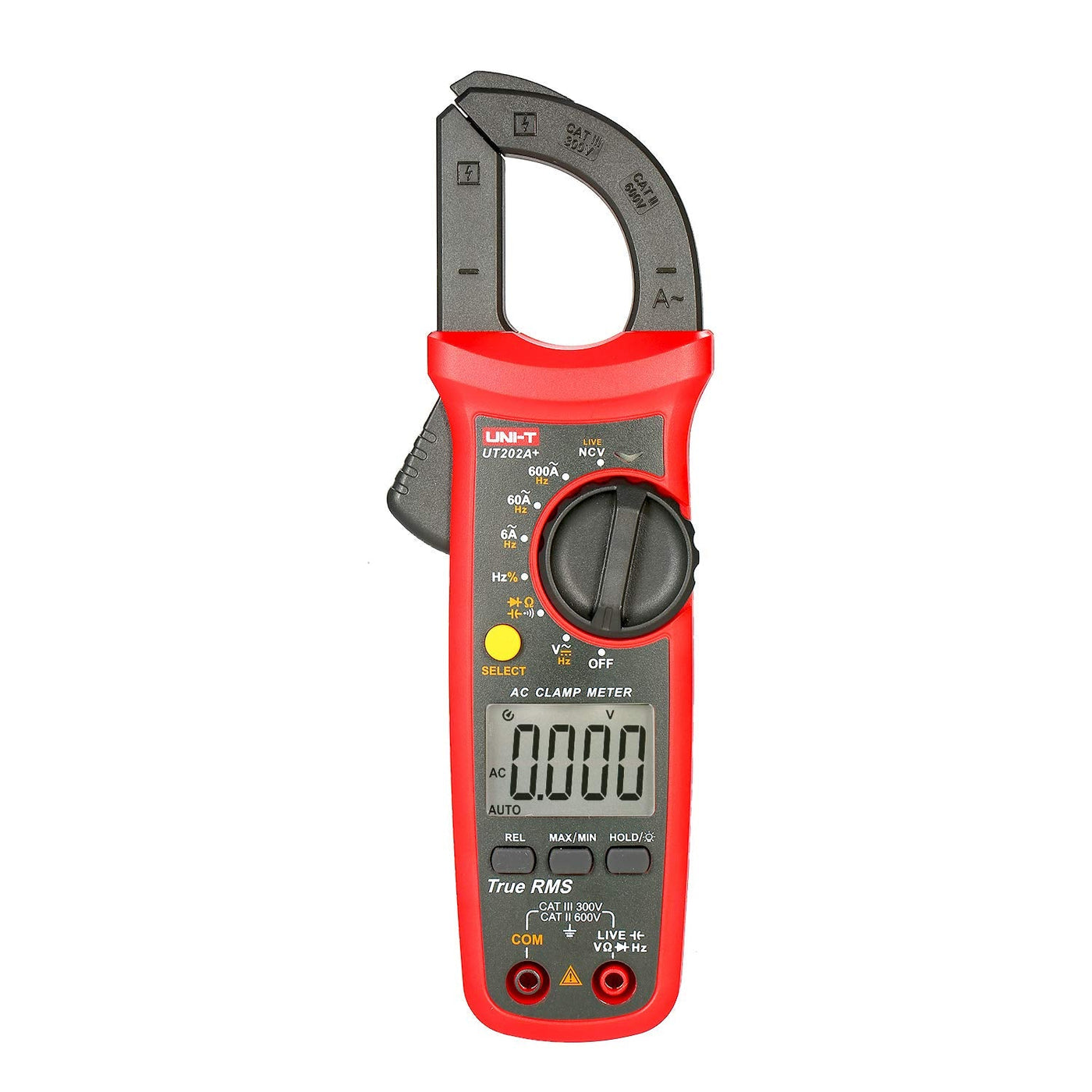

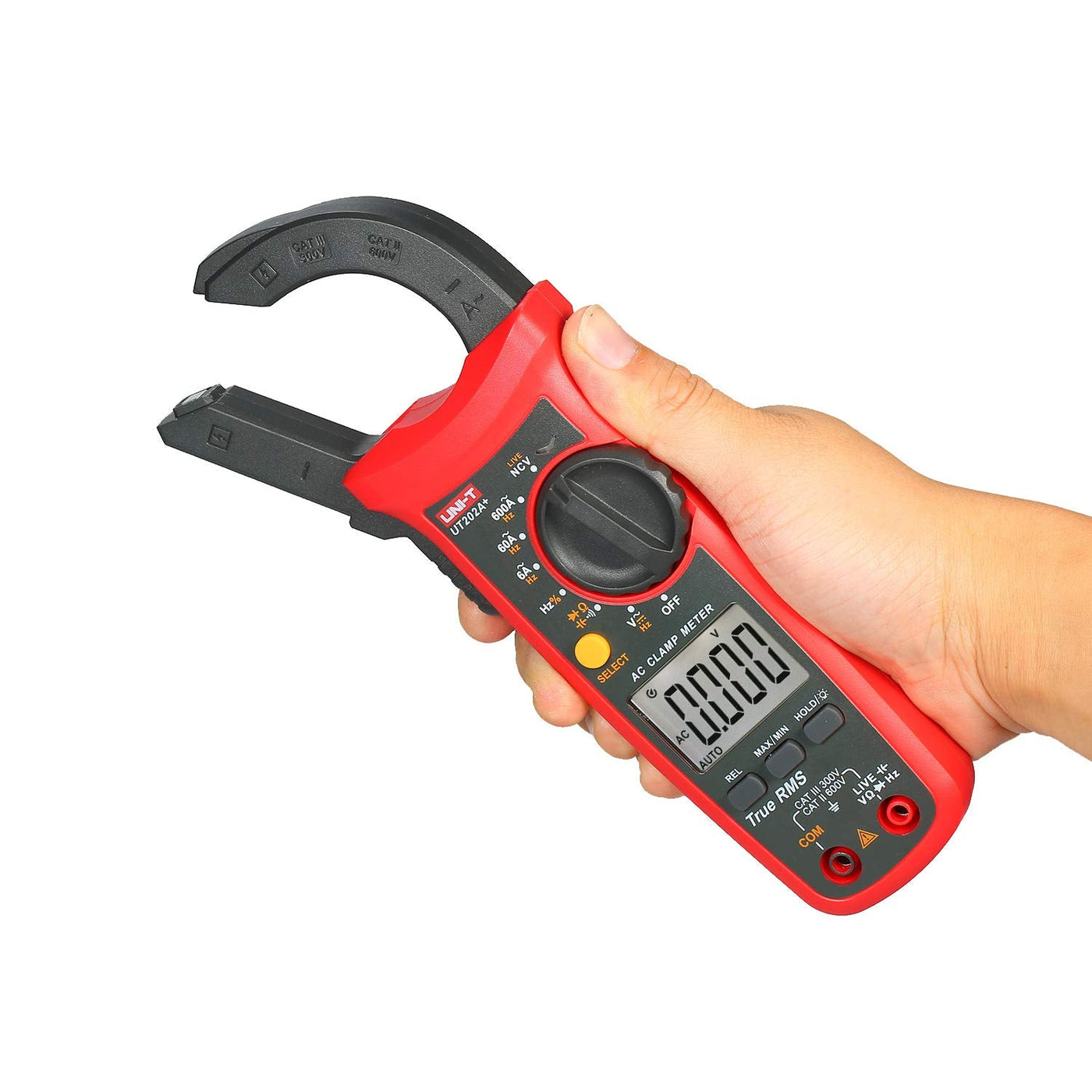

6000 Counts Digital Clamp Meter True RMS Multimeter Clamp Ammeter Voltage Meter NCV Test Universal Meter Tester
6000 Counts Digital Clamp Meter True RMS Multimeter Clamp Ammeter Voltage Meter NCV Test Universal Meter Tester

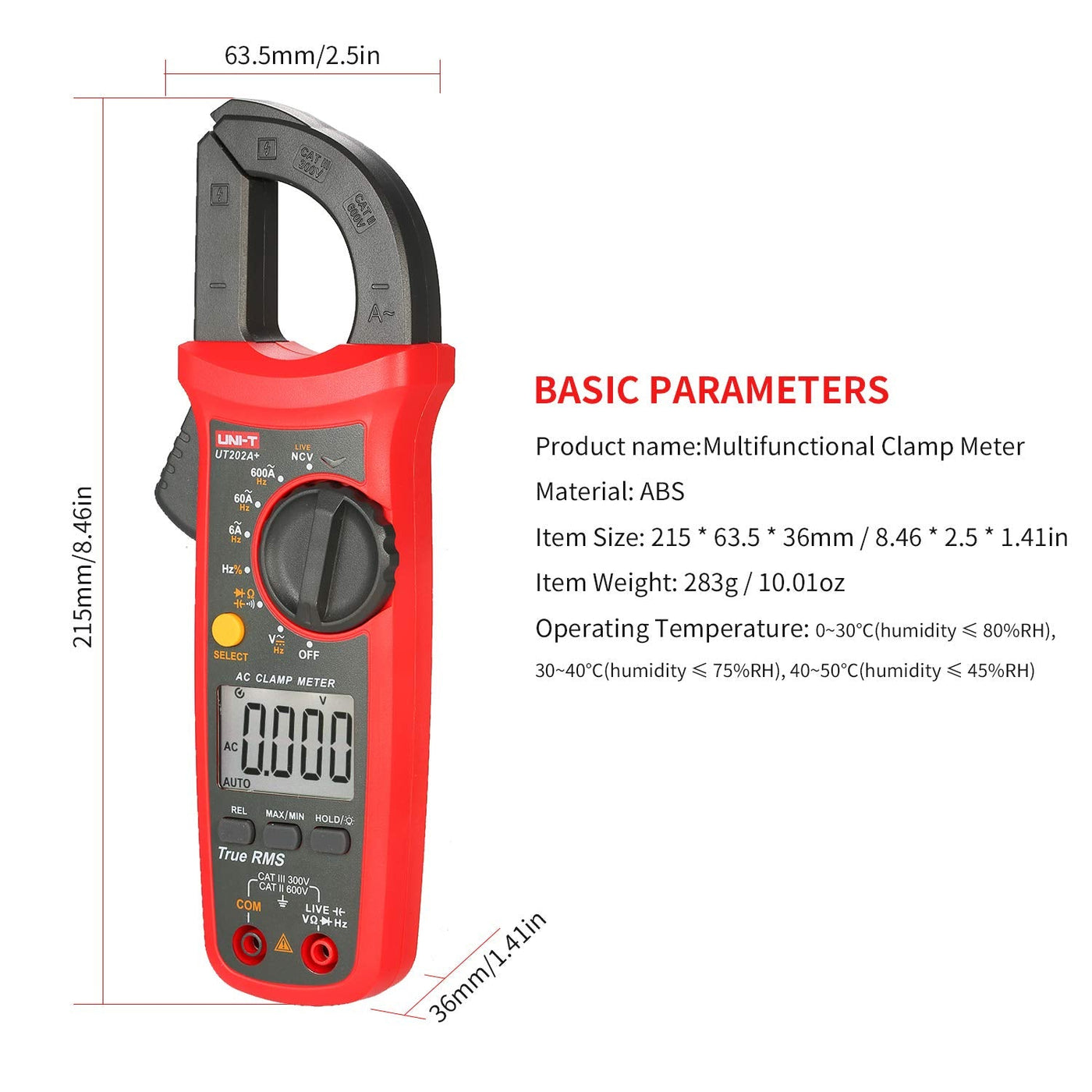

Specifications: Material: ABS Safety Rating: CAT II 600V, CAT III 300V Display Count: Max. 6000 Jaw Opening: 28mm Auto off: 15 minutes Range: Auto AC Current Range: 6.000A/60.00A/600.0A AC Current Resolution: 0.001A/0.01A/0.1A AC Current Frequency: 50Hz~100Hz AC Current Frequency Resolution: 0.1Hz AC Voltage Range: 6.000V/60.00V/600.0V AC Voltage Resolution: 0.001V/0.01V/0.1V AC Voltage Frequency: 10Hz~10kHz AC Voltage Frequency Resolution: 0.01Hz~0.01kHz DC Voltage Range: 600.0mV/6.000V/60.00V/600.0V DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V Resistance Range: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ Resistance Resolution: 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ Capacitance Range: 6.000nF/60.00nF/600.0nF/6.000uF/60.00uF/600.0uF/6.000mF/60.00mF Capacitance Resolution: 0.001nF/0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF Frequency Range: 10Hz~10MHz Frequency Resolution: 0.01Hz~0.01MHz Duty Cycle Range: 0.1%~99.9% Duty Cycle Resolution: 0.1% Continuity Range: 600.0Ω Continuity Resolution: 0.1Ω Diode Range: 6.000V Diode Resolution: 0.001V Operating Temperature: 0~30℃(humidity ≤ 80%RH), 30~40℃(humidity ≤ 75%RH), 40~50℃(humidity ≤ 45%RH) Storage Temperature & Humidity: -20~60℃, ≤ 80%RH Altitude: 2,000 meters Power Supply: 2 1.5V AAA battery (NOT included) Item Size: 215 63.5 36mm / 8.46 2.5 1.41in Item Weight: 283g / 10.01oz Package Weight: 377g / 13.30oz Package Size: 23.5 9.2 5.3cm / 9.25 3.62 2.09in Package List: 1 Clamp Meter 2 Test Lead 1 Storage Bag 1 Manual (English)
Product Features

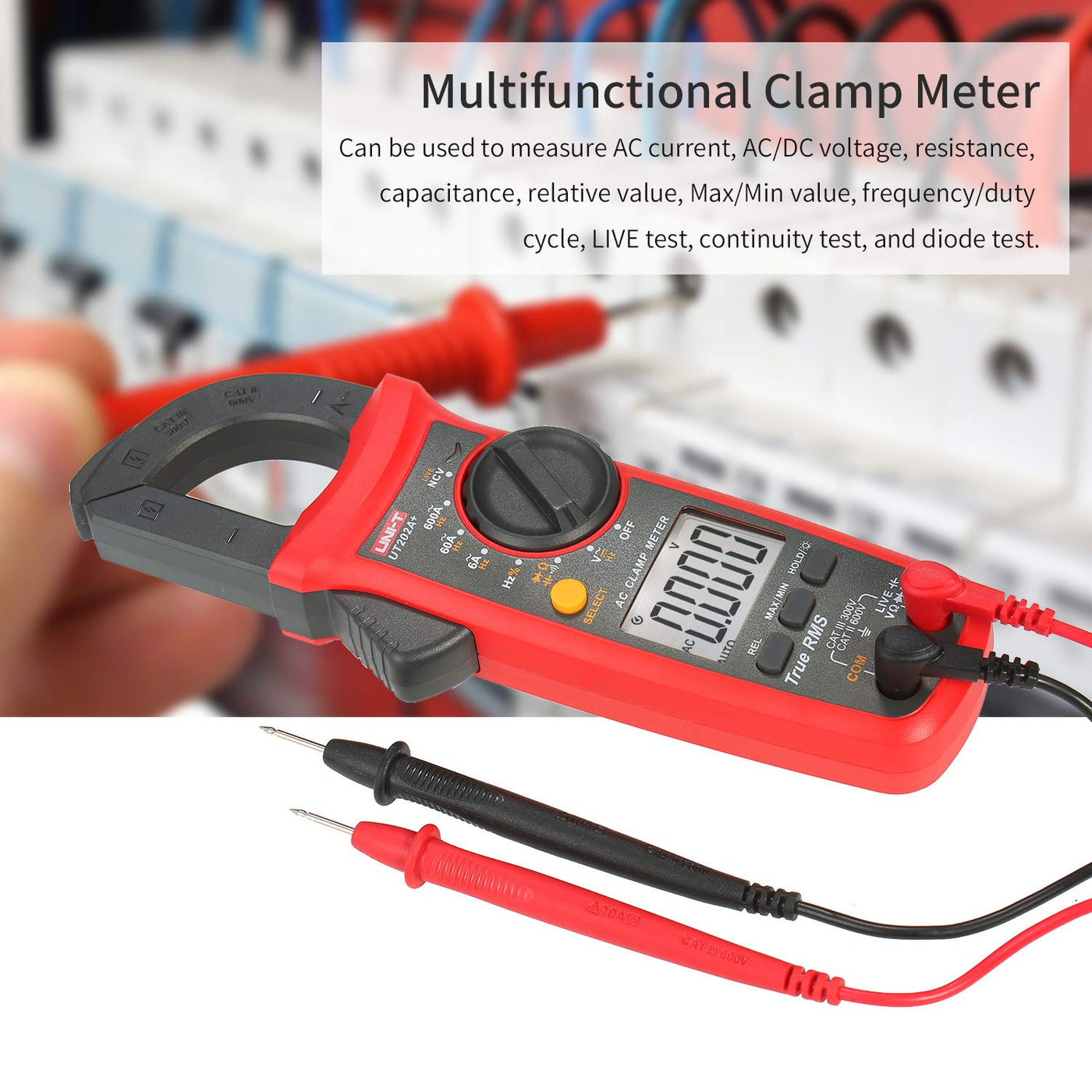

- Multifunctional Clamp Meter: can be used to measure AC current, AC/DC voltage, resistance, capacitance, relative value, Max/Min value, frequency/duty cycle, LIVE test, continuity test, and diode test.
- Measuring Range: 600A AC current, 600V AC/DC voltage, 60M resistance, 60mF capacitance, 10Hz~10MHz frequency, and -40~1000C temperature.
- Data Hold: hold the measured data for conveniently checking or observing data. Backlight Function: 1.6-inch LCD screen with backlight ON/OFF switchable for display data clearly.
- 28mm Jaw Opening: jaw opening of 28mm to measure current without touching or interrupting the circuit.

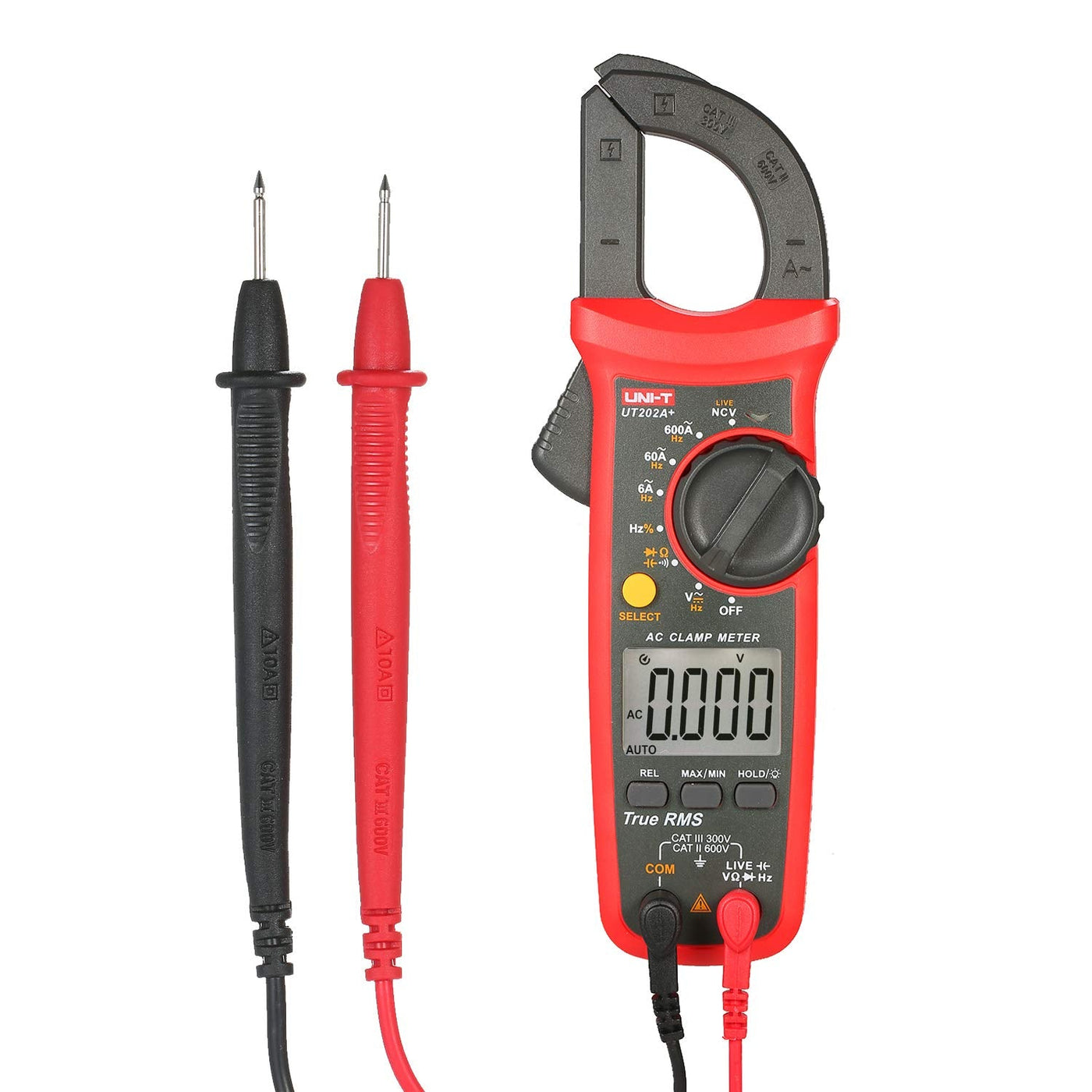

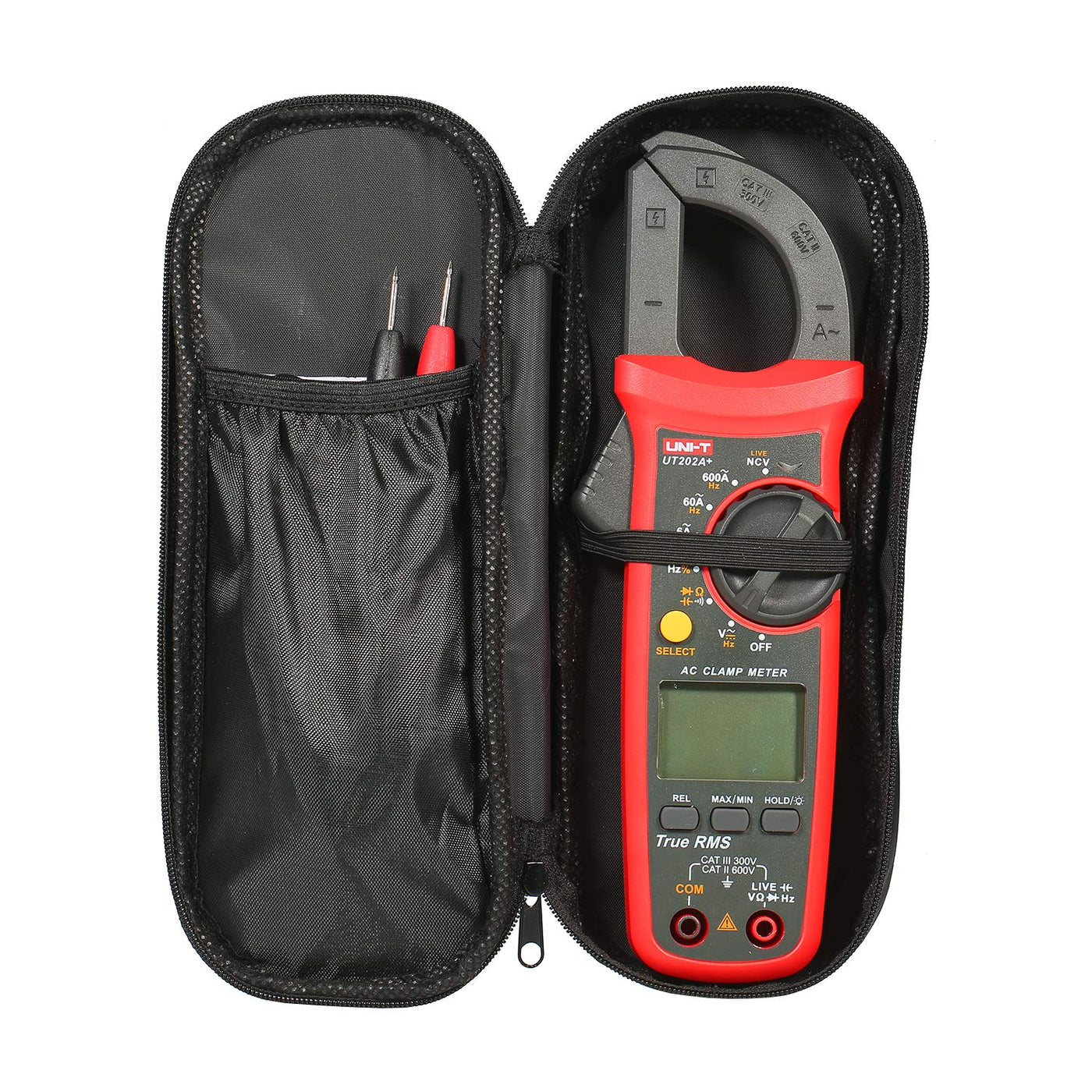

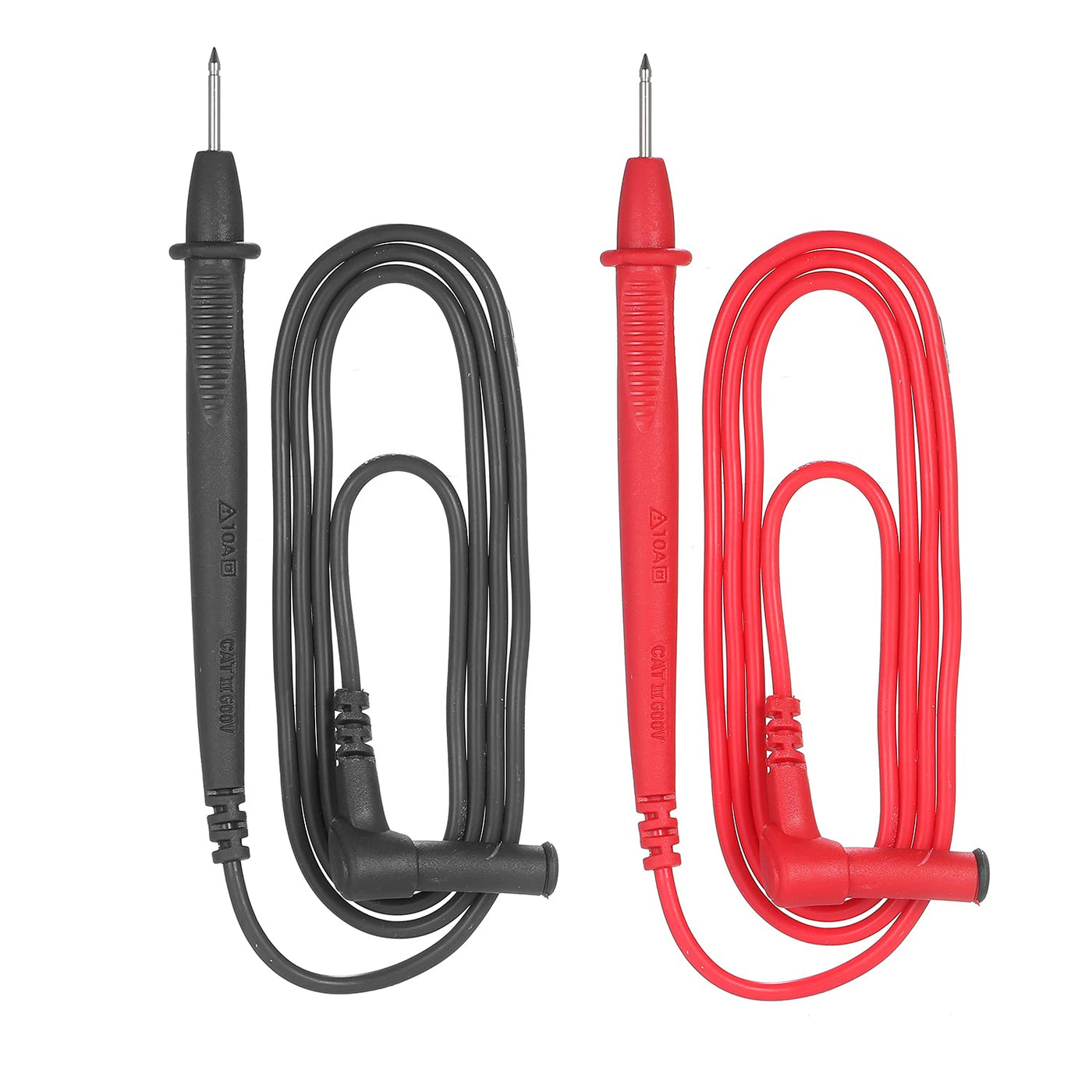

- Accessories: comes with a pair of test probes for convenient measurement, and a black zipper pouch for storing the clamp meter.

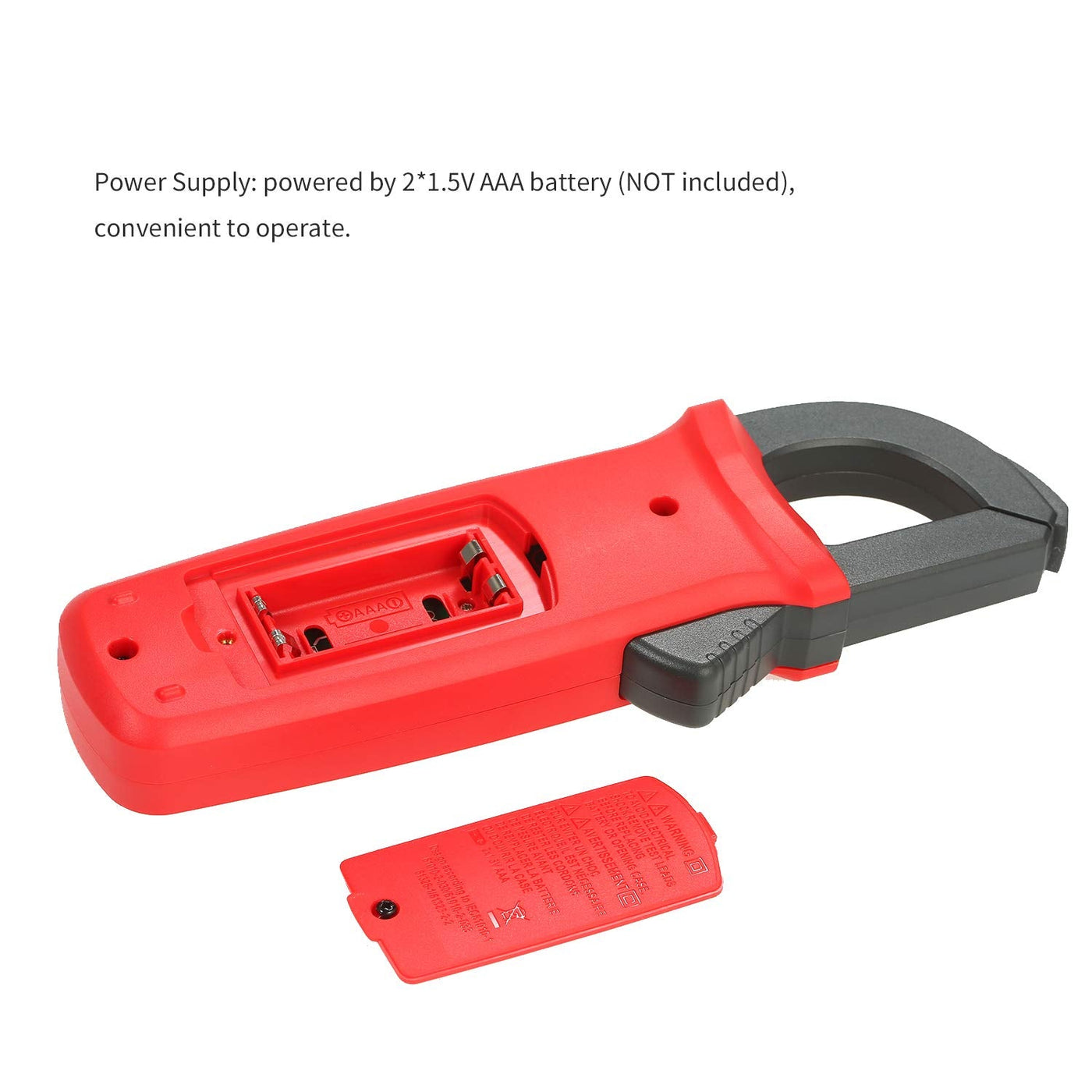

- Power Supply: powered by 2*1.5V AAA battery (NOT included), convenient to operate.
- Reliable & Functional: with good reliability and high precision, really practical for electrical equipment testing and maintenance.
