60mm Outer Diameter 10mm Aperture Hollow Shaft Rotary Encoder 5VDC line Drive Output 1000P/R Lne driver output

In Stock. Leaves warehouse within 2 - 3 business days

$278.00 AUD
Maximum quantity available reached.
Shop with Confidence — Free Shipping, Always
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

60mm Outer Diameter 10mm Aperture Hollow Shaft Rotary Encoder 5VDC line Drive Output 1000P/R

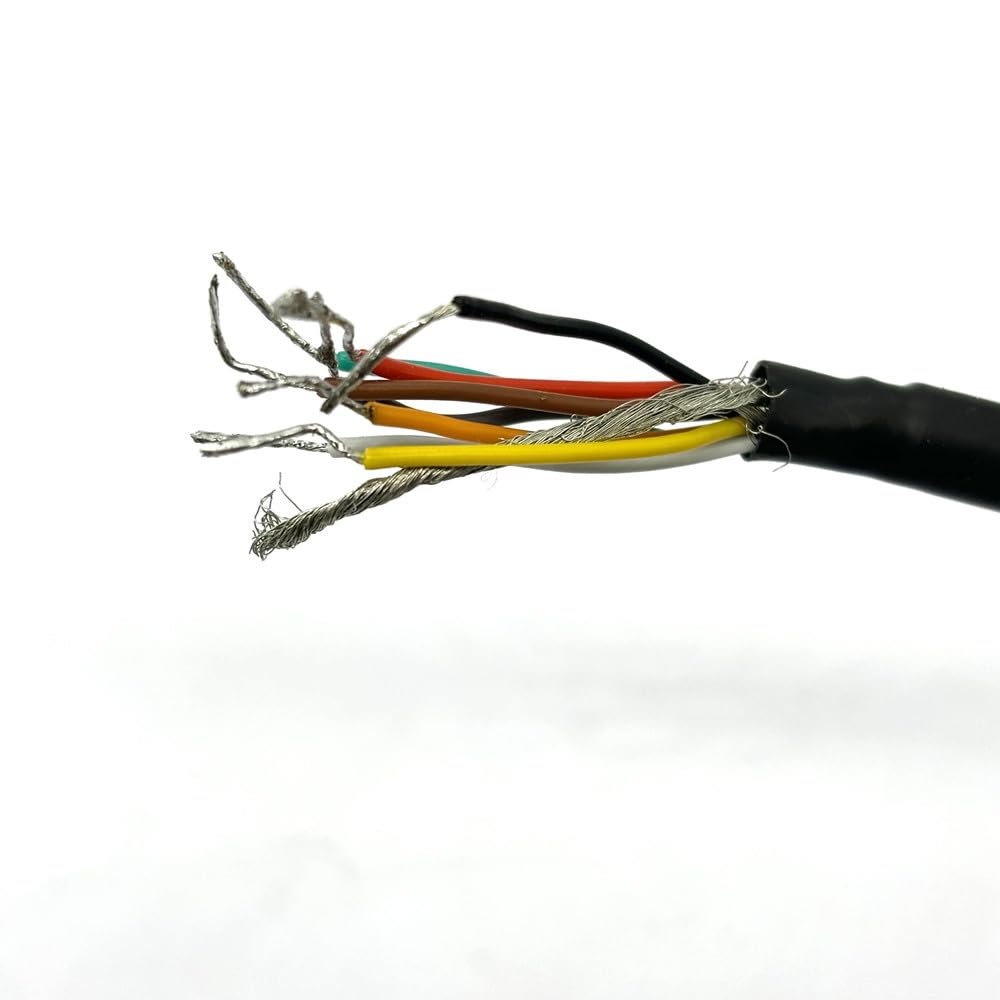

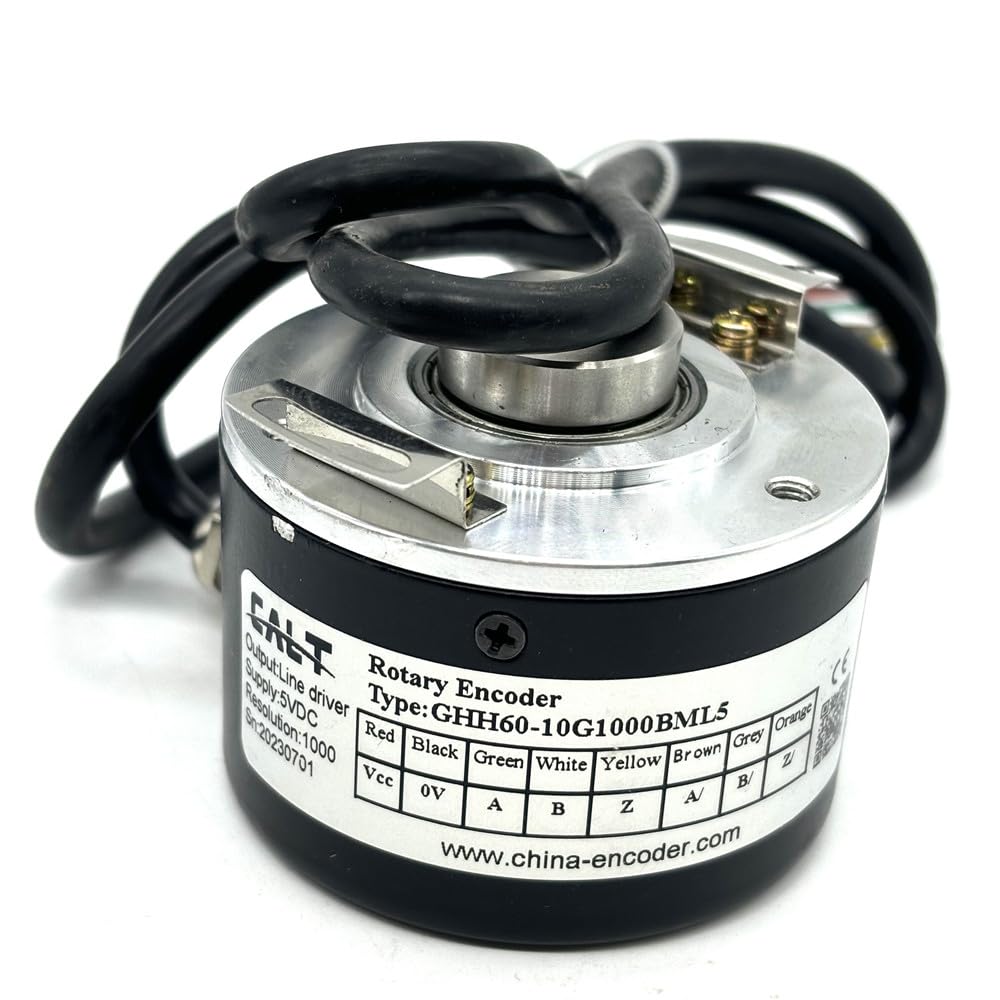

Description The Incremental Rotary Encoder is designed to provide pulse feedback when the shaft is rotated. It is low cost yet compact, high quality and an incremental rotary encoder. Widely used in Steel Industry, Textile Machinery, Port Machinery, Plastic Machinery, Lifting Machinery, Pressure Machinery, Glass Machinery, Printing Machinery, Wood Machinery, Packaging Machinery, Machine Tool, ogistics Machinery, Tire Machinery, Electronics and Solar, Elevator. Power supply: 5V Shaft diameter:10mm Body diameter: 60mm Cable length: 1 meter Output: Line driver output, Provide 6 outputs, OUT A, OUT B, OUT Z OUT A/, OUT B/ and OUT Z/ Output wave form: Square wave Maximum shaft speed: 6000 rpm Protection: IP54 Current consumption: ~150 mA Maximum pulse: 100 KHz Weight: about 0.2kg Operating temperature: -30°C to +85°C Storage temperature: -30°C to +95°C Operating humidity: 30 to 85% without frost Connection: Red = VCC, Black = 0V, Green = A, White = B, Yellow = Z, Brown=A/, Grey=B/, Orange= Z/ Note: If the encoder is not connected to the device can not be directly oscilloscope oscilloscope (open collector output without pull-up resistor when there is no voltage output) If you want the oscilloscope in AB two-phase output with two pull-up resistors.

Product Features

  • 60mm shell and 10mm hollow shaft
  • about 0.2kg
  • Line driver output, 5VDC
  • Resolution:1000P/R
  • Widely used in Steel Industry, Textile Machinery, Port Machinery, Plastic Machinery, Lifting Machinery, Pressure Machinery

Buy with confidence as this product comes with 18 months full local warranty in Australia & New Zealand (unless otherwise stated in the overview).

This product also comes with the benefits of the CocoonPower Warranty. For further details please read our Warranty Guidelines.

You can also purchase 3 Year Extended Care. If you are interested please see our Extended Care Information.
