6pcs Hx711 Weight Weighing Load Cell Conversion Module Sensors Ad Module for Arduino Microcontroller

In Stock. Leaves warehouse within 2 - 3 business days

$90.00 AUD
Maximum quantity available reached.
Shop with Confidence — Free Shipping, Always
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

6pcs Hx711 Weight Weighing Load Cell Conversion Module Sensors Ad Module for Arduino Microcontroller

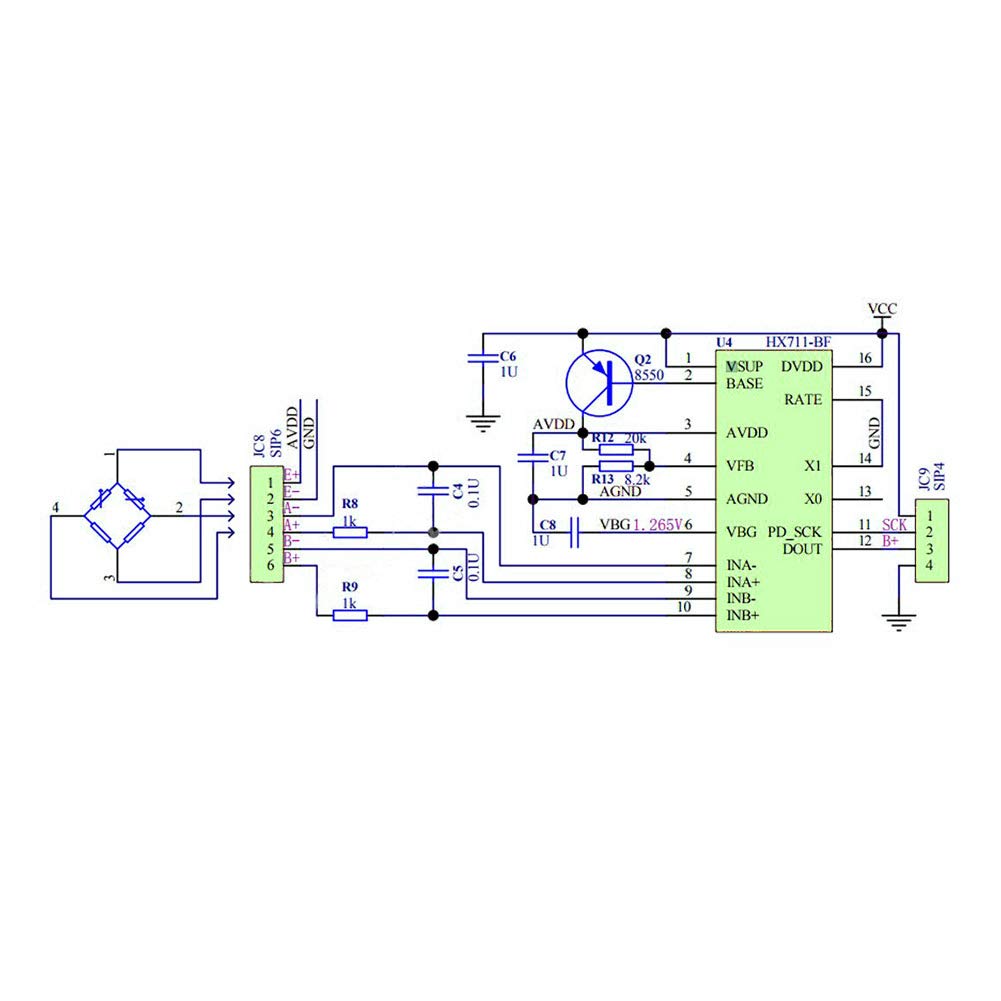

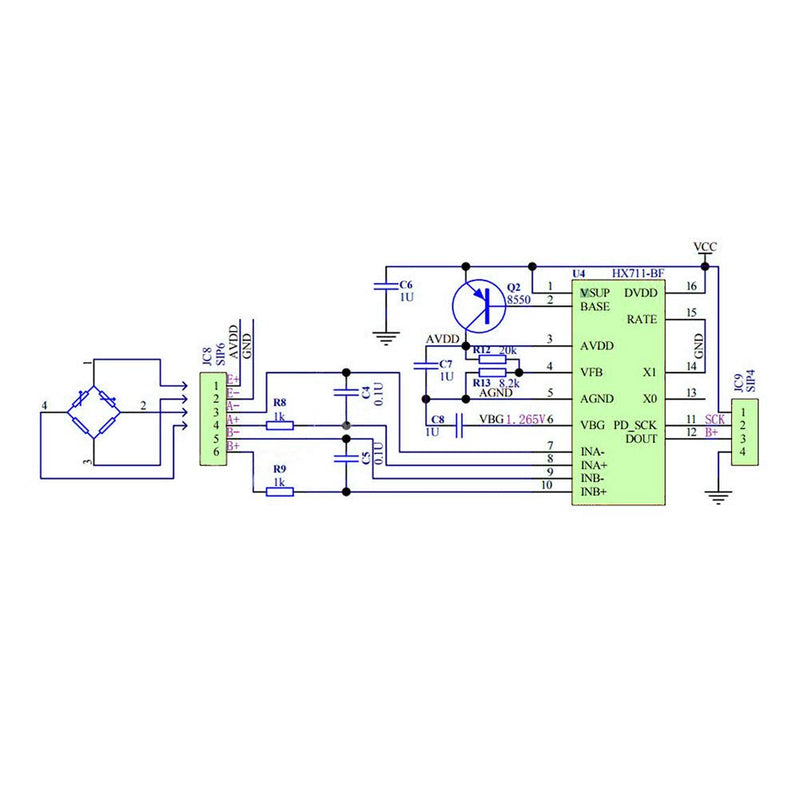

Features: Two selectable differential input channels On-chip active low noise PGA with selectable gain of 32, 64 and 128 On-chip power supply regulator for load-cell and ADC analog power supply On-chip oscillator requiring no external component with optional external crystal On-chip power-on-reset Simple digital control and serial interface: pin-driven controls, no programming needed Selectable 10SPS or 80SPS output data rate Simultaneous 50 and 60Hz supply rejection Current consumption including on-chip analog power supply regulator: normal operation <1.5mA, power down <1uA Operation supply voltage range: 2.6 ~ 5.5V Operation temperature range: -40 ~ +85° This module uses 24 high- precision A / D converter chip hx711, is designed for high-precision electronic scale and design, with two analog channel input, the internal integration of a gain programmable amplifier 128. Input circuit can be configured to provide an electrical bridge bridge voltage (such as pressure, weight) sensor model is an ideal high-precision, low-cost sampling front-end module

Product Features

  • Two selectable differential input channels
  • On-chip active low noise PGA with selectable gain of 32, 64 and 128
  • Simple digital control and serial interface: pin-driven controls, no programming needed
  • Selectable 10SPS or 80SPS output data rate

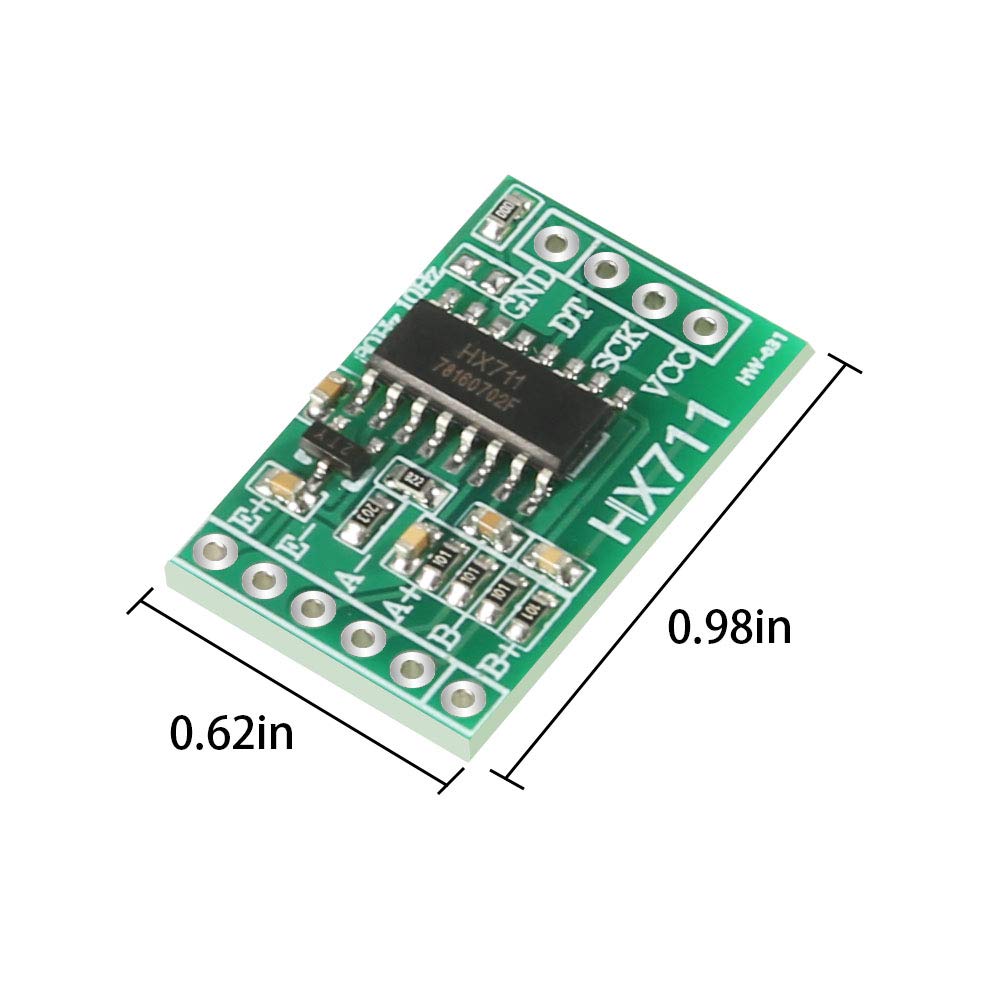

  • Size:25mmx16mm/0.98"x0.62"(inch) (approx)
