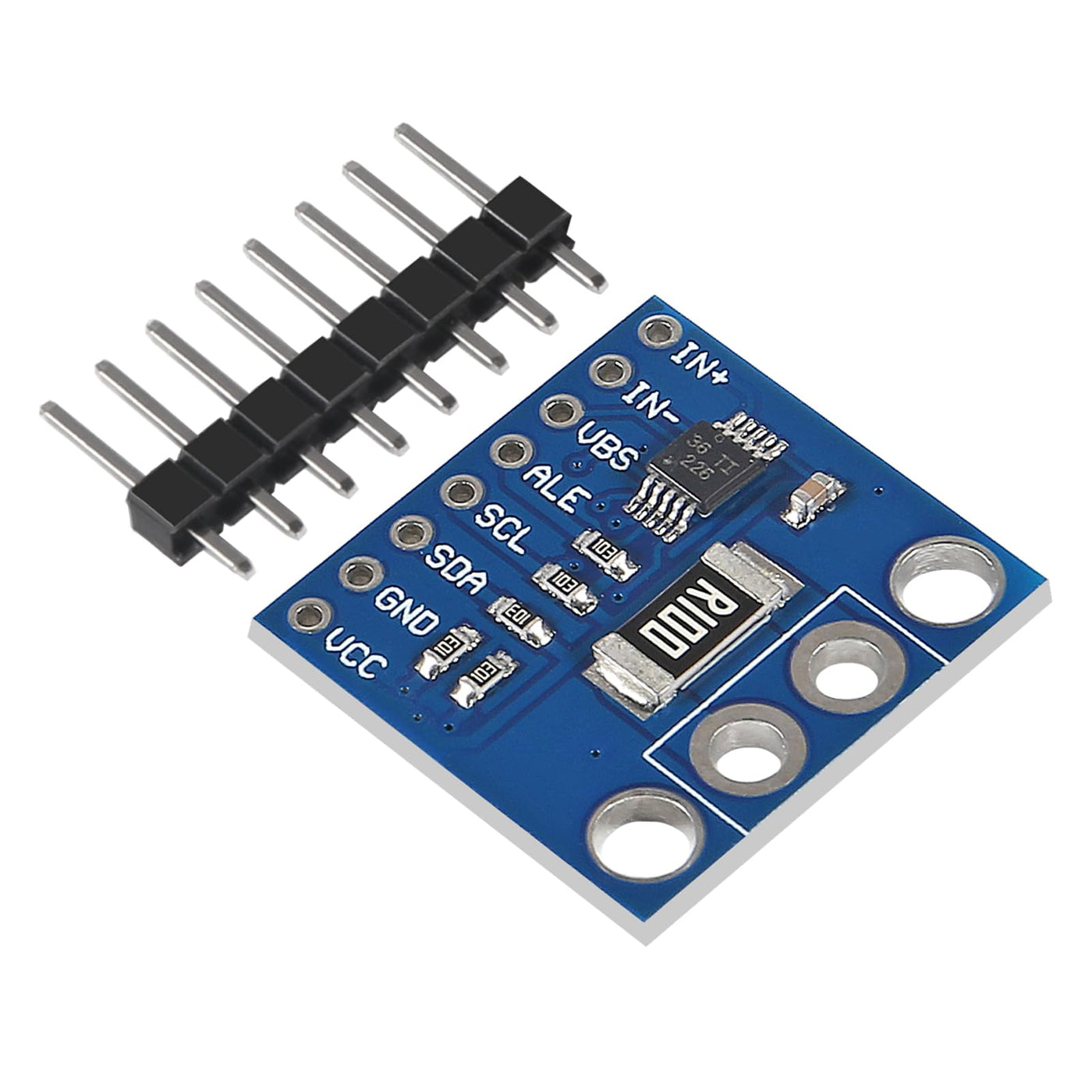

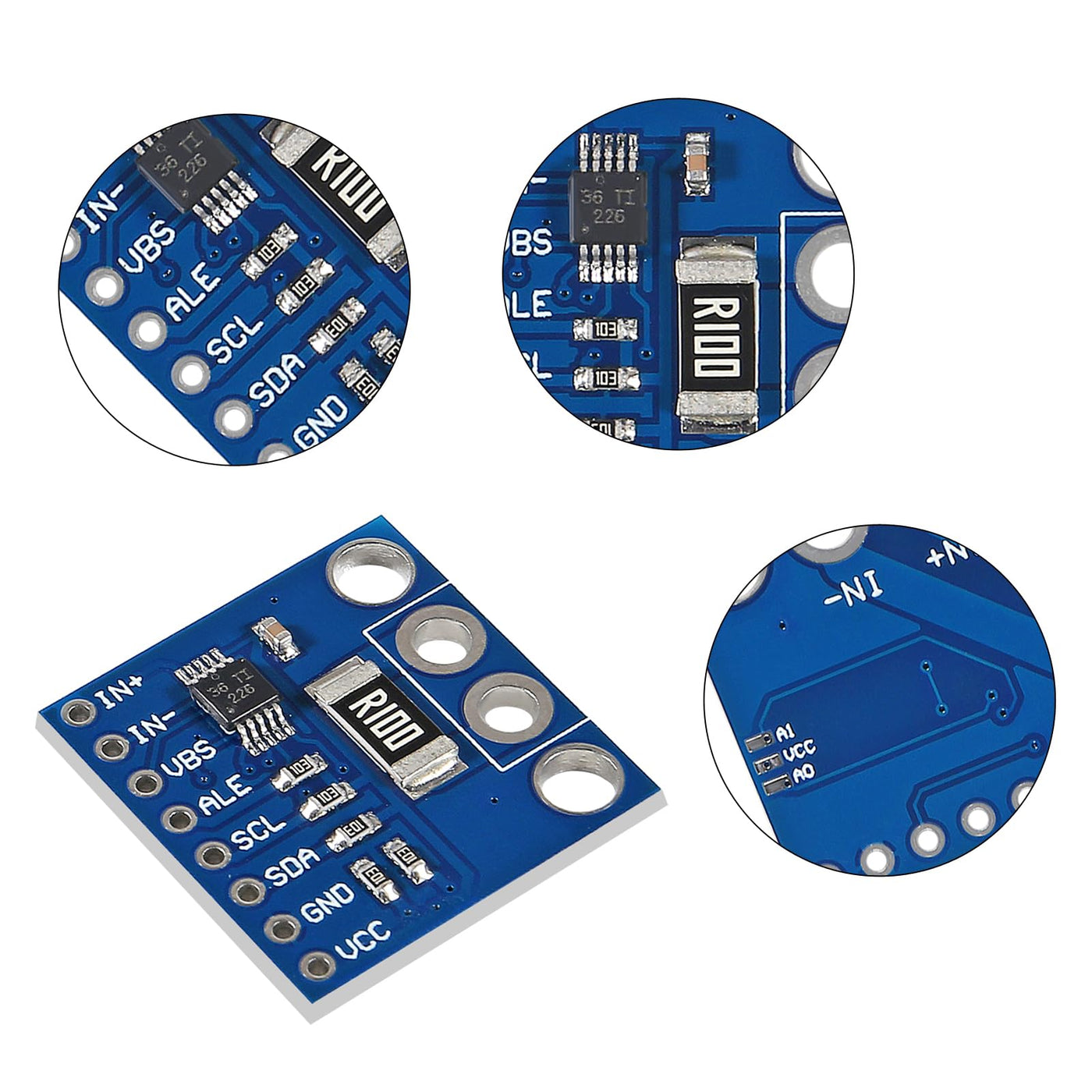

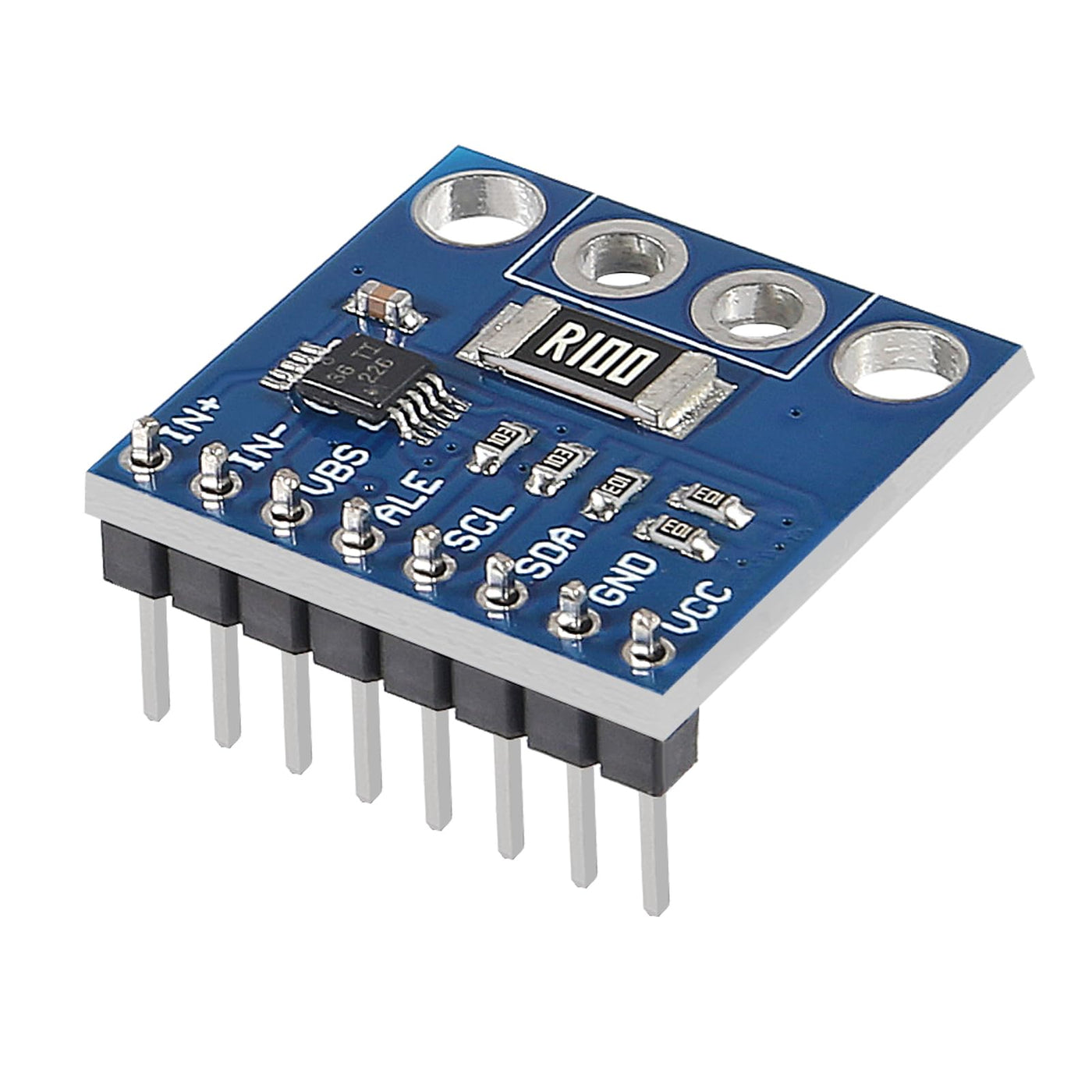

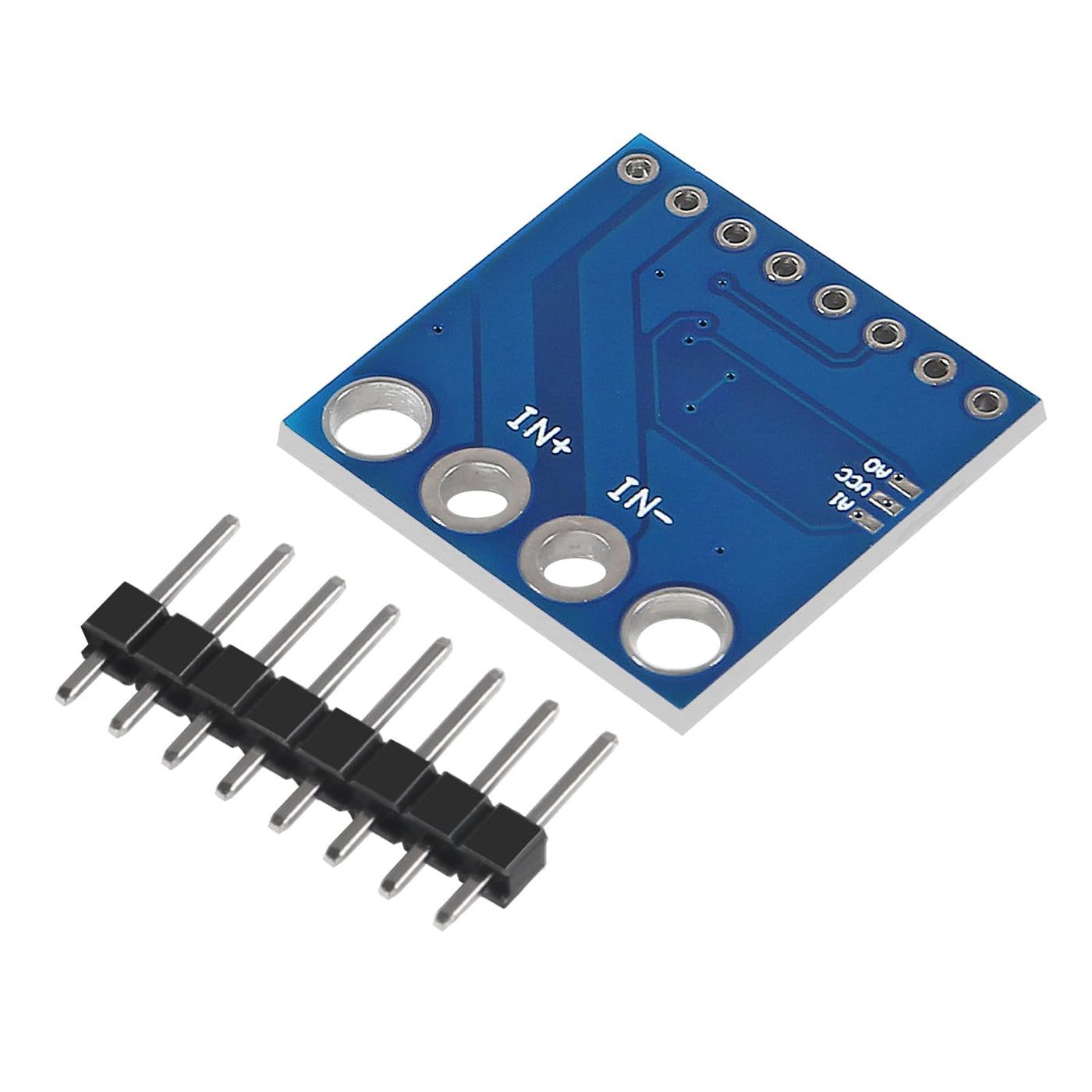

6pcs INA226 IIC I2C Interface Bi-Directional Current Power Monitoring Sensor Module Alert Monitor Module 36V for Arduino
6pcs INA226 IIC I2C Interface Bi-Directional Current Power Monitoring Sensor Module Alert Monitor Module 36V for Arduino

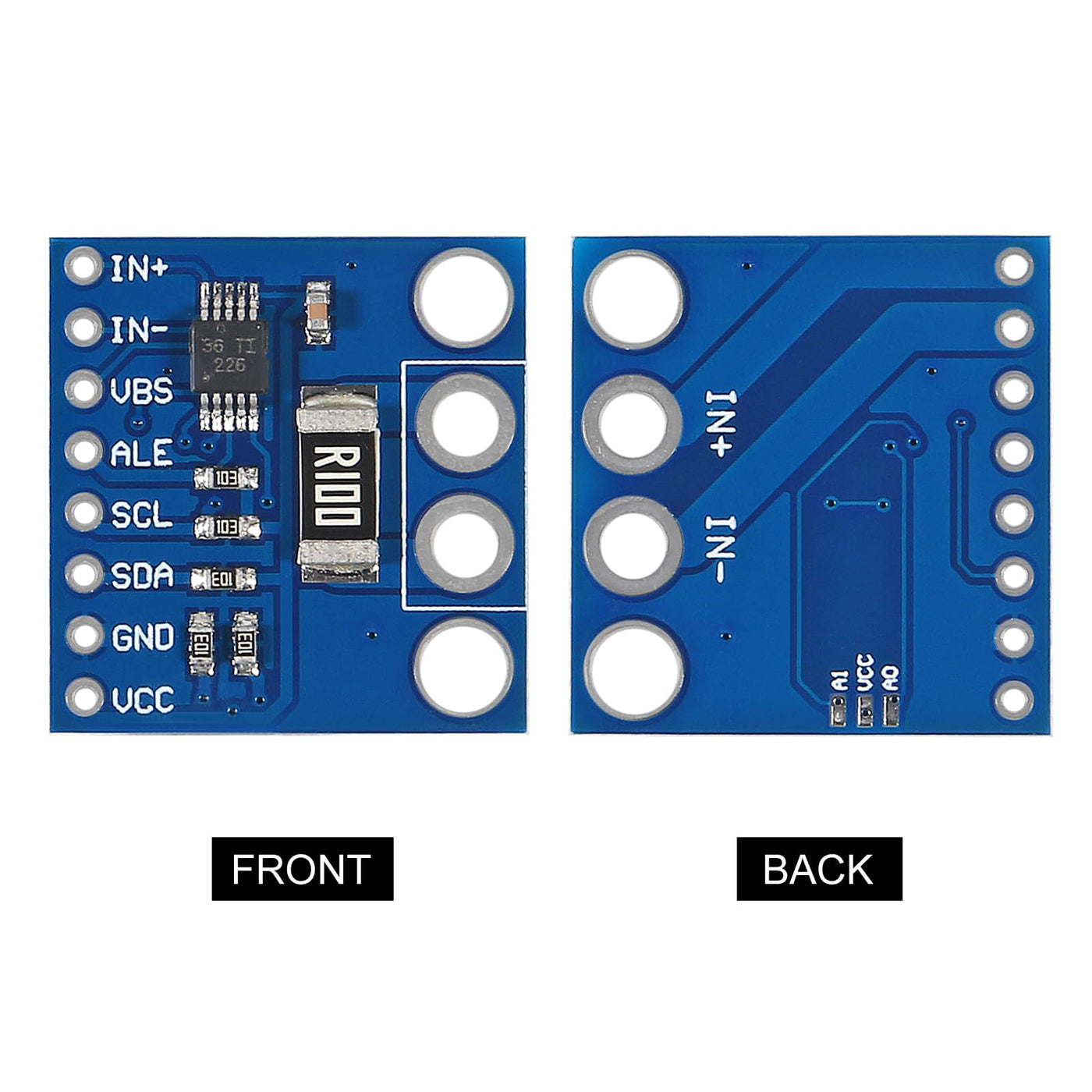

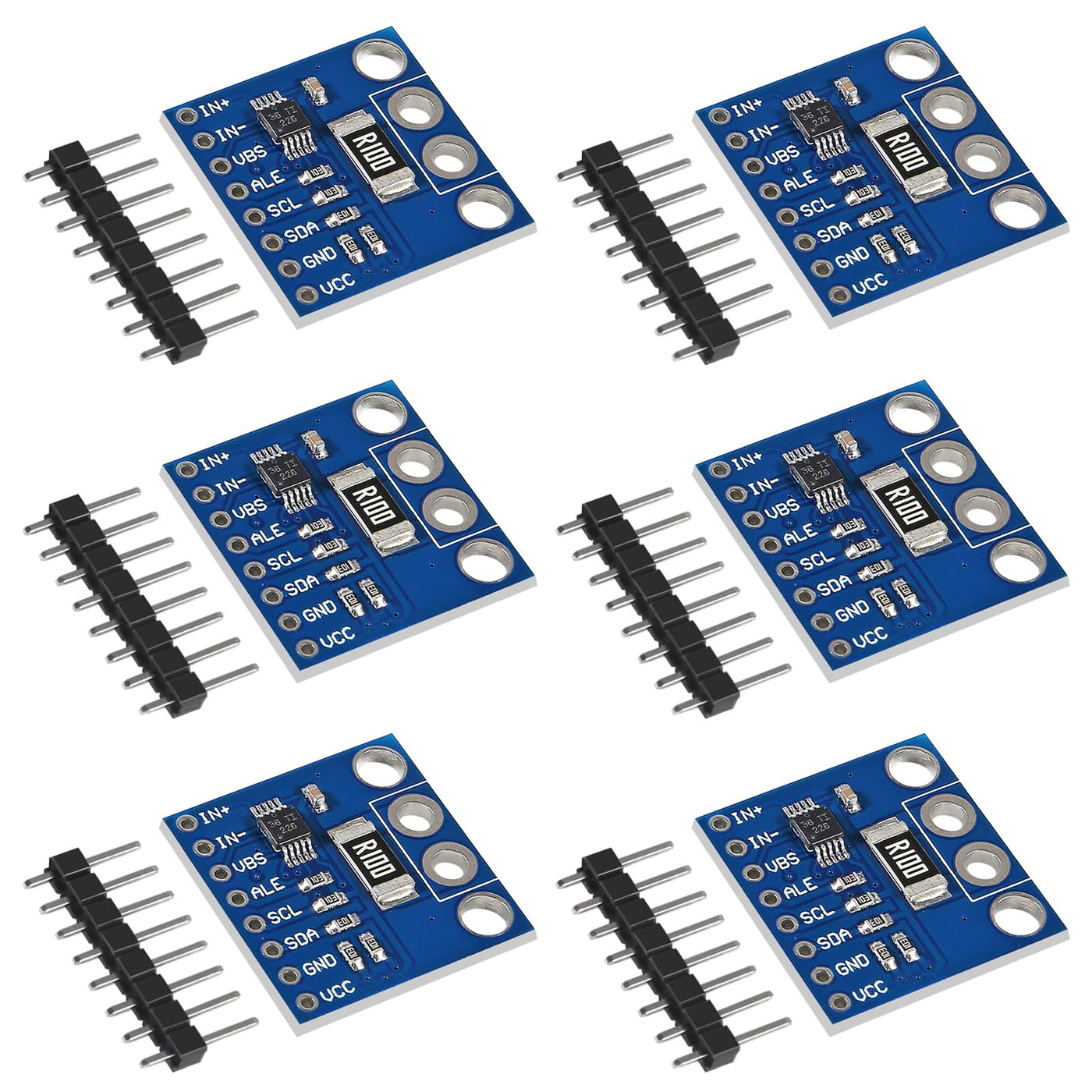

FeaturesSenses Bus Voltages From 0 V to 36 VHigh-Side or Low-Side SensingReports Current, Voltage, and PowerHigh Accuracy:– 0.1% Gain Error (Max)– 10 μV Offset (Max)Configurable Averaging Options16 Programmable AddressesOperates from 2.7-V to 5.5-V Power Supply10-Pin, DGS (VSSOP) PackageApplicationsServersTelecom EquipmentComputingPower ManagementBattery ChargersPower SuppliesTest EquipmePin DescriptionVBUS: bus voltage inputSDA/SCL: IIC bus data and clock signal linesALERT: Multi-function alarm outputA0/A1: IIC address lineIN+/IN-: non-inverting analog input, inverting analog inputPackage Include:6 INA226 Bi-Directional Voltage Current Power Alert Monitor Module
Product Features
- The INA226 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface.
- The device monitors both a shunt voltage drop and bussupply voltage. Programmable calibration value,conversion times, and averaging, combined with aninternal multiplier, enable direct readouts of current inamperes and power in watts.
- The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V, independent of the supply voltage.
- The INA226 senses operates from a single 2.7-V to 5.5-V supply, drawing a typical of 330A of supply current.
- The INA226 is specified over the operating temperature range between 40C and125C and features up to 16 programmable addresses on the I2C-compatible interface
