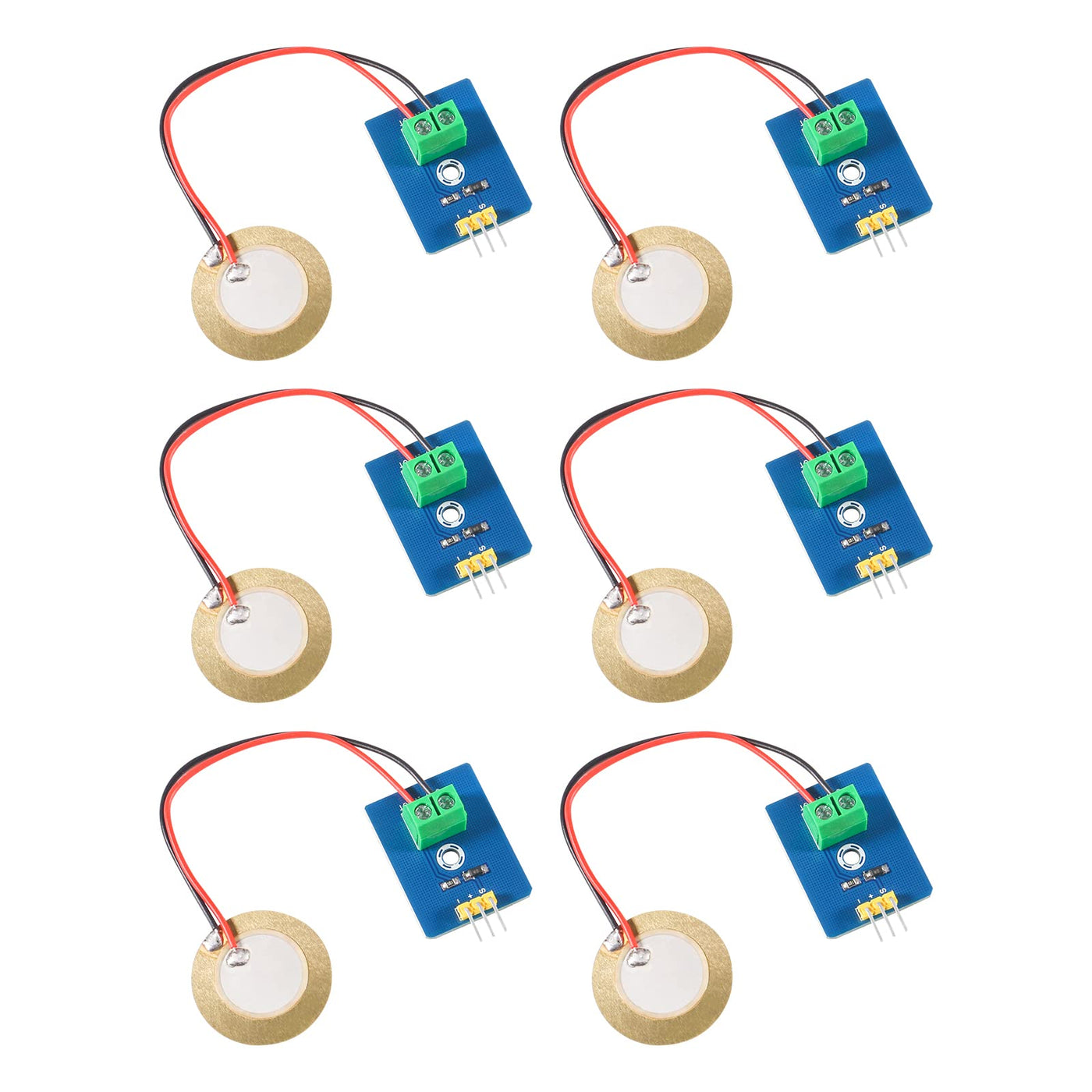

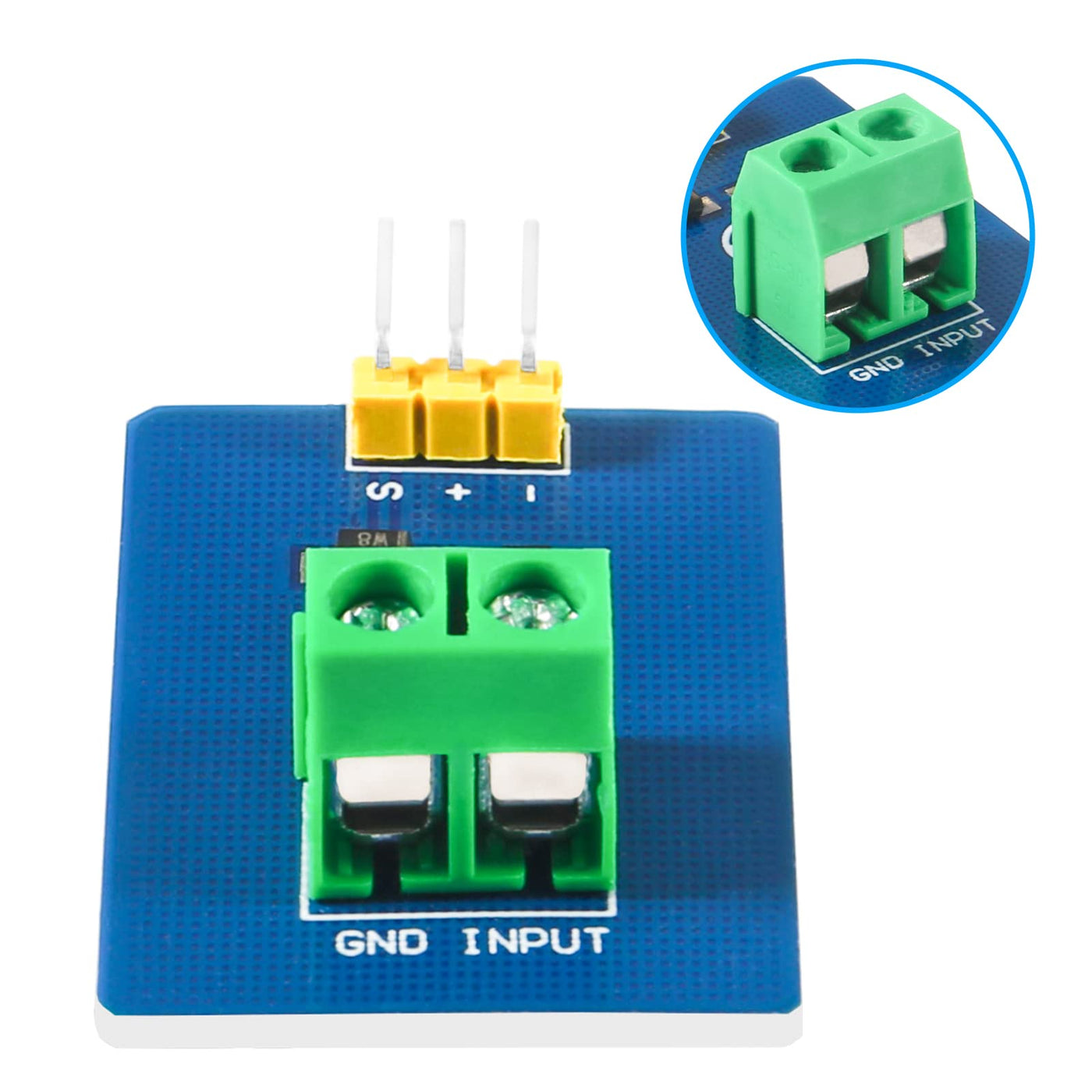

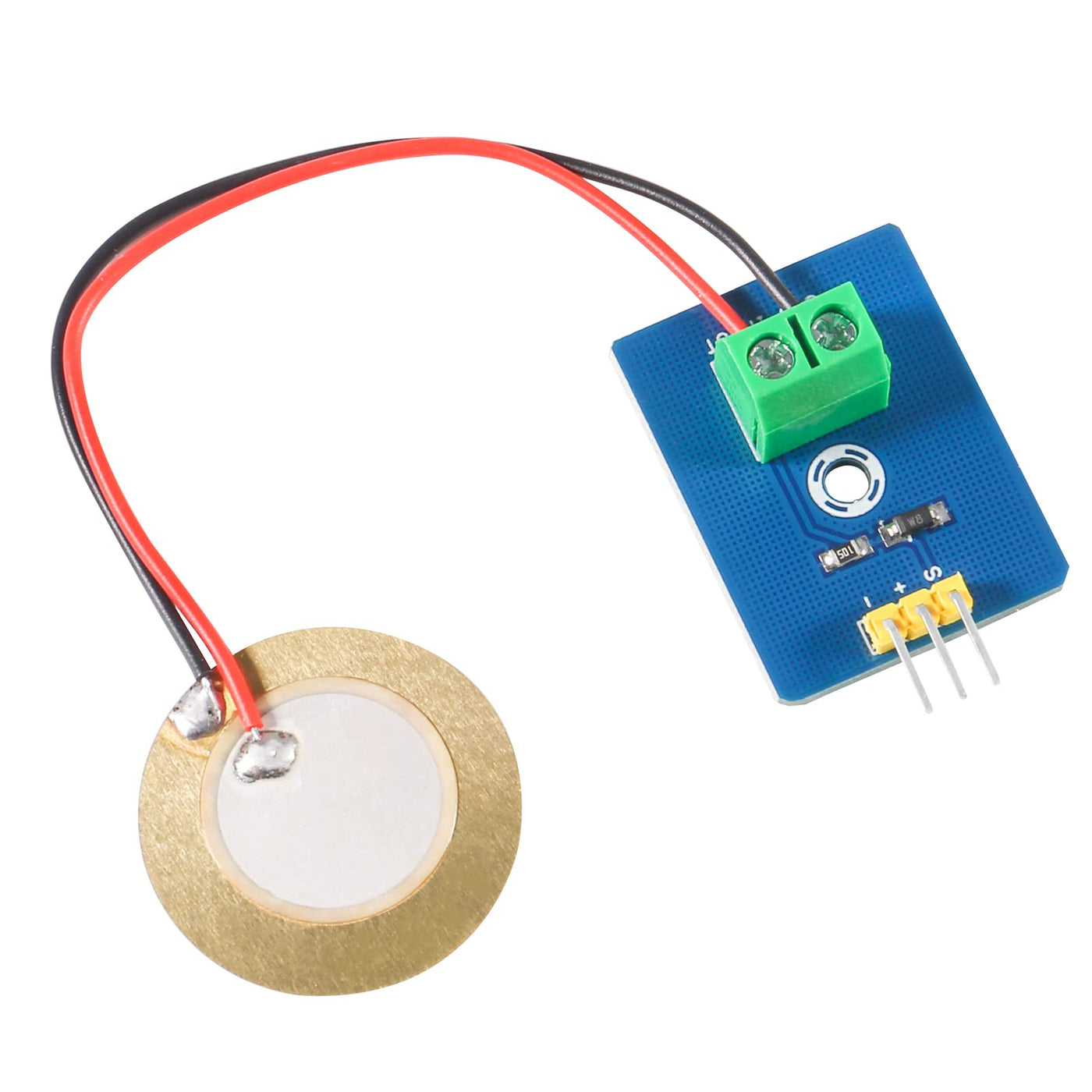

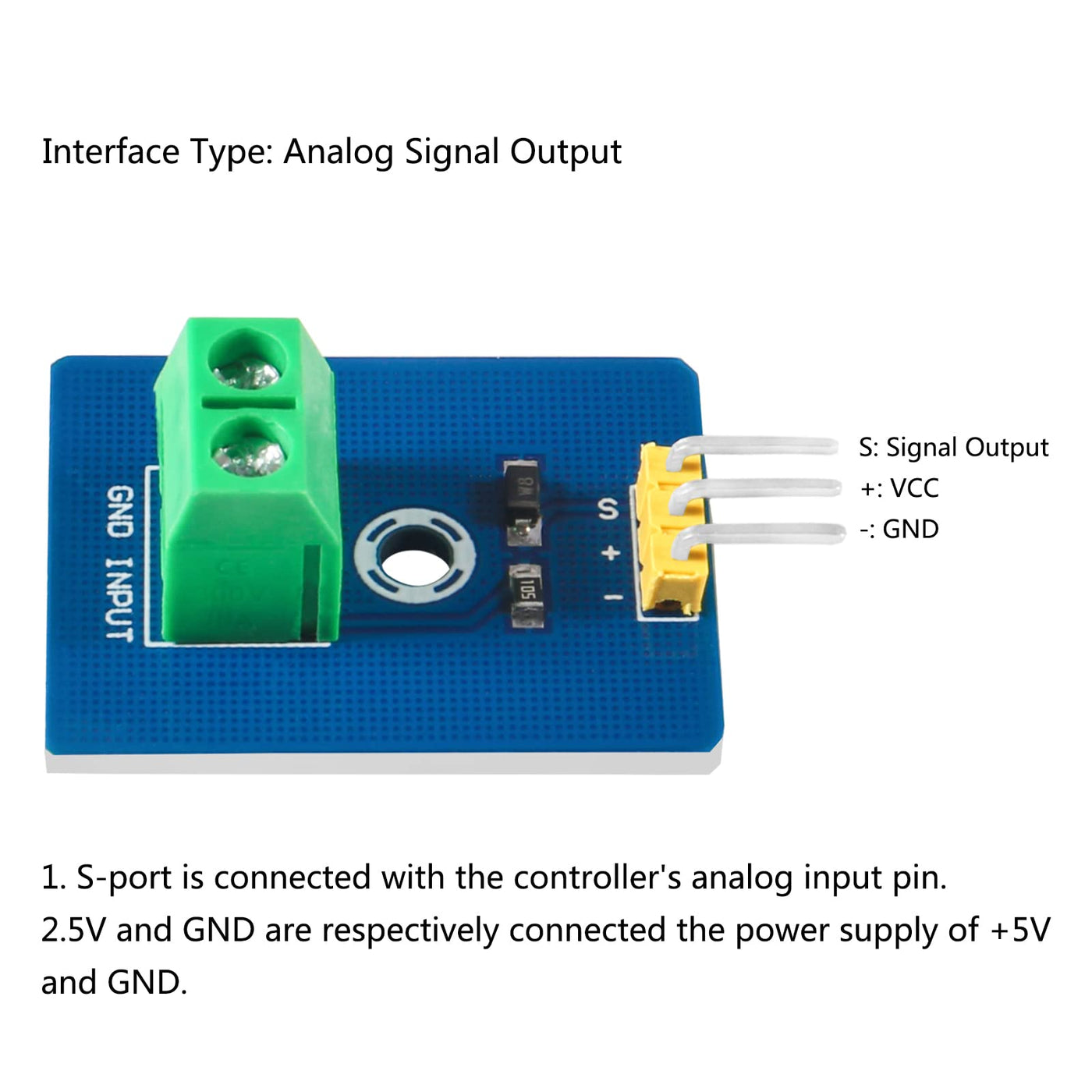

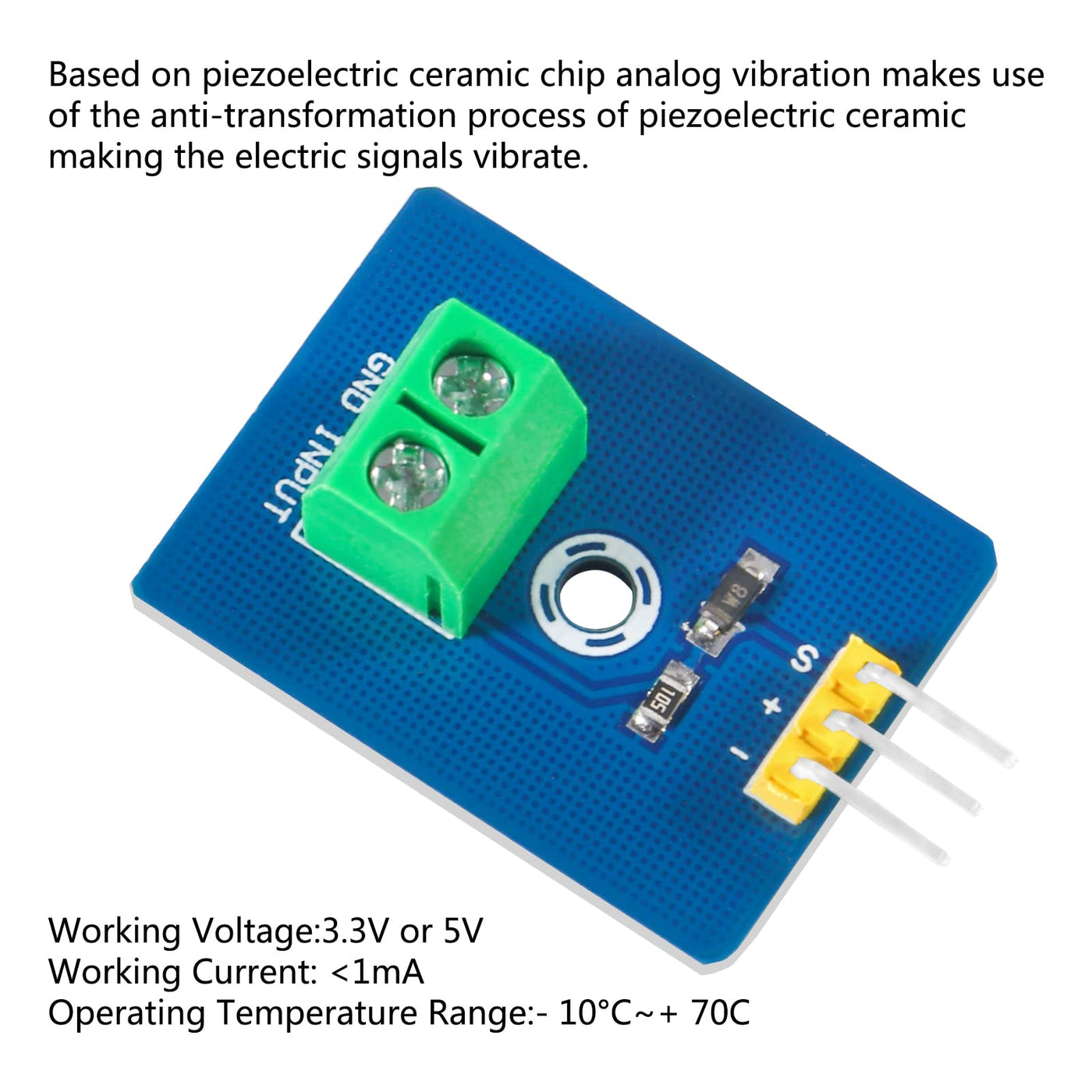

{"id":9122974400663,"title":"6Pcs Piezo Analog Ceramic Vibration Sensor Module Controller Piezoelectricity 3.3V\/5V Electronic Components Supplies Sensor Board","handle":"6pcs-piezo-analog-ceramic-vibration-sensor-module-controller-piezoelectricity-3-3v-5v-electronic-components-supplies-sensor-board","description":"\u003ch3\u003e6Pcs Piezo Analog Ceramic Vibration Sensor Module Controller Piezoelectricity 3.3V\/5V Electronic Components Supplies Sensor Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWorking voltage: 3.3V or 5V Operating current: \u0026lt;1mA Operating temperature\nrange: -10℃ ~ +70℃ Interface type: analog signal output Pin definition: S\nsignal output, + power supply (VCC), -ground (GND) Input: The positive pole of\na piezoelectric ceramic plate Gnd: The negative pole of piezoelectric ceramic\nplates Port S is connected to the controller's analog input pin. 5V and GND\nare respectively connected to +5V and GND of the power supply. Input and Gnd\nare already connected with the piezoelectric ceramics' positive and negative.\nSample Code void setup() {Serial.begin(9600); \/\/Open the serial to set the\nbaud rate for 9600bps} void loop() {int val; val=analogRead(0); \/\/Connect the\nanalog piezoelectric ceramic vibration sensor to analog interface 0\nSerial.print(\"Vibration is \"); Serial.println(val,DEC);\/\/Print the analog\nvalue read via serial port delay(100); } Result wiring as the diagram and\nburning the code, after power-on, open the serial monitor, then set the baud\nrate for 9600 and vibrate ceramic chip, Package include: 6 x Piezo Ceramic\nVibration Sensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePiezoelectric ceramic vibration sensor module working voltage: 3.3V or 5V; Working current: 1mA.\u003c\/li\u003e\n \u003cli\u003eAnalog ceramic vibration sensor module interface type: analog output, when the piezoelectric ceramic shocking will generate an electrical signal, controller analog port can be perceived slight vibration signals, also can be realized with vibration interactions related works, such as electronic drums.\u003c\/li\u003e\n \u003cli\u003eThis ceramic piezo vibration Piece Sensor buffers a piezoelectric transducer that responds to strain changes by generating a measurable output voltage change which is proportional with the strength of vibration. So you can know the extent of vibration.\u003c\/li\u003e\n \u003cli\u003ePiezoelectric sensor module based on piezoelectric ceramic chip analog vibration makes use of the anti-transformation process of piezoelectric ceramic making the electric signals vibrate. Different from digital vibration sensor that only accounts times, this analog one can tell extent of vibration.\u003c\/li\u003e\n \u003cli\u003ePlease connect analog voltage ceramic vibration sensor to the controller's analog port A0 in accordance with the procedure, then observe the output value of serial port when the vibration degree is different, it can realize interactive works related to the vibration.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-07-12T03:45:33+10:00","created_at":"2025-07-12T03:45:29+10:00","vendor":"Shutao","type":"Vibration Sensors","tags":["industrial_best_sellers_Jun2025"],"price":8500,"price_min":8500,"price_max":8500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45661807018135,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B18FW97Z","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"6Pcs Piezo Analog Ceramic Vibration Sensor Module Controller Piezoelectricity 3.3V\/5V Electronic Components Supplies Sensor Board","public_title":null,"options":["Default Title"],"price":8500,"weight":41,"compare_at_price":null,"inventory_management":"shopify","barcode":"701715532489","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0B18FW97Z.jpg?v=1775810398","\/\/newnestshop.com\/cdn\/shop\/files\/71kV_P-waAL.jpg?v=1752255932","\/\/newnestshop.com\/cdn\/shop\/files\/61ifKgns-wL.jpg?v=1752255932","\/\/newnestshop.com\/cdn\/shop\/files\/617_FdvirGL.jpg?v=1752255932","\/\/newnestshop.com\/cdn\/shop\/files\/61O2ryUyD0L.jpg?v=1752255932","\/\/newnestshop.com\/cdn\/shop\/files\/41SMAJ-q5XL.jpg?v=1752255932","\/\/newnestshop.com\/cdn\/shop\/files\/61lTEMkIk5L.jpg?v=1752255932"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0B18FW97Z.jpg?v=1775810398","options":["Title"],"media":[{"alt":null,"id":38400051085463,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0B18FW97Z.jpg?v=1775810398"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0B18FW97Z.jpg?v=1775810398","width":1600},{"alt":null,"id":38400051118231,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71kV_P-waAL.jpg?v=1752255932"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71kV_P-waAL.jpg?v=1752255932","width":1600},{"alt":null,"id":38400051150999,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ifKgns-wL.jpg?v=1752255932"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ifKgns-wL.jpg?v=1752255932","width":1600},{"alt":null,"id":38400051183767,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/617_FdvirGL.jpg?v=1752255932"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/617_FdvirGL.jpg?v=1752255932","width":1600},{"alt":null,"id":38400051216535,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61O2ryUyD0L.jpg?v=1752255932"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61O2ryUyD0L.jpg?v=1752255932","width":1600},{"alt":null,"id":38400051249303,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41SMAJ-q5XL.jpg?v=1752255932"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41SMAJ-q5XL.jpg?v=1752255932","width":1600},{"alt":null,"id":38400051282071,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61lTEMkIk5L.jpg?v=1752255932"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61lTEMkIk5L.jpg?v=1752255932","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e6Pcs Piezo Analog Ceramic Vibration Sensor Module Controller Piezoelectricity 3.3V\/5V Electronic Components Supplies Sensor Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWorking voltage: 3.3V or 5V Operating current: \u0026lt;1mA Operating temperature\nrange: -10℃ ~ +70℃ Interface type: analog signal output Pin definition: S\nsignal output, + power supply (VCC), -ground (GND) Input: The positive pole of\na piezoelectric ceramic plate Gnd: The negative pole of piezoelectric ceramic\nplates Port S is connected to the controller's analog input pin. 5V and GND\nare respectively connected to +5V and GND of the power supply. Input and Gnd\nare already connected with the piezoelectric ceramics' positive and negative.\nSample Code void setup() {Serial.begin(9600); \/\/Open the serial to set the\nbaud rate for 9600bps} void loop() {int val; val=analogRead(0); \/\/Connect the\nanalog piezoelectric ceramic vibration sensor to analog interface 0\nSerial.print(\"Vibration is \"); Serial.println(val,DEC);\/\/Print the analog\nvalue read via serial port delay(100); } Result wiring as the diagram and\nburning the code, after power-on, open the serial monitor, then set the baud\nrate for 9600 and vibrate ceramic chip, Package include: 6 x Piezo Ceramic\nVibration Sensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePiezoelectric ceramic vibration sensor module working voltage: 3.3V or 5V; Working current: 1mA.\u003c\/li\u003e\n \u003cli\u003eAnalog ceramic vibration sensor module interface type: analog output, when the piezoelectric ceramic shocking will generate an electrical signal, controller analog port can be perceived slight vibration signals, also can be realized with vibration interactions related works, such as electronic drums.\u003c\/li\u003e\n \u003cli\u003eThis ceramic piezo vibration Piece Sensor buffers a piezoelectric transducer that responds to strain changes by generating a measurable output voltage change which is proportional with the strength of vibration. So you can know the extent of vibration.\u003c\/li\u003e\n \u003cli\u003ePiezoelectric sensor module based on piezoelectric ceramic chip analog vibration makes use of the anti-transformation process of piezoelectric ceramic making the electric signals vibrate. Different from digital vibration sensor that only accounts times, this analog one can tell extent of vibration.\u003c\/li\u003e\n \u003cli\u003ePlease connect analog voltage ceramic vibration sensor to the controller's analog port A0 in accordance with the procedure, then observe the output value of serial port when the vibration degree is different, it can realize interactive works related to the vibration.\u003c\/li\u003e\n \u003c\/ul\u003e"}
