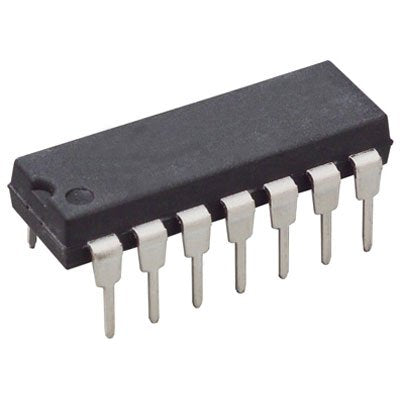

74LS125 Tri State Quad Bus Buffer, DIP 14 (Pack of 10)
74LS125 Tri State Quad Bus Buffer, DIP 14 (Pack of 10)
This device contains four independent Gates each of which performs a non- inverting buffer function. The outputs have the 3-state feature. When enabled, the outputs exhibit the low impedance characteristics of a standard LS output with additional drive capability to permit the driving of bus lines without external resistors. When disabled, both the output transistors are turned off presenting a high-impedance state to the bus line. Thus the output will Act Neither as a significant load nor as a driver. To minimize the possibility that two outputs will ATTEMPT to take a common bus to opposite logic levels, the disable time is shorter than the enable time of the outputs.
Product Features
- Package Weight: 0.02 pounds
- Country of Origin : Taiwan, Province Of China
- Part Number: 74LS125
- Supply voltage-nom (vsup) (v): 5
Buy with confidence as this product comes with 18 months full local warranty in Australia & New Zealand (unless otherwise stated in the overview).
This product also comes with the benefits of the CocoonPower Warranty. For further details please read our Warranty Guidelines.
You can also purchase 3 Year Extended Care. If you are interested please see our Extended Care Information.
