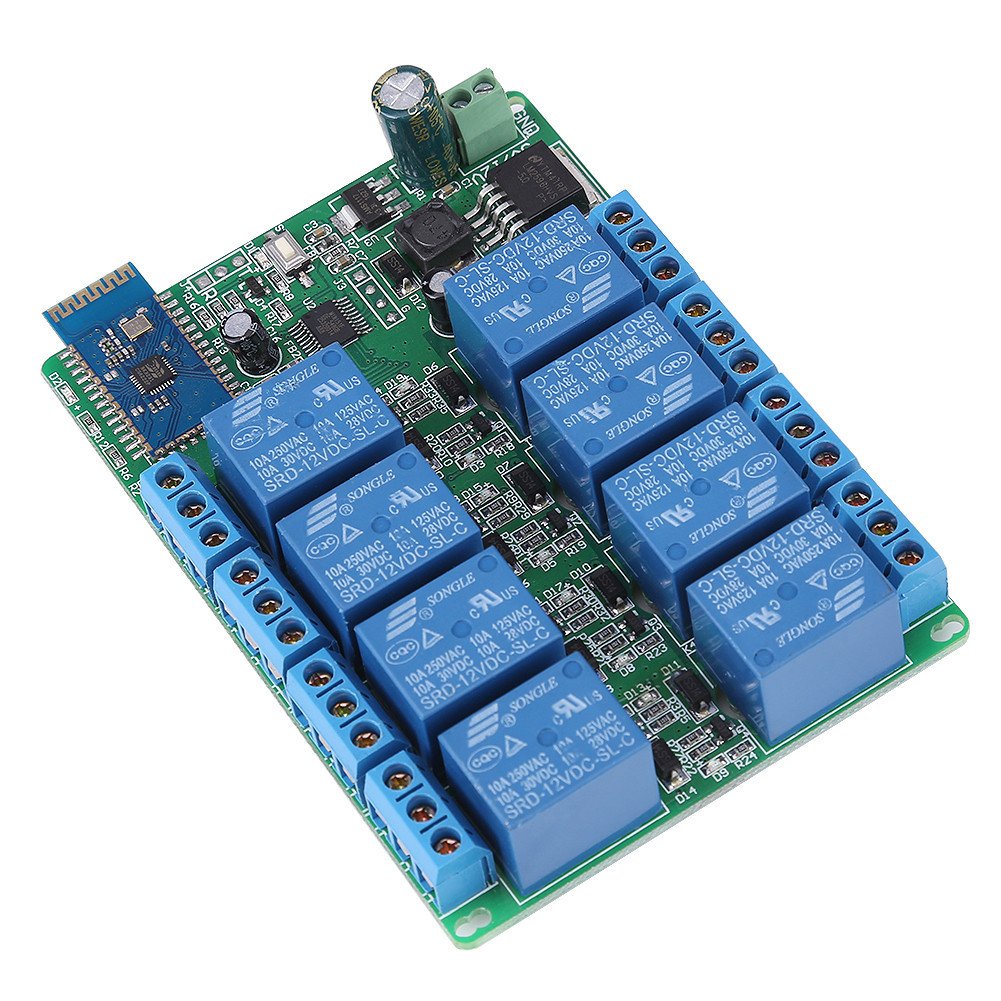

8 Channel Bluetooth 4.0 Relay Module Board Android Mobile Phone App Wireless Remote Control Relay Switch for Android Smart Home DC 12V

In Stock. Leaves warehouse within 2 - 3 business days

$191.00 AUD
Maximum quantity available reached.
Shop with Confidence — Free Shipping, Always
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

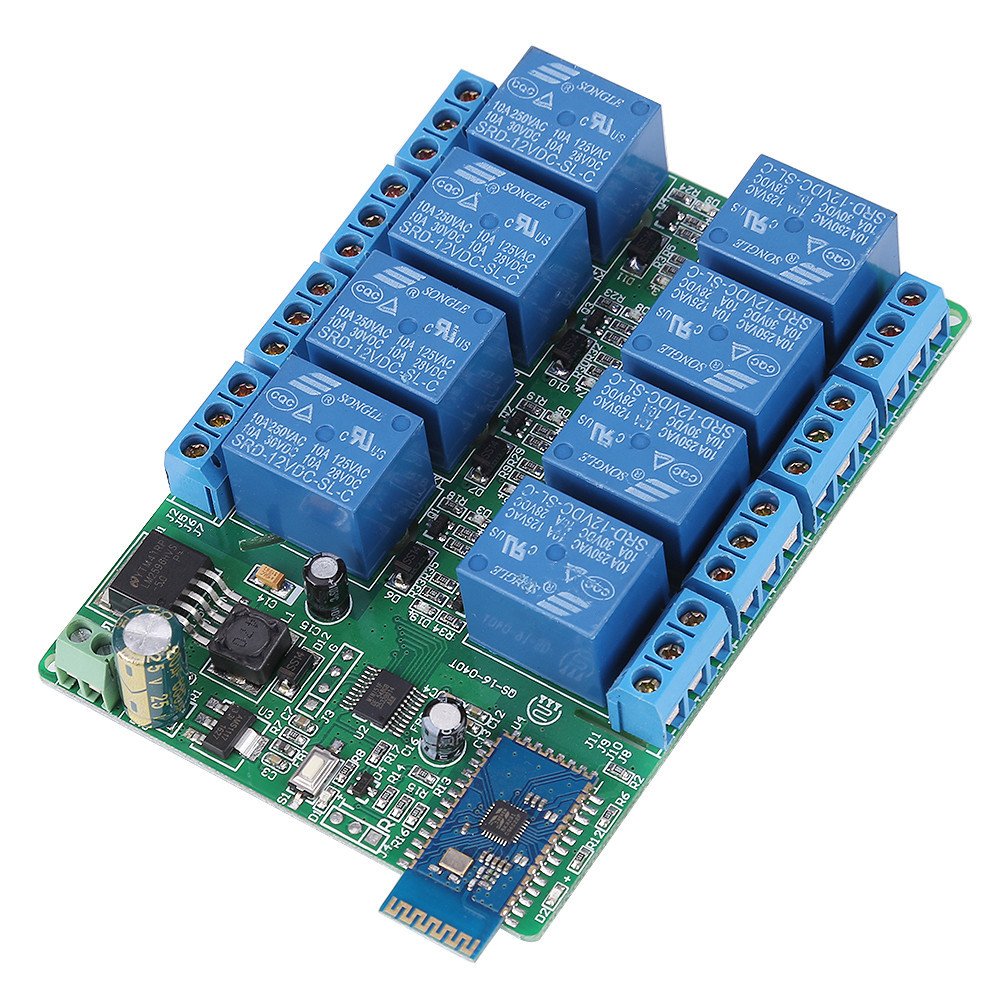

8 Channel Bluetooth 4.0 Relay Module Board Android Mobile Phone App Wireless Remote Control Relay Switch for Android Smart Home DC 12V

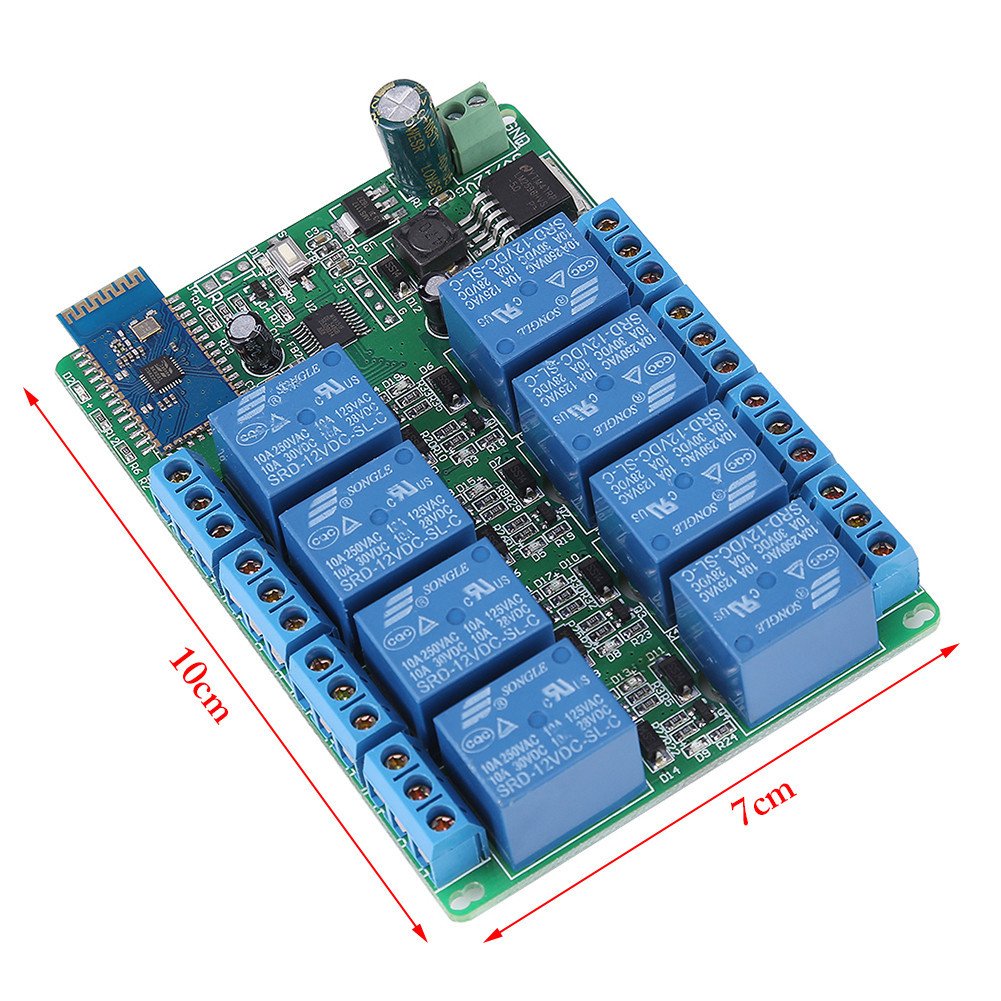

Parameter: 1.Operating voltage: DC 12V 2.External relay is required to play a switching function 3.Bluetooth name is QS-8RELAY password:123456 4.Revise the name fD 02 ef + The total length is 1 bytes + length + Device name byte (The longest is 10 bytes) + length + matching password（PIN the longest is 6 bytes）+ 5d Modify successfully:df ff 00 00 5d Modify failed, No response:df 00 00 00 5d 8 way control code table: 1 way open: FD 02 20 01 01 5D 1 way Close: FD 02 20 01 00 5D 2 way open: FD 02 20 02 01 5D 2 way Close: FD 02 20 02 00 5D ...... 8 way open: FD 02 20 08 01 5D 8 way Close: FD 02 20 08 00 5D 1-8 way open: FD 02 20 EF FF 5D 1-8 way Close: FD 02 20 EF 00 5D Esc DF FD XX XX 5D //XXXXThere are 16 persons, 1 for open and 0 for Close Specifications: Application range: remote control switch Model: QS - 64 Contact load: DC, AC Contact form: switch Rated current: 10A Rated voltage: 5V 12V Size: 7 x10cm/2.76 x 3.93inch Power supply voltage: DC5V, DC 7-40v, AC90-240V Input current: 1A Communication mode: 4.0 Bluetooth (CC2540) Communication distance: 6-10 m (specific for different actual conditions) Delay time range: 1-255 seconds. Control voltage: DC 0-277V 10A, DC0-30V 10A Package Included: 1 x 8 Channel Bluetooth Relay

Product Features

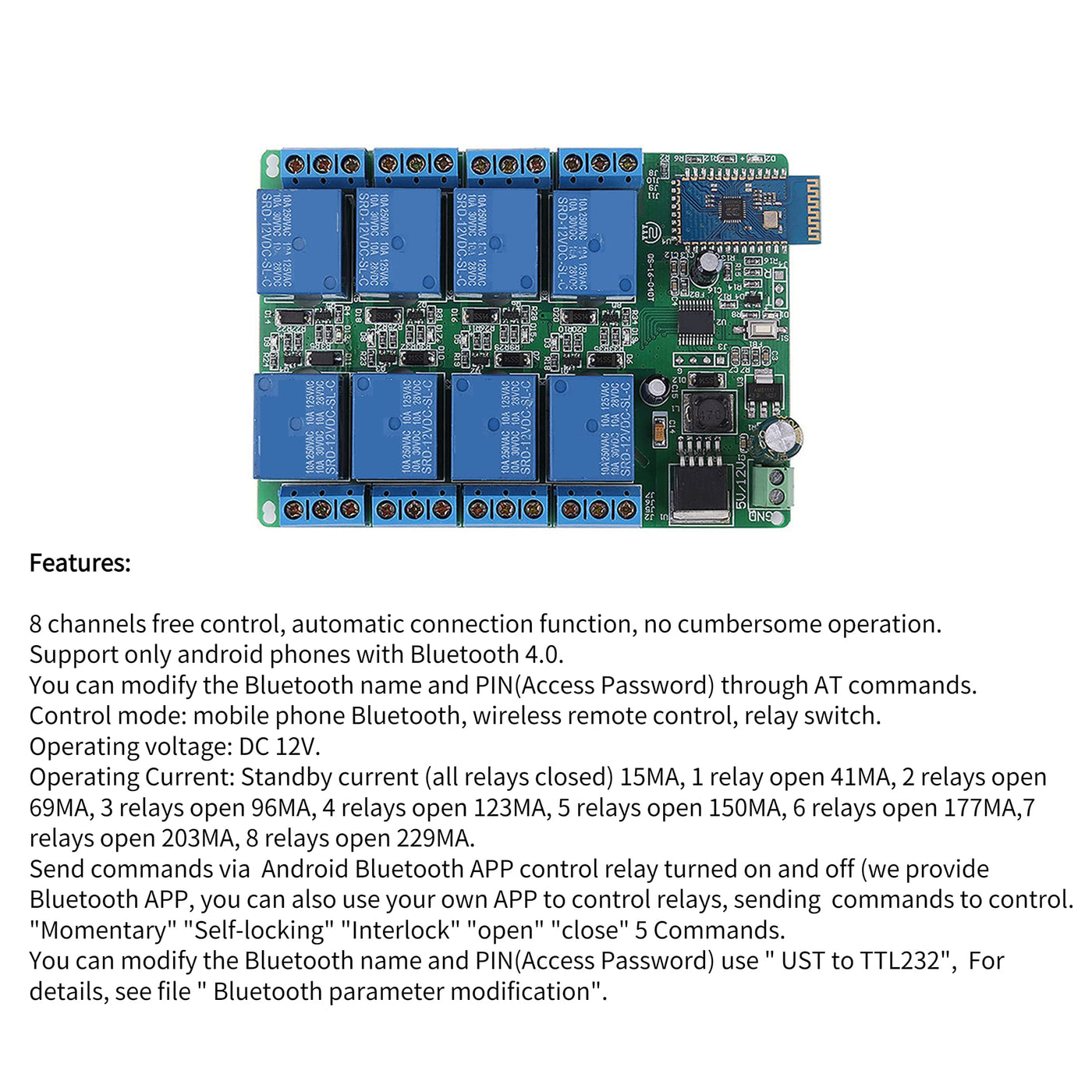

  • 8 channels free control, automatic connection function, no cumbersome operation. Support only android phones with Bluetooth 4.0. You can modify the Bluetooth name and PIN(Access Password) through AT commands.
  • Control mode: mobile phone Bluetooth, wireless remote control, relay switch.
  • Port control mode: 8 outlets. Self-locking, interlock, point movement, delay, motor control, bulb control, etc.
  • Operating Current: Standby current (all relays closed) 15MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 96MA, 4 relays open 123MA, 5 relays open 150MA, 6 relays open 177MA,7 relays open 203MA, 8 relays open 229MA.
  • "Momentary" "Self-locking" "Interlock" "open" "close" 5 Commands.
