AC 110V Delay Timer Time Relay H3Y-2 0-60S Second & Base Socket DPDT (AC 110V)

In Stock. Leaves warehouse within 2 - 3 business days

$104.00 AUD
Maximum quantity available reached.
Shop with Confidence — Free Shipping, Always
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

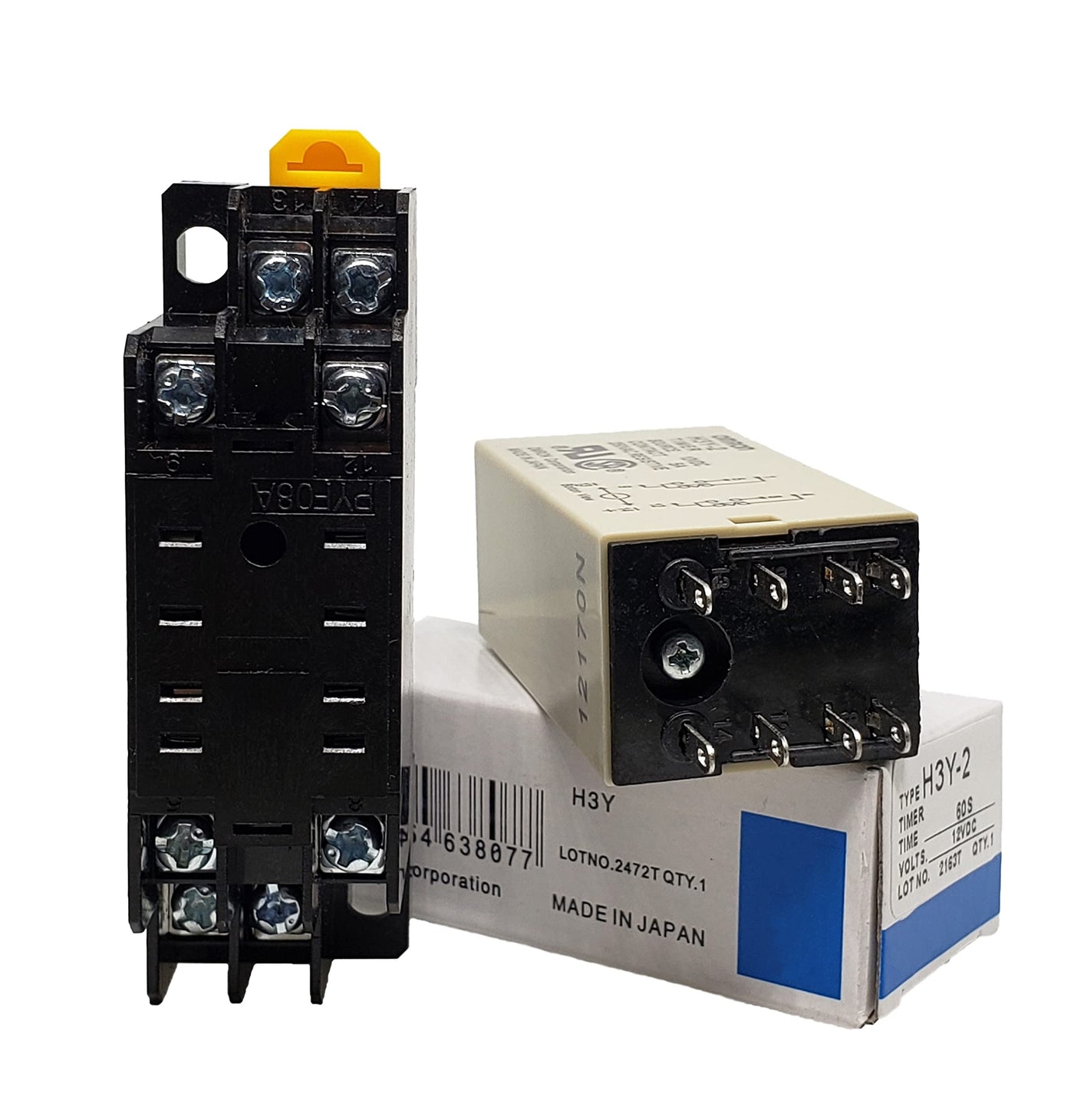

AC 110V Delay Timer Time Relay H3Y-2 0-60S Second & Base Socket DPDT (AC 110V)

H3Y-2 AC 110V delay timer time relay + H3Y-2 base Model : H3Y-2 Material : Metal, Aluminum, Plastic Supply voltage : AC 110V Allowable voltage change range : 90%~110% of supply voltage Power consumption : 0.1W~1.1W Contact Capacity : 240VAC 5A Work mode : electricity delay Pins : 8 Rated time Range : 0~60 s Environment Temperature : -10℃ - +50℃ Environment Humidity : 35%~85% Relay Size (L x W x H) : Approx. 5.7 x 2.8 x 2.2cm / 2.2 x 1.1 x 0.9 inch Base Size (L x W x H) : Approx. 7 x 2.3 x 3.1cm / 2.7 x 0.9 x 1.2 inch The relay has two indicator LEDs; one lights up once it receives 110VAC power showing the time sequence has been initiated; the second one comes on once the selected time has elapsed and relay is energized. Package included : 1 x H3Y-2 Delay Timer Time Relay 1 x Relay Base

Product Features

  • Supply voltage : AC 110V; Contact Capacity : 240VAC 5A;Rated time Range : 0~60 s
  • Work mode : electricity delay; Pins : 8
  • Total Size (Approx.): 2.1 x 1.1 x 0.7 inches (L*W*H)
  • Perfect work for the industrial automation system and mechanical equipment to delay component.
  • Package : 1 x Time Relay + 1 x Socket
