Battery Connector 30A Quick Connect Battery Modular Power Connectors Quick Disconnect (10) 10

In Stock. Leaves warehouse within 2 - 3 business days

$109.00 AUD
Maximum quantity available reached.
Shop with Confidence — Free Shipping, Always
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

Battery Connector 30A Quick Connect Battery Modular Power Connectors Quick Disconnect (10)

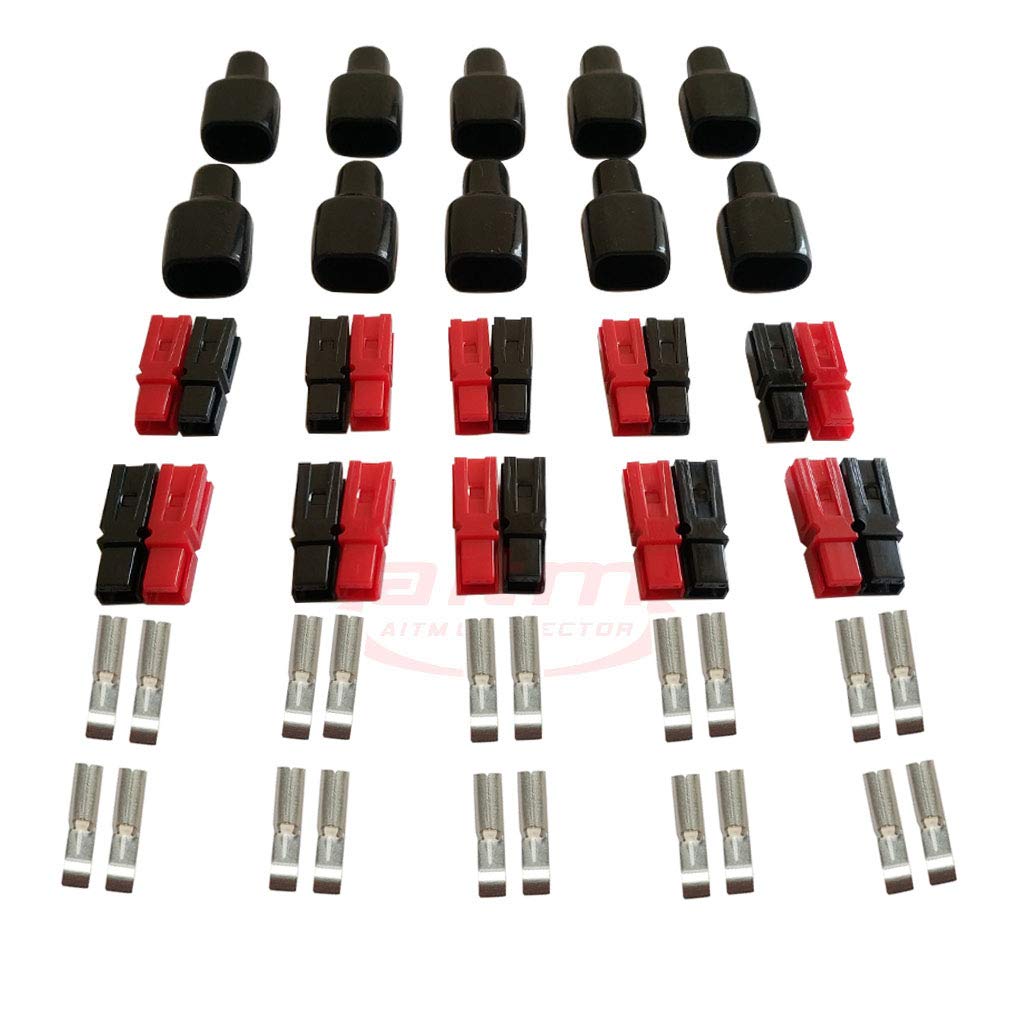

The package included: if you want to choose the quantity 10: there is 10Pcs red housing, 10Pcs black housing, 20pcs Silver plated copper contacts.10 pcs PVC cover. if you want to choose the quantity 20: there is 20Pcs red housing, 20Pcs black housing, 40pcs Silver copper contacts .20pcs PVC cover. if you want to choose the quantity 30: there is 30Pcs red housing, 30Pcs black housing, 60pcs Silver copper contacts, 30pcs PVC cover. if you want to choose the quantity 50: there is 50Pcs red housing, 50Pcs black housing, 100 pcs Silver plated copper contacts, 50 pcs PVC cover.

Product Features

  • Package included: All is included in the first picture.Material: Silver Copper.Rated currents (Amperes): 30 A.Rated Voltage (Volts): 600 V.
  • 30 Amp. Suitable for 1.3mm2 -3.3mm2 (16-12 AWG) cables. Medium Contact Resistance (micro ohm): <500. Test Voltage Resistant Insulation (AC / DC Volts): 2200V. Contact Retention Force (lbf) 25lbf.
  • No load (contact / disconnect cycles): At 10,000.Under load (Hot Plug 250 cycles @ 120V) .Minimum insertion force (pounds): 3-5lbf.Operating temperature C: -20 to 105 Flammability class of the housing material: UL 94-V0.
  • Flat wiping contact system, High Current Minimum Contact Resistance The wiping action cleans the contact surface during connection / disconnection. Colored modular housings, provides a visual identification of the compatible connector.
  • Molded Dovetail Ends, Secures Individual Connectors in "Keyed" Assemblies That Prevent Connection Errors With Similar Configurations.Design without sex, makes assembly quick and easy, and reduces the number of parts stored
