Brixwell 180 Degree Glass to Glass Standard Hinge, Brushed Bronze Finish
Brixwell 180 Degree Glass to Glass Standard Hinge, Brushed Bronze Finish

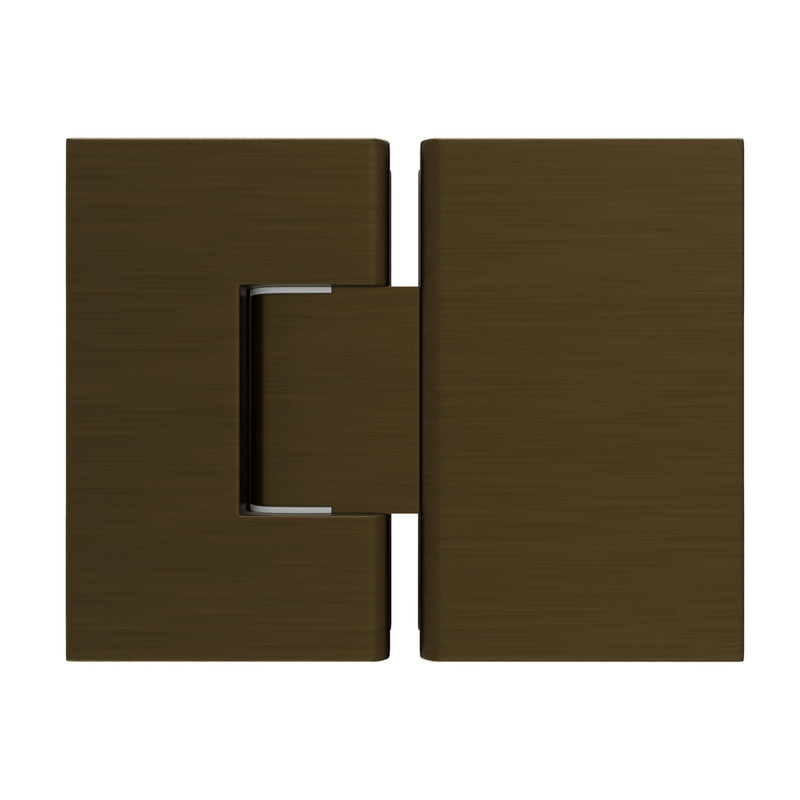

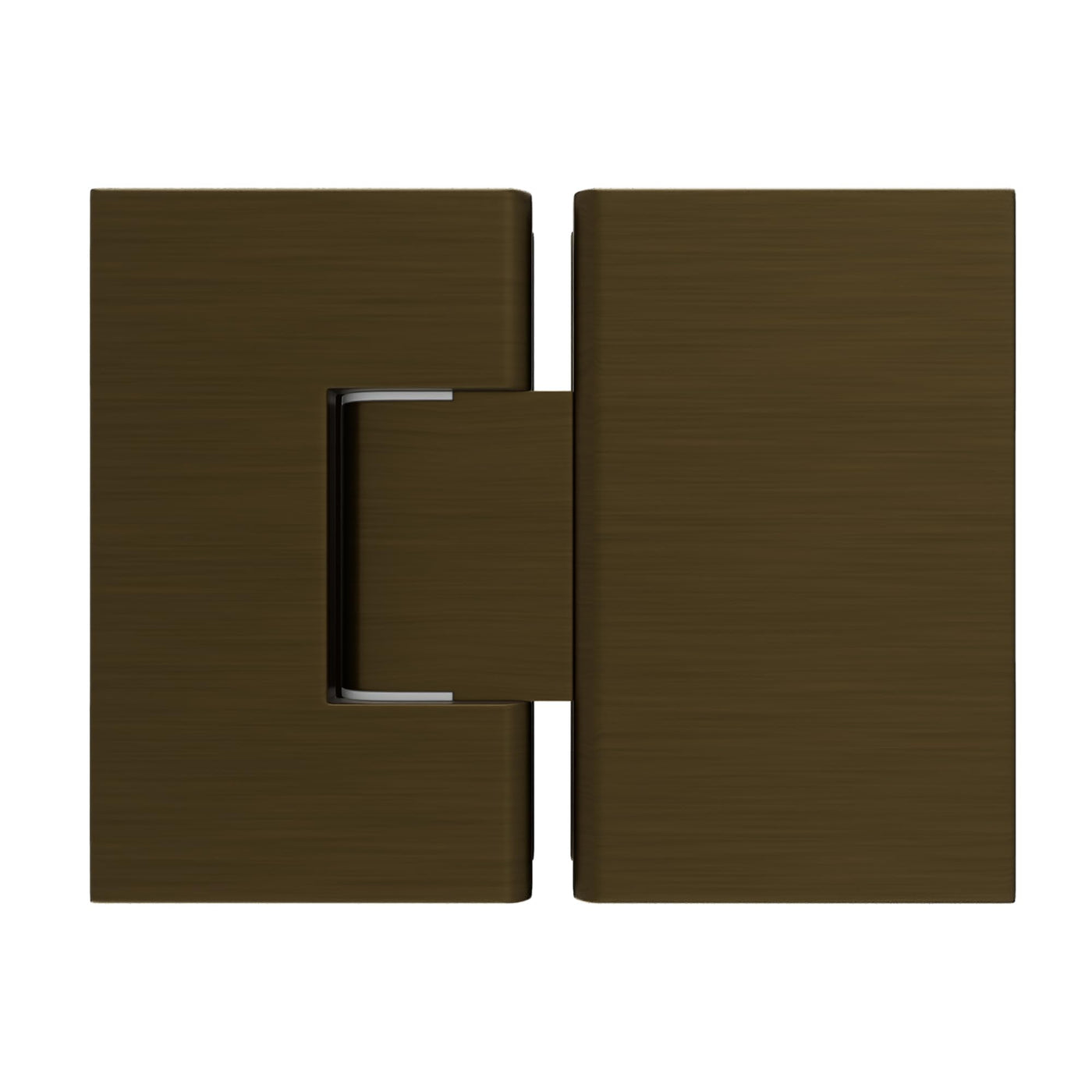

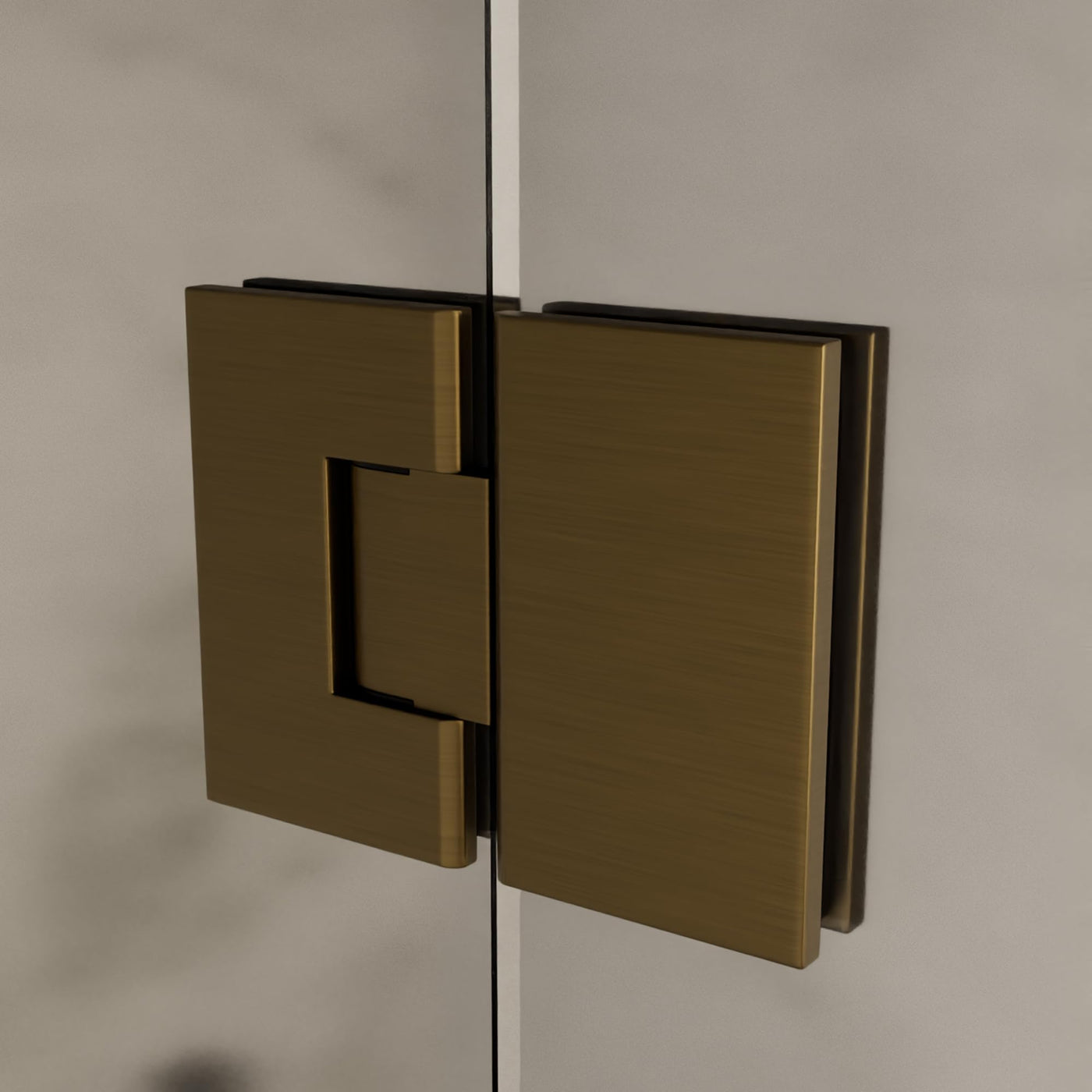

The 180 Degree Glass-to-Glass Standard Hinge is designed for frameless glass shower doors that connect two glass panels at a straight angle. This hinge is made from brass and finished in brushed bronze, providing a consistent appearance for bathroom glass door installations. This glass to glass hinge allows the door to swing 90 degrees inward and 90 degrees outward, providing full access during use. The hinge includes a self-centering closing action that activates when the door moves within 15 degrees of the closed position. This action helps guide the door back to a centered resting position during normal operation. The hinge is designed for glass-to-glass mounting at a 180 degree angle and requires a cut-out for installation. It supports square corner glass preparation and is intended for use with monolithic tempered glass panels. Glazing thickness from 5/16" to 1/2" (8mm to 12mm) is supported. Overall hinge height measures 3-1/2", with a width of 2-3/16" on each side. When two hinges are used, the system supports doors weighing up to 80 lbs with widths up to 28". When three hinges are used, it supports doors weighing up to 120 lbs with widths up to 32". The hinge includes gaskets, and screws to support proper placement. Optional 5 degree pre-set pivot pins and springs are available, allowing adjustment from a 0 degree closing position when required. This shower door hinge is commonly used in frameless shower enclosures where controlled glass-to-glass door movement is required. Care Instructions: Wipe hardware dry after use. Clean with mild soap and water if needed. Avoid abrasive cleaners.
Product Features
- 180 degree glass to glass hinge supports straight-line glass connections with 90 degree in and 90 degree out swing capability.
- Constructed from brass with brushed bronze finish for use in frameless shower hinge installations.

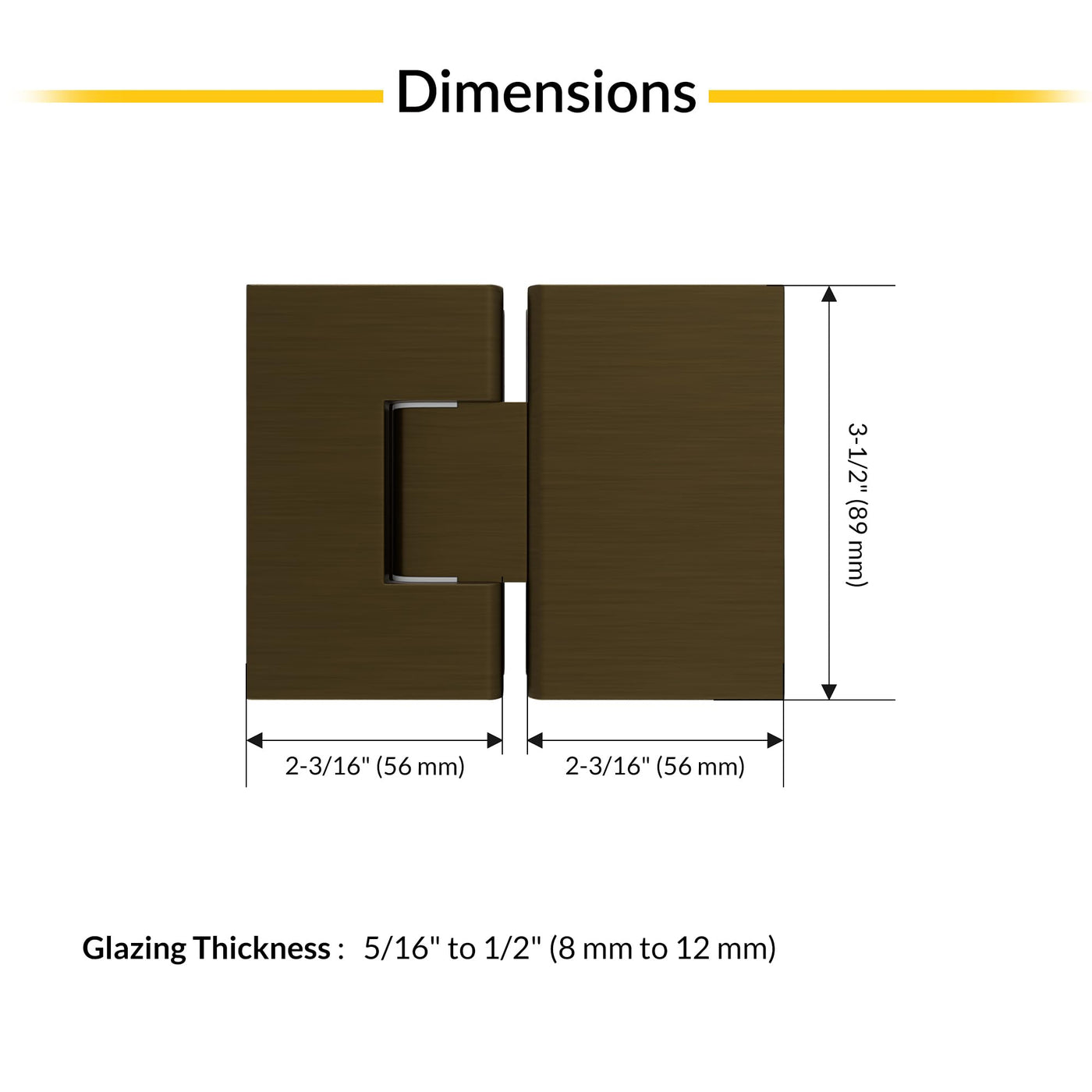

- Measures 3-1/2" overall height with 2-3/16" width on both sides for proper glass panel hinge fit.
- Self-centering shower door hinge returns the door toward closed position when within 15 degree for consistent alignment.
- Designed for monolithic tempered glass from 5/16" to 1/2" thickness in glass door hinge applications.
- Supports doors up to 80 lbs and 28" wide with two hinges or 120 lbs and 32" wide with three hinges.
- Includes gaskets and screws for accurate shower hinge installation.
