Brixwell V537PN Wall Mount Full Back Plate Hinge 4" Height for 3/8" to 1/2" Monolithic Tempered Glass 5 Degree Preset Yes Polished Nickel Finish
Brixwell V537PN Wall Mount Full Back Plate Hinge 4" Height for 3/8" to 1/2" Monolithic Tempered Glass 5 Degree Preset Yes Polished Nickel Finish

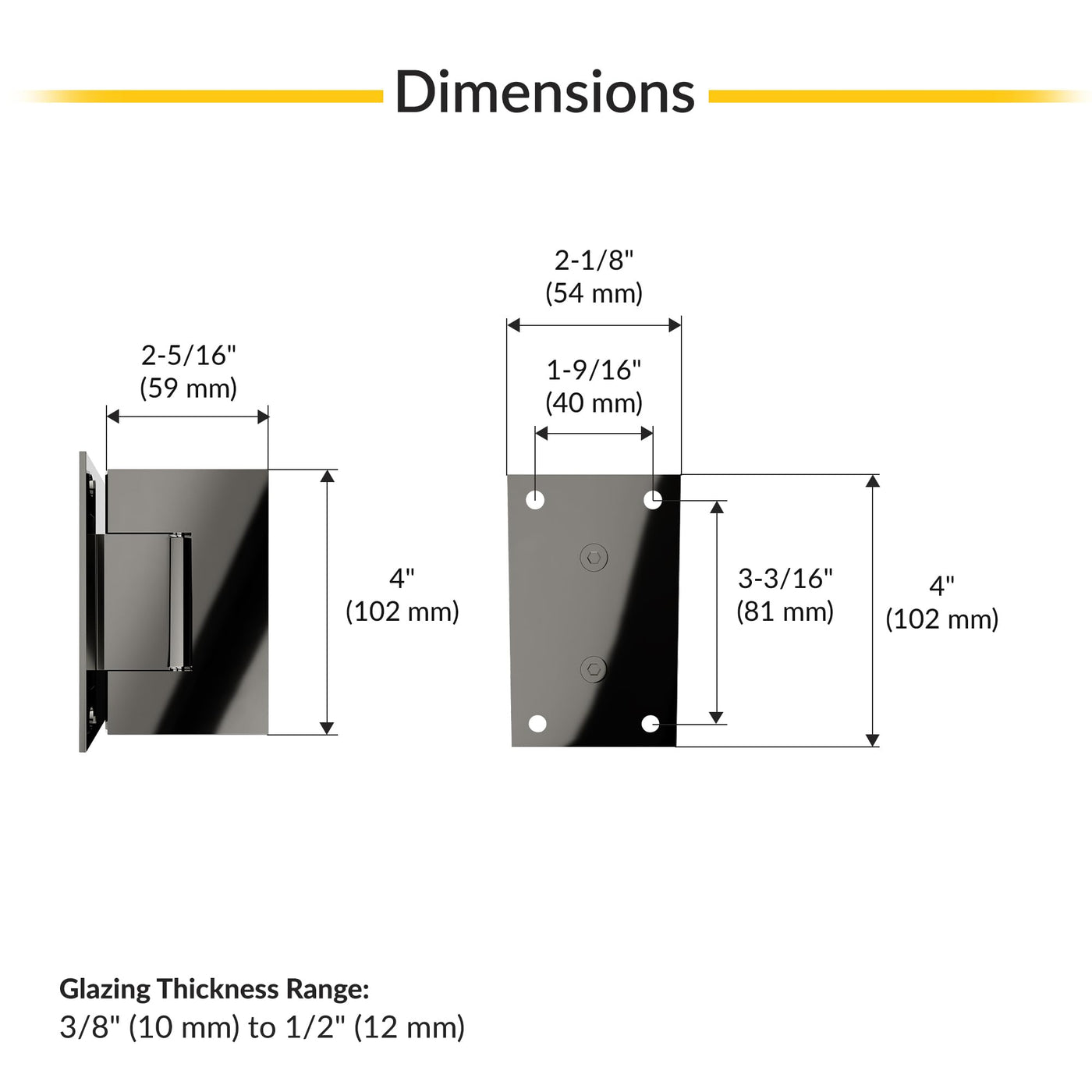

The wall mount full back plate hinge with 5 Degrees Preset is designed for frameless shower door installations requiring controlled swing movement and defined mounting geometry. This hinge is manufactured from brass and finished in Polished Nickel. The hinge features a fixed wall mount full back plate design. This pre-set model comes with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). Hinge is 4" Height, 2-5/16" width, and 4" backplate height, 2-1/8" backplate width and Vertical CTC distance is 3-3/16", Horizontal CTC distance is 1-9/16". The hinge supports a full 90 degree inward and 90 degree outward swing, allowing practical access for shower door operation. A self-centering mechanism engages when the door reaches within 15 degrees of the closed position, guiding the glass panel back to its resting point. This closing action supports alignment consistency during daily use. The hinge is intended for use with monolithic tempered glass panels ranging from 3/8" to 1/2" thickness. When installed using two hinges, the system supports door weights up to 110 lbs. When three hinges are used, supported door weight increases to 140 lbs, based on approved glass thickness. Maximum door width capacity is 36" for 3/8" glass and 36" for 1/2" glass. Supplied gaskets and screws support proper glass spacing during installation. Thick gaskets are used for 3/8" glass, while thin gaskets are used for 1/2" glass. This hinge is suitable for corner, niche, bathtub, and tailor-made shower enclosure configurations. One side of the Pin is marked at 90 degrees. The opposite side of the Pin is marked 85 degrees.
Product Features
- Brass wall mount hinge designed for frameless shower door installations
- Polished Nickel finish provides a consistent nickel tone hardware appearance
- Supports a 90 degree inward and 90 degree outward swing
- Hinge is 4" Height, 2-5/16" width, 4" backplate height, 2-1/8" width.
- 5 degrees preset pivot pin provides tighter closing angle
- Compatible with 3/8" to 1/2" monolithic tempered glass
- Supports up to 110 lbs with two hinges and 140 lbs with three hinges
