Brixwell Wall Mount Full Back Plate Hinge with 5 Degree Preset, Satin Brass
Brixwell Wall Mount Full Back Plate Hinge with 5 Degree Preset, Satin Brass

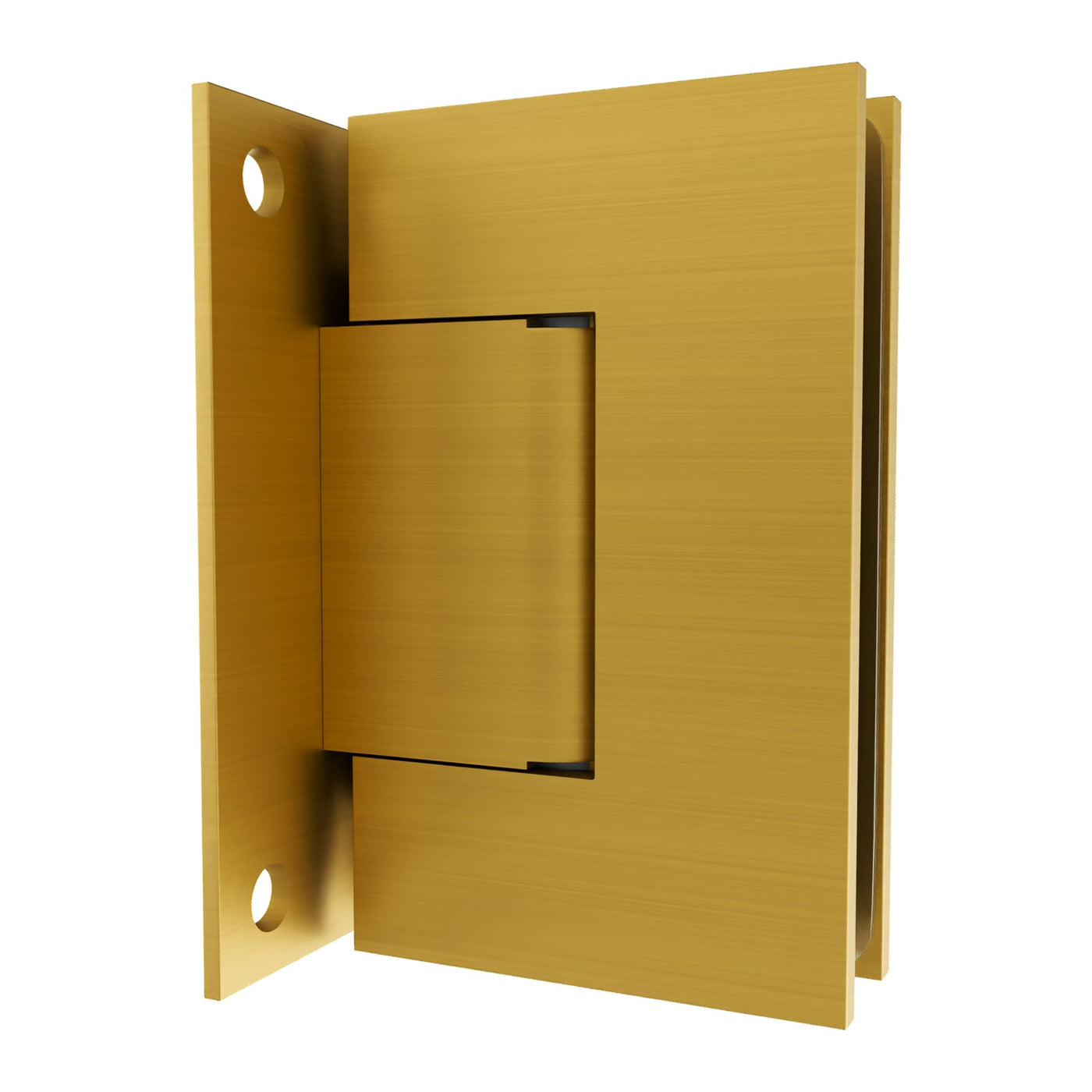

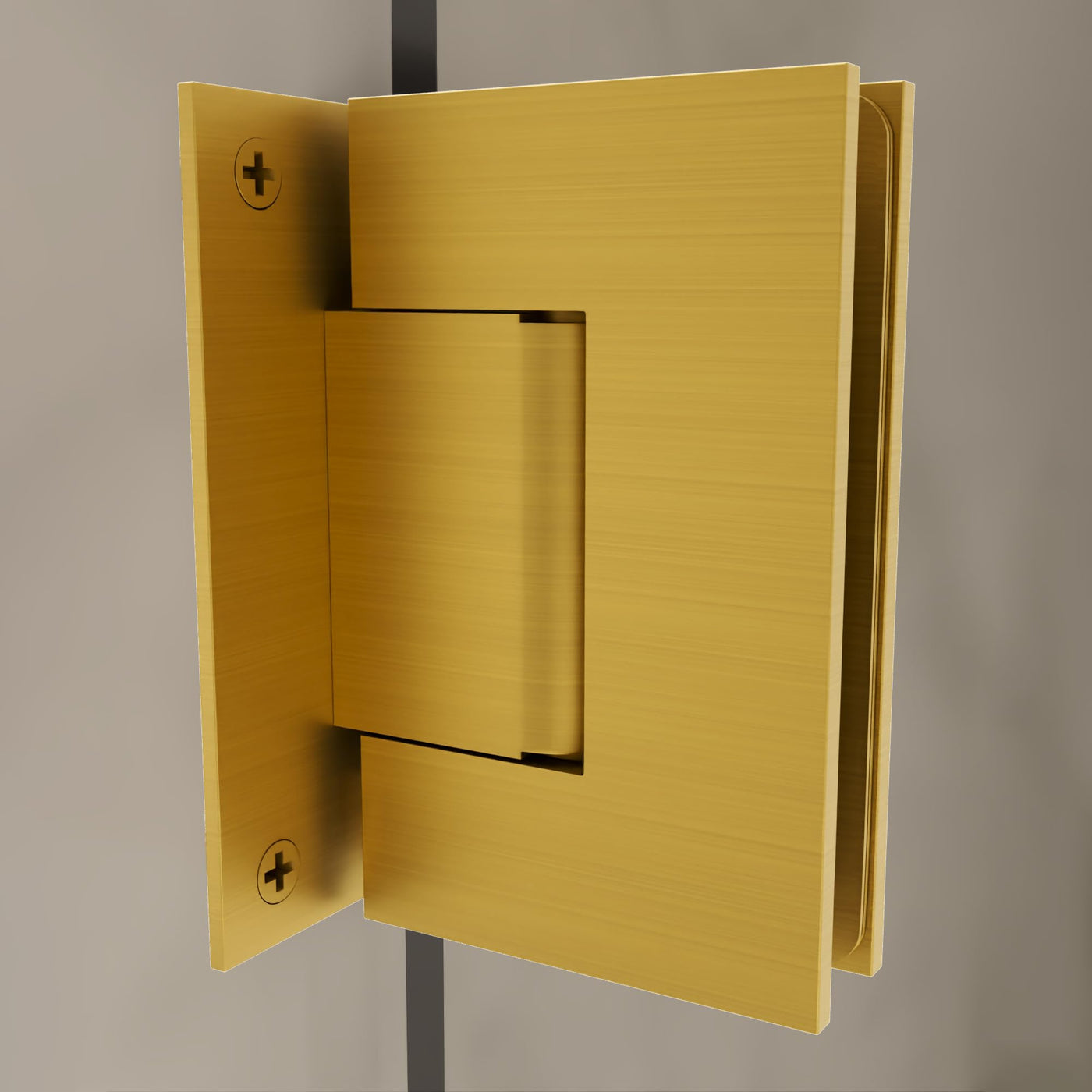

The Brixwell wall mount full back plate hinge with 5 Degrees Preset is designed for frameless shower door installations requiring controlled swing movement and defined mounting geometry. This hinge is manufactured from brass and finished in Satin Brass. The hinge features a fixed wall mount full back plate design. This pre-set model comes with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). Hinge is 4" Height, 2-5/16" width, and 4" backplate height, 2-1/8" backplate width and Vertical CTC distance is 3-3/16", Horizontal CTC distance is 1-9/16". The hinge supports a full 90 degree inward and 90 degree outward swing, allowing practical access for shower door operation. A self-centering mechanism engages when the door reaches within 15 degrees of the closed position, guiding the glass panel back to its resting point. This closing action supports alignment consistency during daily use. The hinge is intended for use with monolithic tempered glass panels ranging from 3/8" to 1/2" thickness. When installed using two hinges, the system supports door weights up to 110 lbs. When three hinges are used, supported door weight increases to 140 lbs, based on approved glass thickness. Maximum door width capacity is 36" for 3/8" glass and 36" for 1/2" glass. Supplied gaskets and screws support proper glass spacing during installation. Thick gaskets are used for 3/8" glass, while thin gaskets are used for 1/2" glass. This hinge is suitable for corner, niche, bathtub, and tailor-made shower enclosure configurations. One side of the Pin is marked at 90 degrees. The opposite side of the Pin is marked 85 degrees.
Product Features
- MATERIAL: Manufactured from brass, this wall mount full back plate hinge is designed for use with monolithic tempered glass panels. The brass construction supports specified door weight limits when installed in approved hinge quantities.
- FINISH: Finished in Satin Brass, the surface treatment provides a consistent appearance suitable for coordinating with matching shower hardware. Finish color is uniform across hinge body and back plate components.

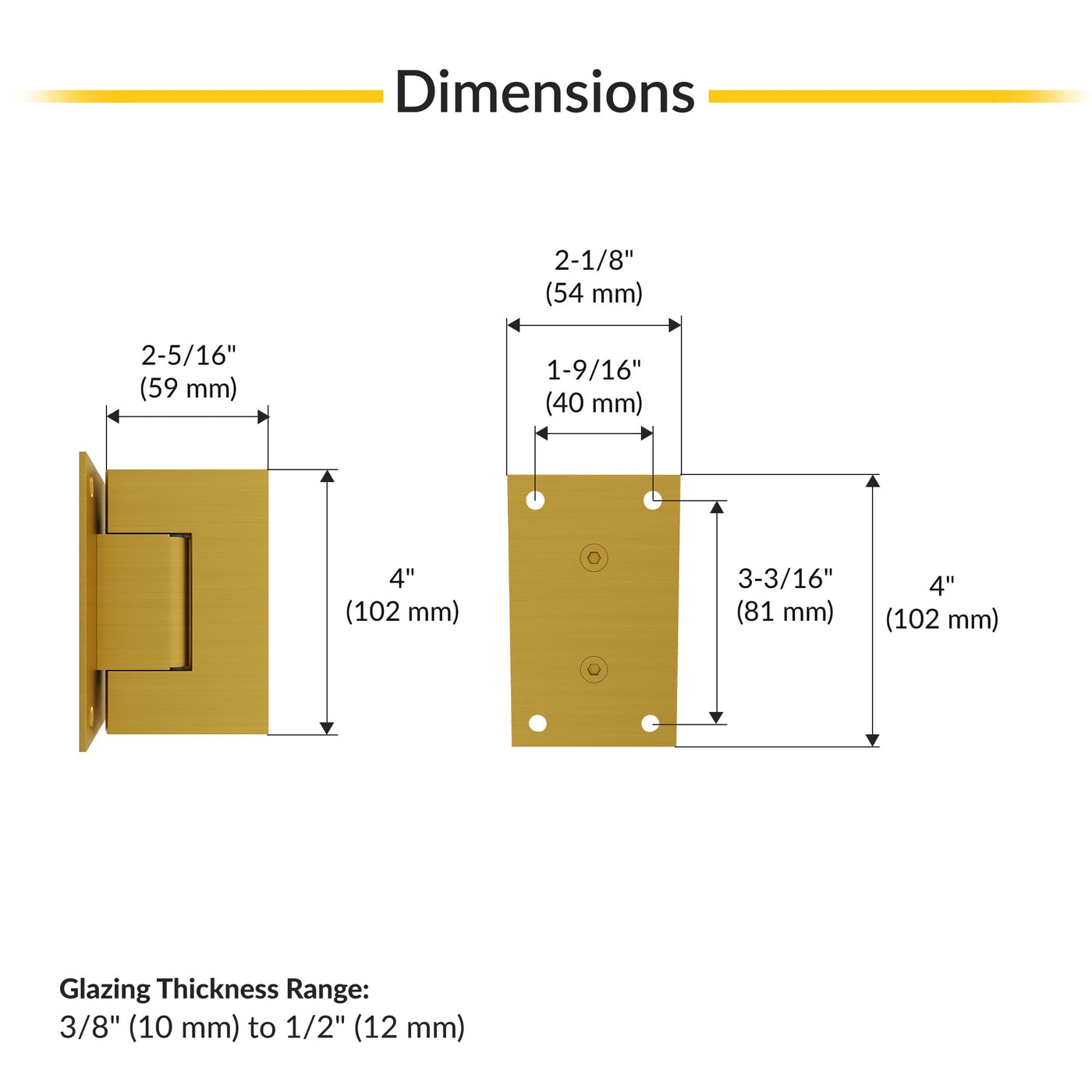

- DIMENSIONS: Overall hinge height measures 4" with a hinge width of 2-5/16", backplate height measures 4", backplate width measures 2-1/8" and Vertical CTC distance is 3-3/16", Horizontal CTC distance is 1-9/16".
- FUNCTION: This hinge provides a 90 degree inward and 90 degree outward swing. A self-centering closing action engages when the door is within 15 degrees of the closed position for controlled door alignment.
- COMPATIBILITY: This hinge is designed for use with monolithic tempered glass panels in 3/8" to 1/2" thickness. Suitable for corner, niche, bathtub, and tailor-made shower enclosure configurations as specified.
- USAGE: When using two hinges, the system supports door weights up to 110 lbs. When using three hinges, supported door weight increases up to 140 lbs, based on approved glass thickness and configuration.
- INSTALLATION: Wall mount full back plate configuration with a non-adjustable design. This models are supplied with the 85 degree side activated and are intended for fixed-position mounting without field adjustment.
