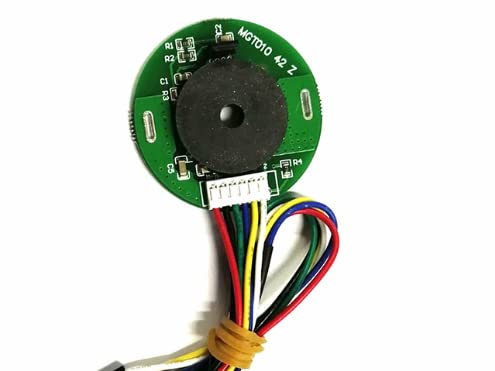

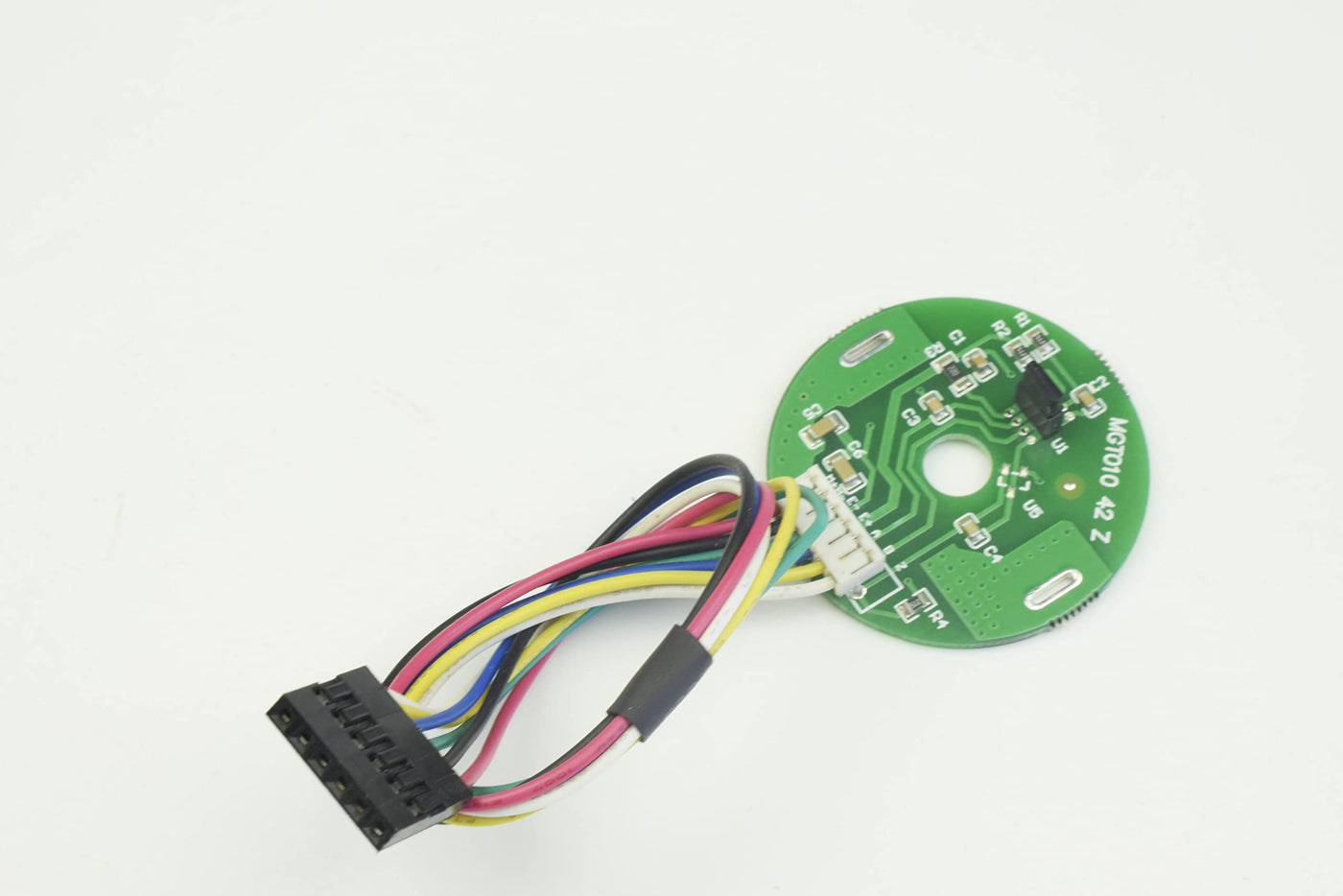

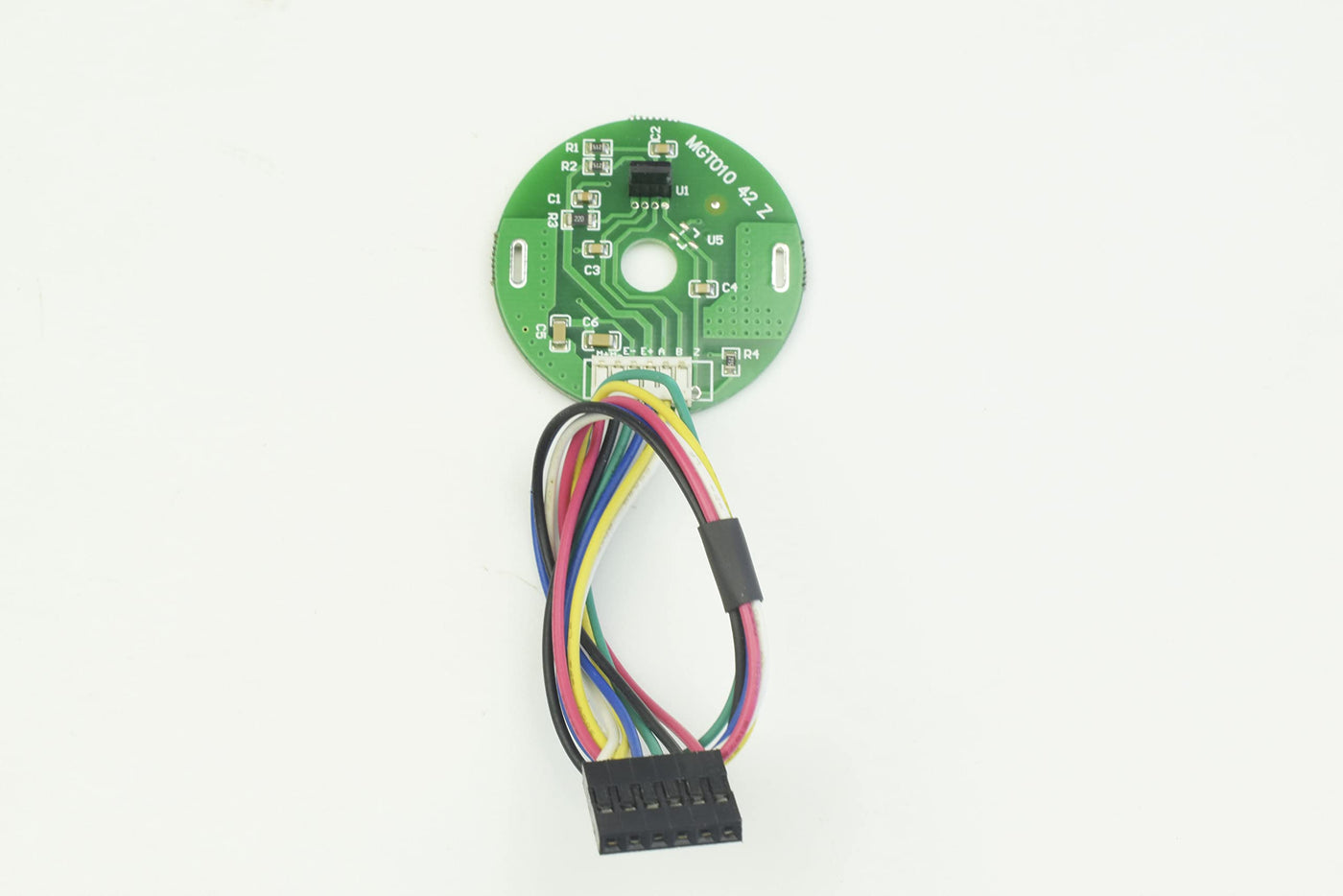

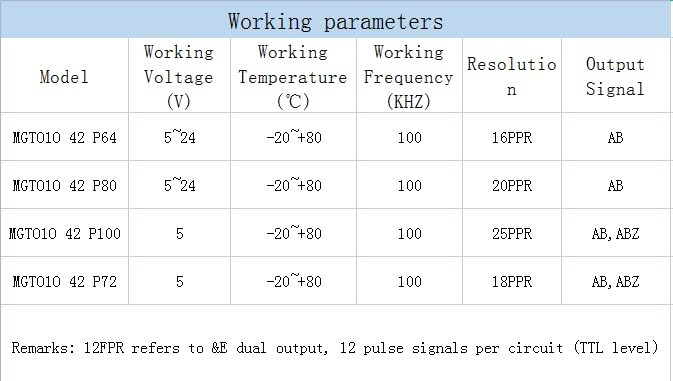

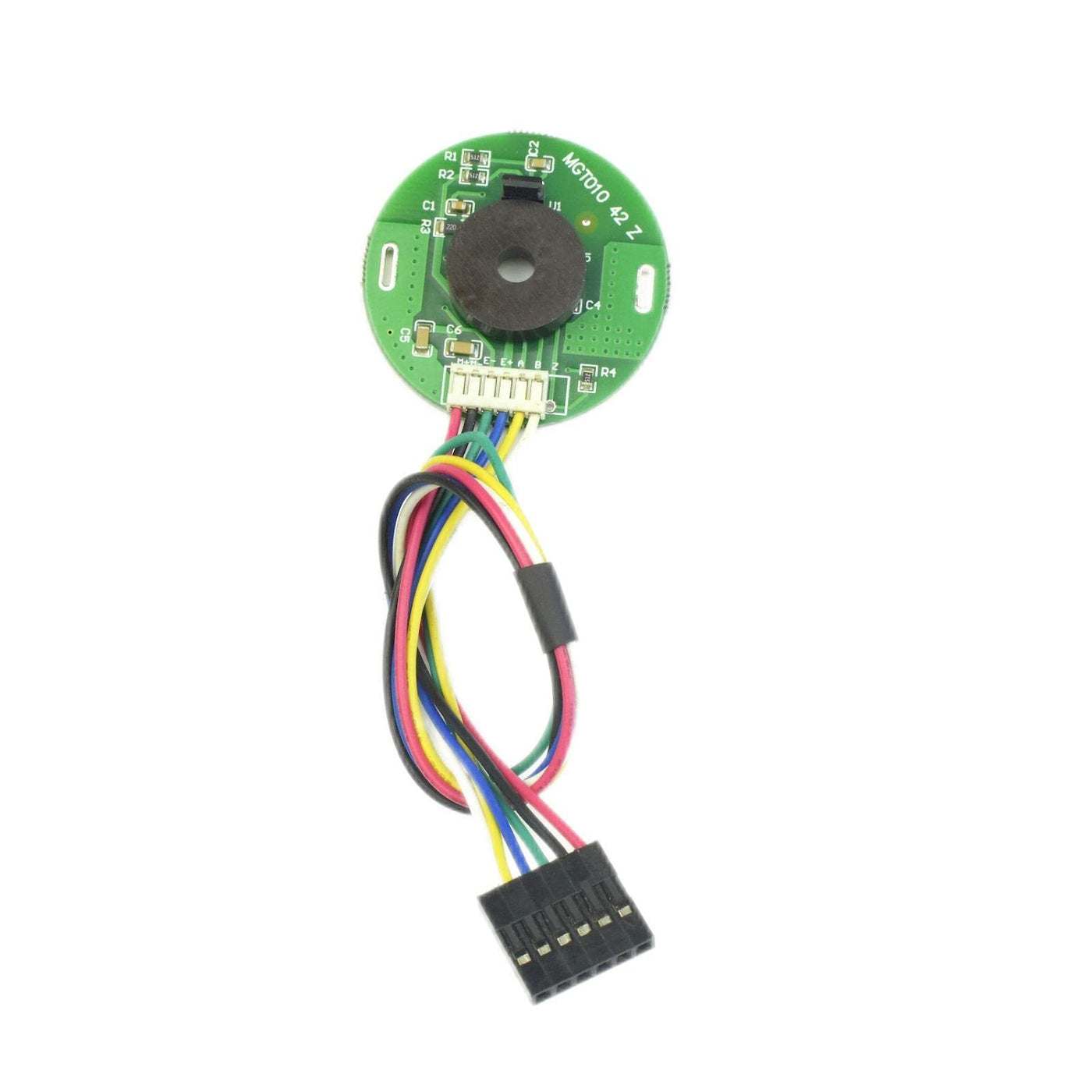

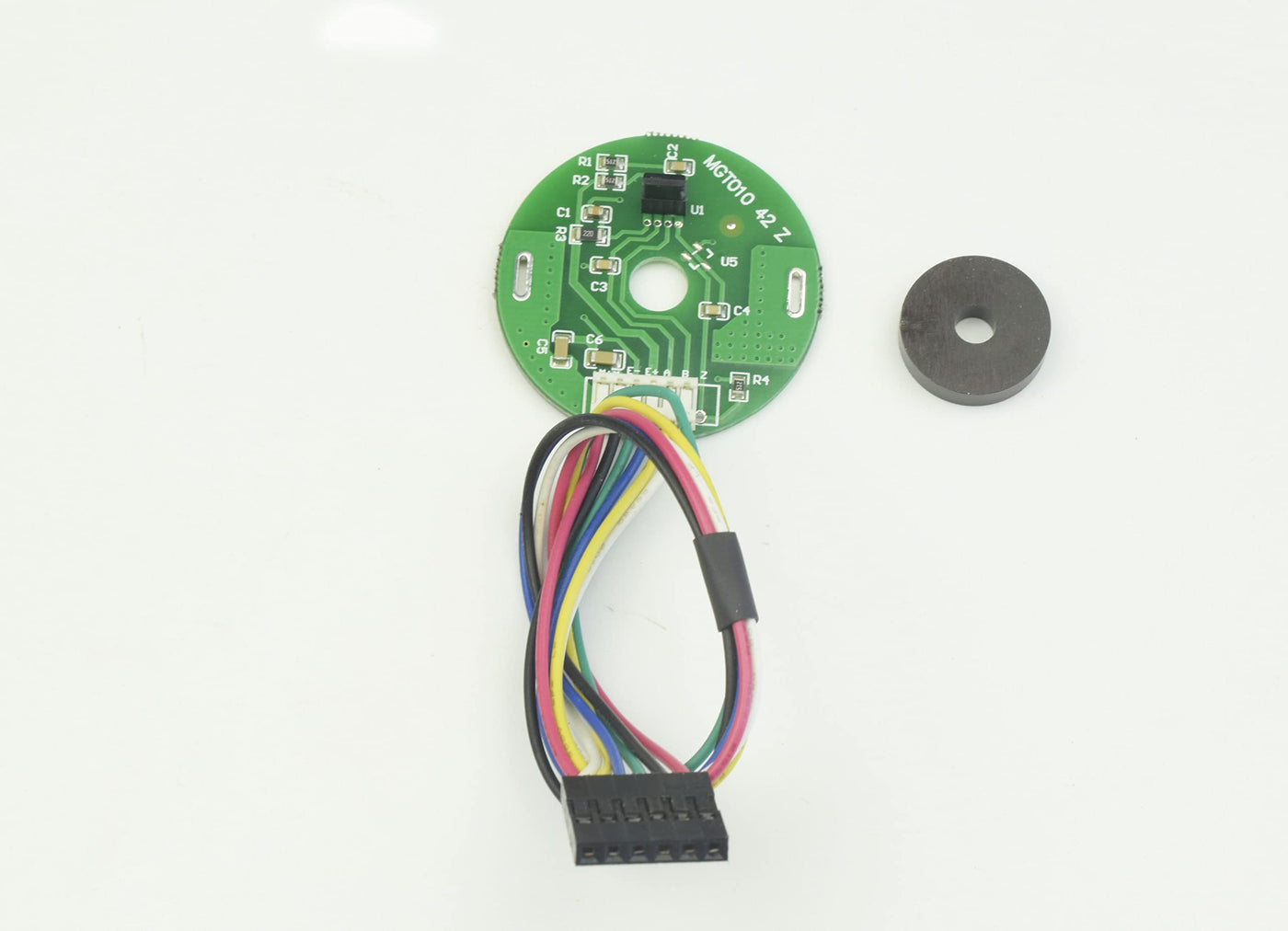

{"id":8771833626775,"title":"CHANCS Permanent Magnet DC 775 Motor Resolution 16PPR AB Phase Hall Magnetic High Precision Encoder Brush Motor Encoder","handle":"chancs-permanent-magnet-dc-775-motor-resolution-16ppr-ab-phase-hall-magnetic-high-precision-encoder-brush-motor-encoder","description":"\u003ch3\u003eCHANCS Permanent Magnet DC 775 Motor Resolution 16PPR AB Phase Hall Magnetic High Precision Encoder Brush Motor Encoder\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e【Description：】 775 Motor AB Phase Hall Magnetic Encoder is a high performance,\nlow cost, two channel incremental Type magnetic encoders, suitable for any\nharsh environment, each magnetic encoder contains a magnetic grid And a\nmagneto-sensitive detection circuit that outputs two channels with a\nquadrature phase angle of 90° square wave. 【Size:】 Shaft diameter: 5mm;\nResolution: 16PPR; Working frequency:100KHZ; According to the motor diameter\nsize and spindle size production, The PCE plate and the motor are equipped\nwith sensors, the tail electrode is welded and fixed, and the magnetic grid is\nset on the tail shaft. 【Motor installation requirements:】 Dual-axis DC motor,\ntail shaft length \u0026gt; 8mm, motor end piece length \u0026gt; 1mm. 【Package:】 1×Encoder\n【Note:】 1. Each set of magnetic encoder contains a magnetic grid and magnetic\nsensitive detection circuit. DC motor and control circuit are not included. 2.\nPay attention to the wiring of the encoder, if the wrong connection will cause\nthe chip to burn. 3. The actual product shall prevail.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e775 Motor AB Phase Hall Magnetic Encoder is a high performance, low cost, two channel incremental Type magnetic encoders, suitable for any harsh environment, each magnetic encoder contains a magnetic grid And a magneto-sensitive detection circuit that outputs two channels with a quadrature phase angle of 90 square wave.\u003c\/li\u003e\n \u003cli\u003eSize: Shaft diameter: 5mm; Resolution: 16PPR; Working frequency:100KHZ; According to the motor diameter size and spindle size production, The PCE plate and the motor are equipped with sensors, the tail electrode is welded and fixed, and the magnetic grid is set on the tail shaft.\u003c\/li\u003e\n \u003cli\u003eMotor installation requirements:Dual-axis DC motor, tail shaft length \u0026gt; 8mm, motor end piece length \u0026gt; 1mm.\u003c\/li\u003e\n \u003cli\u003ePackage:1Encoder\u003c\/li\u003e\n \u003cli\u003eNote: 1. Each set of magnetic encoder contains a magnetic grid and magnetic sensitive detection circuit, DC motor and control circuit are not included. 2. Pay attention to the wiring of the encoder, if the wrong connection will cause the chip to burn. 3. The actual product shall prevail.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-04T17:21:21+11:00","created_at":"2025-02-03T02:32:33+11:00","vendor":"CHANCS","type":"Switch Encoders","tags":["industrial_best_sellers_Jan2025"],"price":11600,"price_min":11600,"price_max":11600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45102239350935,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B14TSHR8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CHANCS Permanent Magnet DC 775 Motor Resolution 16PPR AB Phase Hall Magnetic High Precision Encoder Brush Motor Encoder","public_title":null,"options":["Default Title"],"price":11600,"weight":34,"compare_at_price":null,"inventory_management":"shopify","barcode":"181051600","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0B14TSHR8.jpg?v=1775761300","\/\/newnestshop.com\/cdn\/shop\/files\/61JstLjDtzL.jpg?v=1738510356","\/\/newnestshop.com\/cdn\/shop\/files\/31o7ahXukzL.jpg?v=1738510356","\/\/newnestshop.com\/cdn\/shop\/files\/61pwMQuDYxL.jpg?v=1738510356","\/\/newnestshop.com\/cdn\/shop\/files\/61PXwNqA7ZL.jpg?v=1738510356","\/\/newnestshop.com\/cdn\/shop\/files\/51bDtj8VloL.jpg?v=1738510356","\/\/newnestshop.com\/cdn\/shop\/files\/71TjUUigDKL.jpg?v=1738510356"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0B14TSHR8.jpg?v=1775761300","options":["Title"],"media":[{"alt":null,"id":36876480020631,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0B14TSHR8.jpg?v=1775761300"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0B14TSHR8.jpg?v=1775761300","width":1600},{"alt":null,"id":36876480053399,"position":2,"preview_image":{"aspect_ratio":1.499,"height":1708,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61JstLjDtzL.jpg?v=1738510356"},"aspect_ratio":1.499,"height":1708,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61JstLjDtzL.jpg?v=1738510356","width":2560},{"alt":null,"id":36876480086167,"position":3,"preview_image":{"aspect_ratio":1.334,"height":371,"width":495,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/31o7ahXukzL.jpg?v=1738510356"},"aspect_ratio":1.334,"height":371,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/31o7ahXukzL.jpg?v=1738510356","width":495},{"alt":null,"id":36876480118935,"position":4,"preview_image":{"aspect_ratio":1.499,"height":1708,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61pwMQuDYxL.jpg?v=1738510356"},"aspect_ratio":1.499,"height":1708,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61pwMQuDYxL.jpg?v=1738510356","width":2560},{"alt":null,"id":36876480151703,"position":5,"preview_image":{"aspect_ratio":1.384,"height":1850,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61PXwNqA7ZL.jpg?v=1738510356"},"aspect_ratio":1.384,"height":1850,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61PXwNqA7ZL.jpg?v=1738510356","width":2560},{"alt":null,"id":36876480184471,"position":6,"preview_image":{"aspect_ratio":1.766,"height":381,"width":673,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51bDtj8VloL.jpg?v=1738510356"},"aspect_ratio":1.766,"height":381,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51bDtj8VloL.jpg?v=1738510356","width":673},{"alt":null,"id":36876480217239,"position":7,"preview_image":{"aspect_ratio":1.188,"height":1277,"width":1517,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71TjUUigDKL.jpg?v=1738510356"},"aspect_ratio":1.188,"height":1277,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71TjUUigDKL.jpg?v=1738510356","width":1517}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCHANCS Permanent Magnet DC 775 Motor Resolution 16PPR AB Phase Hall Magnetic High Precision Encoder Brush Motor Encoder\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e【Description：】 775 Motor AB Phase Hall Magnetic Encoder is a high performance,\nlow cost, two channel incremental Type magnetic encoders, suitable for any\nharsh environment, each magnetic encoder contains a magnetic grid And a\nmagneto-sensitive detection circuit that outputs two channels with a\nquadrature phase angle of 90° square wave. 【Size:】 Shaft diameter: 5mm;\nResolution: 16PPR; Working frequency:100KHZ; According to the motor diameter\nsize and spindle size production, The PCE plate and the motor are equipped\nwith sensors, the tail electrode is welded and fixed, and the magnetic grid is\nset on the tail shaft. 【Motor installation requirements:】 Dual-axis DC motor,\ntail shaft length \u0026gt; 8mm, motor end piece length \u0026gt; 1mm. 【Package:】 1×Encoder\n【Note:】 1. Each set of magnetic encoder contains a magnetic grid and magnetic\nsensitive detection circuit. DC motor and control circuit are not included. 2.\nPay attention to the wiring of the encoder, if the wrong connection will cause\nthe chip to burn. 3. The actual product shall prevail.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e775 Motor AB Phase Hall Magnetic Encoder is a high performance, low cost, two channel incremental Type magnetic encoders, suitable for any harsh environment, each magnetic encoder contains a magnetic grid And a magneto-sensitive detection circuit that outputs two channels with a quadrature phase angle of 90 square wave.\u003c\/li\u003e\n \u003cli\u003eSize: Shaft diameter: 5mm; Resolution: 16PPR; Working frequency:100KHZ; According to the motor diameter size and spindle size production, The PCE plate and the motor are equipped with sensors, the tail electrode is welded and fixed, and the magnetic grid is set on the tail shaft.\u003c\/li\u003e\n \u003cli\u003eMotor installation requirements:Dual-axis DC motor, tail shaft length \u0026gt; 8mm, motor end piece length \u0026gt; 1mm.\u003c\/li\u003e\n \u003cli\u003ePackage:1Encoder\u003c\/li\u003e\n \u003cli\u003eNote: 1. Each set of magnetic encoder contains a magnetic grid and magnetic sensitive detection circuit, DC motor and control circuit are not included. 2. Pay attention to the wiring of the encoder, if the wrong connection will cause the chip to burn. 3. The actual product shall prevail.\u003c\/li\u003e\n \u003c\/ul\u003e"}
