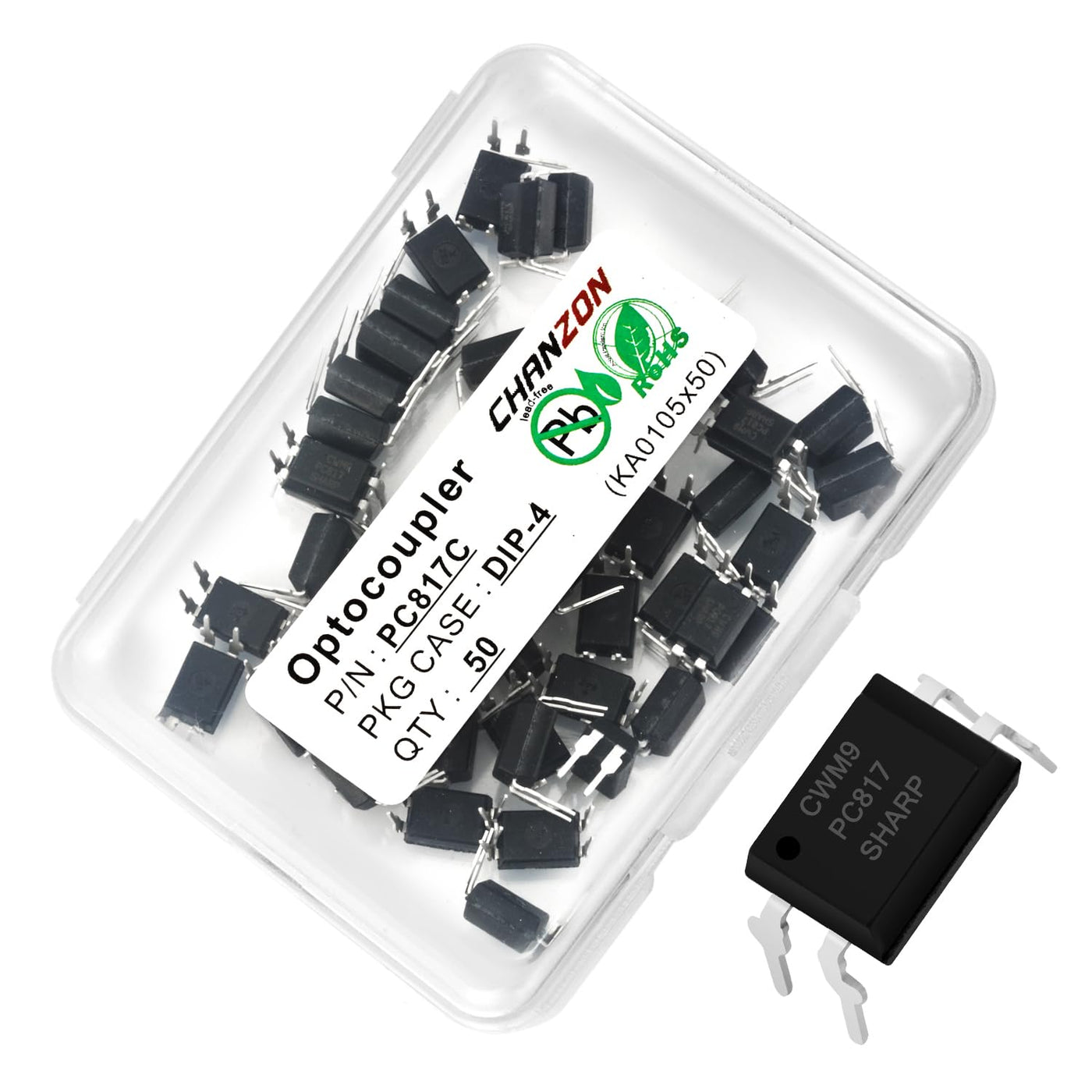

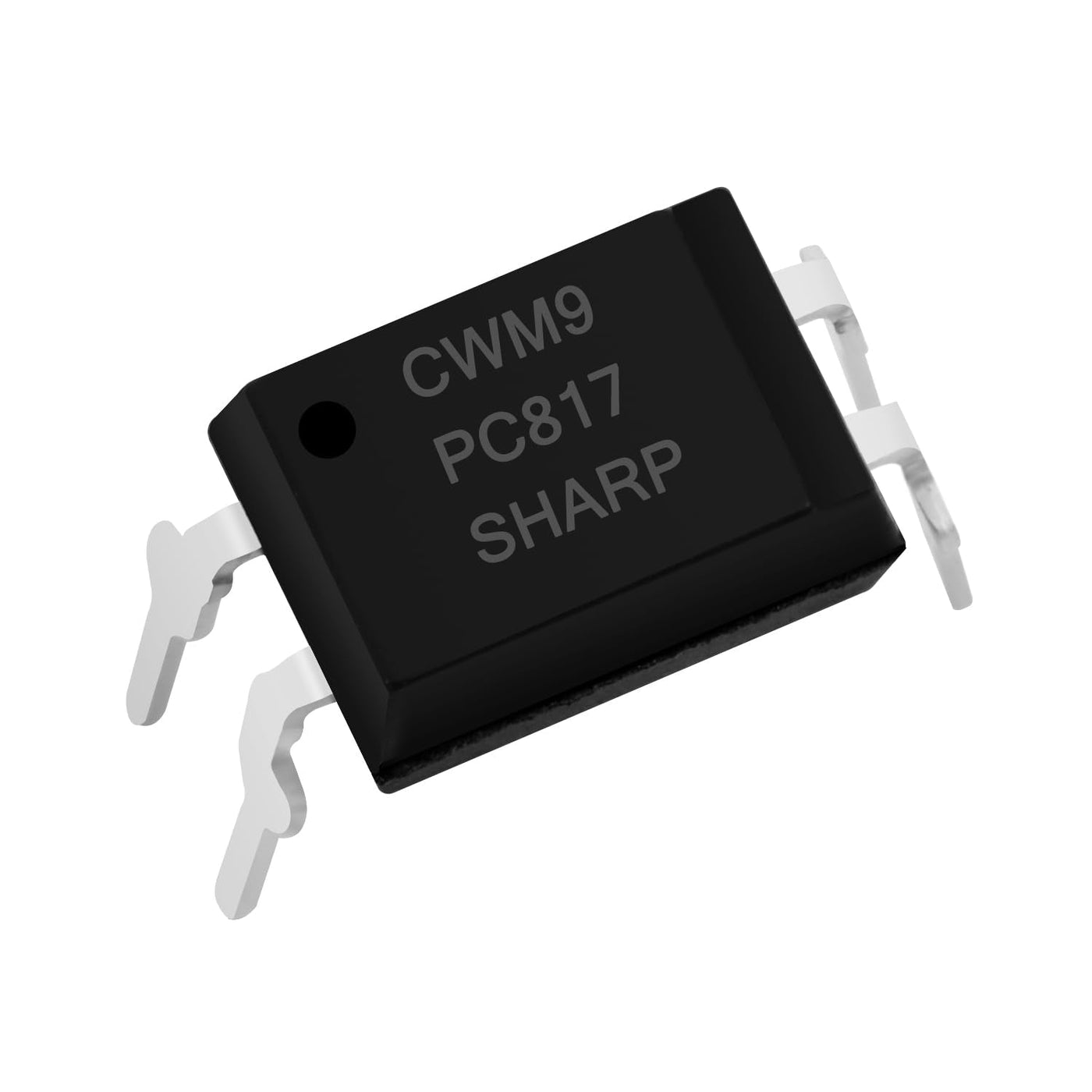

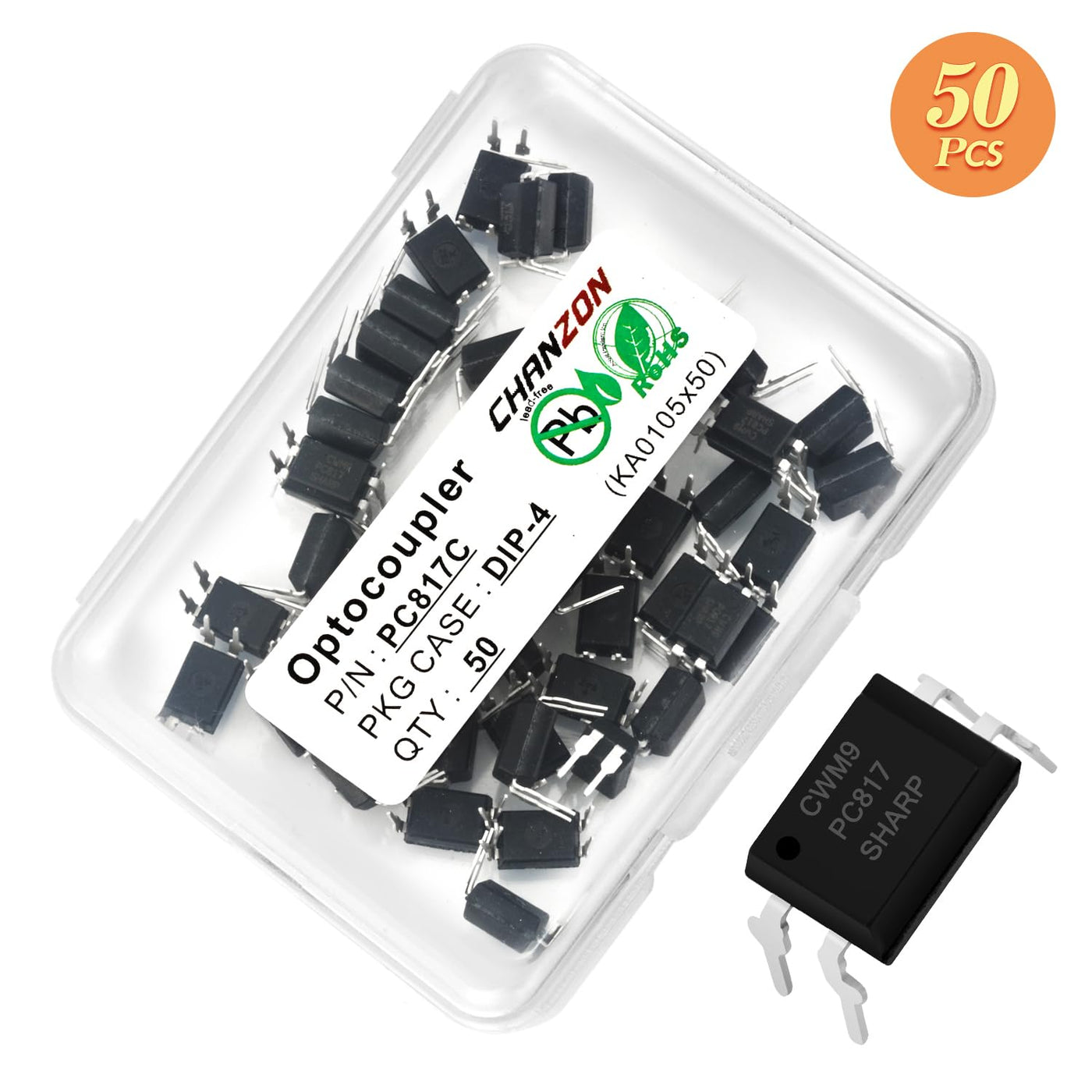

{"id":8831774359703,"title":"Chanzon 50pcs PC817 Optocoupler PC817C DIP Installation DIP-4 50%-600% Transfer Ratio 4pin Optocouple Compatible with EL817C\/LTV817C\/FL817C\/el817 Optical Isolator","handle":"chanzon-50pcs-pc817-optocoupler-pc817c-dip-installation-dip-4-50-600-transfer-ratio-4pin-optocouple-compatible-with-el817c-ltv817c-fl817c-el817-optical-isolator","description":"\u003ch3\u003eChanzon 50pcs PC817 Optocoupler PC817C DIP Installation DIP-4 50%-600% Transfer Ratio 4pin Optocouple Compatible with EL817C\/LTV817C\/FL817C\/el817 Optical Isolator\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePC817: Single-channel compact dual in-line package photocouplerCurrent\ntransmission rate: (CTR: minimum 50%, IF = 5mA, V CE = 5V);high isolation\nvoltage between input and output is 5000V effective value.Forward current\n(ICEO): 50mAForward peak current (ICE max) :1AReverse voltage :6VPower\nconsumption: 70mWCollector emitter voltage :35VEmitter collector voltage:\n6VCollector current: 50mACollector power consumption: 150mWTotal power\nconsumption: 200mWWorking temperature: -30℃~+100℃Collector emitter saturation\nvoltage: 0.1V (typical value)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSpec: 1-channel type, Transfer Ratio CTR Min.CTR 50% Max 600% (IF = 5mA, V = 5V),Isoration Voltage: 5000Vrms, Please see pic3-pic5 for detail parameters.\u003c\/li\u003e\n \u003cli\u003eNumber of Pins: 4 pin(dip-4), Through Hole\u003c\/li\u003e\n \u003cli\u003ePackage quantity: 50 pieces, packed in a durable and resealable plastic bag.\u003c\/li\u003e\n \u003cli\u003eCompatible with: EL817C\/LTV817C\/FL817C Optocouplers\u003c\/li\u003e\n \u003cli\u003eUsed for: Opto isolator breakout circuit board, breadboard,arduino DIY, coupler replacement.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-18T14:48:16+11:00","created_at":"2025-02-13T23:54:40+11:00","vendor":"CHANZON","type":"Optocouplers","tags":["industrial_best_sellers_Jan2025"],"price":8500,"price_min":8500,"price_max":8500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45178110541975,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0DJ8ZBHJ2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Chanzon 50pcs PC817 Optocoupler PC817C DIP Installation DIP-4 50%-600% Transfer Ratio 4pin Optocouple Compatible with EL817C\/LTV817C\/FL817C\/el817 Optical Isolator","public_title":null,"options":["Default Title"],"price":8500,"weight":18,"compare_at_price":null,"inventory_management":"shopify","barcode":"DGO-PC817C-DIP-4-50","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0DJ8ZBHJ2.jpg?v=1775776125","\/\/newnestshop.com\/cdn\/shop\/files\/61Lh5rFfQkL.jpg?v=1739451283","\/\/newnestshop.com\/cdn\/shop\/files\/81JwF3vppXL.jpg?v=1739451283","\/\/newnestshop.com\/cdn\/shop\/files\/81p7KkuVnvL.jpg?v=1739451283","\/\/newnestshop.com\/cdn\/shop\/files\/51sFttGvgiL.jpg?v=1739451283","\/\/newnestshop.com\/cdn\/shop\/files\/71vX5_OVqL.jpg?v=1739451283"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0DJ8ZBHJ2.jpg?v=1775776125","options":["Title"],"media":[{"alt":null,"id":37010740936855,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0DJ8ZBHJ2.jpg?v=1775776125"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0DJ8ZBHJ2.jpg?v=1775776125","width":1500},{"alt":null,"id":37010740969623,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Lh5rFfQkL.jpg?v=1739451283"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Lh5rFfQkL.jpg?v=1739451283","width":1500},{"alt":null,"id":37010741002391,"position":3,"preview_image":{"aspect_ratio":0.746,"height":2012,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/81JwF3vppXL.jpg?v=1739451283"},"aspect_ratio":0.746,"height":2012,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/81JwF3vppXL.jpg?v=1739451283","width":1500},{"alt":null,"id":37010741035159,"position":4,"preview_image":{"aspect_ratio":0.764,"height":1963,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/81p7KkuVnvL.jpg?v=1739451283"},"aspect_ratio":0.764,"height":1963,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/81p7KkuVnvL.jpg?v=1739451283","width":1500},{"alt":null,"id":37010741067927,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51sFttGvgiL.jpg?v=1739451283"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51sFttGvgiL.jpg?v=1739451283","width":1500},{"alt":null,"id":37010741100695,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71vX5_OVqL.jpg?v=1739451283"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71vX5_OVqL.jpg?v=1739451283","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eChanzon 50pcs PC817 Optocoupler PC817C DIP Installation DIP-4 50%-600% Transfer Ratio 4pin Optocouple Compatible with EL817C\/LTV817C\/FL817C\/el817 Optical Isolator\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePC817: Single-channel compact dual in-line package photocouplerCurrent\ntransmission rate: (CTR: minimum 50%, IF = 5mA, V CE = 5V);high isolation\nvoltage between input and output is 5000V effective value.Forward current\n(ICEO): 50mAForward peak current (ICE max) :1AReverse voltage :6VPower\nconsumption: 70mWCollector emitter voltage :35VEmitter collector voltage:\n6VCollector current: 50mACollector power consumption: 150mWTotal power\nconsumption: 200mWWorking temperature: -30℃~+100℃Collector emitter saturation\nvoltage: 0.1V (typical value)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSpec: 1-channel type, Transfer Ratio CTR Min.CTR 50% Max 600% (IF = 5mA, V = 5V),Isoration Voltage: 5000Vrms, Please see pic3-pic5 for detail parameters.\u003c\/li\u003e\n \u003cli\u003eNumber of Pins: 4 pin(dip-4), Through Hole\u003c\/li\u003e\n \u003cli\u003ePackage quantity: 50 pieces, packed in a durable and resealable plastic bag.\u003c\/li\u003e\n \u003cli\u003eCompatible with: EL817C\/LTV817C\/FL817C Optocouplers\u003c\/li\u003e\n \u003cli\u003eUsed for: Opto isolator breakout circuit board, breadboard,arduino DIY, coupler replacement.\u003c\/li\u003e\n \u003c\/ul\u003e"}
