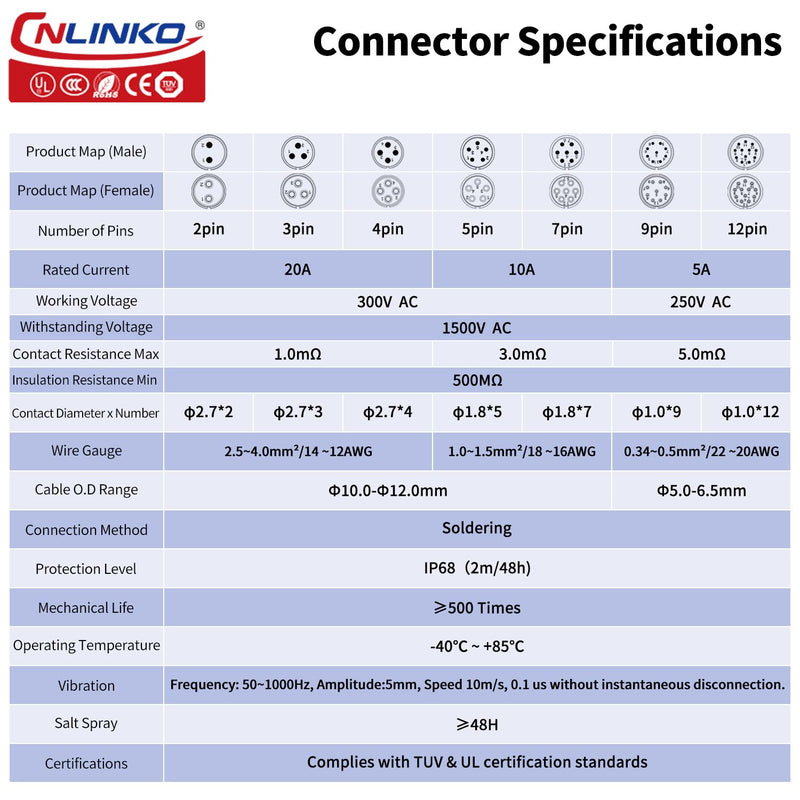

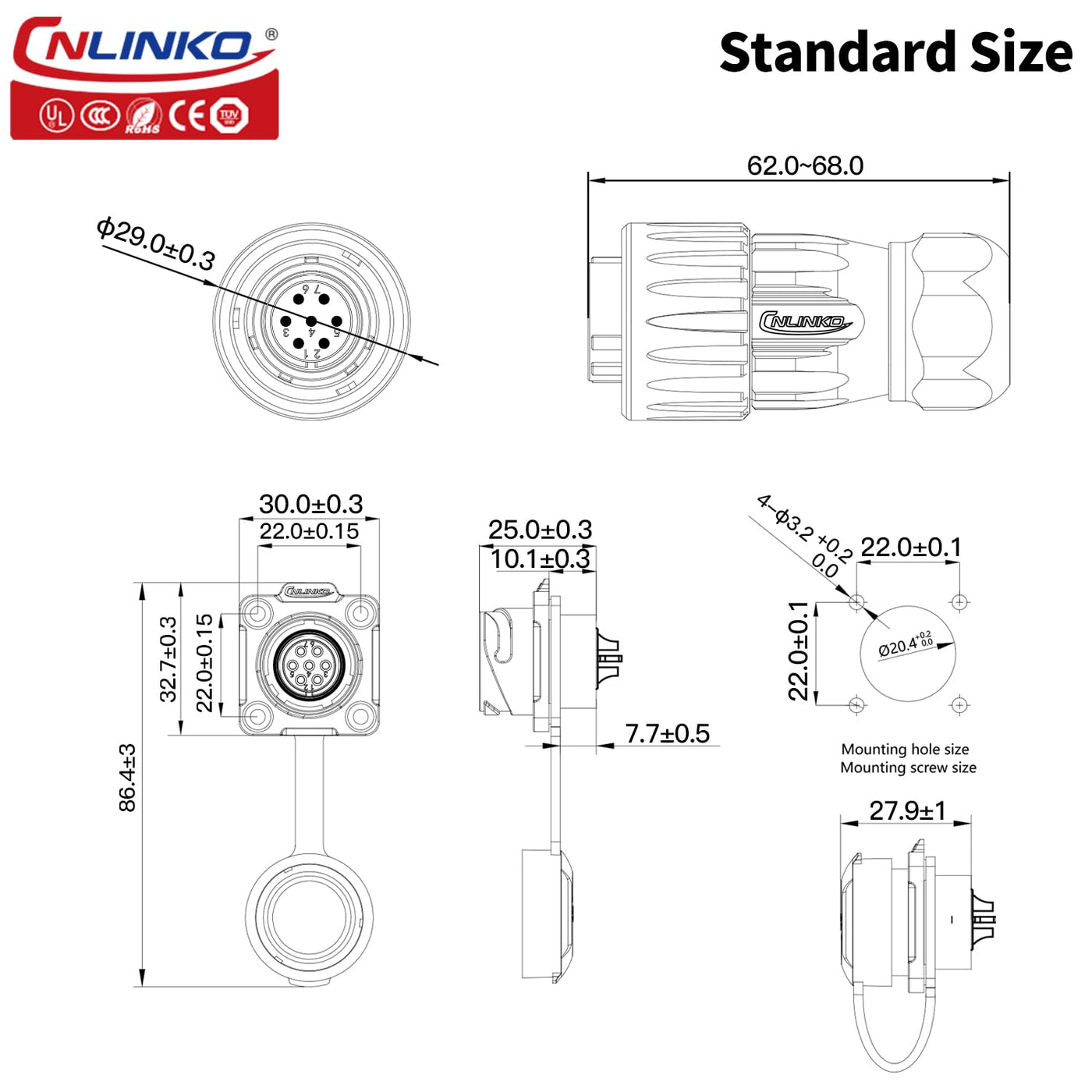

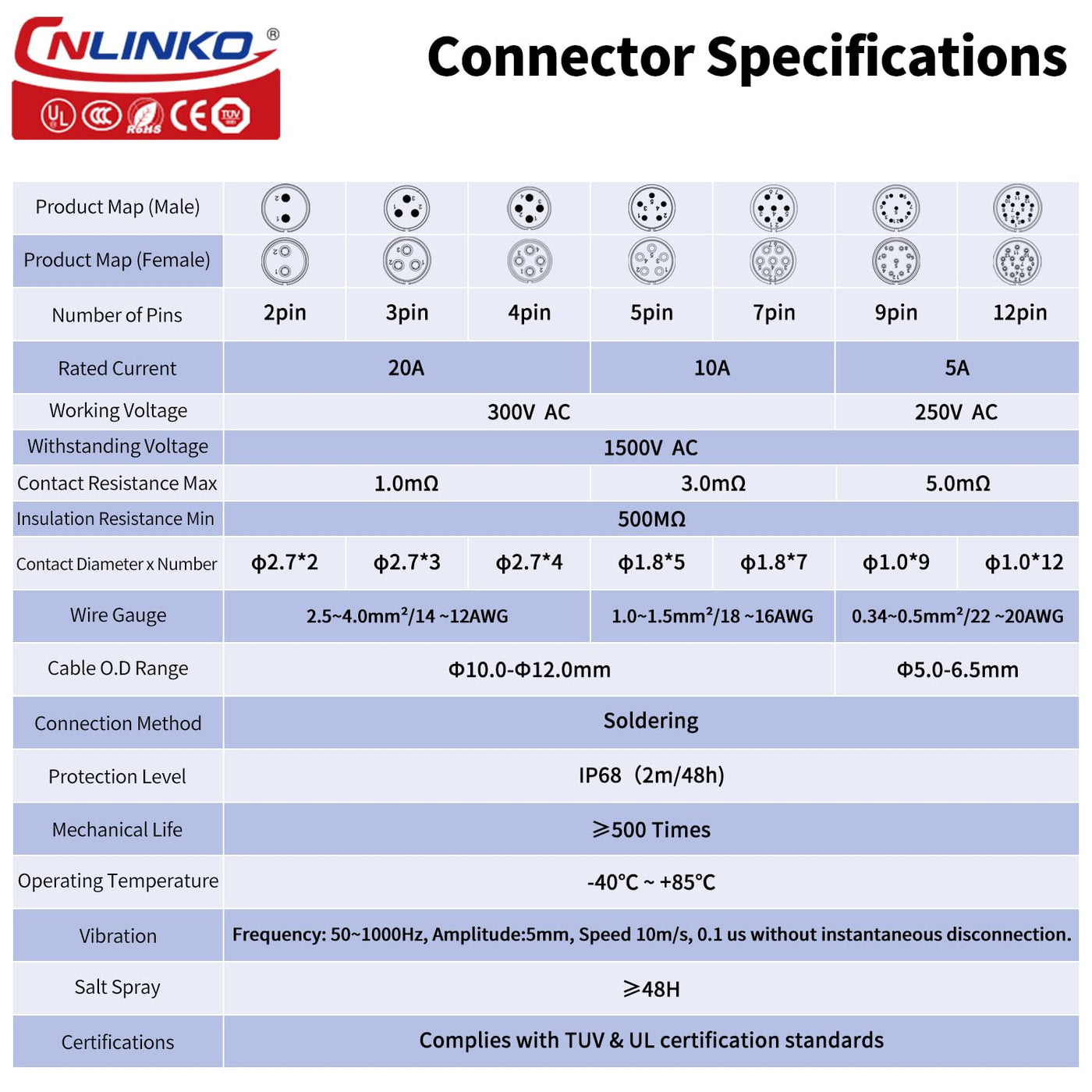

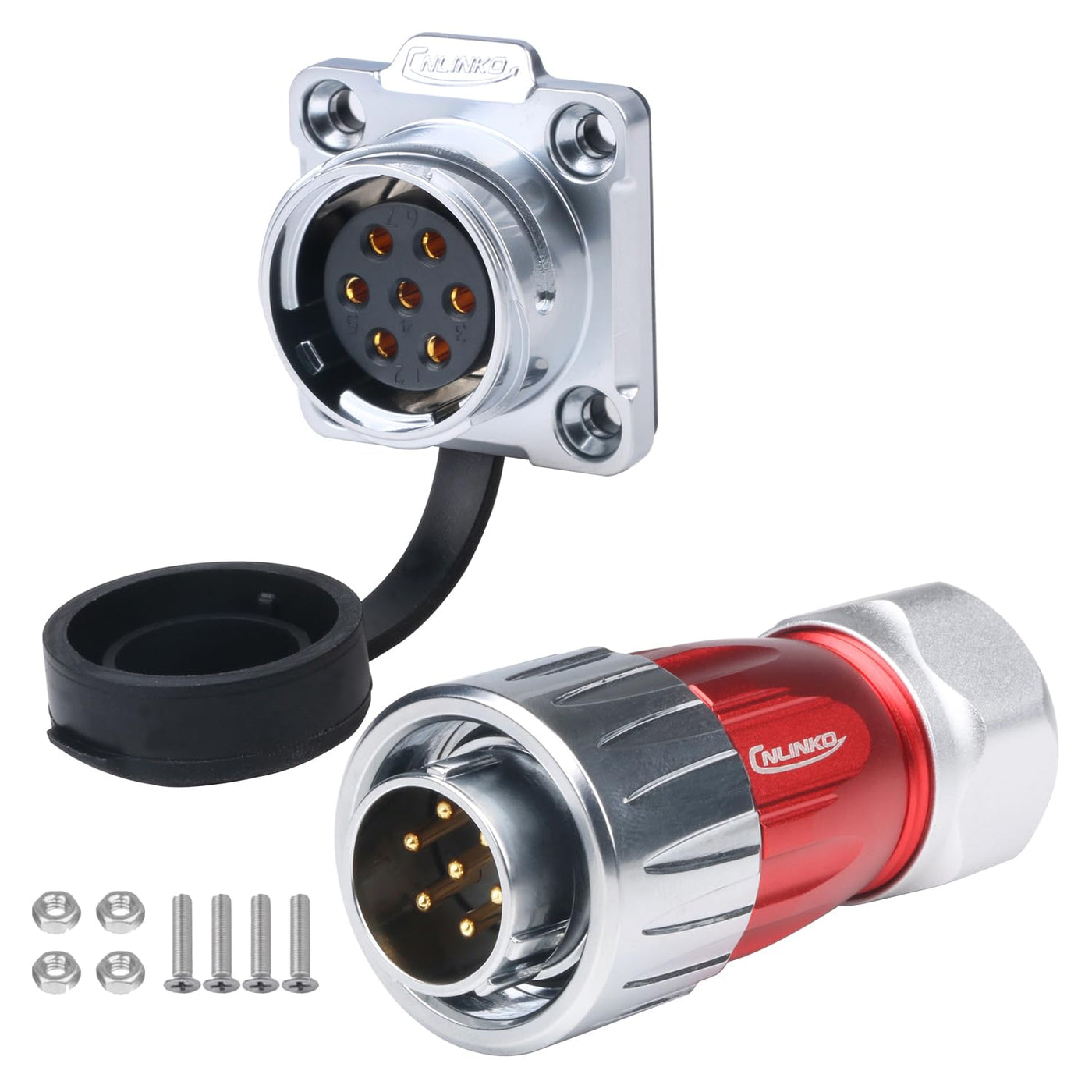

{"id":8766448468119,"title":"CNLINKO M20 Waterproof Connector，DH Series 20 2\/3\/4\/5\/7\/9\/12 Pin Bayonet Connecting Type Metal Shell Soldering Male Plug Female Socket IP68 Connectors (7-Pin) 7 Pin 300V 10A","handle":"cnlinko-m20-waterproof-connector-dh-series-20-2-3-4-5-7-9-12-pin-bayonet-connecting-type-metal-shell-soldering-male-plug-female-socket-ip68-connectors-7-pin-7-pin-300v-10a","description":"\u003ch3\u003eCNLINKO M20 Waterproof Connector，DH Series 20 2\/3\/4\/5\/7\/9\/12 Pin Bayonet Connecting Type Metal Shell Soldering Male Plug Female Socket IP68 Connectors (7-Pin)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eM20 7 Pin Connector: This DH20 7 Pin Set includes Male Plug and Female Socket. The intuitive plug\/unplug mechanism with swivel clip locking design of this connector set ensures a hassle-free experience while maintaining a secure connection.Protection Level: IP68(Mated); Assembly Style:Soldering.\u003c\/li\u003e\n \u003cli\u003e7 Pin Connector Specs: Capable of supporting 1.0-1.5mm2\/18-16AWG cable with a diameter of 10mm~12mm. It handles 10A current, 300V voltage, and withstands 1500V. Contact resistance is \u0026lt;3.0m, insulation resistance is \u0026gt;500M. The connector is designed for over 500 cycles at temperatures ranging from -40C to 85C. Contact Diameter Number: 1.8x7. Note: Avoid charging during insertion.\u003c\/li\u003e\n \u003cli\u003eRobust Protection:With an IP68 mated protection level, this set offers robust shielding against dust, moisture, and other environmental factors when the connectors are engaged. This means that even in harsh industrial settings or outdoor installations, your connections remain intact, reliable, and free from potential disruptions.\u003c\/li\u003e\n \u003cli\u003ePremium Material: the aviation connector's all-metal housing design provides good abrasion resistance and corrosion resistance. Copper Alloy and Gold Plating in the contact points ensure excellent conductivity. An additional layer of protection is provided by Silica Gel sealing.\u003c\/li\u003e\n \u003cli\u003eVersatile Industrial Applications: The DH20 connector excels at high-current and signal handling, making it ideal for power-hungry applications like machinery, industrial networks, and instruments. Applicable to industrial equipment, outdoor sensors, communication devices, and more.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-04T17:42:19+11:00","created_at":"2025-01-29T22:40:33+11:00","vendor":"CNLINKO","type":"Cylindrical Connectors","tags":["industrial_best_sellers_Jan2025"],"price":13000,"price_min":13000,"price_max":13000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45091998171287,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CYSCSWHC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CNLINKO M20 Waterproof Connector，DH Series 20 2\/3\/4\/5\/7\/9\/12 Pin Bayonet Connecting Type Metal Shell Soldering Male Plug Female Socket IP68 Connectors (7-Pin) 7 Pin 300V 10A","public_title":null,"options":["Default Title"],"price":13000,"weight":118,"compare_at_price":null,"inventory_management":"shopify","barcode":"DH-20-C\/J07PE\/SX-03-401-AMZUS","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0CYSCSWHC.jpg?v=1775758310","\/\/newnestshop.com\/cdn\/shop\/files\/61L-BrYUMaL.jpg?v=1738150836","\/\/newnestshop.com\/cdn\/shop\/files\/61wDQpTPETL.jpg?v=1738150836","\/\/newnestshop.com\/cdn\/shop\/files\/71qUKmQAnIL.jpg?v=1738150836","\/\/newnestshop.com\/cdn\/shop\/files\/71QdMyUM5CL.jpg?v=1738150836","\/\/newnestshop.com\/cdn\/shop\/files\/6198_NbzHHL.jpg?v=1738150836","\/\/newnestshop.com\/cdn\/shop\/files\/610CfOX0tkL.jpg?v=1738150836"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CYSCSWHC.jpg?v=1775758310","options":["Title"],"media":[{"alt":null,"id":36844929155223,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CYSCSWHC.jpg?v=1775758310"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CYSCSWHC.jpg?v=1775758310","width":1500},{"alt":null,"id":36844929187991,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61L-BrYUMaL.jpg?v=1738150836"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61L-BrYUMaL.jpg?v=1738150836","width":1500},{"alt":null,"id":36844929220759,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61wDQpTPETL.jpg?v=1738150836"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61wDQpTPETL.jpg?v=1738150836","width":1500},{"alt":null,"id":36844929286295,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71qUKmQAnIL.jpg?v=1738150836"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71qUKmQAnIL.jpg?v=1738150836","width":1500},{"alt":null,"id":36844929319063,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71QdMyUM5CL.jpg?v=1738150836"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71QdMyUM5CL.jpg?v=1738150836","width":1500},{"alt":null,"id":36844929384599,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/6198_NbzHHL.jpg?v=1738150836"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/6198_NbzHHL.jpg?v=1738150836","width":1500},{"alt":null,"id":36844929417367,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/610CfOX0tkL.jpg?v=1738150836"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/610CfOX0tkL.jpg?v=1738150836","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCNLINKO M20 Waterproof Connector，DH Series 20 2\/3\/4\/5\/7\/9\/12 Pin Bayonet Connecting Type Metal Shell Soldering Male Plug Female Socket IP68 Connectors (7-Pin)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eM20 7 Pin Connector: This DH20 7 Pin Set includes Male Plug and Female Socket. The intuitive plug\/unplug mechanism with swivel clip locking design of this connector set ensures a hassle-free experience while maintaining a secure connection.Protection Level: IP68(Mated); Assembly Style:Soldering.\u003c\/li\u003e\n \u003cli\u003e7 Pin Connector Specs: Capable of supporting 1.0-1.5mm2\/18-16AWG cable with a diameter of 10mm~12mm. It handles 10A current, 300V voltage, and withstands 1500V. Contact resistance is \u0026lt;3.0m, insulation resistance is \u0026gt;500M. The connector is designed for over 500 cycles at temperatures ranging from -40C to 85C. Contact Diameter Number: 1.8x7. Note: Avoid charging during insertion.\u003c\/li\u003e\n \u003cli\u003eRobust Protection:With an IP68 mated protection level, this set offers robust shielding against dust, moisture, and other environmental factors when the connectors are engaged. This means that even in harsh industrial settings or outdoor installations, your connections remain intact, reliable, and free from potential disruptions.\u003c\/li\u003e\n \u003cli\u003ePremium Material: the aviation connector's all-metal housing design provides good abrasion resistance and corrosion resistance. Copper Alloy and Gold Plating in the contact points ensure excellent conductivity. An additional layer of protection is provided by Silica Gel sealing.\u003c\/li\u003e\n \u003cli\u003eVersatile Industrial Applications: The DH20 connector excels at high-current and signal handling, making it ideal for power-hungry applications like machinery, industrial networks, and instruments. Applicable to industrial equipment, outdoor sensors, communication devices, and more.\u003c\/li\u003e\n \u003c\/ul\u003e"}
