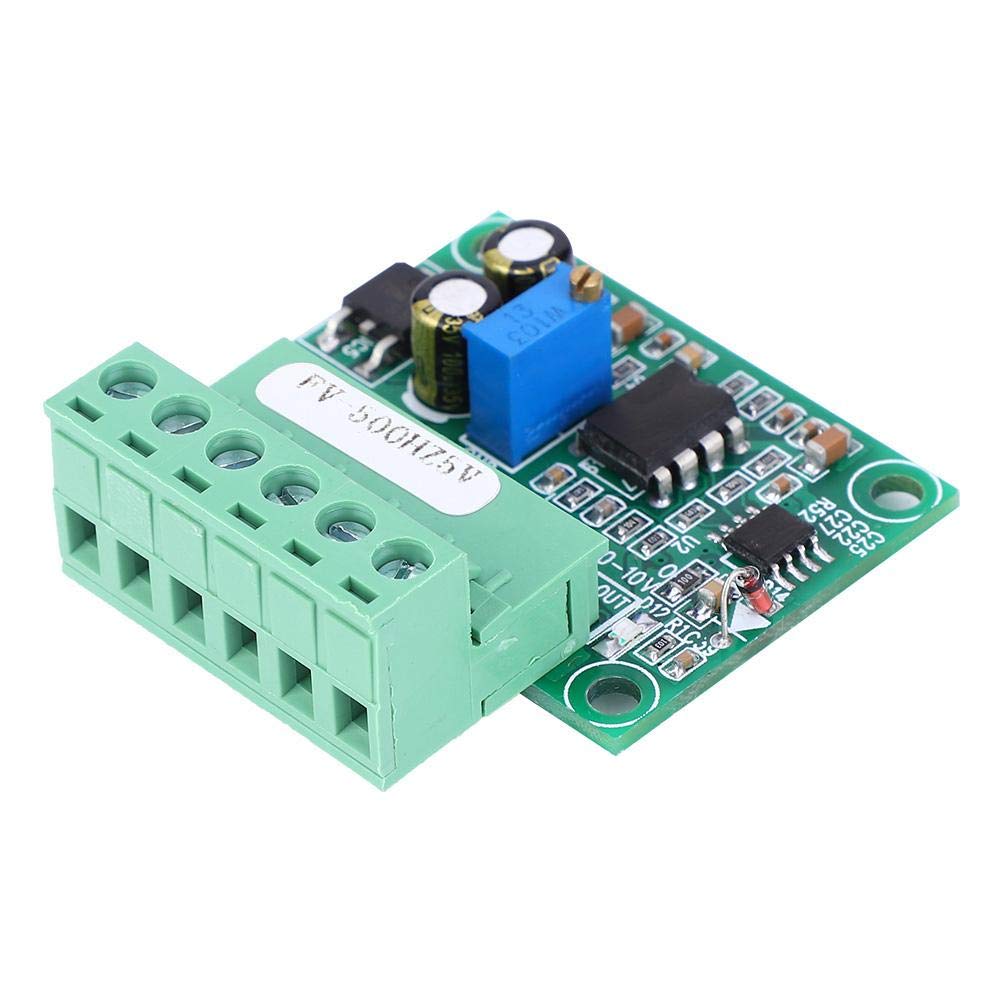

Converter Module, FV-500Hz5V 0-500Hz to 0-5V F V Conversion Module Frequency to Voltage Converter Module Digital to Analog Inverter Module
Converter Module, FV-500Hz5V 0-500Hz to 0-5V F V Conversion Module Frequency to Voltage Converter Module Digital to Analog Inverter Module

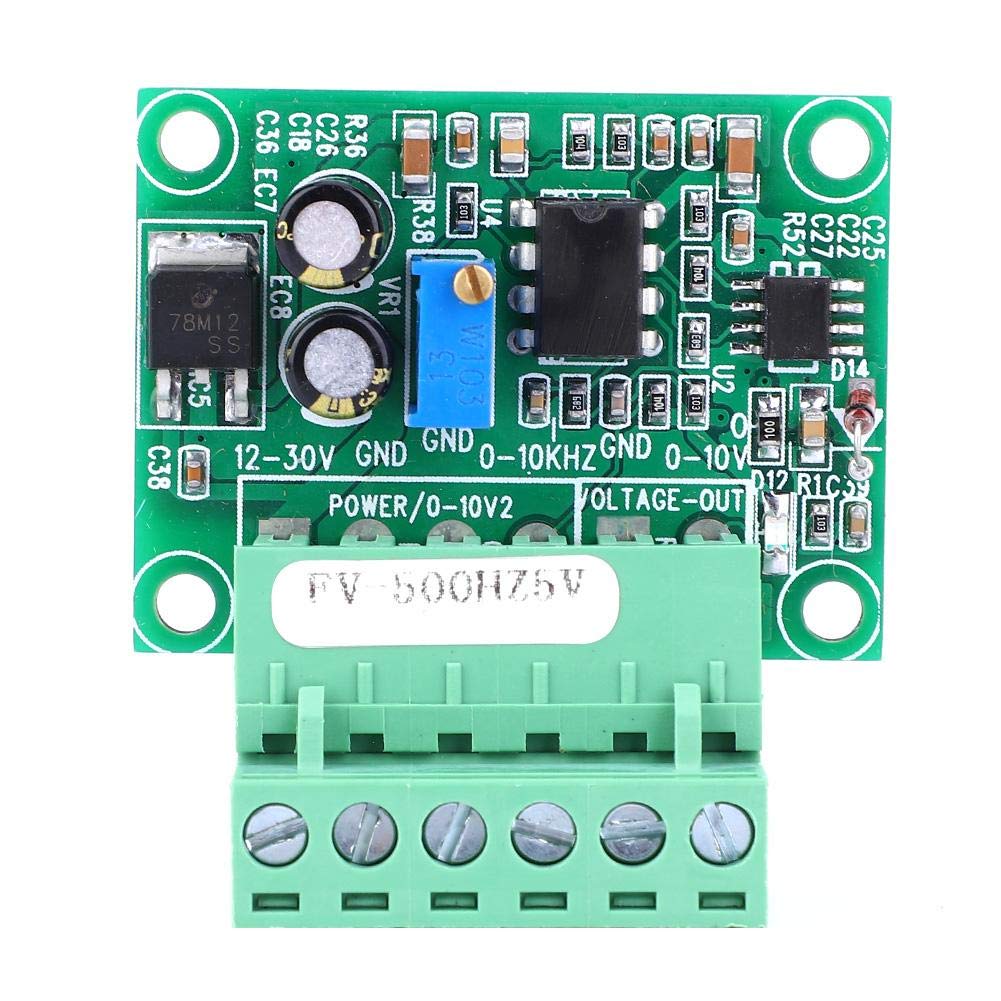

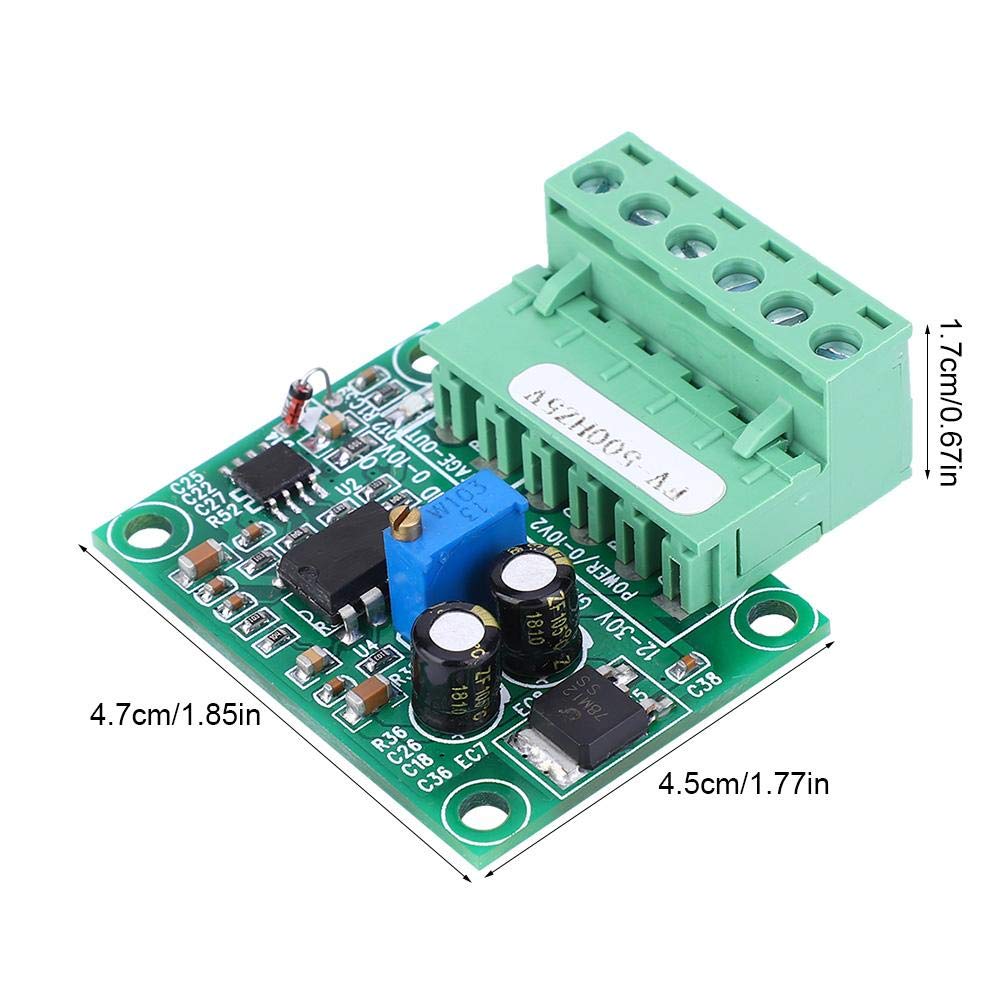

Specification: Condition: Brand New Item Type: Frequency To Voltage Conversion Module Model: FV-500Hz5V Function: Input 0-500Hz frequency is converted to 0-5V Output Current: 5MA Response Time: 0.3-0.5 seconds Size: Approx. 4.5 x 4.7 x 1.7cm / 1.8 x 1.9 x 0.7in Package List: 1 x Frequency To Voltage Conversion Module Identification and wiring: 1. 12-30V--Power input positive 2. GND--Power input negative (common ground wire) 3. GND--Pulse frequency input negative (common ground wire) 4. 0-10KHZ--Pulse frequency input positive 5. GND--Pulse frequency input negative (common ground wire) 6. 0-10V-- Analog 0-10V level output Correspondence & Linear Relationship: 50Hz is converted to 0.5V 250Hz is converted to 2.5V 500Hz is converted to 5V
Product Features
- FV-500Hz5V - Convert the 0-500Hz frequency pulse into an analog voltage of 0-5V.

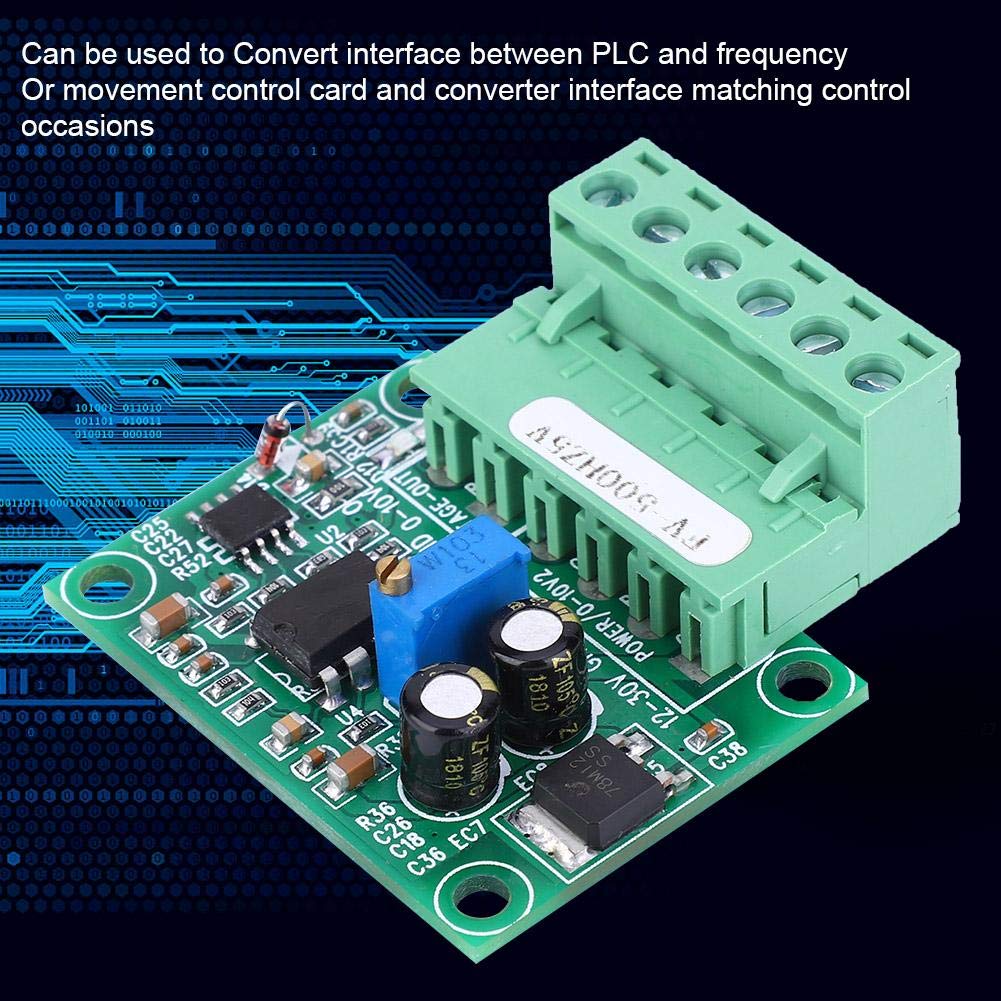

- Apply to- The conversion module can be used to Convert interface between PLC and frequency, Or movement control card and converter interface matching control .
- Note - Input pulse level is 5V 12V 24V can be directly input, no string resistor. However, the input frequency should be maintained for more than 0.5 seconds.
- Main Parameters - The output current is 5MA. Frequency and voltage conversion module, response time is about 0.3-0.5 seconds.
- Reliable Gurantee- Any quality issues, we promise unconditional return service, please feel to us!
