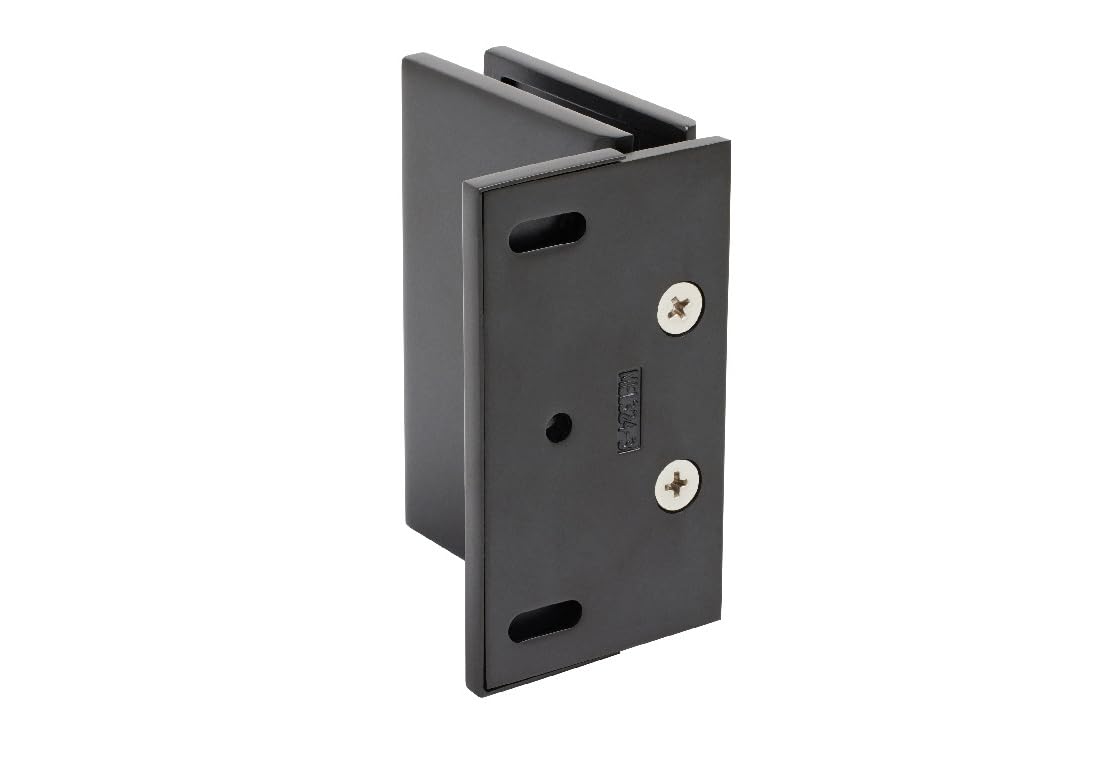

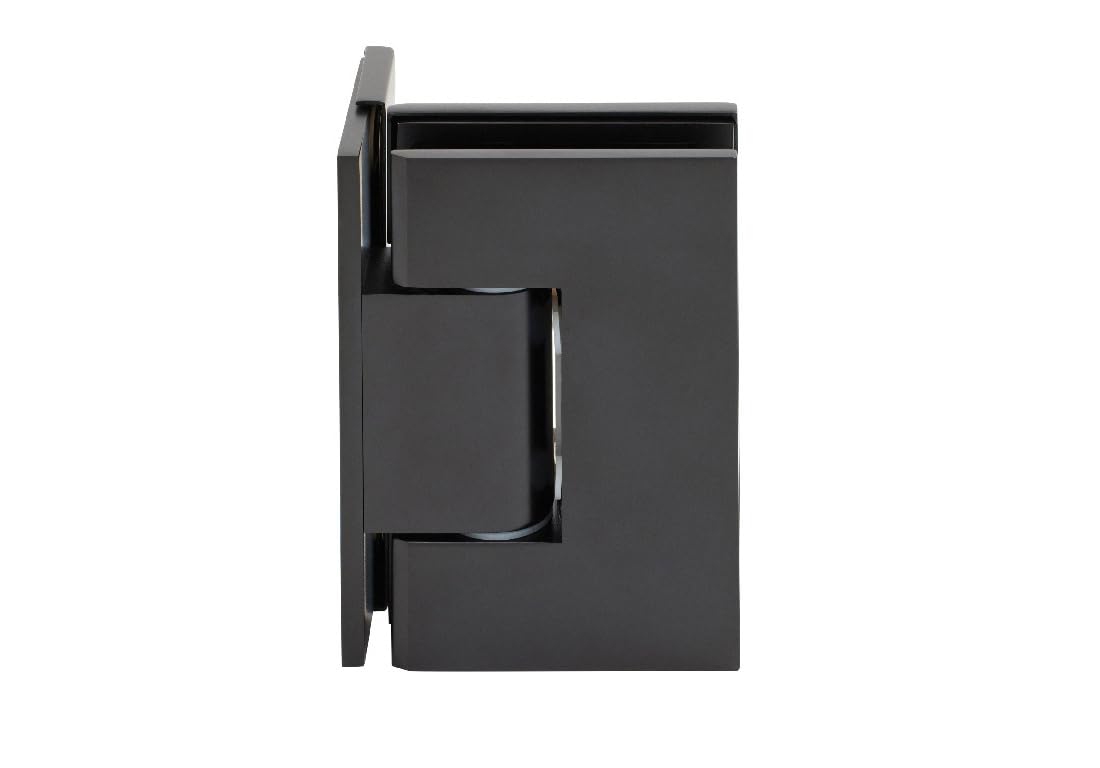

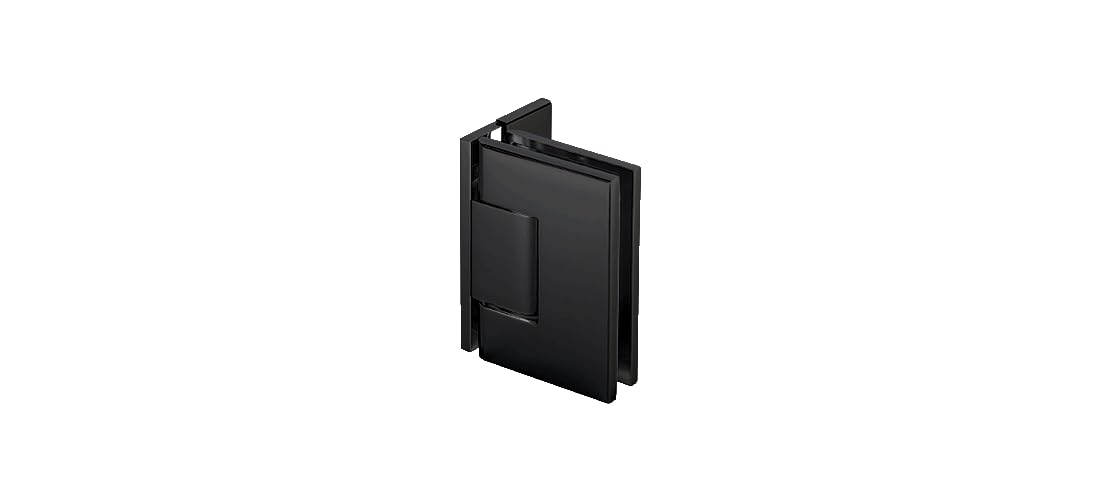

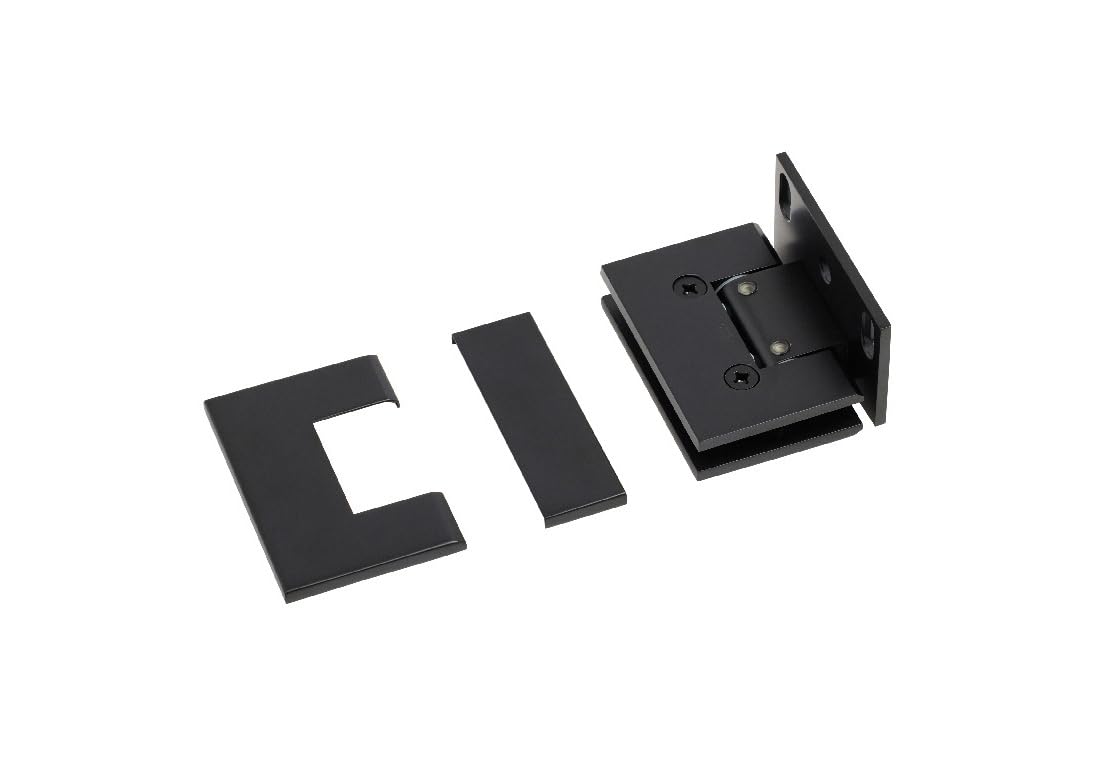

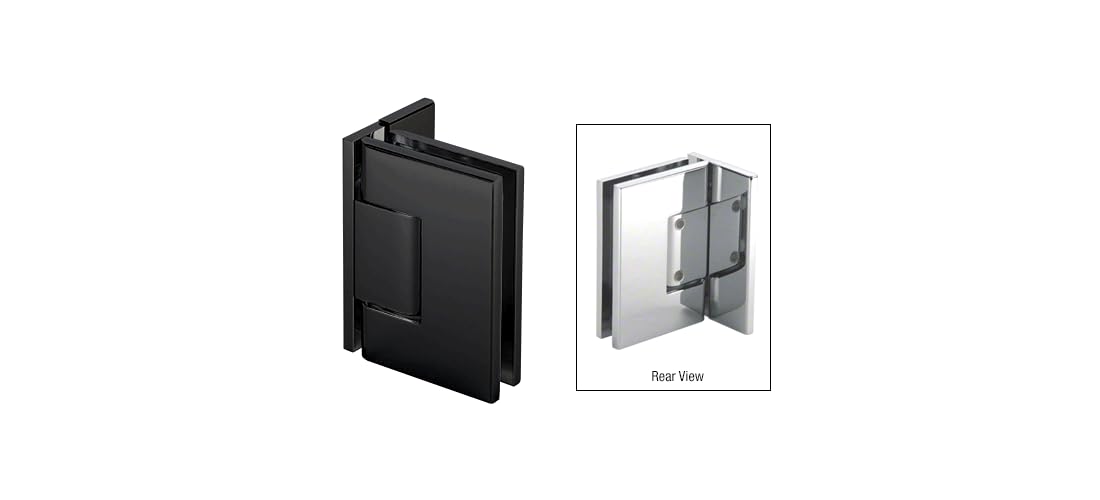

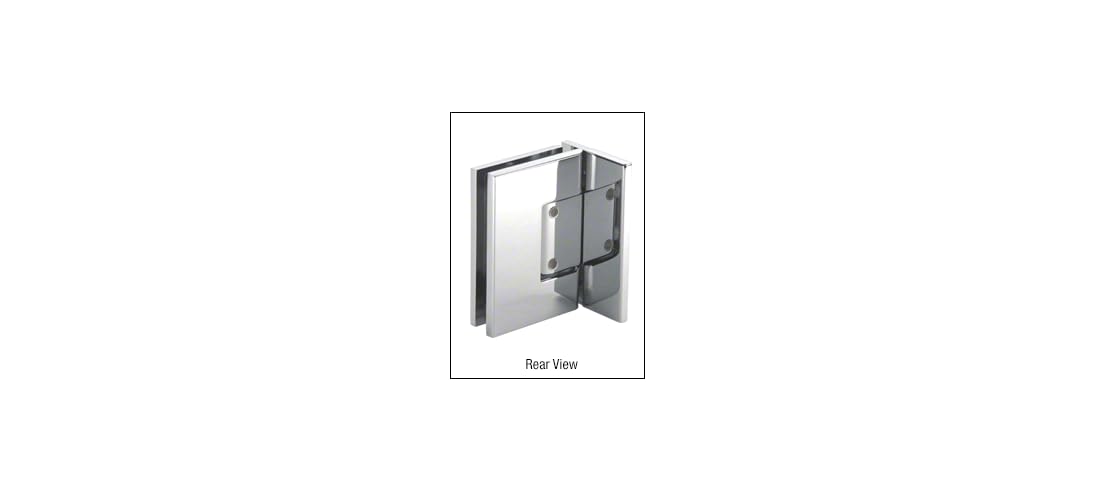

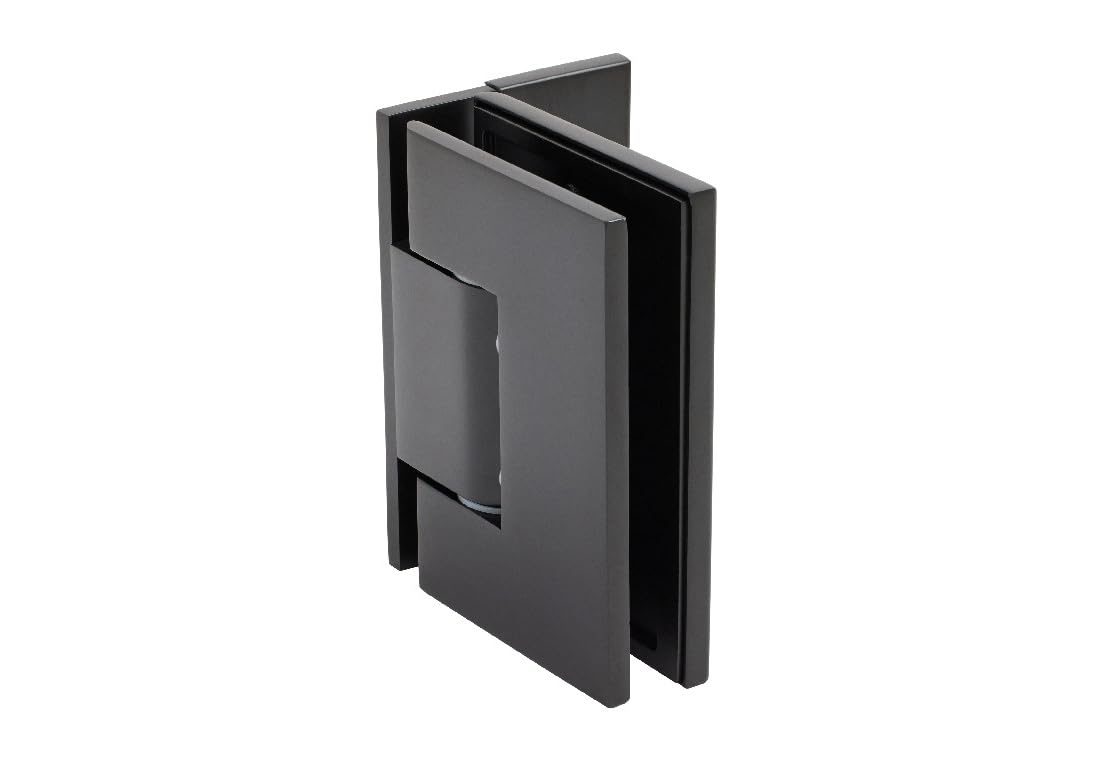

CRL MEL324MBL Matte Black Melbourne Adjustable Wall Mount Offset Back Plate with Cover Plate Hinge
CRL MEL324MBL Matte Black Melbourne Adjustable Wall Mount Offset Back Plate with Cover Plate Hinge

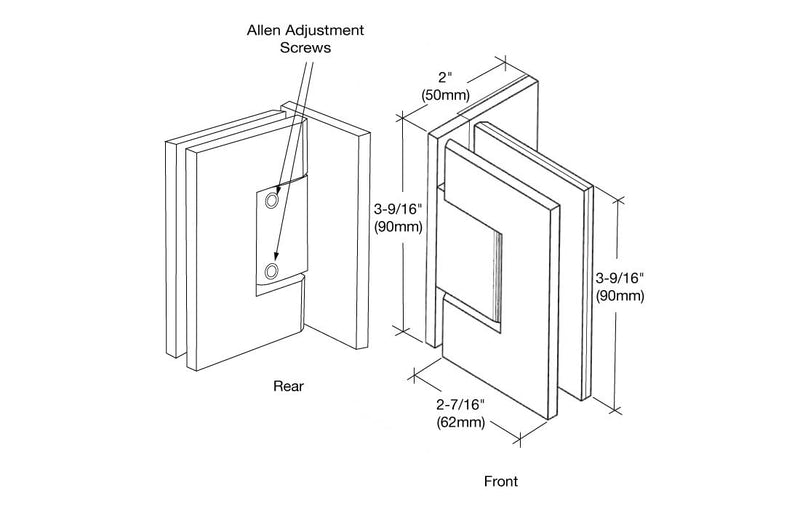

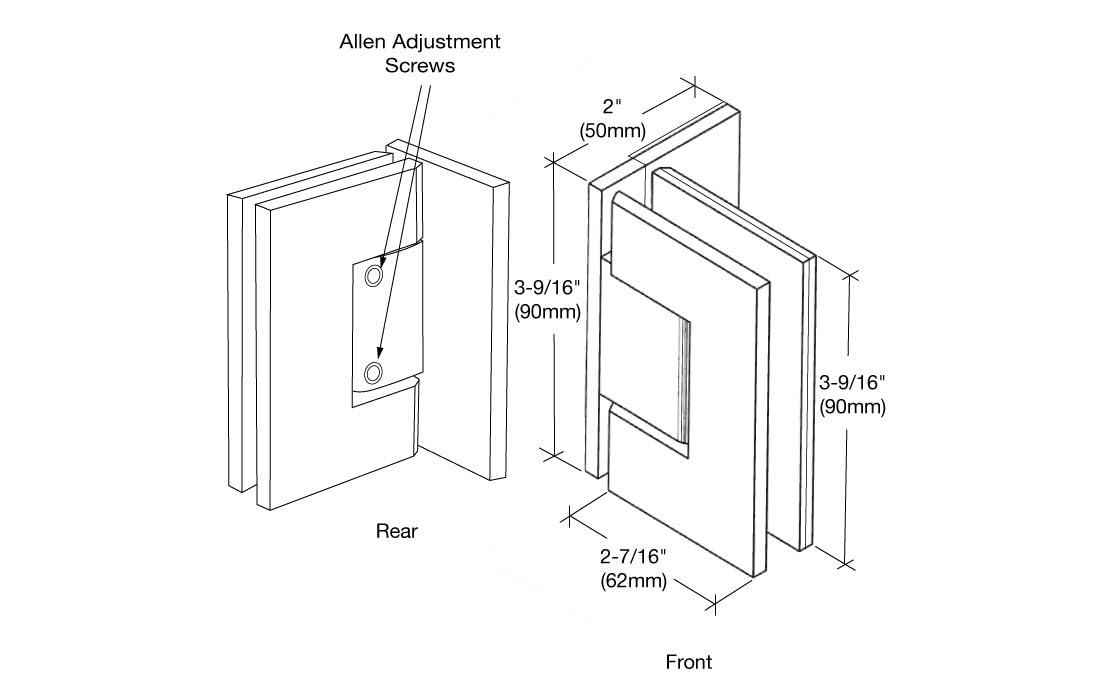

CRL Melbourne Series Adjustable Hinges allow adjustment to accommodate the desired angle (up to 60 degrees). This hinge features has large hinge plates that provide more clamping force. For ease of glass fabrication, a simple rectangular cut-out is required. Constructed of forged solid brass, the Melbourne Series is for use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) thick tempered glass. Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm). Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).SPECIFICATIONS: Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: 90 Degrees In and 90 Degrees Out (at Factory Set Position) Closing Type: Self-Centering When Within 15 Degrees of Closed Position. Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions For more information contact CRL Shower Door Technical Sales.Product Warning:CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL Hinges may not match those of other brands.
Product Features
- Adjustable Up to 60 Degrees
- Simple Rectangular Cut-Out for Ease of Glass Fabrication
- For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
