CRL Vienna 037 Series Satin Chrome Wall Mount Shower Door Hinge
CRL Vienna 037 Series Satin Chrome Wall Mount Shower Door Hinge
CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut- outs.STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).SPECIFICATIONS:Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety GlassConstruction: Solid BrassHinge Swings: 90 degree In and 90 degree OutClosing Type: Self-Centering when within 15 degree of closed position.Cut- Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed PanelIncludes: Gaskets, Screws, and Glass Fabrication DimensionsMaximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m) Custom finishes are available on request. Contact DK Hardware Sales Shower Door Department.Product Warning:CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Product Features

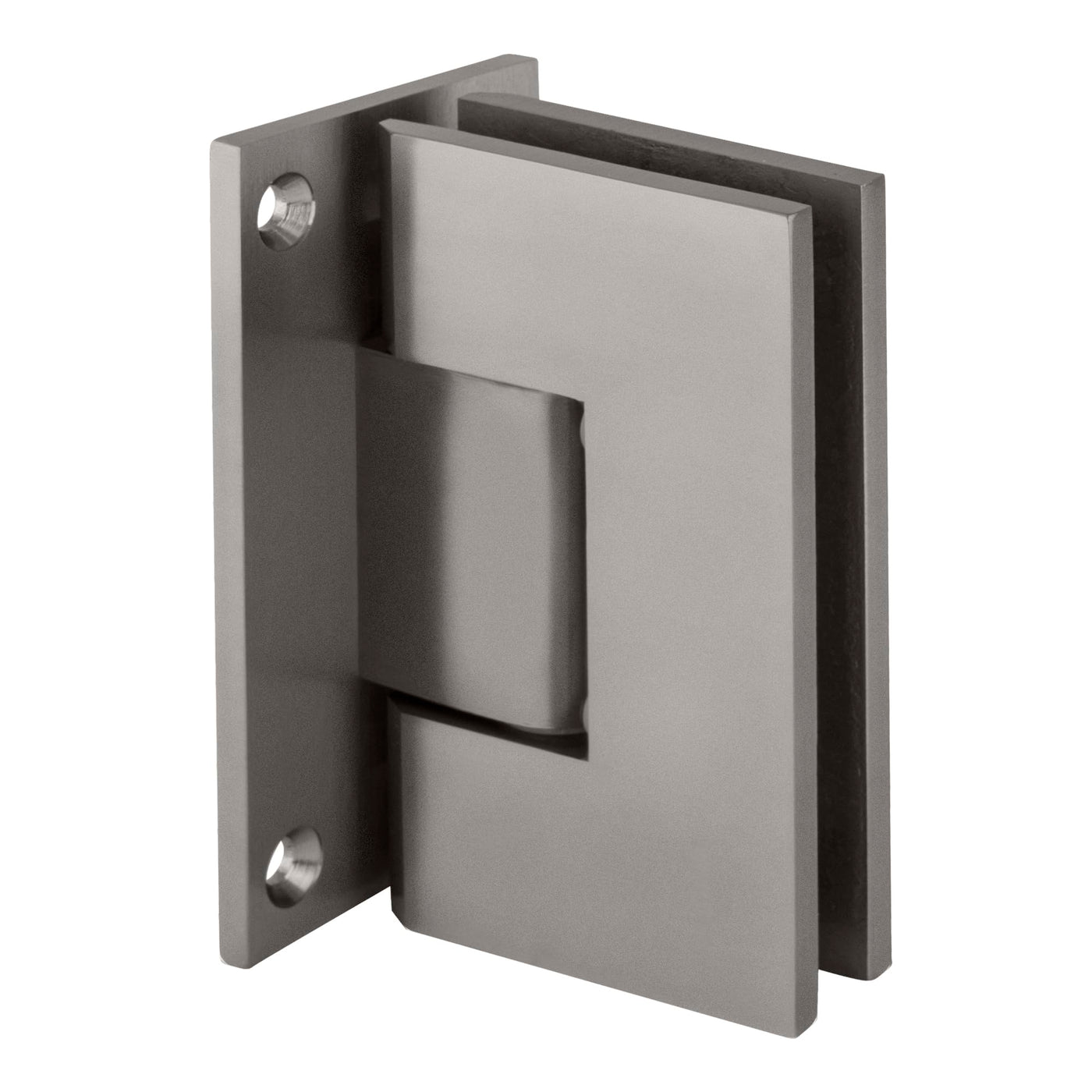

- WALL MOUNT HINGE: CRL Vienna full back plate hinge provides strong and stable wall mounting support for frameless shower doors, designed for lasting durability in residential and commercial installations.
- SATIN CHROME & BRASS: Constructed from heavy-duty brass with a satin chrome finish that resists wear and maintains its clean look, this hinge complements modern bathroom hardware for a uniform appearance.

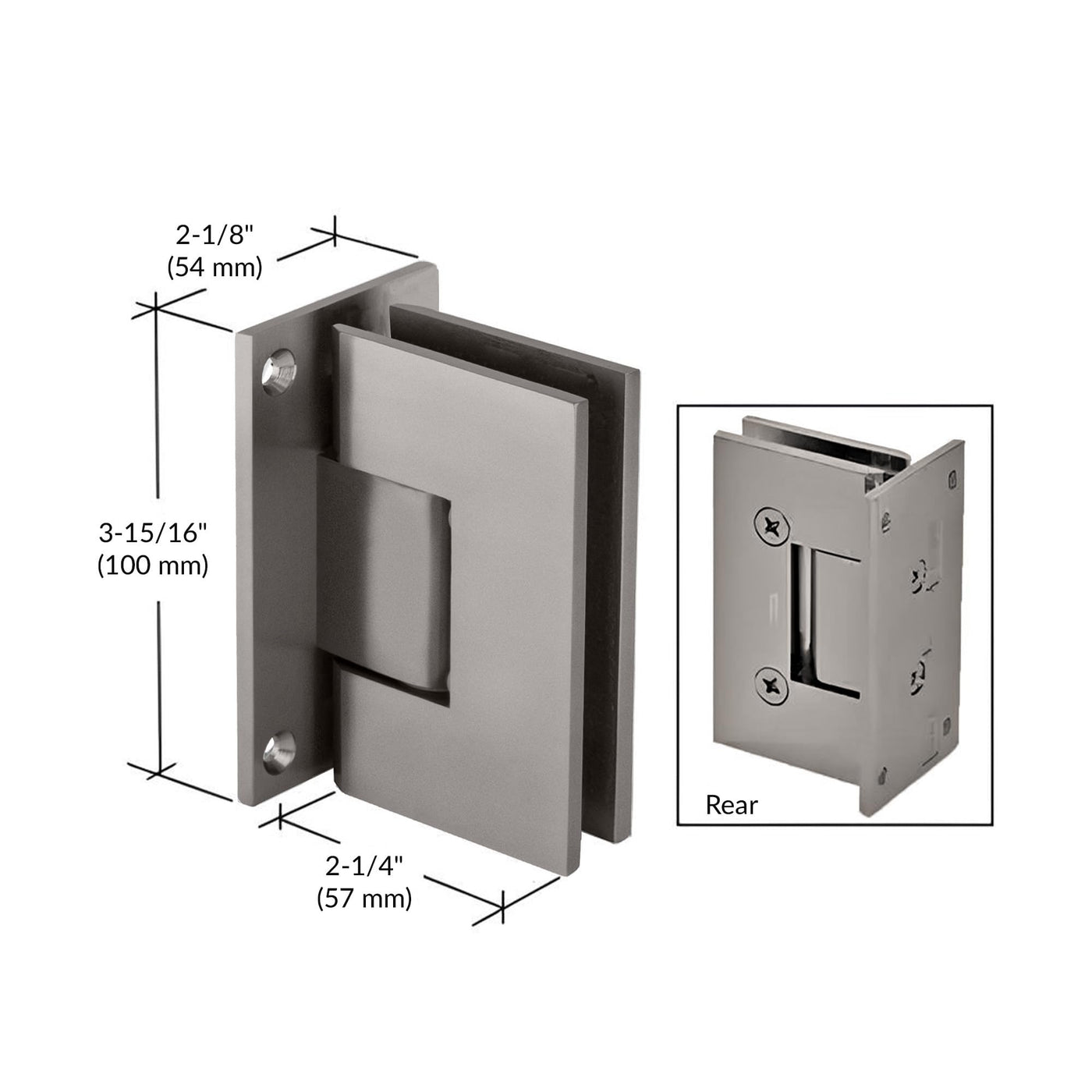

- GLASS COMPATIBILITY: Designed to fit 3/8" to 1/2" thick tempered glass panels, the hinge measures 3-15/16" in height and 2-1/4" in width, offering secure installation for frameless shower door configurations.
- WEIGHT & WIDTH CAPACITY: Built for strength, the hinge supports doors up to 110 lbs with 2 hinges or 140 lbs with 3 hinges, accommodating maximum door widths of 36" while maintaining reliable performance.
