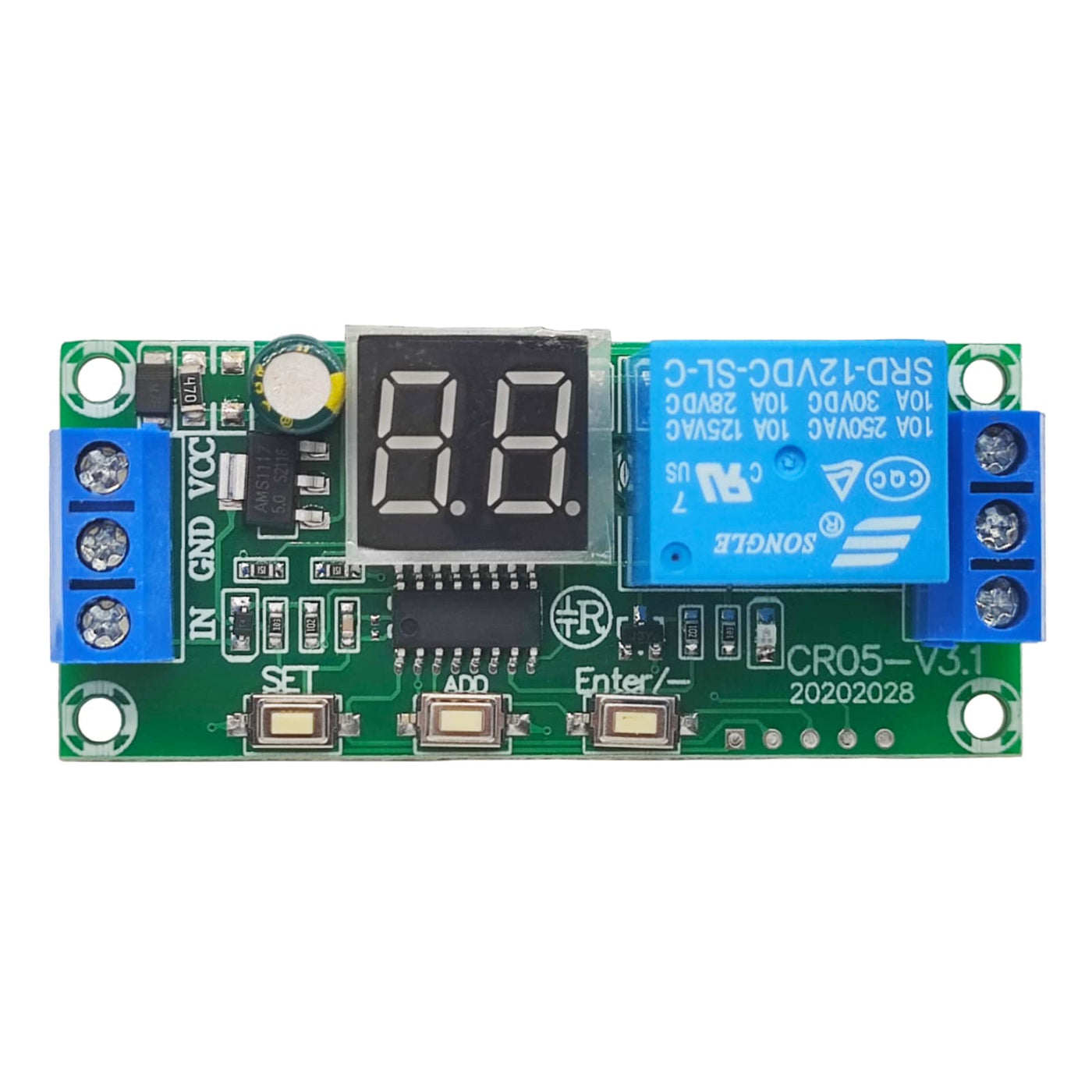

DC 12V Timer Relay Delay Module with Digital LED Display, Time Delay Turn Off Switch Infinite Cycle 0.1s-99h Adjustable ON/Off Timing Relay Board, Smart Home Controller
DC 12V Timer Relay Delay Module with Digital LED Display, Time Delay Turn Off Switch Infinite Cycle 0.1s-99h Adjustable ON/Off Timing Relay Board, Smart Home Controller
Function introduction: Time delay range: T1 and T2 between 0.1 second ~99 hours adjustable. P1(relay on):when power on, the relay on, delay T1, and the relay off. Give IN a low level, repeat the above function. P2(relay off):when power on, the relay disconnected, delay T1, and the relay on. Give IN a low level, repeat the above function. P3(Timing cycle on-off): when power on, the relay on, delay T1, and the relay off, delay T2, the relay on, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop. P4(Timing cycle off-on): when power on, the relay disconnected, delay T1, and the relay on, delay T2, the relay off, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop. P5(trigger relay on): when power on, the relay disconnected, triggered the relay on, delay T1, and the relay off. Give IN a low level, repeat the above function. P6(trigger relay on):when power on, the relay disconnected, triggered the relay disconnected, delay T1, and the relay on. Give IN a low level, repeat the above function. P7(trigger cycle on-off): when power on, the relay disconnected, triggered the relay on, delay T1, and the relay off, delay T2, and the relay on, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop. P8(trigger circle off-on): when power on, the relay disconnected, triggered the relay disconnected, delay T1, and the relay on, delay T2, and the relay off, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop. Parameters: 1. working voltage: DC 12V 2. Load Power: DC 0-30V 10A / AC 0-220V 10A 3. Static current: 15mA 4. Working current: 30mA 5. Service life:100 thousand times 6. Working temperature: -40-85℃; 7. Size: 652818mm Package: 1pcs 12V Relay module
Product Features
- Relay module is a multi-function module with 4 functions of delay, timing, cycle and trigger. The delay time is adjustable, and the adjustment range is 0.1s-99h.
- The working voltage of the time delay relay module is DC 12V. It can control equipment within DC 30V10A or AC 220V10A. Quiescent current: 15mA, working current: 30mA.
- Cycle switch module has many functions, and the service life is as long as 100,000 times. Working temperature: -40~85C.
- Timer module widely used on timer operating equipment, robots, intelligent product development, automation equipment, PLC development, smart home anti-theft alarm delay, electronic development, etc.
