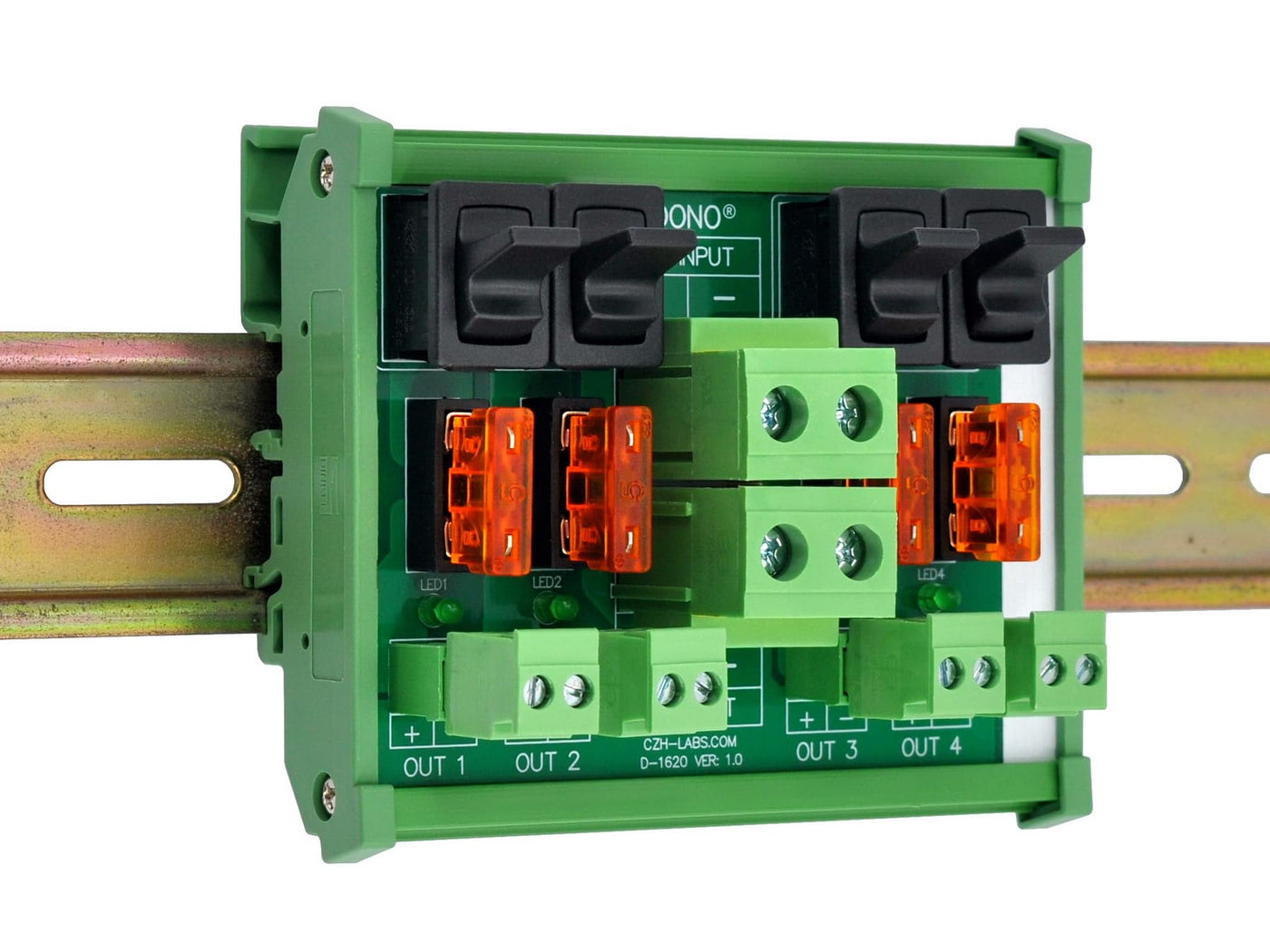

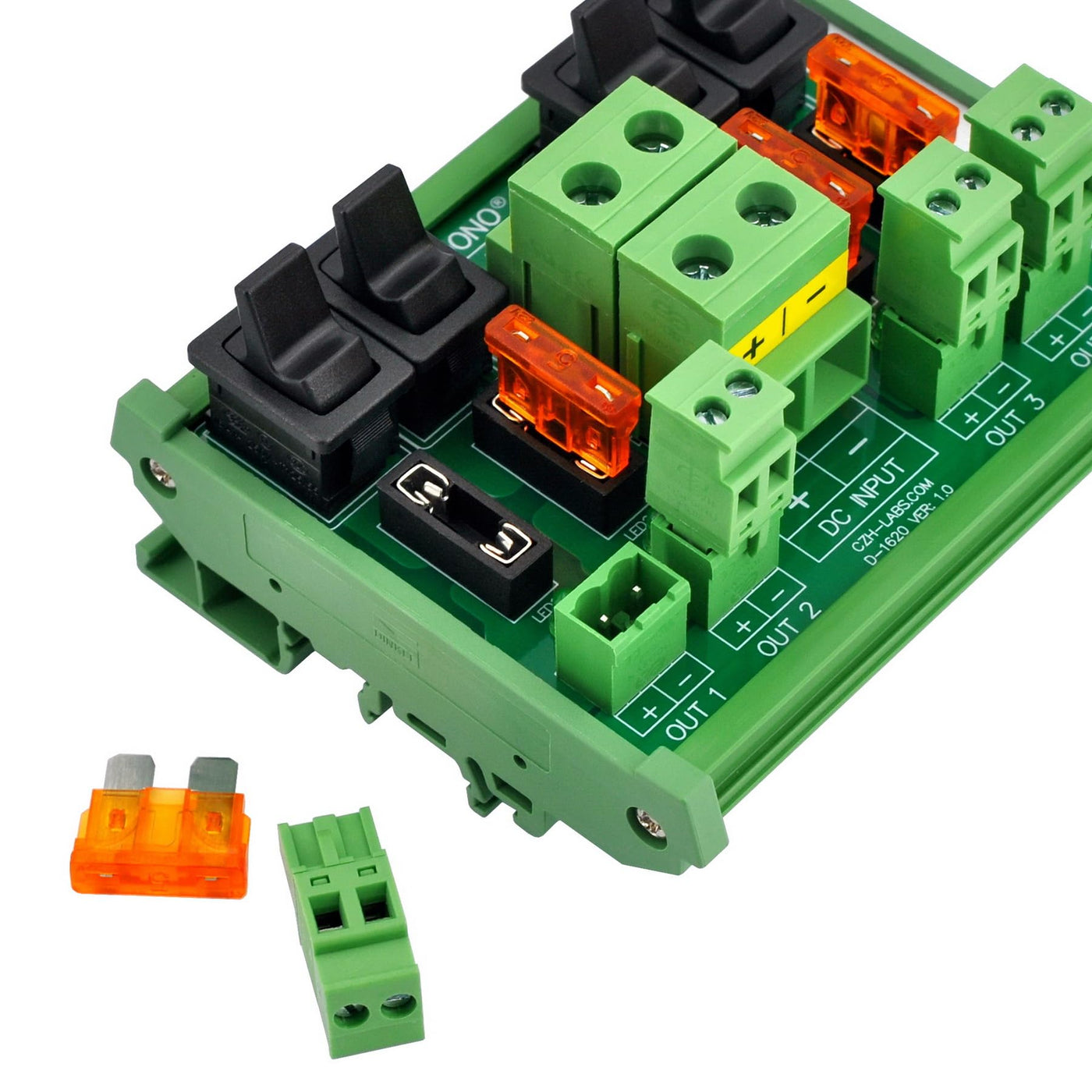

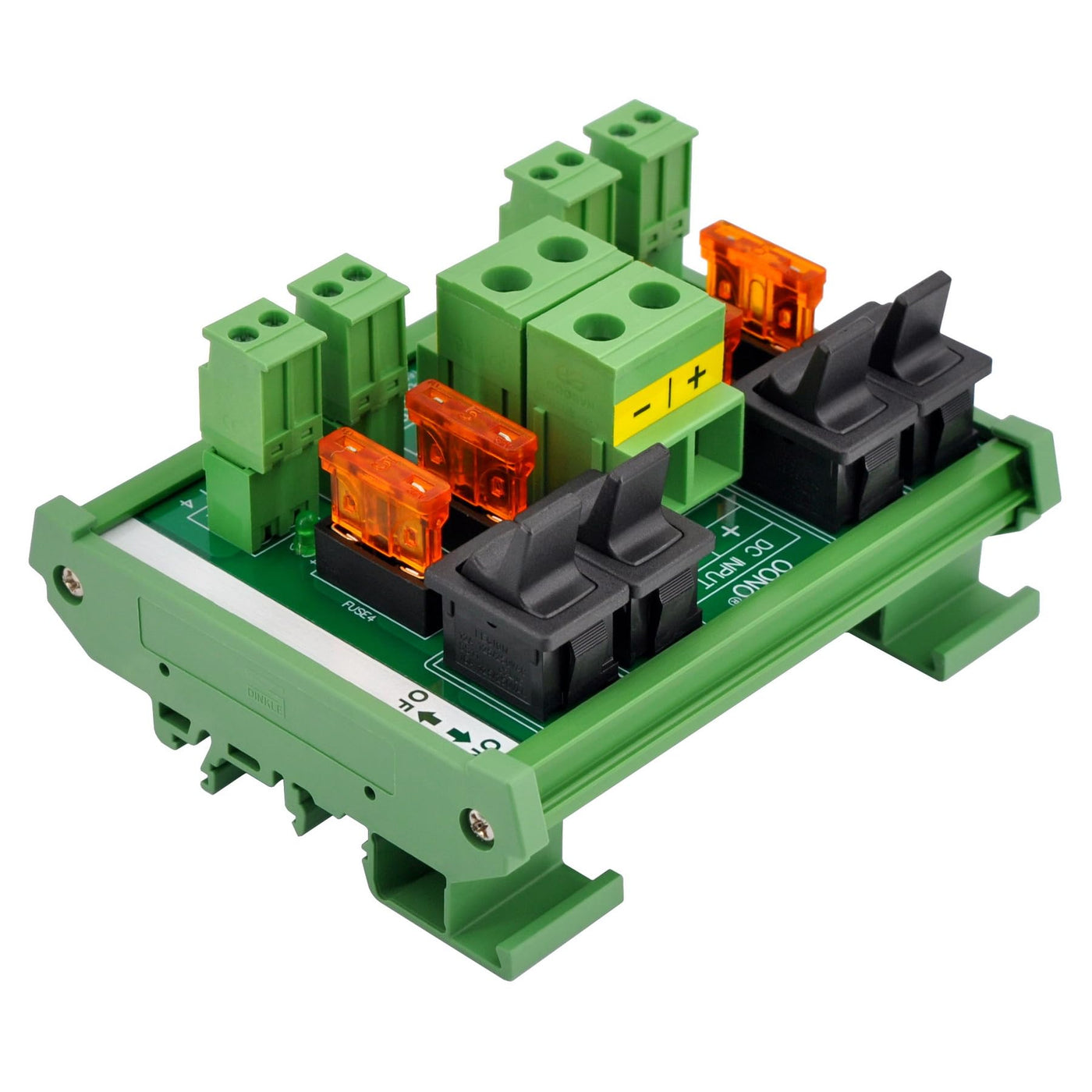

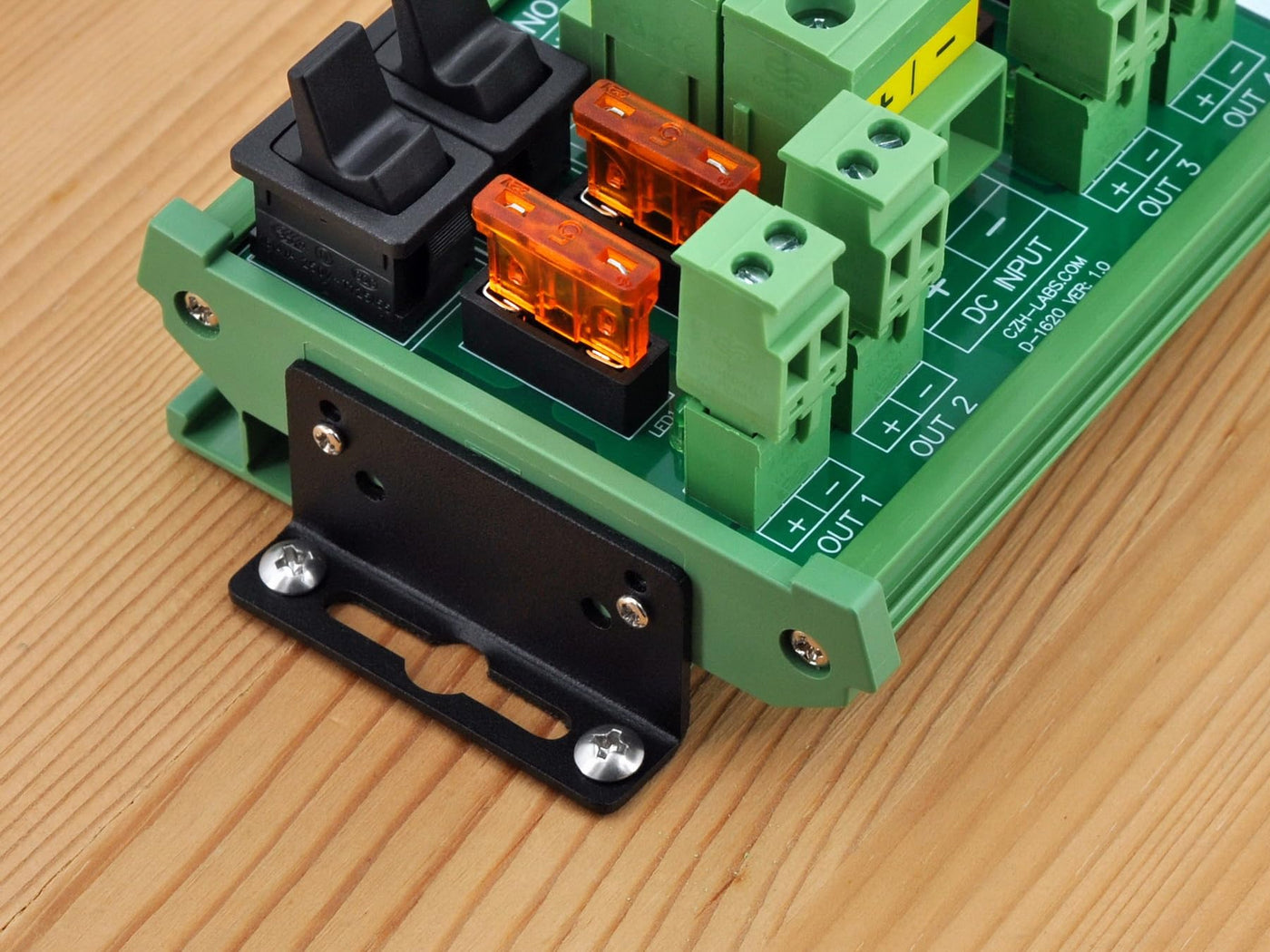

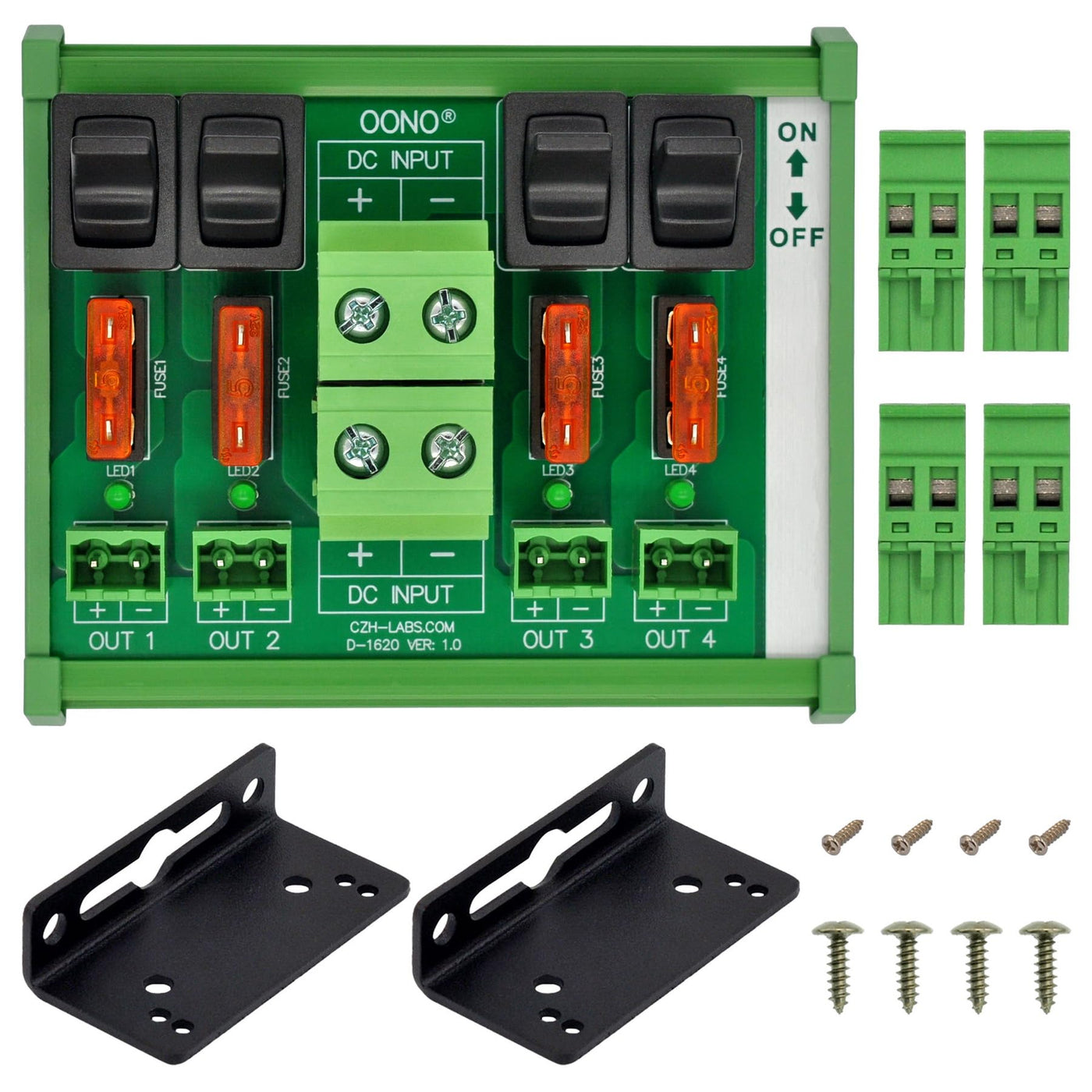

{"id":9681263919255,"title":"DC Power Distribution Module, Rocker Switch, Fused, Pluggable Top Wiring Terminal Block, DIN Rail and Screw Mount (4 Channel) 4 Channel","handle":"dc-power-distribution-module-rocker-switch-fused-pluggable-top-wiring-terminal-block-din-rail-and-screw-mount-4-channel-4-channel","description":"\u003ch3\u003eDC Power Distribution Module, Rocker Switch, Fused, Pluggable Top Wiring Terminal Block, DIN Rail and Screw Mount (4 Channel)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1, Operating voltage DC 5 to 32V. Total rated current 52 Amps. Paddle switch.\nPluggable side wiring terminal block. 2, Input: Rated current 52 Amps. Dual\ninput screw terminal block, the direction of the input terminal wiring can be\nflexibly selected, and it can also be extended to other modules as its input\nsource. Pitch 10.16mm\/0.4\", wire range 20 - 6AWG \/ 10mm square, strip length\n10mm, screw - metric M4. 3, Output: Maximum current 5 Amps for per channel\n(the factory-installed fuse is 5 amps. If the fuse is replaced, the maximum\ncurrent can be up to 10 amps). Pluggable terminal block, pitch 5.08mm\/0.2\",\nwire range 28 - 12AWG \/ 2.5mm square, stripping length 7mm, screw - metric\nM2.5 slotted. 4, Each output terminal is equipped with an independent switch,\nwhich can flexibly control the power supply of each load device. 5, Each\noutput terminal is equipped with an independent fuse, which can protect the\npower supply of each load device and are not affected by each other. Medium\nblade ATO fuse. The fuse holder supports fuse replacement, making fuse\nreplacement easy. 6, Each output terminal is equipped with a green LED power\nindicator. The indicator light comes on when power is on and goes off when the\nswitch is off or the fuse fails. 7, High quality fireproof nylon material DIN\nrail mount carrier, can support width 35mm, 32mm or 15mm rail. A pair of DIN\nrail to Wall mounting adapter brackets are also included, which will support\nwall or wood panel mounting. 8, UL CE CQC certified terminal blocks. UL 94-V0\ncertified PCB, and UL CE certified DIN rail mount carrier. UL certified fuse\nholder and fuse. UL CE certified switch.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOperating voltage DC 5 to 32V. Total rated current 52 Amps. Paddle switch. Pluggable side wiring terminal block.\u003c\/li\u003e\n \u003cli\u003eInput: Rated current 52 Amps. Dual input screw terminal block, the direction of the input terminal wiring can be flexibly selected, and it can also be extended to other modules as its input source. Pitch 10.16mm\/0.4\", wire range 20 - 6AWG \/ 10mm square, strip length 10mm, screw - metric M4.\u003c\/li\u003e\n \u003cli\u003eOutput: Maximum current 5 Amps for per channel (the factory-installed fuse is 5 amps. If the fuse is replaced, the maximum current can be up to 10 amps). Pluggable terminal block, pitch 5.08mm\/0.2\", wire range 28 - 12AWG \/ 2.5mm square, stripping length 7mm, screw - metric M2.5 slotted.\u003c\/li\u003e\n \u003cli\u003eEach output terminal is equipped with an independent switch, which can flexibly control the power supply of each load device.\u003c\/li\u003e\n \u003cli\u003eEach output terminal is equipped with an independent fuse, which can protect the power supply of each load device and are not affected by each other. Medium blade ATO fuse. The fuse holder supports fuse replacement, making fuse replacement easy.\u003c\/li\u003e\n \u003cli\u003eEach output terminal is equipped with a green LED power indicator. The indicator light comes on when power is on and goes off when the switch is off or the fuse fails.\u003c\/li\u003e\n \u003cli\u003eHigh quality fireproof nylon material DIN rail mount carrier, can support width 35mm, 32mm or 15mm rail. A pair of DIN rail to Wall mounting adapter brackets are also included, which will support wall or wood panel mounting.\u003c\/li\u003e\n \u003cli\u003eUL CE CQC certified terminal blocks. UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier. UL certified fuse holder and fuse. UL CE certified switch.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-30T17:35:25+10:00","created_at":"2026-07-27T00:20:15+10:00","vendor":"OONO","type":"Fuse Blocks","tags":["home_improvement_Aug2026"],"price":18100,"price_min":18100,"price_max":18100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48068618584215,"title":"4 Channel","option1":"4 Channel","option2":null,"option3":null,"sku":"B0DJFB68VV","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DC Power Distribution Module, Rocker Switch, Fused, Pluggable Top Wiring Terminal Block, DIN Rail and Screw Mount (4 Channel) 4 Channel - 4 Channel","public_title":"4 Channel","options":["4 Channel"],"price":18100,"weight":231,"compare_at_price":null,"inventory_management":"shopify","barcode":"D-1620 to D-1623 TKRL","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0DJFB68VV.jpg?v=1785075618","\/\/newnestshop.com\/cdn\/shop\/files\/71RiewPumjL.jpg?v=1785075617","\/\/newnestshop.com\/cdn\/shop\/files\/71_gOBwc5UL.jpg?v=1785075617","\/\/newnestshop.com\/cdn\/shop\/files\/71xy5cAXLML.jpg?v=1785075617","\/\/newnestshop.com\/cdn\/shop\/files\/71WPj2lozzL.jpg?v=1785075618","\/\/newnestshop.com\/cdn\/shop\/files\/71LsQxN-WXL.jpg?v=1785075617","\/\/newnestshop.com\/cdn\/shop\/files\/71pbLnTrvzL.jpg?v=1785075617","\/\/newnestshop.com\/cdn\/shop\/files\/71Eu_hRBgbL.jpg?v=1785075617"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0DJFB68VV.jpg?v=1785075618","options":["Style"],"media":[{"alt":null,"id":42460668559511,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0DJFB68VV.jpg?v=1785075618"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0DJFB68VV.jpg?v=1785075618","width":1800},{"alt":null,"id":42460668592279,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71RiewPumjL.jpg?v=1785075617"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71RiewPumjL.jpg?v=1785075617","width":1800},{"alt":null,"id":42460668625047,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71_gOBwc5UL.jpg?v=1785075617"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71_gOBwc5UL.jpg?v=1785075617","width":1800},{"alt":null,"id":42460668657815,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71xy5cAXLML.jpg?v=1785075617"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71xy5cAXLML.jpg?v=1785075617","width":1800},{"alt":null,"id":42460668690583,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71WPj2lozzL.jpg?v=1785075618"},"aspect_ratio":1.333,"height":1350,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71WPj2lozzL.jpg?v=1785075618","width":1800},{"alt":null,"id":42460668723351,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71LsQxN-WXL.jpg?v=1785075617"},"aspect_ratio":1.333,"height":1350,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71LsQxN-WXL.jpg?v=1785075617","width":1800},{"alt":null,"id":42460668756119,"position":7,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71pbLnTrvzL.jpg?v=1785075617"},"aspect_ratio":1.333,"height":1350,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71pbLnTrvzL.jpg?v=1785075617","width":1800},{"alt":null,"id":42460668788887,"position":8,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71Eu_hRBgbL.jpg?v=1785075617"},"aspect_ratio":1.333,"height":1350,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71Eu_hRBgbL.jpg?v=1785075617","width":1800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDC Power Distribution Module, Rocker Switch, Fused, Pluggable Top Wiring Terminal Block, DIN Rail and Screw Mount (4 Channel)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1, Operating voltage DC 5 to 32V. Total rated current 52 Amps. Paddle switch.\nPluggable side wiring terminal block. 2, Input: Rated current 52 Amps. Dual\ninput screw terminal block, the direction of the input terminal wiring can be\nflexibly selected, and it can also be extended to other modules as its input\nsource. Pitch 10.16mm\/0.4\", wire range 20 - 6AWG \/ 10mm square, strip length\n10mm, screw - metric M4. 3, Output: Maximum current 5 Amps for per channel\n(the factory-installed fuse is 5 amps. If the fuse is replaced, the maximum\ncurrent can be up to 10 amps). Pluggable terminal block, pitch 5.08mm\/0.2\",\nwire range 28 - 12AWG \/ 2.5mm square, stripping length 7mm, screw - metric\nM2.5 slotted. 4, Each output terminal is equipped with an independent switch,\nwhich can flexibly control the power supply of each load device. 5, Each\noutput terminal is equipped with an independent fuse, which can protect the\npower supply of each load device and are not affected by each other. Medium\nblade ATO fuse. The fuse holder supports fuse replacement, making fuse\nreplacement easy. 6, Each output terminal is equipped with a green LED power\nindicator. The indicator light comes on when power is on and goes off when the\nswitch is off or the fuse fails. 7, High quality fireproof nylon material DIN\nrail mount carrier, can support width 35mm, 32mm or 15mm rail. A pair of DIN\nrail to Wall mounting adapter brackets are also included, which will support\nwall or wood panel mounting. 8, UL CE CQC certified terminal blocks. UL 94-V0\ncertified PCB, and UL CE certified DIN rail mount carrier. UL certified fuse\nholder and fuse. UL CE certified switch.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOperating voltage DC 5 to 32V. Total rated current 52 Amps. Paddle switch. Pluggable side wiring terminal block.\u003c\/li\u003e\n \u003cli\u003eInput: Rated current 52 Amps. Dual input screw terminal block, the direction of the input terminal wiring can be flexibly selected, and it can also be extended to other modules as its input source. Pitch 10.16mm\/0.4\", wire range 20 - 6AWG \/ 10mm square, strip length 10mm, screw - metric M4.\u003c\/li\u003e\n \u003cli\u003eOutput: Maximum current 5 Amps for per channel (the factory-installed fuse is 5 amps. If the fuse is replaced, the maximum current can be up to 10 amps). Pluggable terminal block, pitch 5.08mm\/0.2\", wire range 28 - 12AWG \/ 2.5mm square, stripping length 7mm, screw - metric M2.5 slotted.\u003c\/li\u003e\n \u003cli\u003eEach output terminal is equipped with an independent switch, which can flexibly control the power supply of each load device.\u003c\/li\u003e\n \u003cli\u003eEach output terminal is equipped with an independent fuse, which can protect the power supply of each load device and are not affected by each other. Medium blade ATO fuse. The fuse holder supports fuse replacement, making fuse replacement easy.\u003c\/li\u003e\n \u003cli\u003eEach output terminal is equipped with a green LED power indicator. The indicator light comes on when power is on and goes off when the switch is off or the fuse fails.\u003c\/li\u003e\n \u003cli\u003eHigh quality fireproof nylon material DIN rail mount carrier, can support width 35mm, 32mm or 15mm rail. A pair of DIN rail to Wall mounting adapter brackets are also included, which will support wall or wood panel mounting.\u003c\/li\u003e\n \u003cli\u003eUL CE CQC certified terminal blocks. UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier. UL certified fuse holder and fuse. UL CE certified switch.\u003c\/li\u003e\n \u003c\/ul\u003e"}
