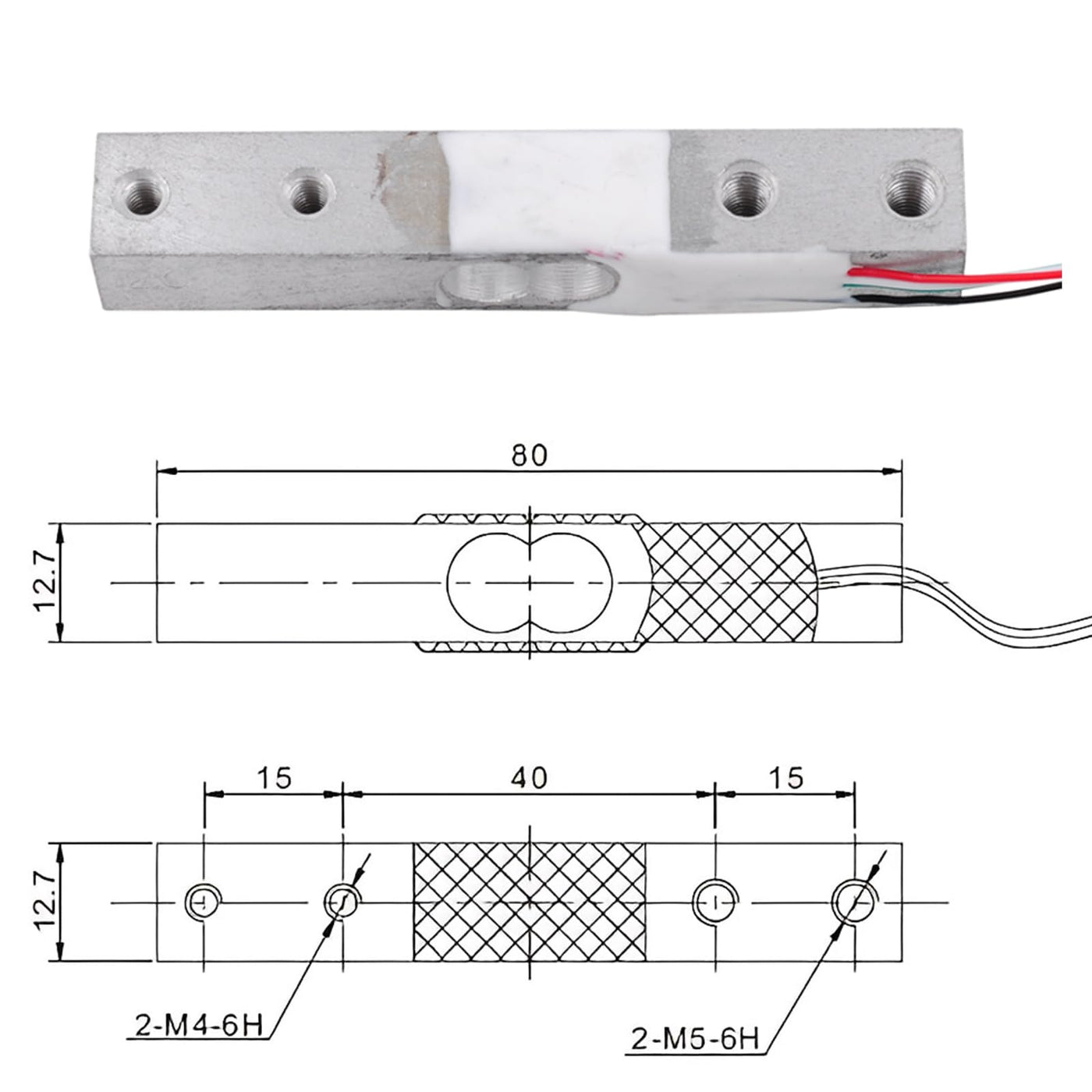

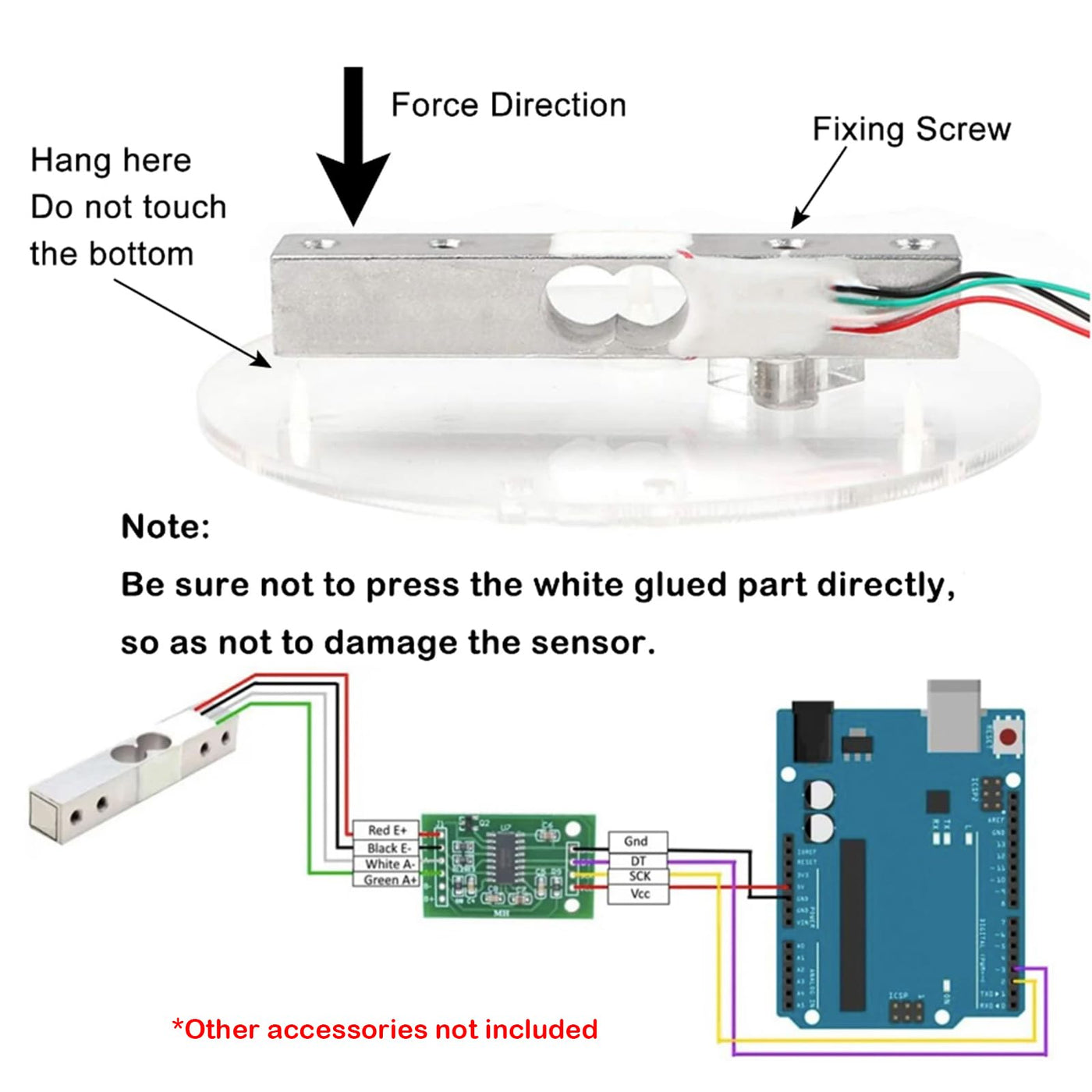

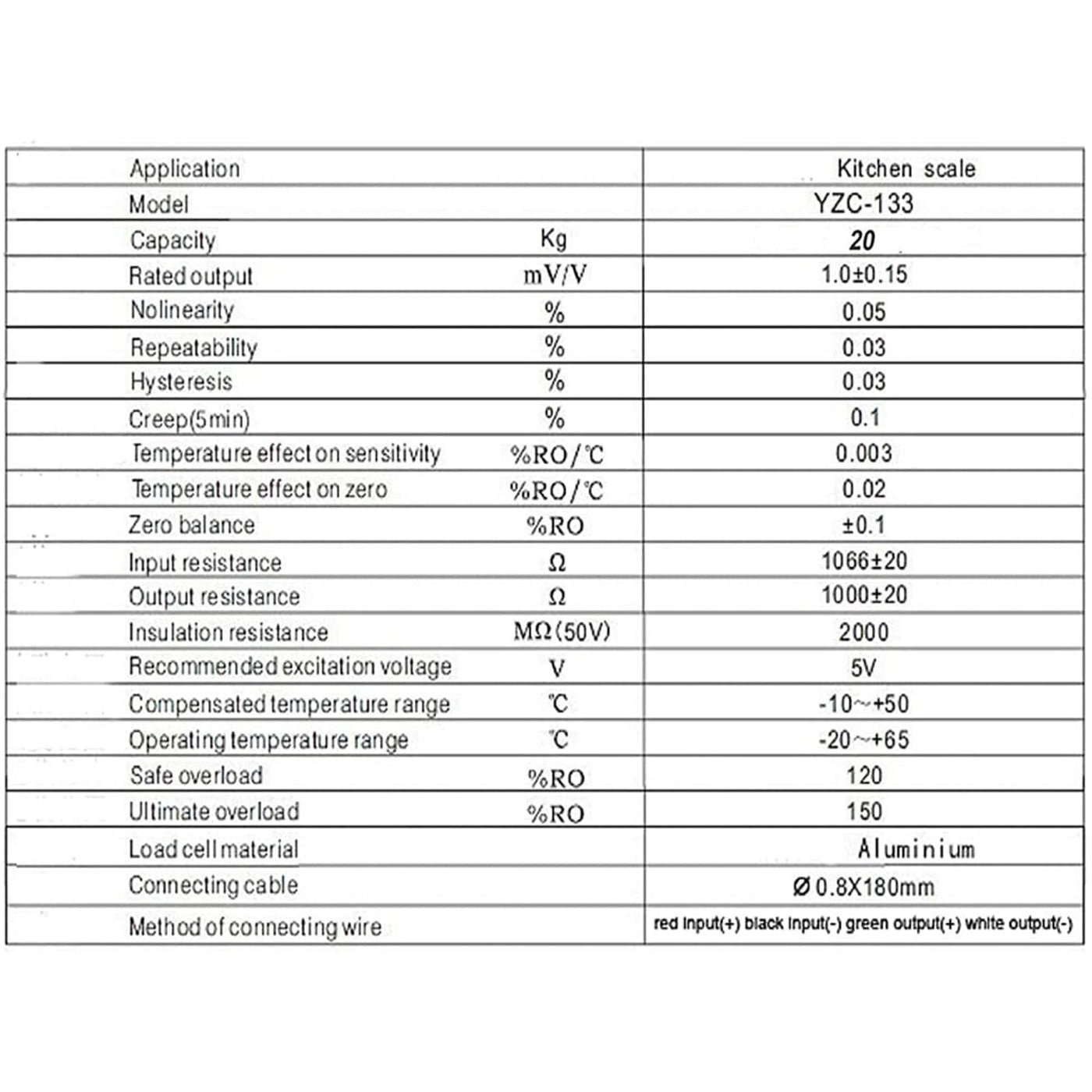

{"id":8799215878295,"title":"Digital Load Cell Weight Sensor 10kg High Precision Miniature Load Cells YZC-133 for Arduino DIY Electronic Portable Kitchen Scale Sensors(Pack of 2) 2PCS 10KG","handle":"digital-load-cell-weight-sensor-10kg-high-precision-miniature-load-cells-yzc-133-for-arduino-diy-electronic-portable-kitchen-scale-sensorspack-of-2-2pcs-10kg","description":"\u003ch3\u003eDigital Load Cell Weight Sensor 10kg High Precision Miniature Load Cells YZC-133 for Arduino DIY Electronic Portable Kitchen Scale Sensors(Pack of 2)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription Four leads, easy to use,5-10V drive voltage applied, the force is\ndirectly output as a voltage change signal. Dimensions: 12.7mm 12.7mm 80mm\nSensor through the screw hole at one end fixed and the other end to keep\nfloating state, applying gravity following the direction indicated by label.\nParticular attention must not directly push the white plastic cover part, so\nas not to damage the sensor. Application: Kitchen scale Module: YZC-133 Rated\nOutput: 1.0±0.15mV\/V Nolinearity: 0.0005 Repeatability: 0.0003 Hysteresis:\n0.0003 Creep(5Min): 0.001 Temperature Effect On Sensitivity: 0.003%RO\/°C\nTemperature Effect On Zero: 0.02%RO\/°C Zero Balance: ±0.1%RO Input Resistance:\n1066±20Ω Output Resistance: 1000±20Ω Insulation Resistance: 2000MΩ(50V)\nRecommended Excitation Voltage: 5V Compensated Temperature Voltage: -10~+50°C\nOperating Temperature Range: -20~+65°C Safe Overload: 120%RO Ultimate\nOverload: 150%RO Load Cell Material: Aluminium Connecting Cable: ?0.8X180mm\nConnection: Red to E+ Black to E- Green to A+ White to A- Package included: 2\nX 10kg Weight Sensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMade of high quality aluminium alloy, parallel beam structure, suitable for electronic kitchen scales, small appliances force measurement, pet feeders and other intelligent weighing equipment.\u003c\/li\u003e\n \u003cli\u003e5-10V drive voltage applied, the force is directly output as a voltage change signal.\u003c\/li\u003e\n \u003cli\u003eYou need to connect load cell wtih HX711 module like this, Red to E+, Black to E-, Green to A+, White to A-\u003c\/li\u003e\n \u003cli\u003eYou will get 2pcs 10kg load cell weight sensor. Dimensions: 12.7mm * 12.7mm * 80mm\u003c\/li\u003e\n \u003cli\u003eIf you have any questions about this product, or need additional weight sensors and HX711 modules, please visit \"Geekstory\".\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-08T17:18:52+11:00","created_at":"2025-02-07T13:07:34+11:00","vendor":"Geekstory","type":"Pressure Probes \u0026 Sensors","tags":["industrial_best_sellers_Jan2025"],"price":9900,"price_min":9900,"price_max":9900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45137950736535,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CJY94BMX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Digital Load Cell Weight Sensor 10kg High Precision Miniature Load Cells YZC-133 for Arduino DIY Electronic Portable Kitchen Scale Sensors(Pack of 2) 2PCS 10KG","public_title":null,"options":["Default Title"],"price":9900,"weight":35,"compare_at_price":null,"inventory_management":"shopify","barcode":"2pcs 10kg","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0CJY94BMX.jpg?v=1775767166","\/\/newnestshop.com\/cdn\/shop\/files\/61W3S-zfFIL.jpg?v=1738894057","\/\/newnestshop.com\/cdn\/shop\/files\/61kbaF2iMiL.jpg?v=1738894057","\/\/newnestshop.com\/cdn\/shop\/files\/61XbjJ5QYPL.jpg?v=1738894057","\/\/newnestshop.com\/cdn\/shop\/files\/71LTSblo0XL.jpg?v=1738894058"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CJY94BMX.jpg?v=1775767166","options":["Title"],"media":[{"alt":null,"id":36932820205719,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CJY94BMX.jpg?v=1775767166"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CJY94BMX.jpg?v=1775767166","width":1600},{"alt":null,"id":36932820238487,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61W3S-zfFIL.jpg?v=1738894057"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61W3S-zfFIL.jpg?v=1738894057","width":1600},{"alt":null,"id":36932820271255,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61kbaF2iMiL.jpg?v=1738894057"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61kbaF2iMiL.jpg?v=1738894057","width":1600},{"alt":null,"id":36932820304023,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61XbjJ5QYPL.jpg?v=1738894057"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61XbjJ5QYPL.jpg?v=1738894057","width":1600},{"alt":null,"id":36932820369559,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71LTSblo0XL.jpg?v=1738894058"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71LTSblo0XL.jpg?v=1738894058","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDigital Load Cell Weight Sensor 10kg High Precision Miniature Load Cells YZC-133 for Arduino DIY Electronic Portable Kitchen Scale Sensors(Pack of 2)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription Four leads, easy to use,5-10V drive voltage applied, the force is\ndirectly output as a voltage change signal. Dimensions: 12.7mm 12.7mm 80mm\nSensor through the screw hole at one end fixed and the other end to keep\nfloating state, applying gravity following the direction indicated by label.\nParticular attention must not directly push the white plastic cover part, so\nas not to damage the sensor. Application: Kitchen scale Module: YZC-133 Rated\nOutput: 1.0±0.15mV\/V Nolinearity: 0.0005 Repeatability: 0.0003 Hysteresis:\n0.0003 Creep(5Min): 0.001 Temperature Effect On Sensitivity: 0.003%RO\/°C\nTemperature Effect On Zero: 0.02%RO\/°C Zero Balance: ±0.1%RO Input Resistance:\n1066±20Ω Output Resistance: 1000±20Ω Insulation Resistance: 2000MΩ(50V)\nRecommended Excitation Voltage: 5V Compensated Temperature Voltage: -10~+50°C\nOperating Temperature Range: -20~+65°C Safe Overload: 120%RO Ultimate\nOverload: 150%RO Load Cell Material: Aluminium Connecting Cable: ?0.8X180mm\nConnection: Red to E+ Black to E- Green to A+ White to A- Package included: 2\nX 10kg Weight Sensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMade of high quality aluminium alloy, parallel beam structure, suitable for electronic kitchen scales, small appliances force measurement, pet feeders and other intelligent weighing equipment.\u003c\/li\u003e\n \u003cli\u003e5-10V drive voltage applied, the force is directly output as a voltage change signal.\u003c\/li\u003e\n \u003cli\u003eYou need to connect load cell wtih HX711 module like this, Red to E+, Black to E-, Green to A+, White to A-\u003c\/li\u003e\n \u003cli\u003eYou will get 2pcs 10kg load cell weight sensor. Dimensions: 12.7mm * 12.7mm * 80mm\u003c\/li\u003e\n \u003cli\u003eIf you have any questions about this product, or need additional weight sensors and HX711 modules, please visit \"Geekstory\".\u003c\/li\u003e\n \u003c\/ul\u003e"}
