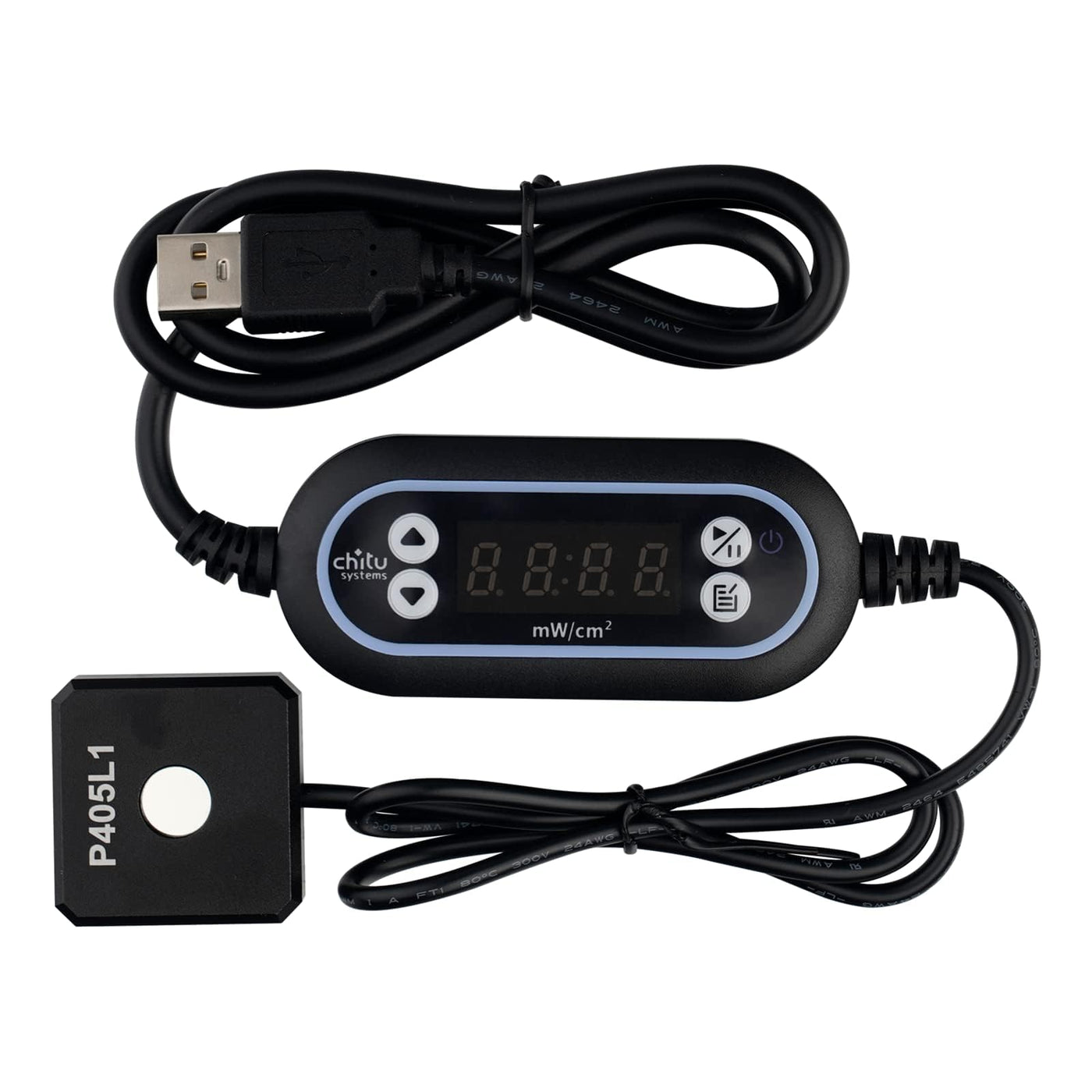

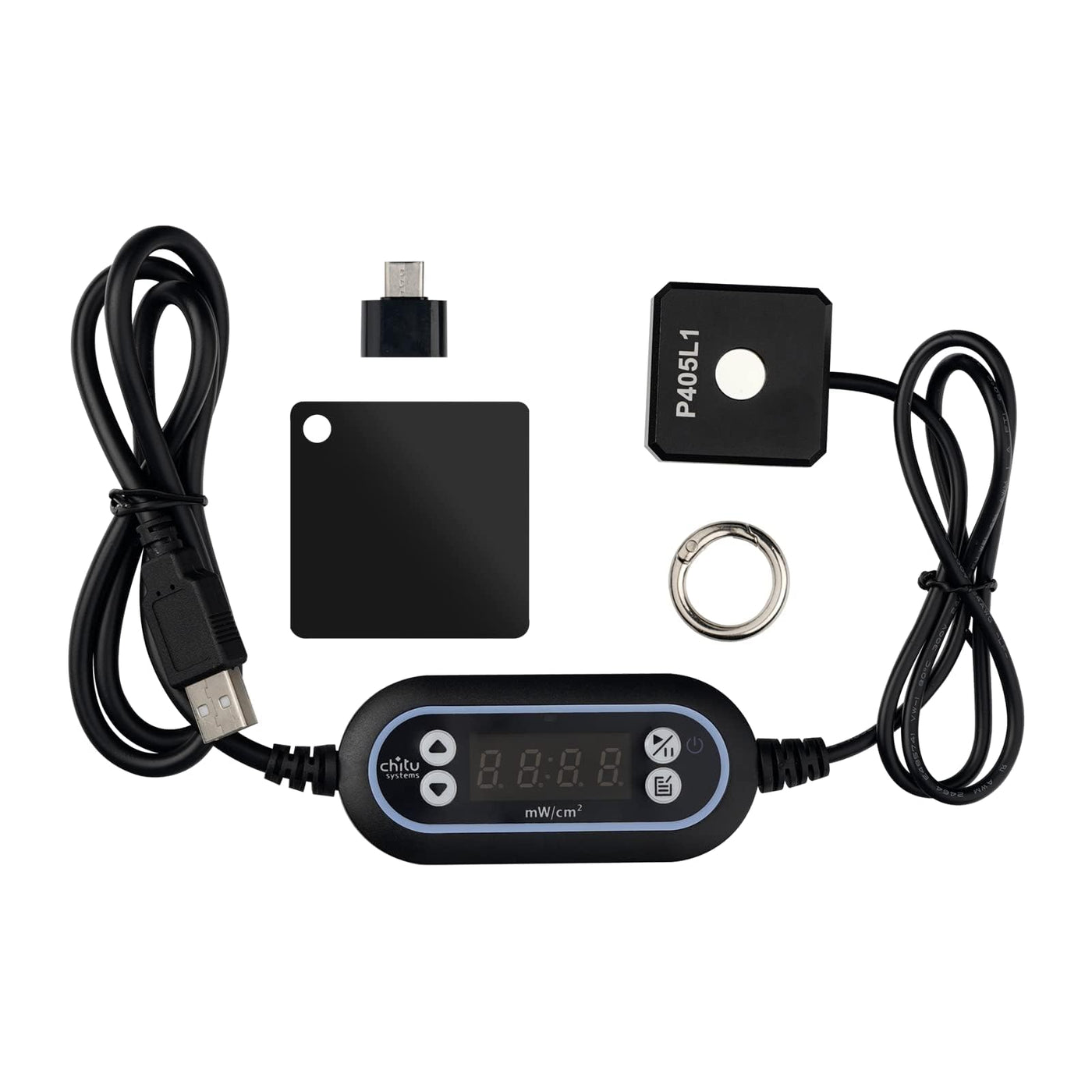

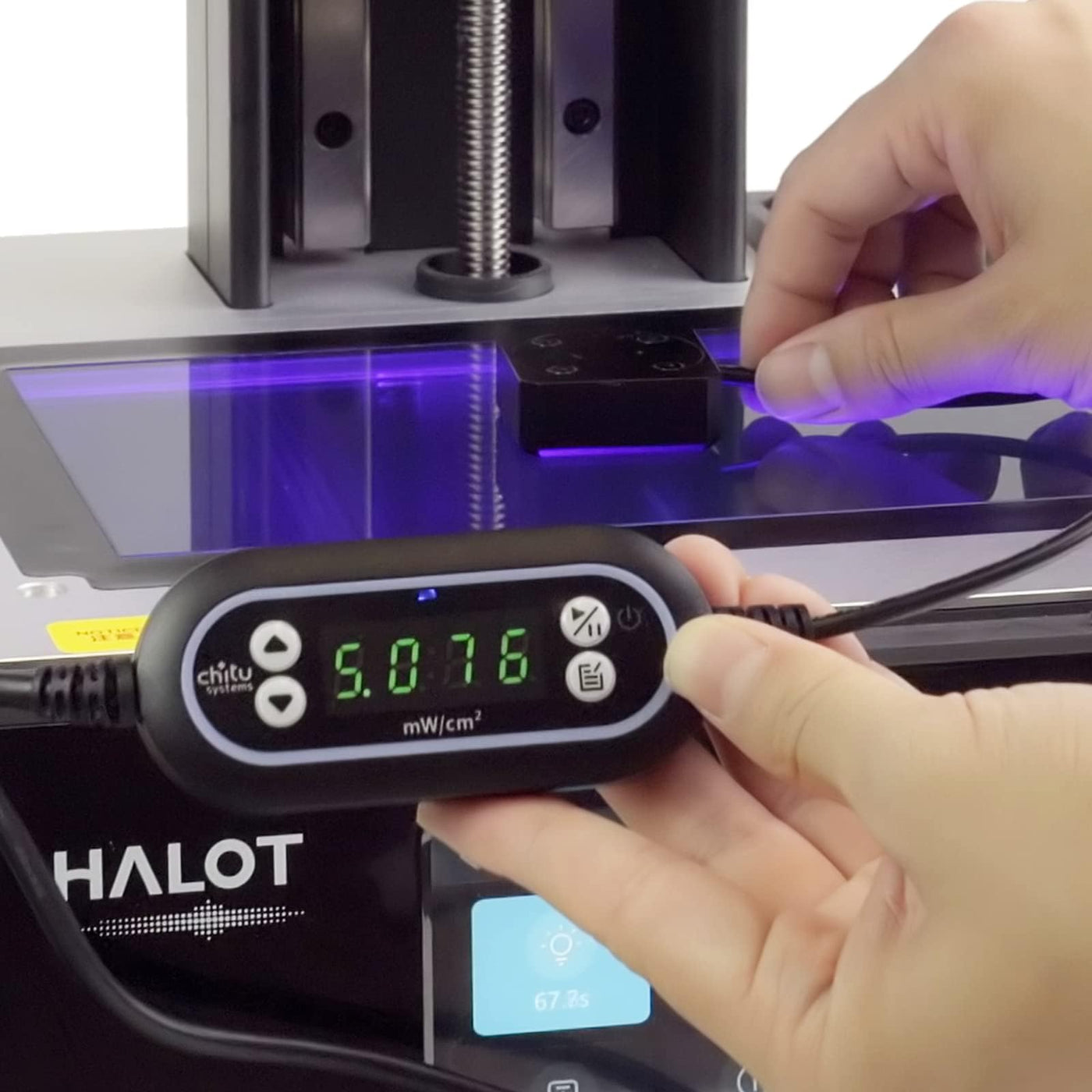

{"id":9680889282711,"title":"Digital UV Light Meter Tool for 405nm Standard Photopolymer LCD\/DLP\/SLA Resin 3D Printers","handle":"digital-uv-light-meter-tool-for-405nm-standard-photopolymer-lcd-dlp-sla-resin-3d-printers","description":"\u003ch3\u003eDigital UV Light Meter Tool for 405nm Standard Photopolymer LCD\/DLP\/SLA Resin 3D Printers\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e[Packaging information] Data cable length: 130cm; Probe type: P405L1; Probe size: 36*36*13.8mm; Sensor: GVBL-S12SD; Spectral response range: 405nm (-15nm+10nm); Test hole diameter: =10mm ; Power range: 0~50000W\/cm2; Measuring accuracy: 10%; Photocurrent attenuation: 10,000 exposure hours; Input: 5V USB (Do not use voltages greater than 5V)\u003c\/li\u003e\n \u003cli\u003e[Introduction] UV Meter Tool 405nm Digital UV Light Meter for Resin 3D Printer, Portable UV Intensity Meter for Resin 3D Printer, 405nm Only\u003c\/li\u003e\n \u003cli\u003e[Get light intensity and uniformity] You can check different data between different accessories (such as films such as FEP, nFEP and ACF), different areas (such as center and four corners), and then adjust the settings to obtain similar print quality\u003c\/li\u003e\n \u003cli\u003e[Make exposure testing easier and faster] The resin curing time depends on the intensity of the UV light source. Once you understand the relationship between exposure time and light intensity, you can save time searching for the right exposure time\u003c\/li\u003e\n \u003cli\u003e[Printer Maintenance] When the printer screen works for a long time, the light will attenuate; for resin 3D users, it is necessary to test whether your printer is in optimal condition. When decay occurs you can adjust the PWM or use a longer exposure time\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-30T19:22:18+10:00","created_at":"2026-07-26T20:01:08+10:00","vendor":"Aorita3D","type":"Light Measurement","tags":["home_improvement_Aug2026"],"price":22600,"price_min":22600,"price_max":22600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48068094951575,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CM8TWWN4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Digital UV Light Meter Tool for 405nm Standard Photopolymer LCD\/DLP\/SLA Resin 3D Printers","public_title":null,"options":["Default Title"],"price":22600,"weight":408,"compare_at_price":null,"inventory_management":"shopify","barcode":"20231101","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0CM8TWWN4.jpg?v=1785060070","\/\/newnestshop.com\/cdn\/shop\/files\/61l-HA3Z2uL.jpg?v=1785060071","\/\/newnestshop.com\/cdn\/shop\/files\/617Zsz90CsL.jpg?v=1785060070","\/\/newnestshop.com\/cdn\/shop\/files\/61Lzl7bUjIL.jpg?v=1785060070","\/\/newnestshop.com\/cdn\/shop\/files\/61ObFpjTYsL.jpg?v=1785060070"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CM8TWWN4.jpg?v=1785060070","options":["Title"],"media":[{"alt":null,"id":42455945871511,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CM8TWWN4.jpg?v=1785060070"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CM8TWWN4.jpg?v=1785060070","width":1600},{"alt":null,"id":42455945904279,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61l-HA3Z2uL.jpg?v=1785060071"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61l-HA3Z2uL.jpg?v=1785060071","width":1600},{"alt":null,"id":42455945937047,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/617Zsz90CsL.jpg?v=1785060070"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/617Zsz90CsL.jpg?v=1785060070","width":1600},{"alt":null,"id":42455945969815,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Lzl7bUjIL.jpg?v=1785060070"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Lzl7bUjIL.jpg?v=1785060070","width":1600},{"alt":null,"id":42455946002583,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ObFpjTYsL.jpg?v=1785060070"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ObFpjTYsL.jpg?v=1785060070","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDigital UV Light Meter Tool for 405nm Standard Photopolymer LCD\/DLP\/SLA Resin 3D Printers\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e[Packaging information] Data cable length: 130cm; Probe type: P405L1; Probe size: 36*36*13.8mm; Sensor: GVBL-S12SD; Spectral response range: 405nm (-15nm+10nm); Test hole diameter: =10mm ; Power range: 0~50000W\/cm2; Measuring accuracy: 10%; Photocurrent attenuation: 10,000 exposure hours; Input: 5V USB (Do not use voltages greater than 5V)\u003c\/li\u003e\n \u003cli\u003e[Introduction] UV Meter Tool 405nm Digital UV Light Meter for Resin 3D Printer, Portable UV Intensity Meter for Resin 3D Printer, 405nm Only\u003c\/li\u003e\n \u003cli\u003e[Get light intensity and uniformity] You can check different data between different accessories (such as films such as FEP, nFEP and ACF), different areas (such as center and four corners), and then adjust the settings to obtain similar print quality\u003c\/li\u003e\n \u003cli\u003e[Make exposure testing easier and faster] The resin curing time depends on the intensity of the UV light source. Once you understand the relationship between exposure time and light intensity, you can save time searching for the right exposure time\u003c\/li\u003e\n \u003cli\u003e[Printer Maintenance] When the printer screen works for a long time, the light will attenuate; for resin 3D users, it is necessary to test whether your printer is in optimal condition. When decay occurs you can adjust the PWM or use a longer exposure time\u003c\/li\u003e\n \u003c\/ul\u003e"}
