Dinkle Combiner DK10N-GN 10 Gang with Jumper Inserted DIN Rail Terminal Blocks, 6-20 AWG, 60 Amp, 600 Volt Green Bus Bar Busbar
Dinkle Combiner DK10N-GN 10 Gang with Jumper Inserted DIN Rail Terminal Blocks, 6-20 AWG, 60 Amp, 600 Volt Green Bus Bar Busbar

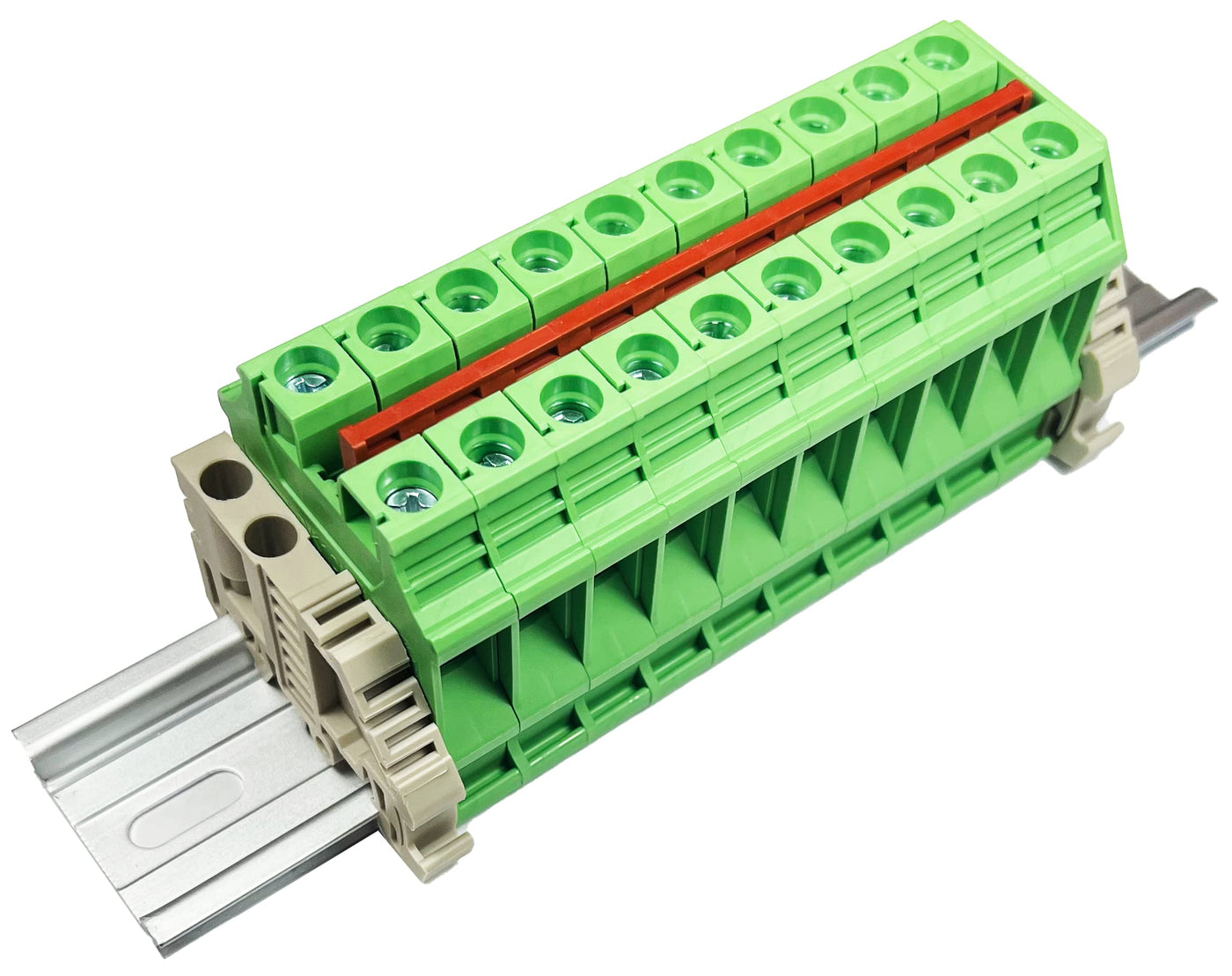

This combiner includes 10 DK10N-GN Dinkle terminal blocks, 2 SS2 end brackets, and 1 DK10NC-GN end cover, 1 DSS10N-10P jumper, all mounted on a 7" piece of aluminum RoHS rail. These are 20 wire connections made in common by the inserted jumper. Technical Data (UL) Rated Voltage: 600V Rate Current: 60A Conductor Cross-section, Solid (AWG): 20-6 Conductor Cross-section, Flexible (AWG): 20-6 Rated Impulse Withstand Voltage: 8KV Torque (N-m): 1.3 Screw: M4 Wire Strip Length: 12-14mm Insulating Material: PA TxHxW (mm): 10 x 49.3 x 42.9 (Individual Blocks) DIN Rail (mm): 35, 32 Jumper/Bridge: Press- fit/Insertion. Accepts TM49W marking tags.
Product Features
- Made in USA
- Solar Combiner, Power Distribution, or Busbar
- UL 600V Rating
- UL 6-20 AWG Rating
- UL 60A Rating
- Terminals made common with jumper
Buy with confidence as this product comes with 18 months full local warranty in Australia & New Zealand (unless otherwise stated in the overview).
This product also comes with the benefits of the CocoonPower Warranty. For further details please read our Warranty Guidelines.
You can also purchase 3 Year Extended Care. If you are interested please see our Extended Care Information.
