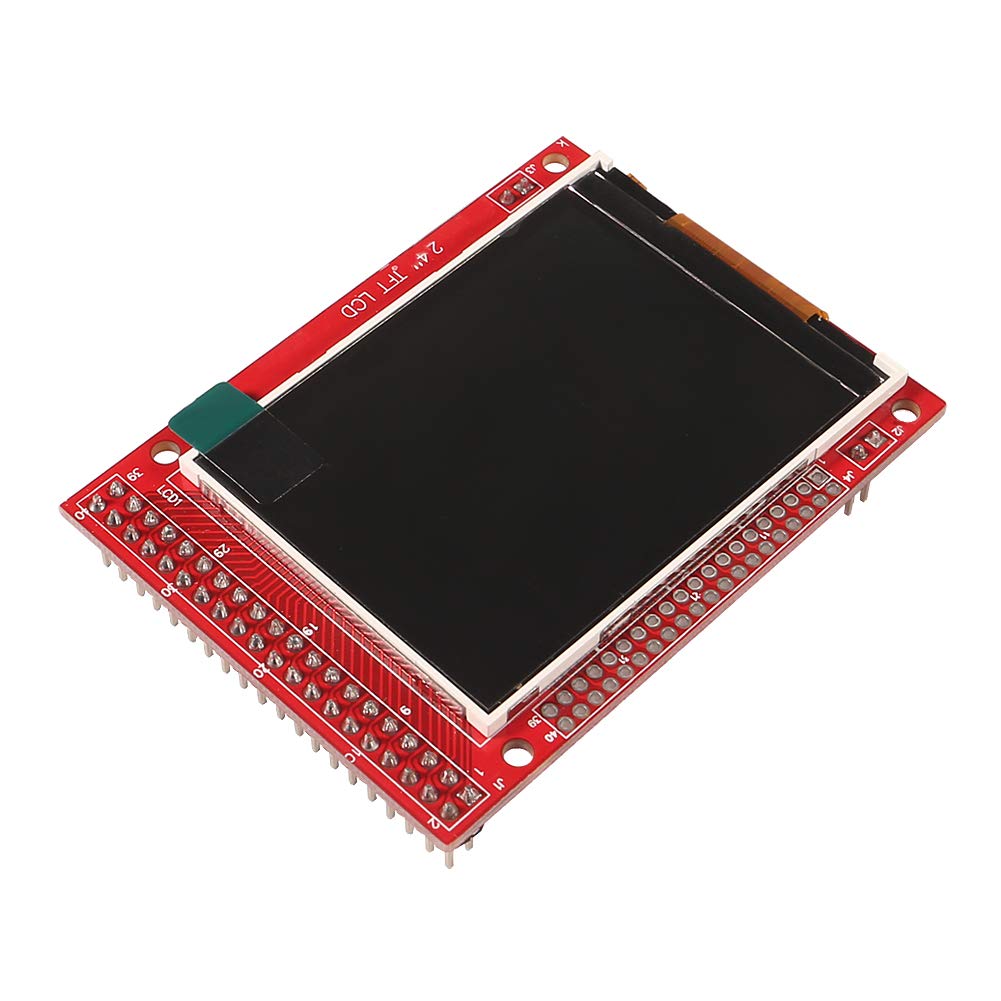

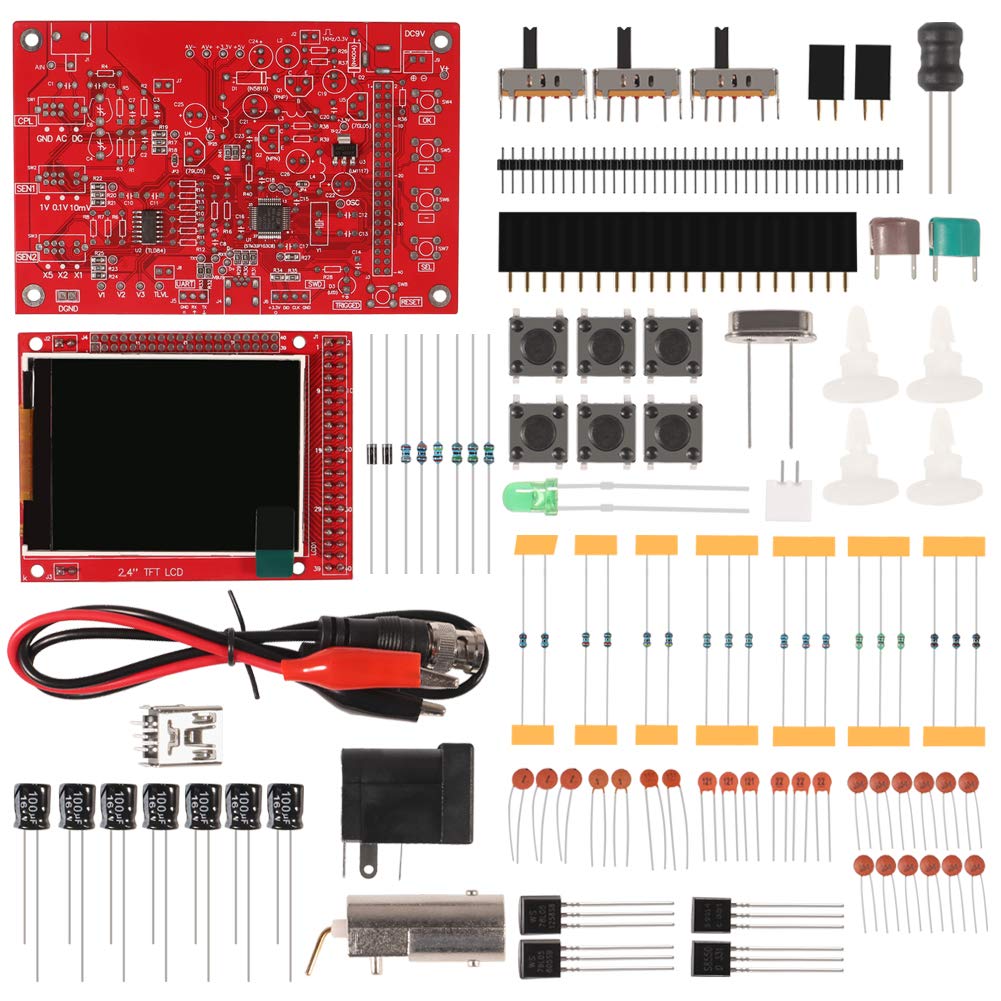

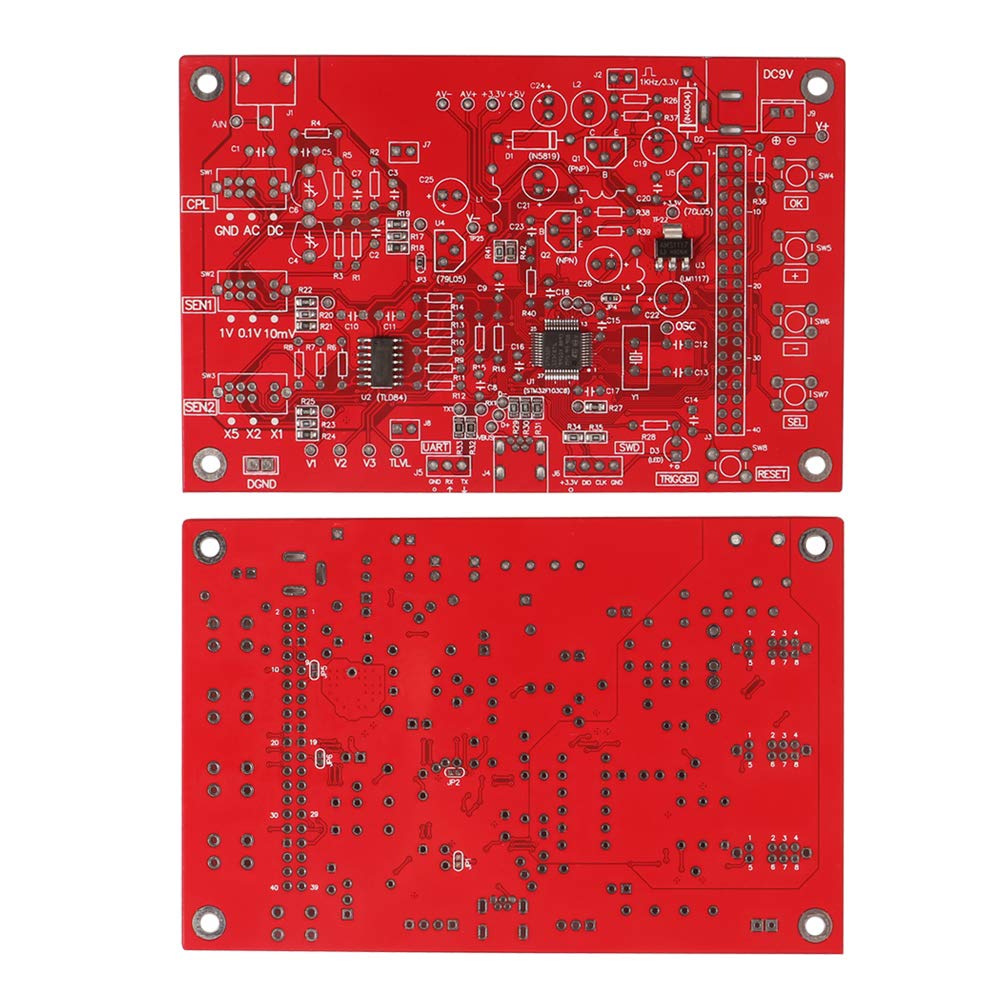

{"id":8764365701271,"title":"DSO 138 DIY Oscilloscope Kit Opening Source 2.4\" TFT 1MSPS Digital Oscilloscope Kit with DIY Parts \u0026 Probe, Handheld Pocket Sized 13803K, SMD Electronic Learning Set oscilloscope diy","handle":"dso-138-diy-oscilloscope-kit-opening-source-2-4-tft-1msps-digital-oscilloscope-kit-with-diy-parts-probe-handheld-pocket-sized-13803k-smd-electronic-learning-set-oscilloscope-diy","description":"\u003ch3\u003eDSO 138 DIY Oscilloscope Kit Opening Source 2.4\" TFT 1MSPS Digital Oscilloscope Kit with DIY Parts \u0026amp; Probe, Handheld Pocket Sized 13803K, SMD Electronic Learning Set\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Maximum Real-time Sampling Rate: 1Msps Accuracy: 12Bit\nSampling Buffer Depth: 1024 bytes Analog Bandwidth: 0-200KHz Vertical\nSensitivity: 10mV \/ Div - 5V \/ Div (1-2-5 progressive manner) Input Impedance:\n1MΩ Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe) Coupling\nModes: DC \/ AC \/ GND The Horizontal Time Base Range: 10μs \/ Div - 50s \/ Div\n(1-2-5 progressive manner) Supply Voltage: DC 9V Oscilloscope Circuit Boards\nPCB size: 117 X 76mm \/ 4.6 X 3in Screen size: 52 X 40mm \/ 2 X 1.57in The\nOscilloscope DIY kit is an upgraded version of the popular DIY oscilloscope\nkit All parts required for completion are included, along with assembly\ninstructions and a user manual Package included: 1 X Oscilloscope DIY kit 1 X\nProbe 1 X Instruction\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDigital DIY oscilloscope uses ARM Cortex-M3 processor and contains a 2.4-inch color TFT display, which can be used as an ARM development test board.\u003c\/li\u003e\n \u003cli\u003eLet you effectively observe and measure signal waveforms in many occasions such as audio, video synchronization, low-frequency switching power supply, infrared receiving and transmitting.\u003c\/li\u003e\n \u003cli\u003eCan make a tailor-made software development on the basis of this kit, which can be can be changed to millivoltmeter, data recorder, etc.\u003c\/li\u003e\n \u003cli\u003eThe variety of components is suitable for students to understand the oscilloscope structure and principles, and do in-line component , and chip component training.\u003c\/li\u003e\n \u003cli\u003eThe oscilloscope kit is a kit specially designed for professional teaching and training in electronics. Please note that this kit need to be assembled by yourself.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-01-29T12:46:36+11:00","created_at":"2025-01-28T21:54:38+11:00","vendor":"DORHEA","type":"Oscilloscope Accessories","tags":["industrial_best_sellers_Jan2025"],"price":17200,"price_min":17200,"price_max":17200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45089253490839,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08DJ1YS99","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DSO 138 DIY Oscilloscope Kit Opening Source 2.4\" TFT 1MSPS Digital Oscilloscope Kit with DIY Parts \u0026 Probe, Handheld Pocket Sized 13803K, SMD Electronic Learning Set oscilloscope diy","public_title":null,"options":["Default Title"],"price":17200,"weight":209,"compare_at_price":null,"inventory_management":"shopify","barcode":"701715439672","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B08DJ1YS99.jpg?v=1775756287","\/\/newnestshop.com\/cdn\/shop\/files\/61Qfd1Z75vL.jpg?v=1738061681","\/\/newnestshop.com\/cdn\/shop\/files\/61lGzAoFlIL.jpg?v=1738061681","\/\/newnestshop.com\/cdn\/shop\/files\/61nEI8m5DrL.jpg?v=1738061681","\/\/newnestshop.com\/cdn\/shop\/files\/71GgCT5_TeL.jpg?v=1738061681","\/\/newnestshop.com\/cdn\/shop\/files\/51s0NfBLcbL.jpg?v=1738061681"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B08DJ1YS99.jpg?v=1775756287","options":["Title"],"media":[{"alt":null,"id":36835289596055,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B08DJ1YS99.jpg?v=1775756287"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B08DJ1YS99.jpg?v=1775756287","width":1001},{"alt":null,"id":36835289628823,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Qfd1Z75vL.jpg?v=1738061681"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Qfd1Z75vL.jpg?v=1738061681","width":1001},{"alt":null,"id":36835289694359,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61lGzAoFlIL.jpg?v=1738061681"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61lGzAoFlIL.jpg?v=1738061681","width":1001},{"alt":null,"id":36835289727127,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61nEI8m5DrL.jpg?v=1738061681"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61nEI8m5DrL.jpg?v=1738061681","width":1001},{"alt":null,"id":36835289759895,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71GgCT5_TeL.jpg?v=1738061681"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71GgCT5_TeL.jpg?v=1738061681","width":1001},{"alt":null,"id":36835289792663,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51s0NfBLcbL.jpg?v=1738061681"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51s0NfBLcbL.jpg?v=1738061681","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDSO 138 DIY Oscilloscope Kit Opening Source 2.4\" TFT 1MSPS Digital Oscilloscope Kit with DIY Parts \u0026amp; Probe, Handheld Pocket Sized 13803K, SMD Electronic Learning Set\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Maximum Real-time Sampling Rate: 1Msps Accuracy: 12Bit\nSampling Buffer Depth: 1024 bytes Analog Bandwidth: 0-200KHz Vertical\nSensitivity: 10mV \/ Div - 5V \/ Div (1-2-5 progressive manner) Input Impedance:\n1MΩ Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe) Coupling\nModes: DC \/ AC \/ GND The Horizontal Time Base Range: 10μs \/ Div - 50s \/ Div\n(1-2-5 progressive manner) Supply Voltage: DC 9V Oscilloscope Circuit Boards\nPCB size: 117 X 76mm \/ 4.6 X 3in Screen size: 52 X 40mm \/ 2 X 1.57in The\nOscilloscope DIY kit is an upgraded version of the popular DIY oscilloscope\nkit All parts required for completion are included, along with assembly\ninstructions and a user manual Package included: 1 X Oscilloscope DIY kit 1 X\nProbe 1 X Instruction\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDigital DIY oscilloscope uses ARM Cortex-M3 processor and contains a 2.4-inch color TFT display, which can be used as an ARM development test board.\u003c\/li\u003e\n \u003cli\u003eLet you effectively observe and measure signal waveforms in many occasions such as audio, video synchronization, low-frequency switching power supply, infrared receiving and transmitting.\u003c\/li\u003e\n \u003cli\u003eCan make a tailor-made software development on the basis of this kit, which can be can be changed to millivoltmeter, data recorder, etc.\u003c\/li\u003e\n \u003cli\u003eThe variety of components is suitable for students to understand the oscilloscope structure and principles, and do in-line component , and chip component training.\u003c\/li\u003e\n \u003cli\u003eThe oscilloscope kit is a kit specially designed for professional teaching and training in electronics. Please note that this kit need to be assembled by yourself.\u003c\/li\u003e\n \u003c\/ul\u003e"}
