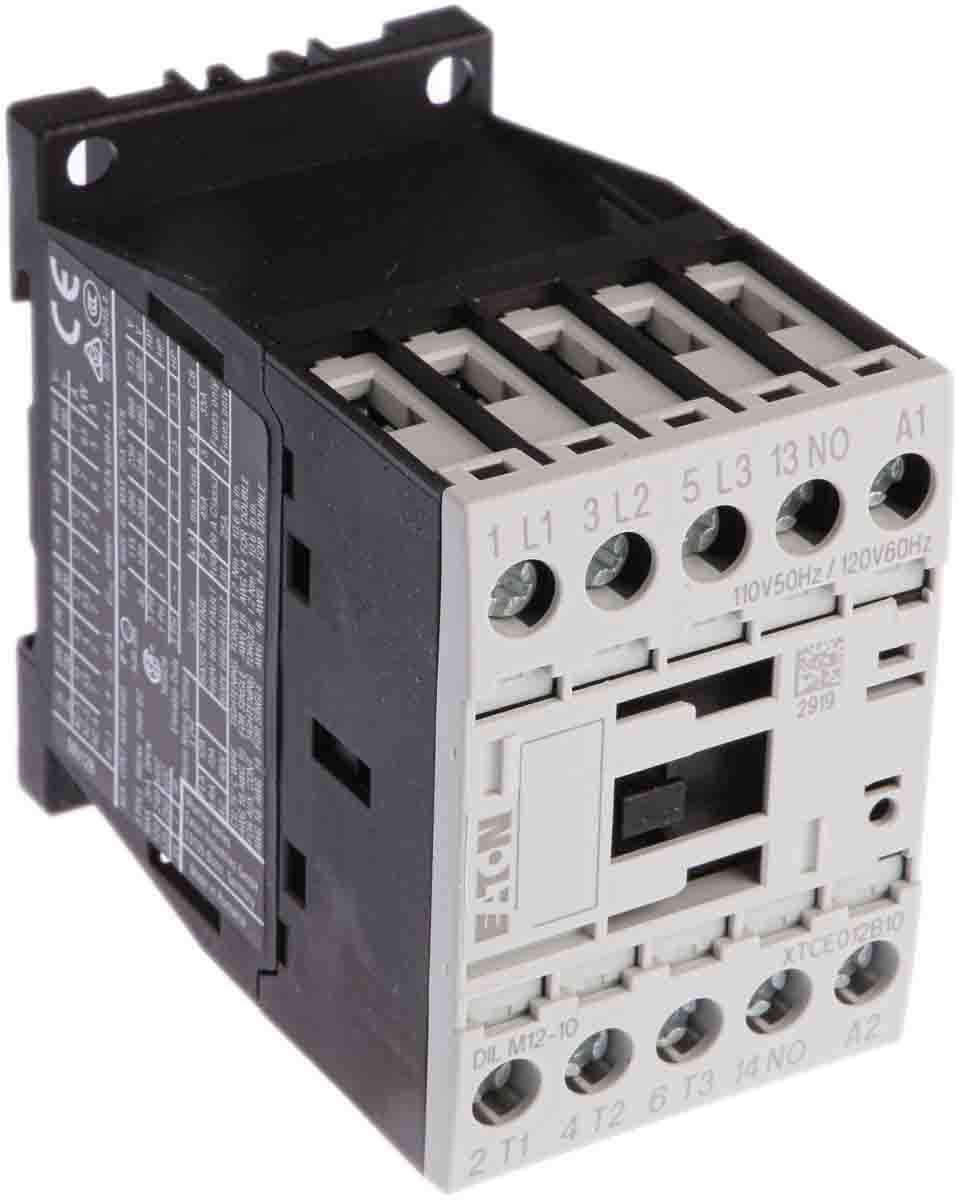

{"id":9536657555607,"title":"Eaton XTCE012B10A XT-IEC Contactor and Starter, 45mm, 12A AC-3 Current Rating, 3 Max HP at 230VAC, 7-1\/2 Max HP at 460VAC, 10 Max HP at 575VAC, 120VAC Coil Voltage","handle":"eaton-xtce012b10a-xt-iec-contactor-and-starter-45mm-12a-ac-3-current-rating-3-max-hp-at-230vac-7-1-2-max-hp-at-460vac-10-max-hp-at-575vac-120vac-coil-voltage","description":"\u003ch3\u003eEaton XTCE012B10A XT-IEC Contactor and Starter, 45mm, 12A AC-3 Current Rating, 3 Max HP at 230VAC, 7-1\/2 Max HP at 460VAC, 10 Max HP at 575VAC, 120VAC Coil Voltage\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThe Eaton XT IEC contactor is an IEC magnetic contactor (3-pole) with a 120 V\r\nAC coil. The unit is configured as a Non-Reversing device with one normally\r\nopen auxiliary contact. The unit uses screw terminals, supports DIN Rail or\r\nPanel mounting; the enclosure type is not specified. The product belongs to\r\nthe XT series (Frame size B) and conforms to IEC standards for magnetic\r\ncontactors. - Coil voltage: 120 V AC - Action: Non-Reversing - Poles: 3 - Main\r\ncontact configuration: 1 NO - Auxiliary contact configuration: 1 NO - Frame\r\nsize \/ Series: Frame B; Series XT - Contactor style: IEC - Mounting: DIN Rail,\r\nPanel - Electrical connection: Screw terminals - Rated for operation up to 690\r\nV AC within specified conditions - Frequency: 50\/60 Hz - Rated for full load\r\ncurrents of up to 12 A inductive and 22 A resistive loads under specified\r\nconditions - Suitable for applications requiring these horsepower ratings\r\nwithin their respective voltage ranges, based on manufacturer specifications -\r\nEmbedded surge suppressor: Yes - Enclosure: No Enclosure - IP Rating: IP20 -\r\nCertifications \/ Standards: UL Listed; CSA Certified; IEC 60947; EN 60947; CE\r\nMarked; RoHS - Reversing: No - Response time: Less Than 12 msec (DC opening),\r\nLess Than 18 msec (AC opening), Less Than 21 msec (AC closing), Less Than 31\r\nmsec (DC opening)\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eIEC contactors available from 7 to 2500 amps\u003c\/li\u003e\r\n \u003cli\u003eReversing contactors, FVNR and FVR starters, and CMCs (integrated Starters) available\u003c\/li\u003e\r\n \u003cli\u003eLow wattage coils are available in a wide range of both AC: 12V to 600V 50\/60 Hz, DC: 12V to 220V\u003c\/li\u003e\r\n \u003cli\u003eDC coil has same physical dimensions as AC coil\u003c\/li\u003e\r\n \u003cli\u003ePanel or DIN rail mounting; UL Listed, CSA Certified, CE Compliant\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-04-01T02:18:31+11:00","created_at":"2026-04-01T02:18:28+11:00","vendor":"Eaton","type":"Motor Contactors","tags":["home_improvement_Apr2026"],"price":19800,"price_min":19800,"price_max":19800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":47590726172823,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0028YO6X8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Eaton XTCE012B10A XT-IEC Contactor and Starter, 45mm, 12A AC-3 Current Rating, 3 Max HP at 230VAC, 7-1\/2 Max HP at 460VAC, 10 Max HP at 575VAC, 120VAC Coil Voltage","public_title":null,"options":["Default Title"],"price":19800,"weight":249,"compare_at_price":null,"inventory_management":"shopify","barcode":"276827","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0028YO.jpg?v=1775825616"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0028YO.jpg?v=1775825616","options":["Title"],"media":[{"alt":null,"id":41322109206679,"position":1,"preview_image":{"aspect_ratio":0.799,"height":1200,"width":959,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0028YO.jpg?v=1775825616"},"aspect_ratio":0.799,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0028YO.jpg?v=1775825616","width":959}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eEaton XTCE012B10A XT-IEC Contactor and Starter, 45mm, 12A AC-3 Current Rating, 3 Max HP at 230VAC, 7-1\/2 Max HP at 460VAC, 10 Max HP at 575VAC, 120VAC Coil Voltage\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThe Eaton XT IEC contactor is an IEC magnetic contactor (3-pole) with a 120 V\r\nAC coil. The unit is configured as a Non-Reversing device with one normally\r\nopen auxiliary contact. The unit uses screw terminals, supports DIN Rail or\r\nPanel mounting; the enclosure type is not specified. The product belongs to\r\nthe XT series (Frame size B) and conforms to IEC standards for magnetic\r\ncontactors. - Coil voltage: 120 V AC - Action: Non-Reversing - Poles: 3 - Main\r\ncontact configuration: 1 NO - Auxiliary contact configuration: 1 NO - Frame\r\nsize \/ Series: Frame B; Series XT - Contactor style: IEC - Mounting: DIN Rail,\r\nPanel - Electrical connection: Screw terminals - Rated for operation up to 690\r\nV AC within specified conditions - Frequency: 50\/60 Hz - Rated for full load\r\ncurrents of up to 12 A inductive and 22 A resistive loads under specified\r\nconditions - Suitable for applications requiring these horsepower ratings\r\nwithin their respective voltage ranges, based on manufacturer specifications -\r\nEmbedded surge suppressor: Yes - Enclosure: No Enclosure - IP Rating: IP20 -\r\nCertifications \/ Standards: UL Listed; CSA Certified; IEC 60947; EN 60947; CE\r\nMarked; RoHS - Reversing: No - Response time: Less Than 12 msec (DC opening),\r\nLess Than 18 msec (AC opening), Less Than 21 msec (AC closing), Less Than 31\r\nmsec (DC opening)\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eIEC contactors available from 7 to 2500 amps\u003c\/li\u003e\r\n \u003cli\u003eReversing contactors, FVNR and FVR starters, and CMCs (integrated Starters) available\u003c\/li\u003e\r\n \u003cli\u003eLow wattage coils are available in a wide range of both AC: 12V to 600V 50\/60 Hz, DC: 12V to 220V\u003c\/li\u003e\r\n \u003cli\u003eDC coil has same physical dimensions as AC coil\u003c\/li\u003e\r\n \u003cli\u003ePanel or DIN rail mounting; UL Listed, CSA Certified, CE Compliant\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
