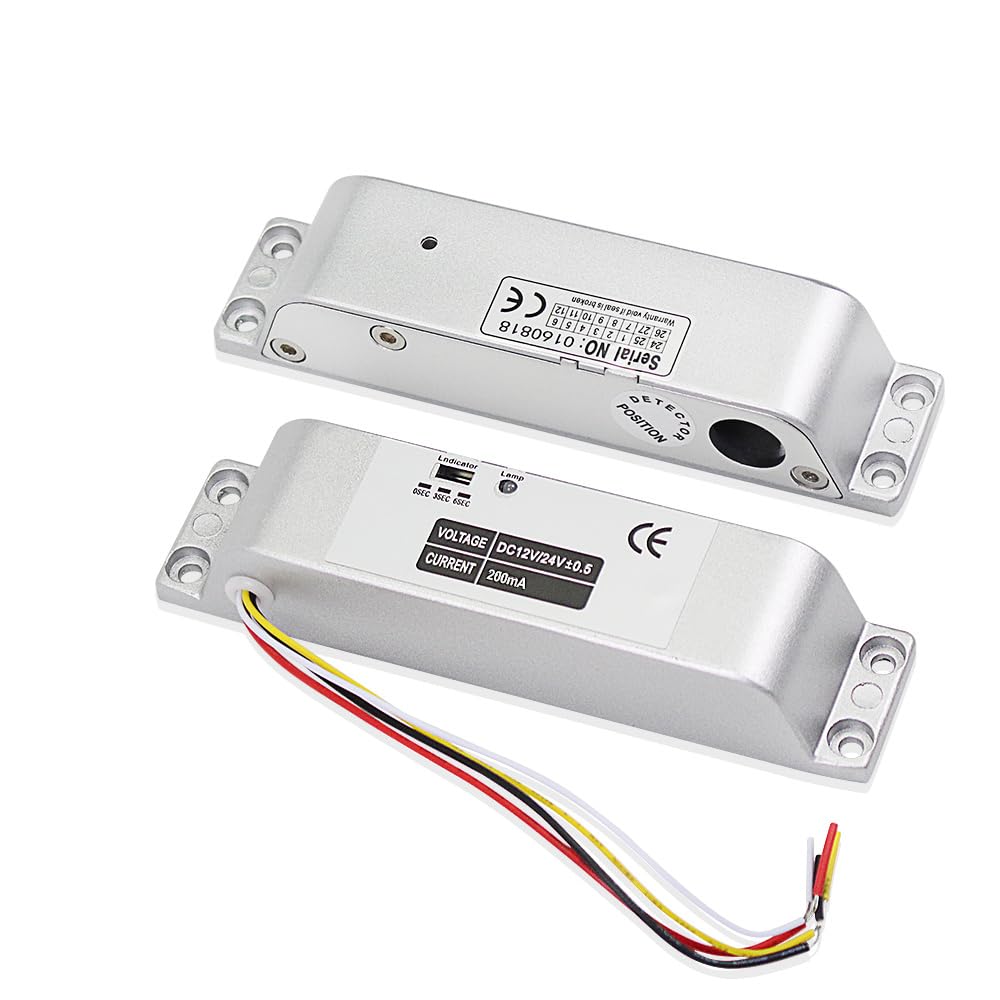

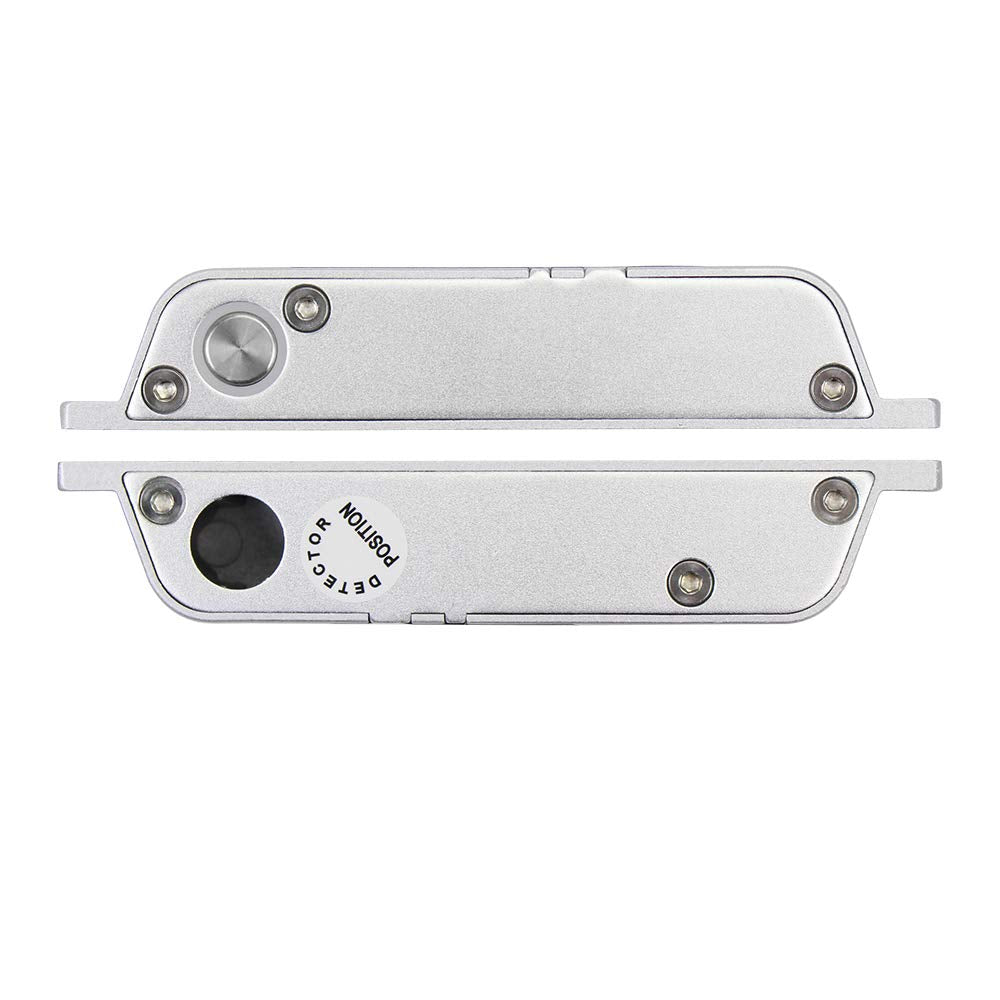

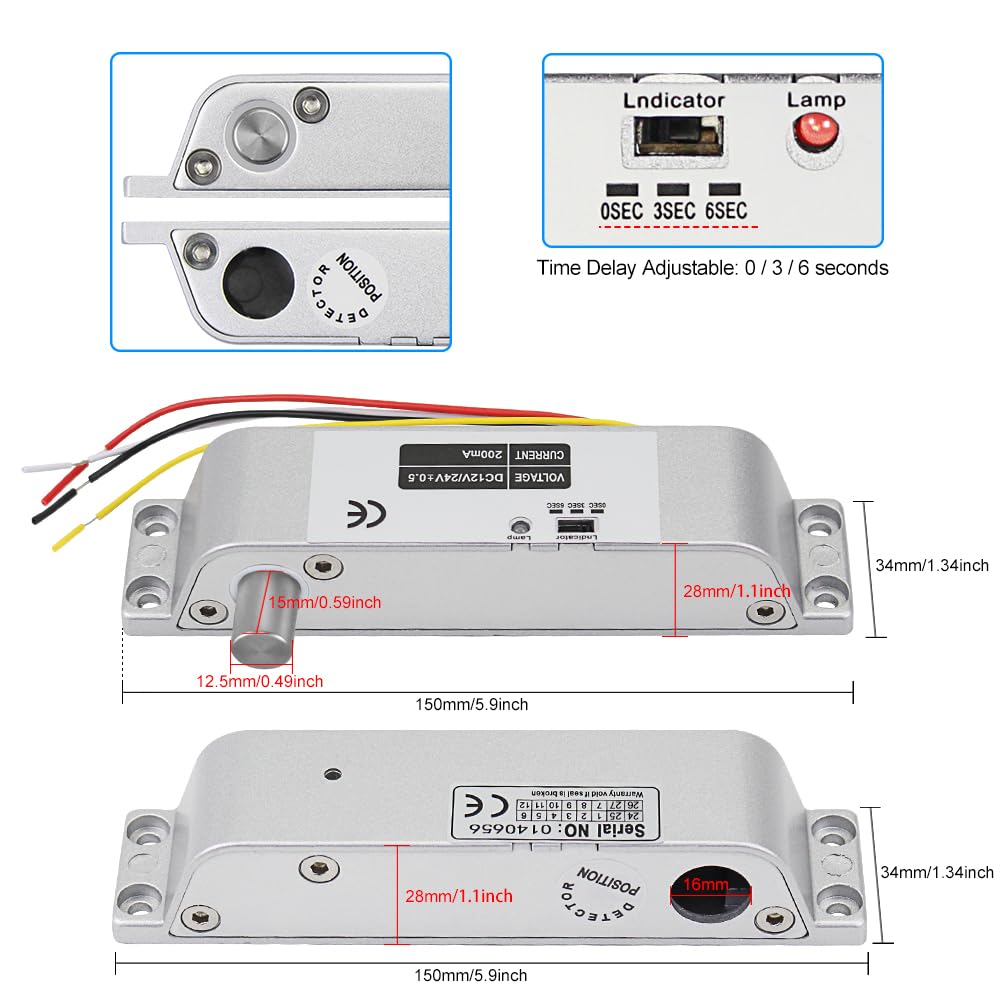

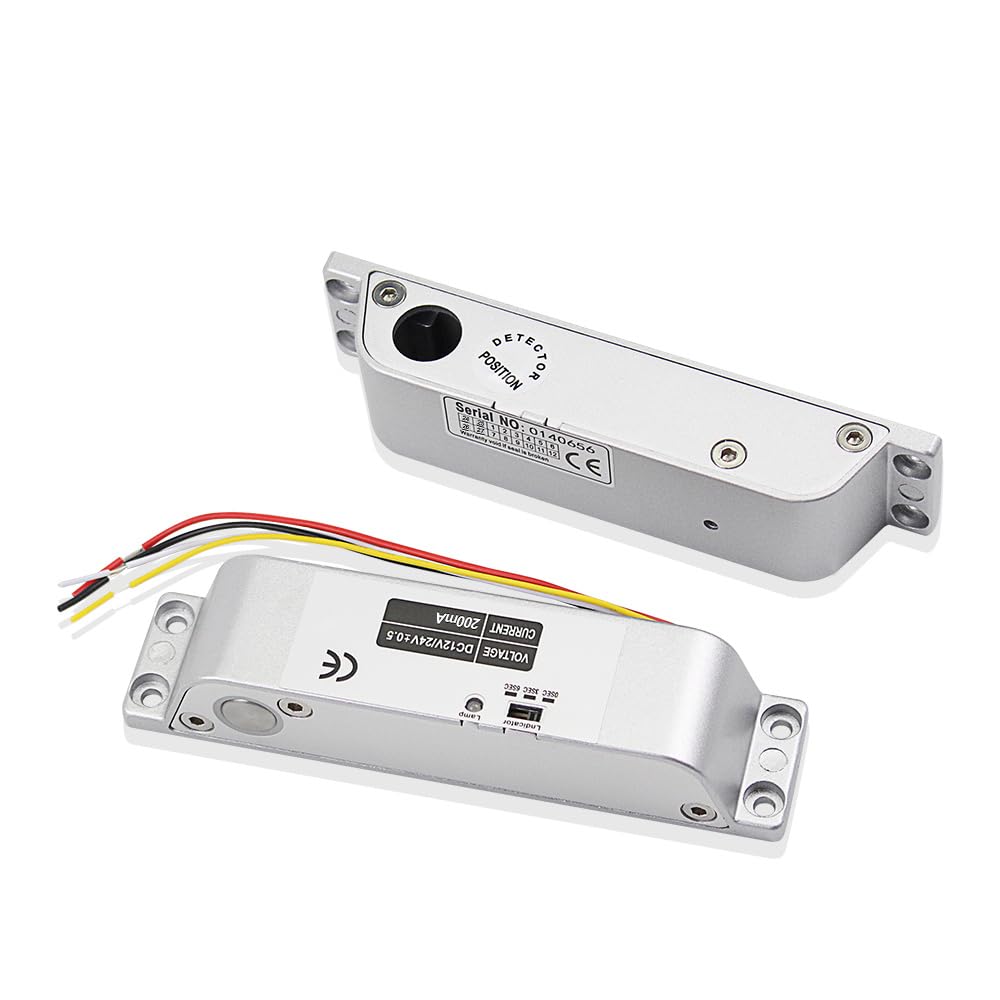

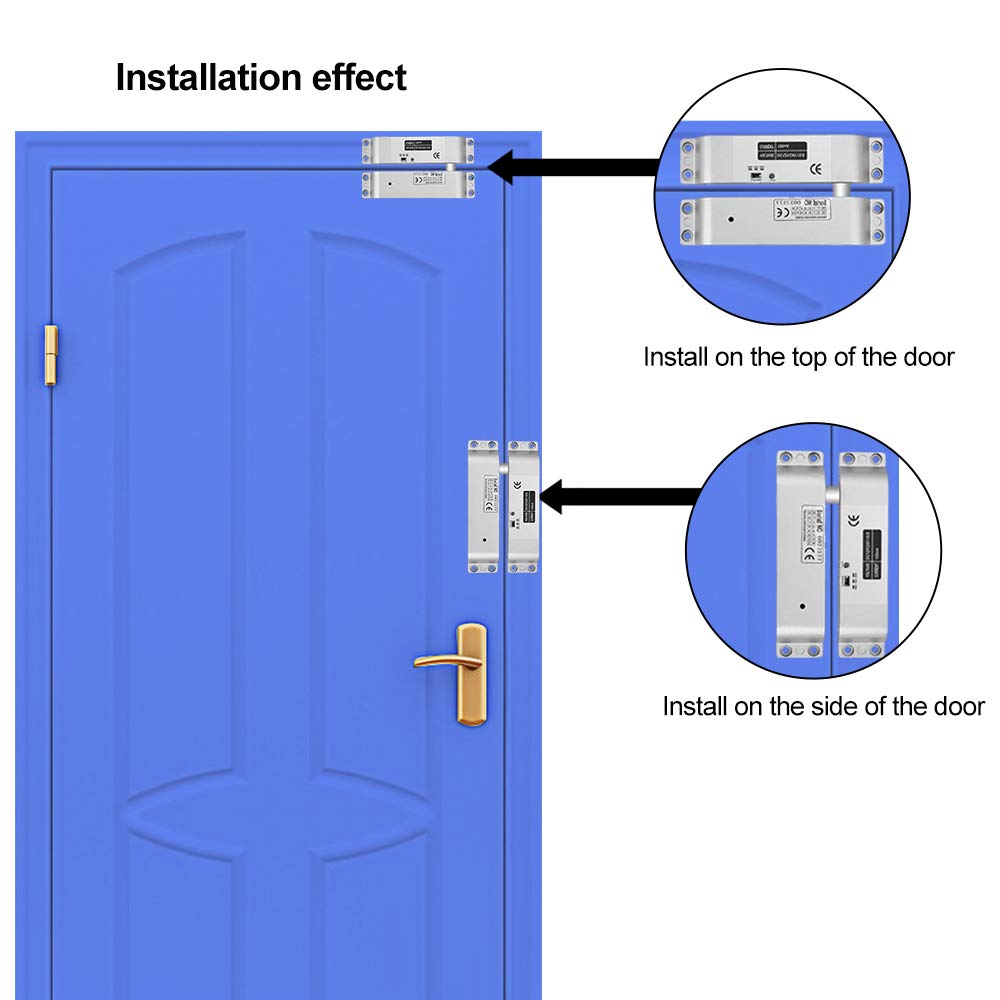

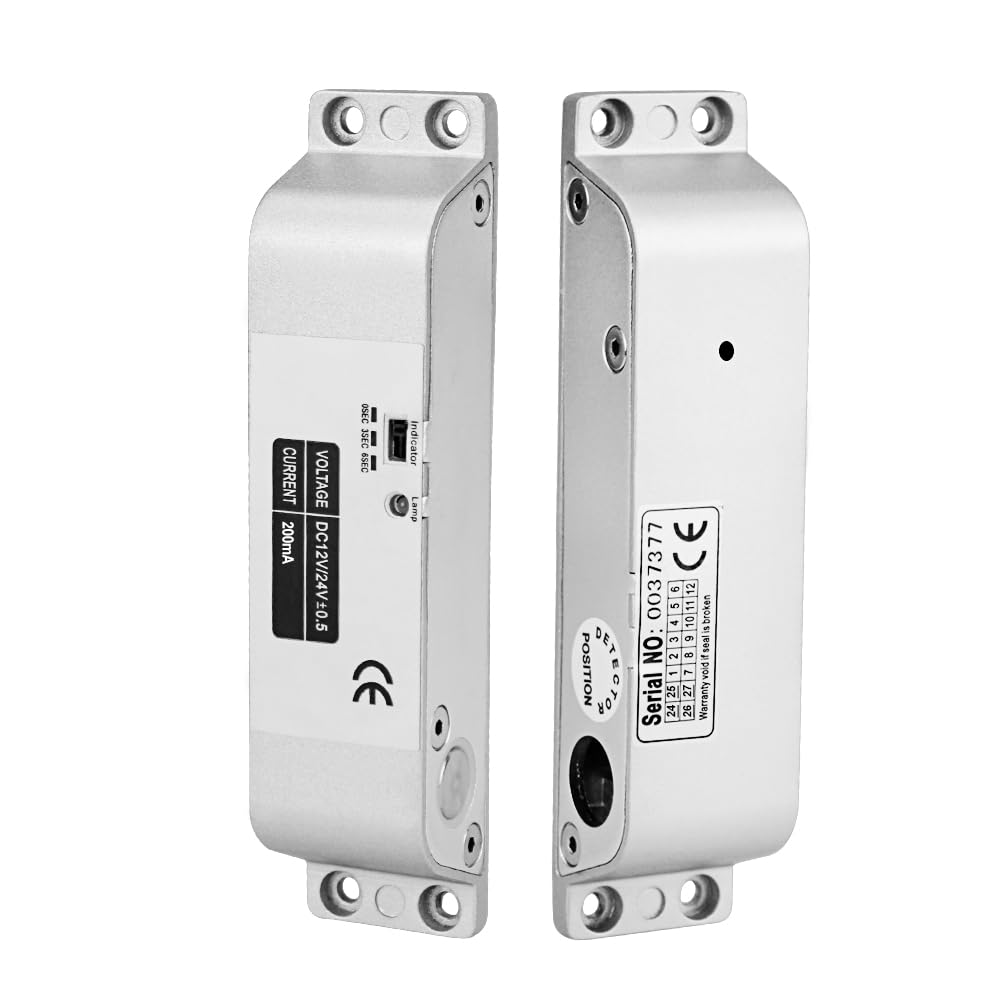

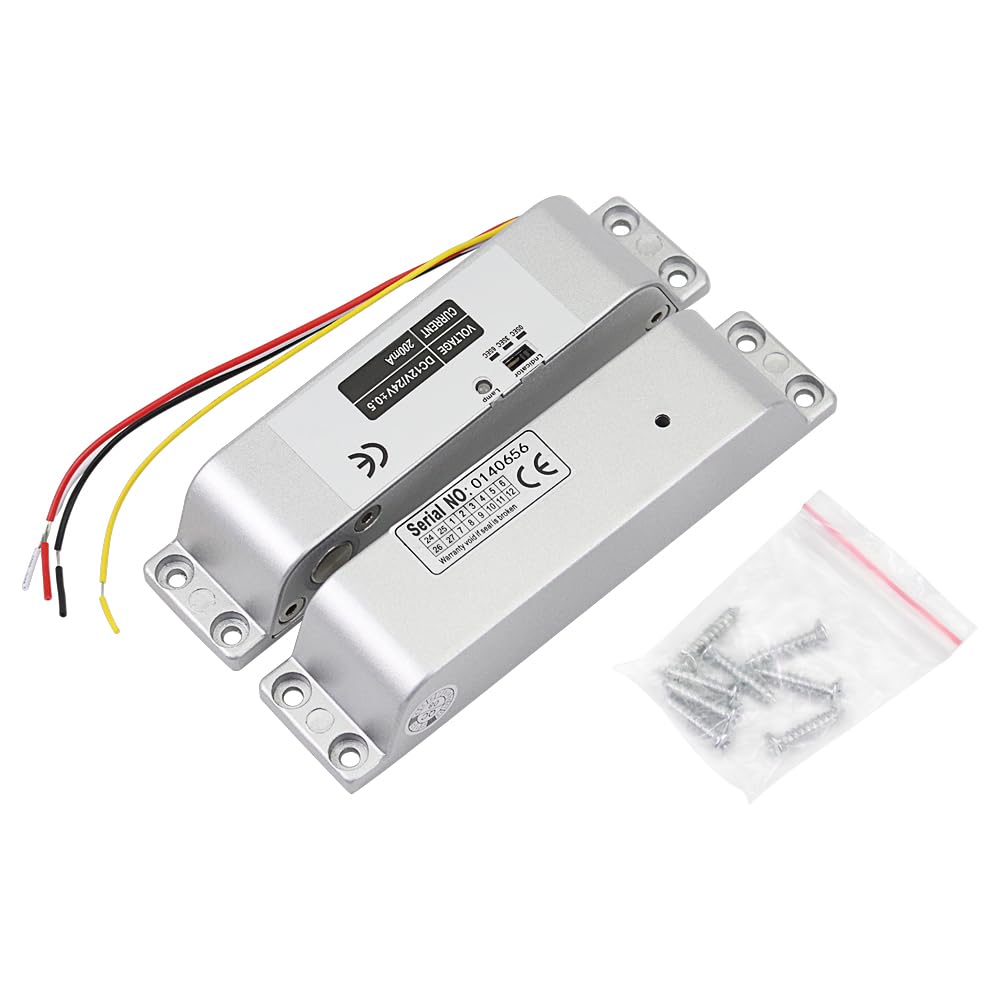

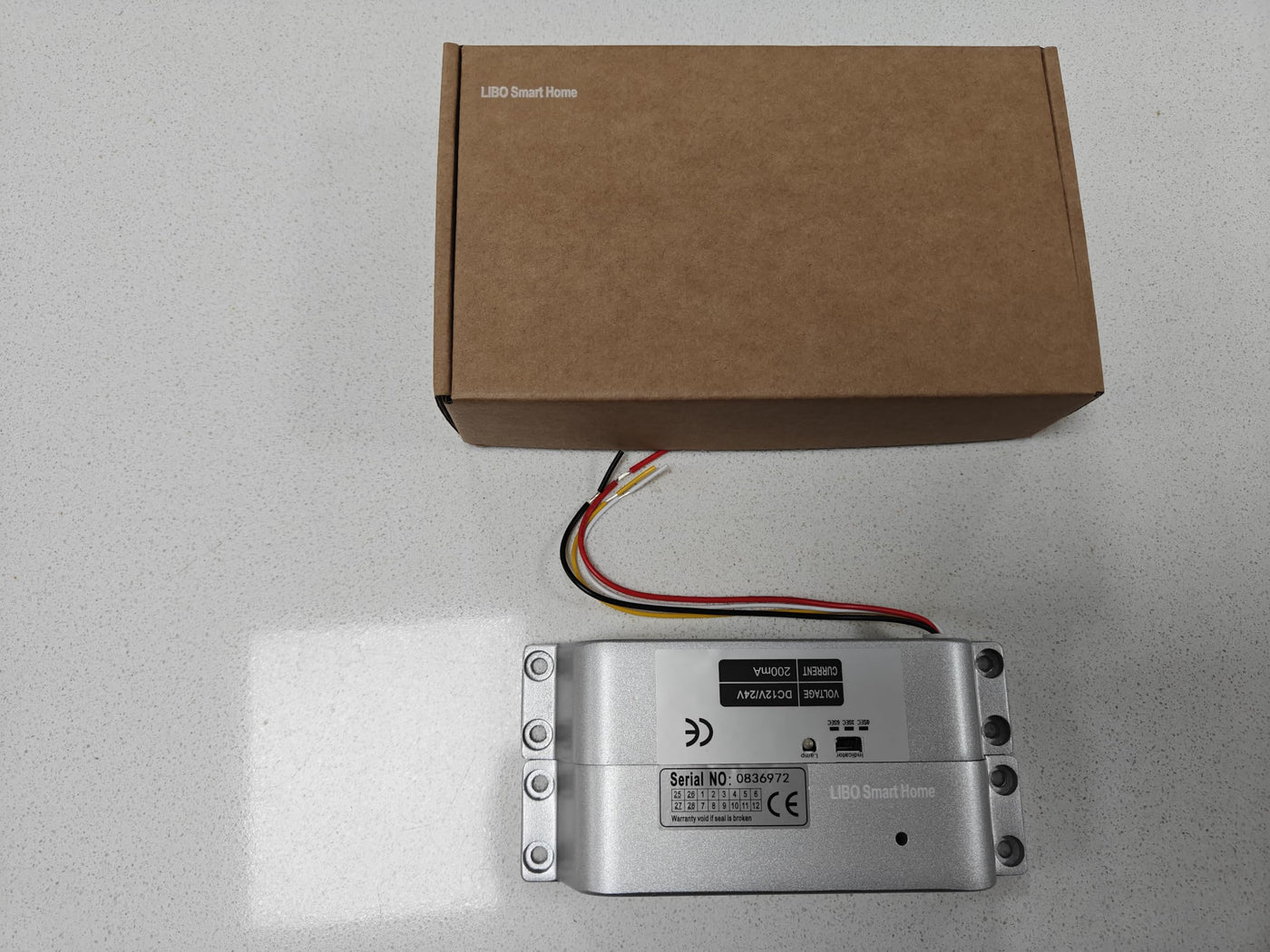

{"id":9516011454615,"title":"Electric Drop Bolt Lock DC 12V Fail Safe NC Mode Electronic Door Lock for Access Control Security System with Time Delay","handle":"electric-drop-bolt-lock-dc-12v-fail-safe-nc-mode-electronic-door-lock-for-access-control-security-system-with-time-delay","description":"\u003ch3\u003eElectric Drop Bolt Lock DC 12V Fail Safe NC Mode Electronic Door Lock for Access Control Security System with Time Delay\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eFeatures: 1. NC mode - (locked while supplied with power), fail safe mode. 2.\r\nInstallation: unfold install (surface mounted). 3. Material: Aluminum alloy\r\nmaterial. 4. With time delay: 0s, 3s, 6s. 5. Suitable For: Wooden door, Glass\r\ndoor, Metal door, Fireproof door, etc. 6. Surface scrub treatment, durable and\r\nwear-resistant. 7. Lock body use hexagon screw, fixed panel, anti-theft and\r\nmore security. Specifications: Model Name: L-XXS Dimensions: 150x34x28mm Lock\r\ncore: The diameter 12.5MM, extending the length of 15MM Working Voltage: DC12V\r\nWorking current: Start state 1.2A Persistent state 120mA Operating Mode: NC\r\n(locked while supplied with power), fail safe mode Wires: red to \"NC\", black\r\nto \"GND\". Warm Note: yellow line and white line are useless, don't need to be\r\nconnected. Package Including: 1 x Electric Drop Bolt Lock 1 x Bag of\r\ninstallation kit\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e1, NC Mode: Fail-safe type, unlocked when power off, locked when power on.\u003c\/li\u003e\r\n \u003cli\u003e2, Installation: unfold install (surface mounted).\u003c\/li\u003e\r\n \u003cli\u003e3, With time delay: 0s, 3s, 6s\u003c\/li\u003e\r\n \u003cli\u003e4, Wires: red to \"NC\", black to \"GND\". yellow line and white line are useless, don't need to be connected.\u003c\/li\u003e\r\n \u003cli\u003e5, Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-03-28T21:44:12+11:00","created_at":"2026-03-28T21:44:07+11:00","vendor":"LIBO Smart Home","type":"Deadbolts","tags":["home_improvement_Apr2026"],"price":17200,"price_min":17200,"price_max":17200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":47564825624727,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07DW17J3Q","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Drop Bolt Lock DC 12V Fail Safe NC Mode Electronic Door Lock for Access Control Security System with Time Delay","public_title":null,"options":["Default Title"],"price":17200,"weight":581,"compare_at_price":null,"inventory_management":"shopify","barcode":"768692650742","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B07DW17J3Q.jpg?v=1775819474","\/\/newnestshop.com\/cdn\/shop\/files\/51SWXv99YnL.jpg?v=1774694650","\/\/newnestshop.com\/cdn\/shop\/files\/515rm0w6ClL.jpg?v=1774694650","\/\/newnestshop.com\/cdn\/shop\/files\/61p-hG0HzmL_812f4227-d0c8-4fc6-b613-55558319e35e.jpg?v=1774694650","\/\/newnestshop.com\/cdn\/shop\/files\/51UUVcDMkOL.jpg?v=1774694650","\/\/newnestshop.com\/cdn\/shop\/files\/61qjYOFqVQL.jpg?v=1774694650","\/\/newnestshop.com\/cdn\/shop\/files\/51_X32UuZ6L.jpg?v=1774694650","\/\/newnestshop.com\/cdn\/shop\/files\/81W_fAMEI6L.jpg?v=1774694651"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B07DW17J3Q.jpg?v=1775819474","options":["Title"],"media":[{"alt":null,"id":41254482116759,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B07DW17J3Q.jpg?v=1775819474"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B07DW17J3Q.jpg?v=1775819474","width":1000},{"alt":null,"id":41254482149527,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51SWXv99YnL.jpg?v=1774694650"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51SWXv99YnL.jpg?v=1774694650","width":1000},{"alt":null,"id":41254482182295,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/515rm0w6ClL.jpg?v=1774694650"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/515rm0w6ClL.jpg?v=1774694650","width":1000},{"alt":null,"id":41254482215063,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61p-hG0HzmL_812f4227-d0c8-4fc6-b613-55558319e35e.jpg?v=1774694650"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61p-hG0HzmL_812f4227-d0c8-4fc6-b613-55558319e35e.jpg?v=1774694650","width":1000},{"alt":null,"id":41254482247831,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51UUVcDMkOL.jpg?v=1774694650"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51UUVcDMkOL.jpg?v=1774694650","width":1000},{"alt":null,"id":41254482280599,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61qjYOFqVQL.jpg?v=1774694650"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61qjYOFqVQL.jpg?v=1774694650","width":1000},{"alt":null,"id":41254482313367,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51_X32UuZ6L.jpg?v=1774694650"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51_X32UuZ6L.jpg?v=1774694650","width":1000},{"alt":null,"id":41254482346135,"position":8,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/81W_fAMEI6L.jpg?v=1774694651"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/81W_fAMEI6L.jpg?v=1774694651","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eElectric Drop Bolt Lock DC 12V Fail Safe NC Mode Electronic Door Lock for Access Control Security System with Time Delay\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eFeatures: 1. NC mode - (locked while supplied with power), fail safe mode. 2.\r\nInstallation: unfold install (surface mounted). 3. Material: Aluminum alloy\r\nmaterial. 4. With time delay: 0s, 3s, 6s. 5. Suitable For: Wooden door, Glass\r\ndoor, Metal door, Fireproof door, etc. 6. Surface scrub treatment, durable and\r\nwear-resistant. 7. Lock body use hexagon screw, fixed panel, anti-theft and\r\nmore security. Specifications: Model Name: L-XXS Dimensions: 150x34x28mm Lock\r\ncore: The diameter 12.5MM, extending the length of 15MM Working Voltage: DC12V\r\nWorking current: Start state 1.2A Persistent state 120mA Operating Mode: NC\r\n(locked while supplied with power), fail safe mode Wires: red to \"NC\", black\r\nto \"GND\". Warm Note: yellow line and white line are useless, don't need to be\r\nconnected. Package Including: 1 x Electric Drop Bolt Lock 1 x Bag of\r\ninstallation kit\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e1, NC Mode: Fail-safe type, unlocked when power off, locked when power on.\u003c\/li\u003e\r\n \u003cli\u003e2, Installation: unfold install (surface mounted).\u003c\/li\u003e\r\n \u003cli\u003e3, With time delay: 0s, 3s, 6s\u003c\/li\u003e\r\n \u003cli\u003e4, Wires: red to \"NC\", black to \"GND\". yellow line and white line are useless, don't need to be connected.\u003c\/li\u003e\r\n \u003cli\u003e5, Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
