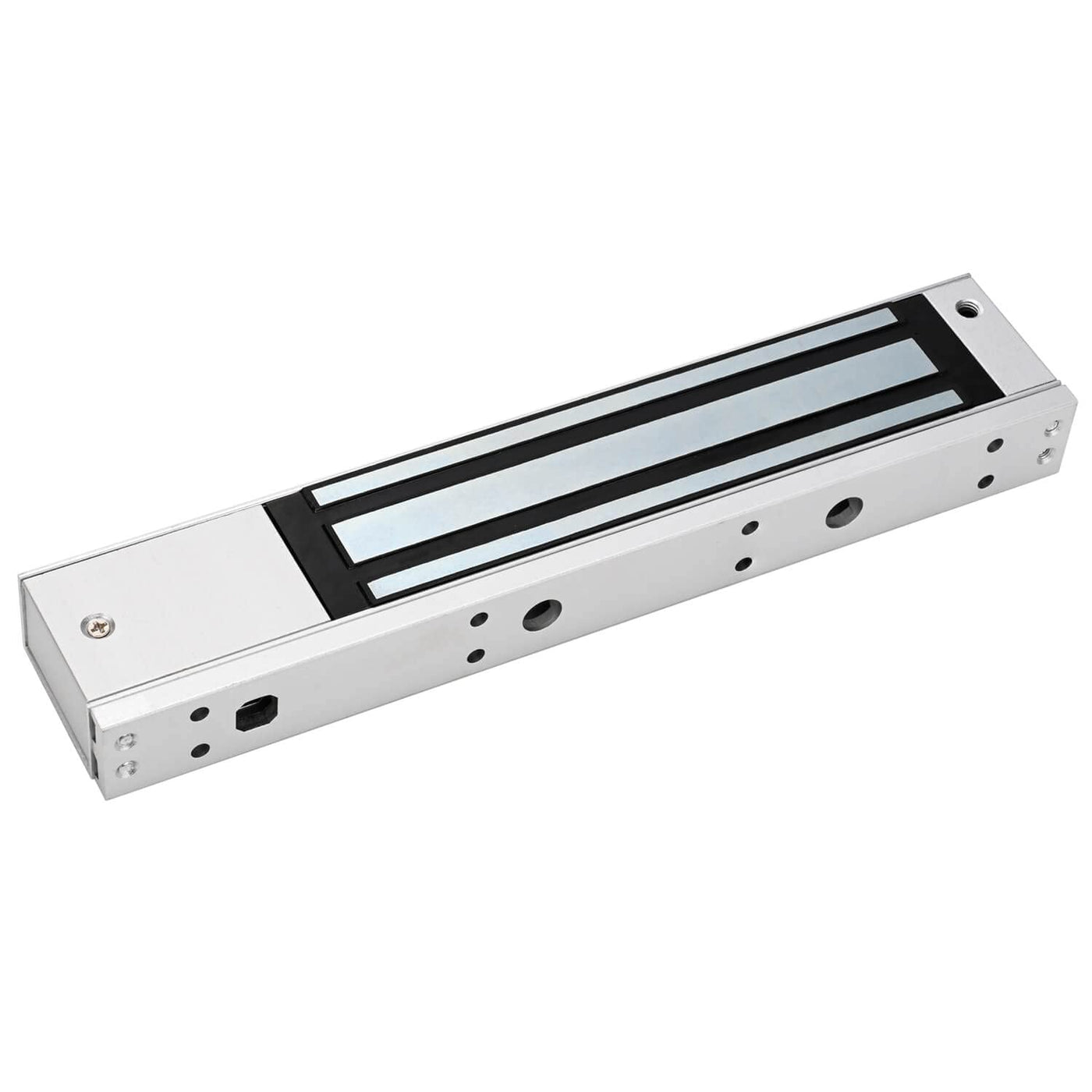

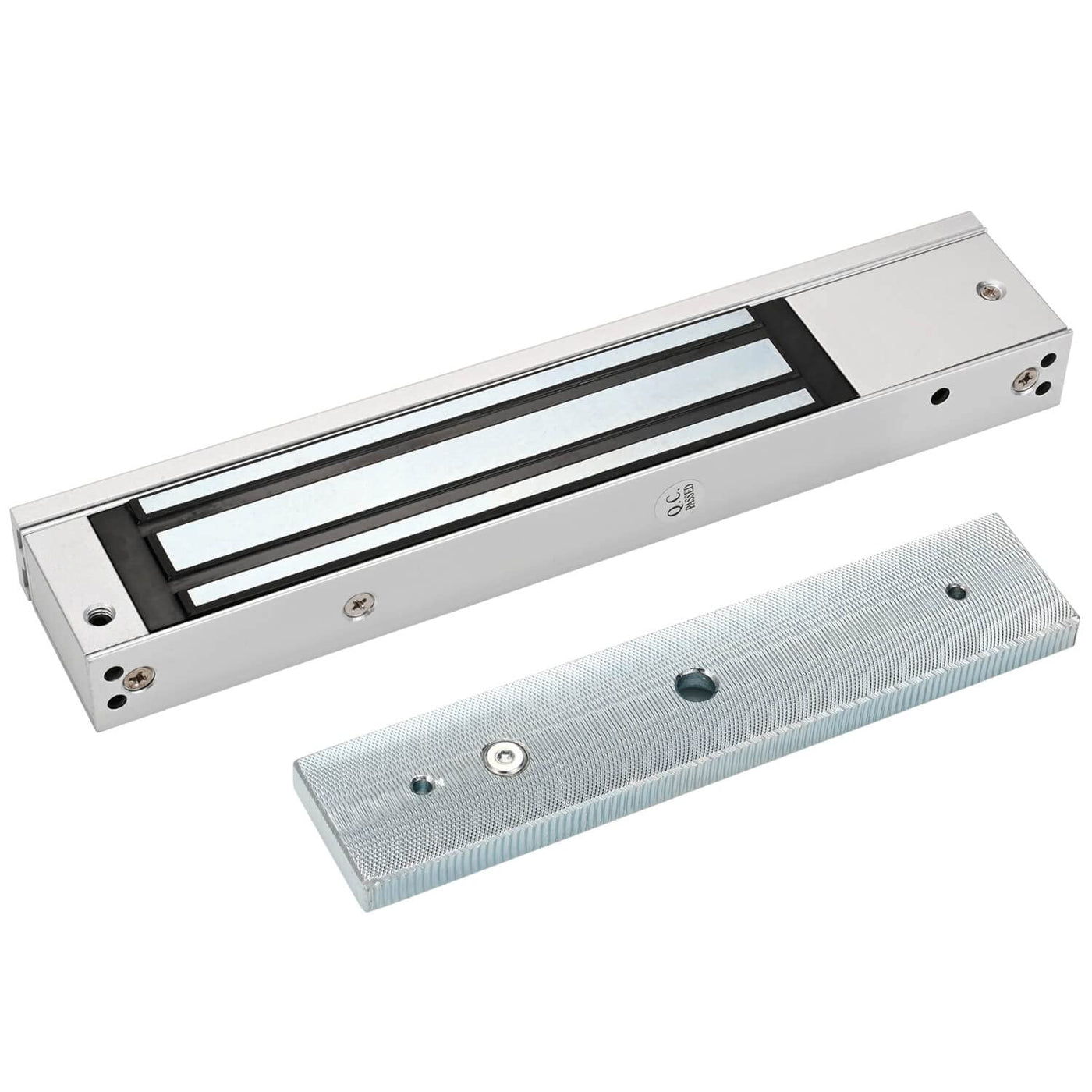

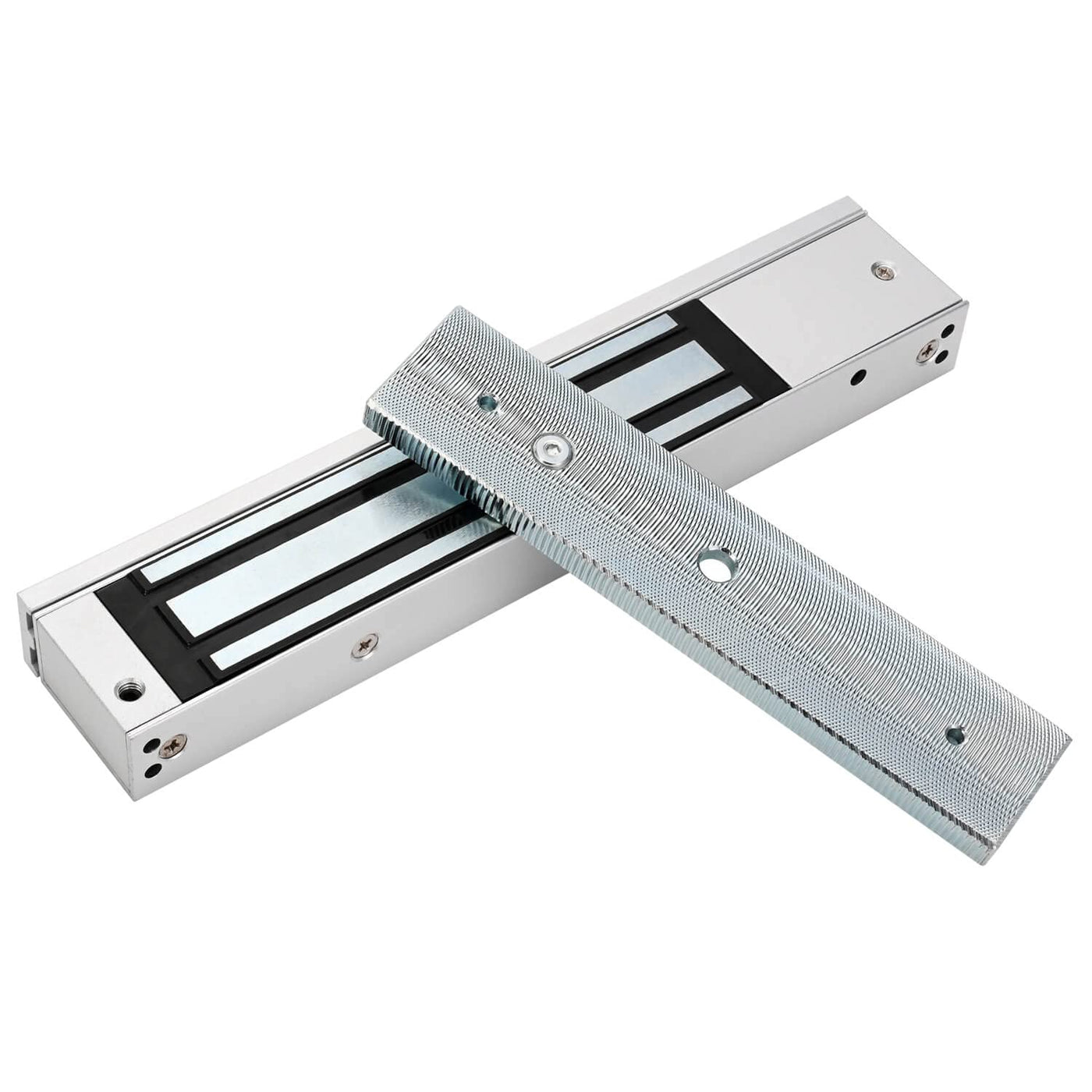

{"id":9505046954135,"title":"Electromagnetic Lock 280KG 600LBS Holding Force Electric Magnetic Door Lock 12V Fail Safe NC Mode for Access Control System 600LBS Lock","handle":"electromagnetic-lock-280kg-600lbs-holding-force-electric-magnetic-door-lock-12v-fail-safe-nc-mode-for-access-control-system-600lbs-lock","description":"\u003ch3\u003eElectromagnetic Lock 280KG 600LBS Holding Force Electric Magnetic Door Lock 12V Fail Safe NC Mode for Access Control System\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis 600LBS Holding Force electric magnetic lock consists of an electromagnet\nand an armature plate used for access control door locks. By attaching this to\nthe door frame and the armature plate to the door, a current passing through\nthe electromagnet attracts the armature plate, holding the access control door\nlock shut. NC Mode (Fail-Safe Mode): The door will be closed when power is on;\nwhen power off, the door will open. It is suitable for wooden door, glass\ndoor, metal door, fire-proof door, Cabinet, etc. Specification:\nElectromagnetic plate Material: Aluminum Alloy + Metal Plate Armature Plate\nMaterial: Zinc Cover Finish: Anodized aluminum Color: Silver Holding Force:\n600LBS\/280KG Input Voltage: DC 12V Operating Temperature: -10C to +55C (14 to\n131F) Operating Current: 480mA Size: 9.84L x 1.93W x 0.98H (inch)\/ 290L x 45W\nx 25H (mm) Armature plate: 7.09L x 1.50W x 0.43H (inch)\/ 180L x 38W x 11H (mm)\nPackage Weight: Approx. 4.0lb (1.78KG) Package list: 1 Electromagnetic Lock\n1 Armature Plate 1 Screws Pack 1 User Manual (English)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMaterials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 600Lbs (280KG) and significant features.\u003c\/li\u003e\n \u003cli\u003eSize: The lock size is 9.84 x 1.93 x 0.98 inch (250 x 49 x 25mm); Armature plate: 7.09 x 1.50 x 0.43 inch (180 x 38 x 11mm). Holding Force: 600LBS (280KG).\u003c\/li\u003e\n \u003cli\u003eMode: NC Mode (Fail-Safe Mode), Locked whilst power supply is operating, unlocked when power off; Voltage: DC12V.\u003c\/li\u003e\n \u003cli\u003eSecurity protection: This electromagnetic lock has safety function. It is built in voltage spike suppressor.\u003c\/li\u003e\n \u003cli\u003eWide Applications: This electric magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-03-21T17:43:02+11:00","created_at":"2026-03-21T17:42:58+11:00","vendor":"YUANWIN","type":"Lock Replacement Parts","tags":["home_improvement_Apr2026"],"price":36200,"price_min":36200,"price_max":36200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":47454326227095,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BJDVZSWP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electromagnetic Lock 280KG 600LBS Holding Force Electric Magnetic Door Lock 12V Fail Safe NC Mode for Access Control System 600LBS Lock","public_title":null,"options":["Default Title"],"price":36200,"weight":1778,"compare_at_price":null,"inventory_management":"shopify","barcode":"769894489802","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0BJDVZSWP.jpg?v=1775813456","\/\/newnestshop.com\/cdn\/shop\/files\/61G0kwduuWL.jpg?v=1774075381","\/\/newnestshop.com\/cdn\/shop\/files\/51tNBuB0rPL.jpg?v=1774075381","\/\/newnestshop.com\/cdn\/shop\/files\/61_QvRf6BRL.jpg?v=1774075381","\/\/newnestshop.com\/cdn\/shop\/files\/61Co19k5qsL.jpg?v=1774075381","\/\/newnestshop.com\/cdn\/shop\/files\/613ApZbDpHL.jpg?v=1774075381","\/\/newnestshop.com\/cdn\/shop\/files\/51_a4wXpWLL.jpg?v=1774075381","\/\/newnestshop.com\/cdn\/shop\/files\/61v6Jq0W1YL.jpg?v=1774075381"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0BJDVZSWP.jpg?v=1775813456","options":["Title"],"media":[{"alt":null,"id":41170596921495,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0BJDVZSWP.jpg?v=1775813456"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0BJDVZSWP.jpg?v=1775813456","width":1500},{"alt":null,"id":41170596954263,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61G0kwduuWL.jpg?v=1774075381"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61G0kwduuWL.jpg?v=1774075381","width":1500},{"alt":null,"id":41170596987031,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51tNBuB0rPL.jpg?v=1774075381"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51tNBuB0rPL.jpg?v=1774075381","width":1500},{"alt":null,"id":41170597019799,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61_QvRf6BRL.jpg?v=1774075381"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61_QvRf6BRL.jpg?v=1774075381","width":1500},{"alt":null,"id":41170597052567,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Co19k5qsL.jpg?v=1774075381"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Co19k5qsL.jpg?v=1774075381","width":1500},{"alt":null,"id":41170597085335,"position":6,"preview_image":{"aspect_ratio":1.004,"height":981,"width":985,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/613ApZbDpHL.jpg?v=1774075381"},"aspect_ratio":1.004,"height":981,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/613ApZbDpHL.jpg?v=1774075381","width":985},{"alt":null,"id":41170597118103,"position":7,"preview_image":{"aspect_ratio":1.617,"height":600,"width":970,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51_a4wXpWLL.jpg?v=1774075381"},"aspect_ratio":1.617,"height":600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51_a4wXpWLL.jpg?v=1774075381","width":970},{"alt":null,"id":41170597150871,"position":8,"preview_image":{"aspect_ratio":1.046,"height":1420,"width":1486,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61v6Jq0W1YL.jpg?v=1774075381"},"aspect_ratio":1.046,"height":1420,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61v6Jq0W1YL.jpg?v=1774075381","width":1486}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eElectromagnetic Lock 280KG 600LBS Holding Force Electric Magnetic Door Lock 12V Fail Safe NC Mode for Access Control System\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis 600LBS Holding Force electric magnetic lock consists of an electromagnet\nand an armature plate used for access control door locks. By attaching this to\nthe door frame and the armature plate to the door, a current passing through\nthe electromagnet attracts the armature plate, holding the access control door\nlock shut. NC Mode (Fail-Safe Mode): The door will be closed when power is on;\nwhen power off, the door will open. It is suitable for wooden door, glass\ndoor, metal door, fire-proof door, Cabinet, etc. Specification:\nElectromagnetic plate Material: Aluminum Alloy + Metal Plate Armature Plate\nMaterial: Zinc Cover Finish: Anodized aluminum Color: Silver Holding Force:\n600LBS\/280KG Input Voltage: DC 12V Operating Temperature: -10C to +55C (14 to\n131F) Operating Current: 480mA Size: 9.84L x 1.93W x 0.98H (inch)\/ 290L x 45W\nx 25H (mm) Armature plate: 7.09L x 1.50W x 0.43H (inch)\/ 180L x 38W x 11H (mm)\nPackage Weight: Approx. 4.0lb (1.78KG) Package list: 1 Electromagnetic Lock\n1 Armature Plate 1 Screws Pack 1 User Manual (English)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMaterials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 600Lbs (280KG) and significant features.\u003c\/li\u003e\n \u003cli\u003eSize: The lock size is 9.84 x 1.93 x 0.98 inch (250 x 49 x 25mm); Armature plate: 7.09 x 1.50 x 0.43 inch (180 x 38 x 11mm). Holding Force: 600LBS (280KG).\u003c\/li\u003e\n \u003cli\u003eMode: NC Mode (Fail-Safe Mode), Locked whilst power supply is operating, unlocked when power off; Voltage: DC12V.\u003c\/li\u003e\n \u003cli\u003eSecurity protection: This electromagnetic lock has safety function. It is built in voltage spike suppressor.\u003c\/li\u003e\n \u003cli\u003eWide Applications: This electric magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.\u003c\/li\u003e\n \u003c\/ul\u003e"}
