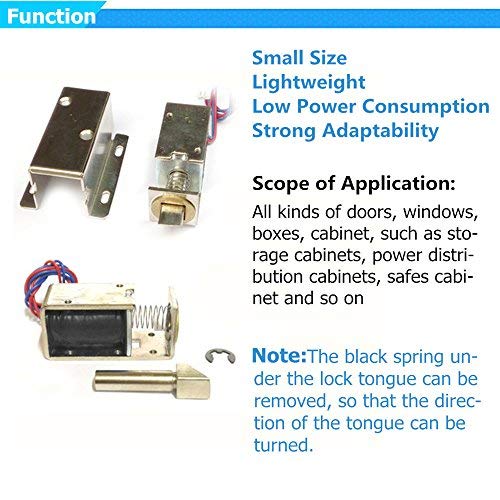

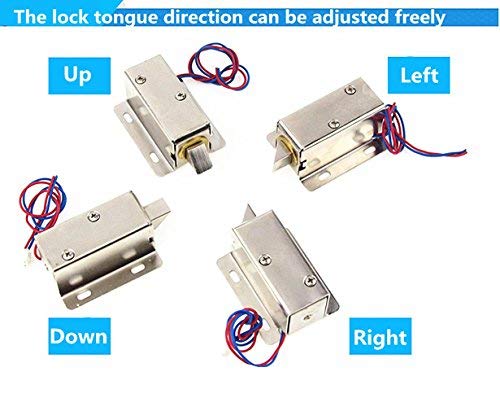

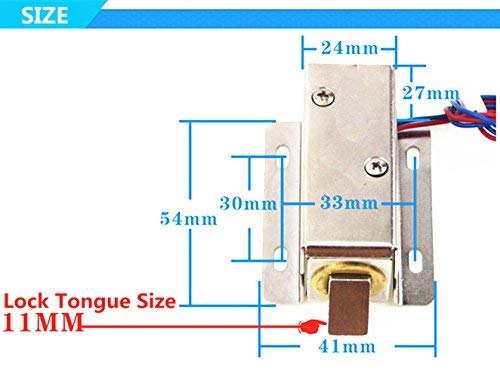

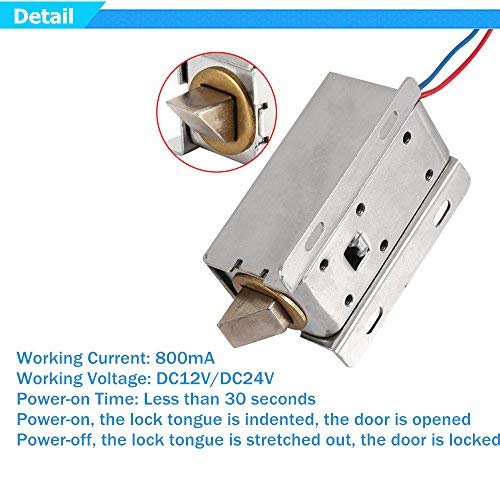

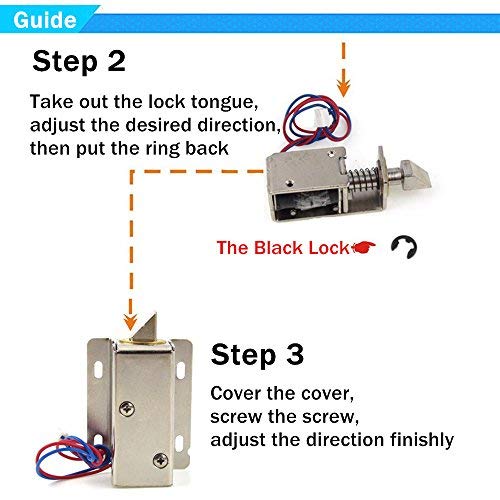

{"id":9681203691671,"title":"Electromagnetic Lock Solenoid Electric Lock, DC 12V Mini Electric Control Lock Tongue Latch Assembly Solenoid for File Cabinet Drawer Door","handle":"electromagnetic-lock-solenoid-electric-lock-dc-12v-mini-electric-control-lock-tongue-latch-assembly-solenoid-for-file-cabinet-drawer-door","description":"\u003ch3\u003eElectromagnetic Lock Solenoid Electric Lock, DC 12V Mini Electric Control Lock Tongue Latch Assembly Solenoid for File Cabinet Drawer Door\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eb\u0026gt;Specifications: Voltage: DC12V Power:9.6W Wire length:10cm\/3.93inch Current:\n0.6 A, maximum :0.8 A Size: 54 41 27 mm\/2.12 1.61 1.06 inch Work\nprinciple: (suggest current time ≤ 30 seconds) 1. locking tongue stick out\nwhen power off - door closed 2. locking tongue contract when power on - door\nopen Disassembly Steps: 1. Remove screws on the cover with a screwdriver. 2.\nTake down the cover. 3. Use the screwdriver to remove the E-clip between\nspring and latch bolt. 4. Take out the latch bolt and adjust its direction\nthen put back the E-clip. 5. Put cover and screws back to finish changing\nlatch bolt. Package Included: 2 x Electric Solenoid Lock\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWORKING PRINCIPLE: Adopts the principle of electric magnetism , when the current through the silicon, the electromagnetic lock will achieve a strong suction which tightly suck the iron, thus lock the door.\u003c\/li\u003e\n \u003cli\u003eSTRONG APPLICABILITY: Designed with the open frame type and mount board, easy to install for electric lock or other automatic door lock. The lock tongue direction can be adjusted freely, when the black spring clip below is dismantled.\u003c\/li\u003e\n \u003cli\u003eAPPLICATION: Suitable for all kinds of door, window, box, cabinet, such as storage cabinets, savings cabinet etc. Also can be installed in the escape door or door electronic controlled system.\u003c\/li\u003e\n \u003cli\u003eULTRA-COMPACT ELECTRIC LOCK: Built in full copper wire, whole metal structure, small, lightweight, low power consumption, which is strong and durable, and secure.\u003c\/li\u003e\n \u003cli\u003eYOU SHOULD KNOW: Unlocking time 1S. Energized forms: intermittent. Lock tongue telescopic length: 10mm. Wire length:10cm\/3.93inch.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-30T17:56:07+10:00","created_at":"2026-07-26T23:57:38+10:00","vendor":"ZJchao","type":"Locks","tags":["home_improvement_Aug2026"],"price":14800,"price_min":14800,"price_max":14800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48068521263255,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B073DXLRYX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electromagnetic Lock Solenoid Electric Lock, DC 12V Mini Electric Control Lock Tongue Latch Assembly Solenoid for File Cabinet Drawer Door","public_title":null,"options":["Default Title"],"price":14800,"weight":356,"compare_at_price":null,"inventory_management":"shopify","barcode":"MXW-GS94393201384*2","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B073DXLRYX.jpg?v=1785074260","\/\/newnestshop.com\/cdn\/shop\/files\/51IUROc3m9L.jpg?v=1785074261","\/\/newnestshop.com\/cdn\/shop\/files\/51M92igis7L.jpg?v=1785074260","\/\/newnestshop.com\/cdn\/shop\/files\/51eUmtlWBqL.jpg?v=1785074261","\/\/newnestshop.com\/cdn\/shop\/files\/41IMzWiqkvL.jpg?v=1785074260","\/\/newnestshop.com\/cdn\/shop\/files\/51QHjZI_8mL.jpg?v=1785074260","\/\/newnestshop.com\/cdn\/shop\/files\/41Q2MEcPmqL.jpg?v=1785074260","\/\/newnestshop.com\/cdn\/shop\/files\/41kVmdxwmiL.jpg?v=1785074260","\/\/newnestshop.com\/cdn\/shop\/files\/41-G1DahTHL.jpg?v=1785074260"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B073DXLRYX.jpg?v=1785074260","options":["Title"],"media":[{"alt":null,"id":42460299624599,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B073DXLRYX.jpg?v=1785074260"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B073DXLRYX.jpg?v=1785074260","width":1001},{"alt":null,"id":42460299657367,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51IUROc3m9L.jpg?v=1785074261"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51IUROc3m9L.jpg?v=1785074261","width":500},{"alt":null,"id":42460299690135,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51M92igis7L.jpg?v=1785074260"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51M92igis7L.jpg?v=1785074260","width":500},{"alt":null,"id":42460299722903,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51eUmtlWBqL.jpg?v=1785074261"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51eUmtlWBqL.jpg?v=1785074261","width":500},{"alt":null,"id":42460299755671,"position":5,"preview_image":{"aspect_ratio":1.323,"height":378,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41IMzWiqkvL.jpg?v=1785074260"},"aspect_ratio":1.323,"height":378,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41IMzWiqkvL.jpg?v=1785074260","width":500},{"alt":null,"id":42460299788439,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51QHjZI_8mL.jpg?v=1785074260"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51QHjZI_8mL.jpg?v=1785074260","width":500},{"alt":null,"id":42460299821207,"position":7,"preview_image":{"aspect_ratio":1.229,"height":407,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41Q2MEcPmqL.jpg?v=1785074260"},"aspect_ratio":1.229,"height":407,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41Q2MEcPmqL.jpg?v=1785074260","width":500},{"alt":null,"id":42460299853975,"position":8,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41kVmdxwmiL.jpg?v=1785074260"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41kVmdxwmiL.jpg?v=1785074260","width":500},{"alt":null,"id":42460299886743,"position":9,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41-G1DahTHL.jpg?v=1785074260"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41-G1DahTHL.jpg?v=1785074260","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eElectromagnetic Lock Solenoid Electric Lock, DC 12V Mini Electric Control Lock Tongue Latch Assembly Solenoid for File Cabinet Drawer Door\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eb\u0026gt;Specifications: Voltage: DC12V Power:9.6W Wire length:10cm\/3.93inch Current:\n0.6 A, maximum :0.8 A Size: 54 41 27 mm\/2.12 1.61 1.06 inch Work\nprinciple: (suggest current time ≤ 30 seconds) 1. locking tongue stick out\nwhen power off - door closed 2. locking tongue contract when power on - door\nopen Disassembly Steps: 1. Remove screws on the cover with a screwdriver. 2.\nTake down the cover. 3. Use the screwdriver to remove the E-clip between\nspring and latch bolt. 4. Take out the latch bolt and adjust its direction\nthen put back the E-clip. 5. Put cover and screws back to finish changing\nlatch bolt. Package Included: 2 x Electric Solenoid Lock\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWORKING PRINCIPLE: Adopts the principle of electric magnetism , when the current through the silicon, the electromagnetic lock will achieve a strong suction which tightly suck the iron, thus lock the door.\u003c\/li\u003e\n \u003cli\u003eSTRONG APPLICABILITY: Designed with the open frame type and mount board, easy to install for electric lock or other automatic door lock. The lock tongue direction can be adjusted freely, when the black spring clip below is dismantled.\u003c\/li\u003e\n \u003cli\u003eAPPLICATION: Suitable for all kinds of door, window, box, cabinet, such as storage cabinets, savings cabinet etc. Also can be installed in the escape door or door electronic controlled system.\u003c\/li\u003e\n \u003cli\u003eULTRA-COMPACT ELECTRIC LOCK: Built in full copper wire, whole metal structure, small, lightweight, low power consumption, which is strong and durable, and secure.\u003c\/li\u003e\n \u003cli\u003eYOU SHOULD KNOW: Unlocking time 1S. Energized forms: intermittent. Lock tongue telescopic length: 10mm. Wire length:10cm\/3.93inch.\u003c\/li\u003e\n \u003c\/ul\u003e"}
