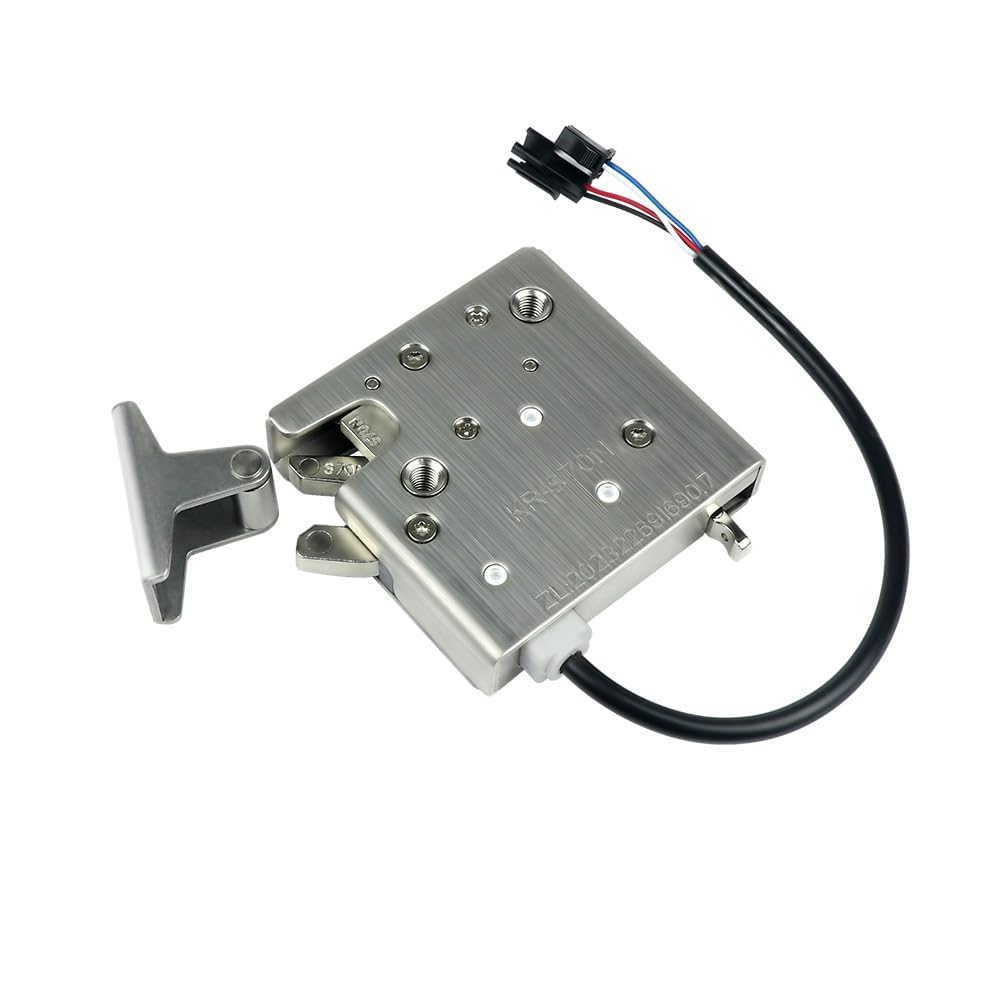

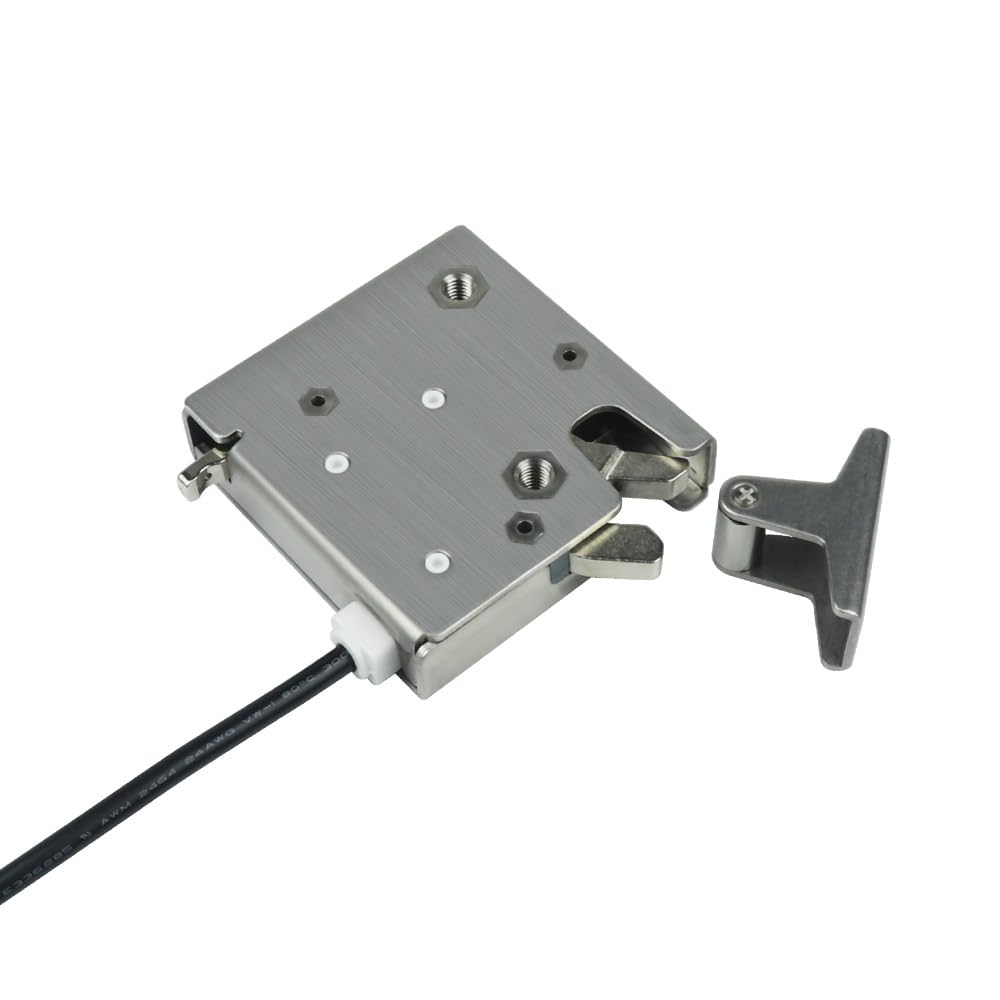

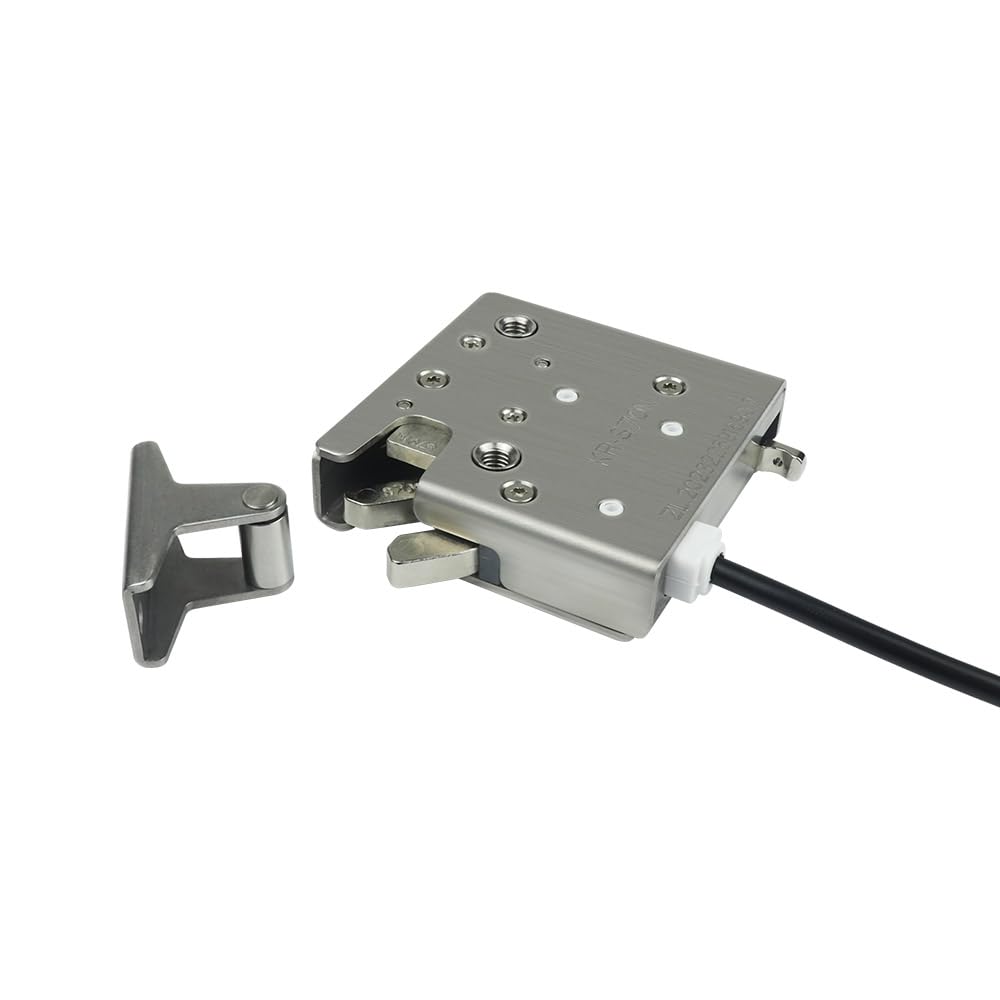

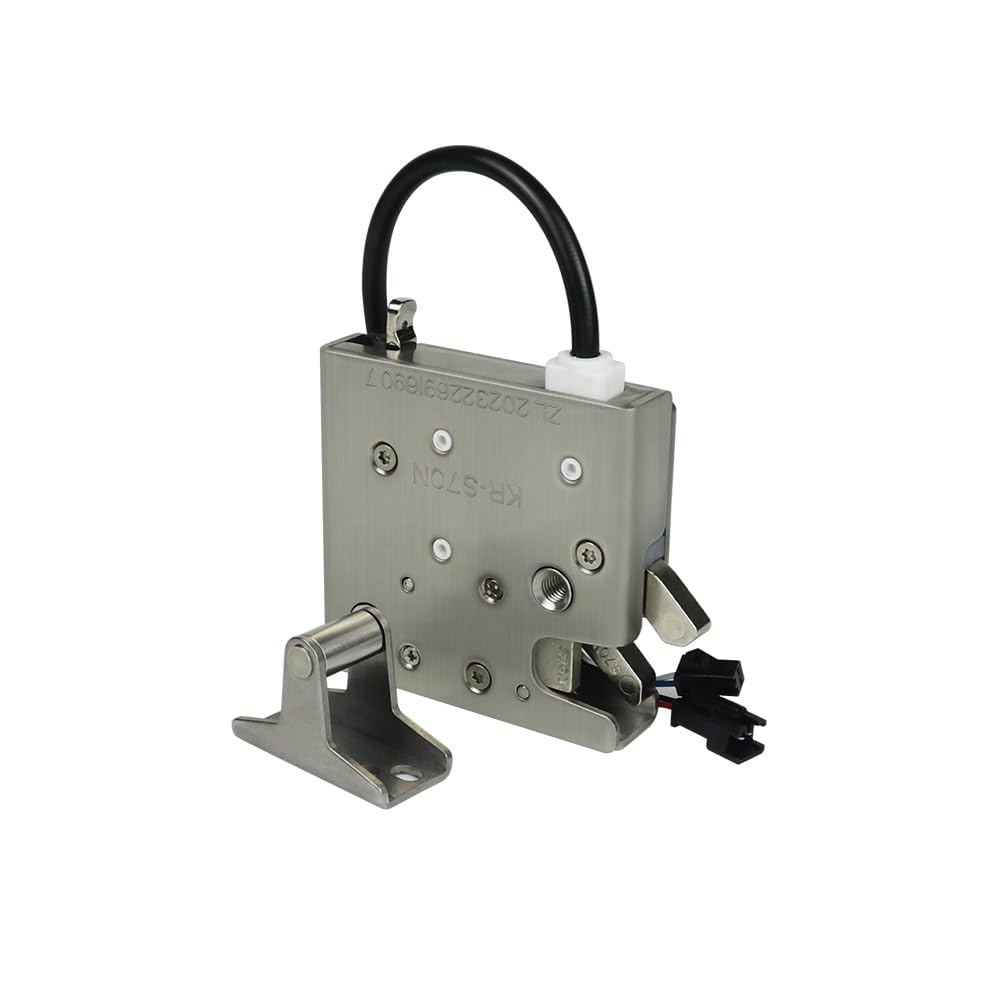

Electronic Rotary Push-to-Close Latch, Auto Relock, with Latch Status Microswitch, Non-Sealed Connector， Electric Lock for Cabinet Drawer Locker

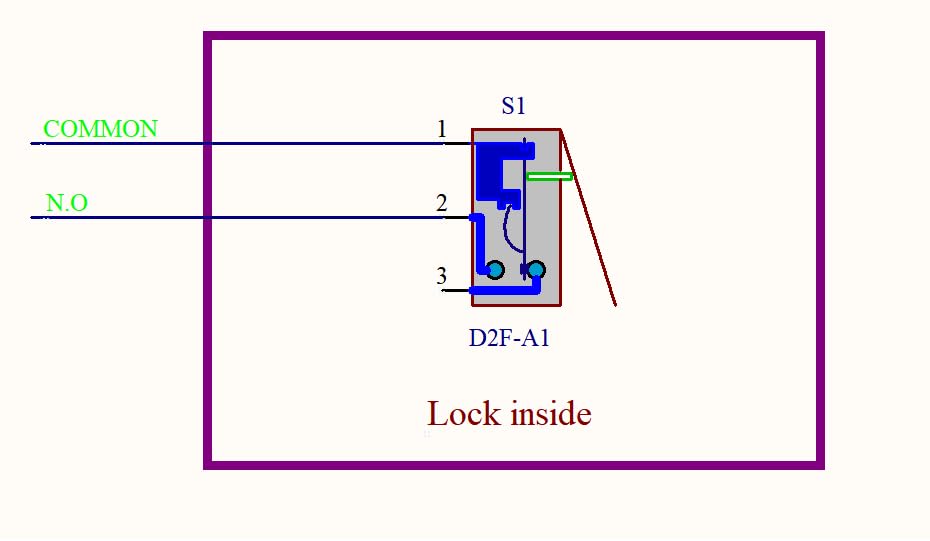

Our gear motor-driven lock sets itself apart from competitors' electromagnetically-driven electromechanical locks. The ST-7070N offers the convenience of electronic access control and the security of a verified and robust all-metal rotary latch design, all in a compact and integrated package. It features a simple one-button operation, making it easy to close, and the electronic drive streamlines access for various applications. Terminal Black Wire [1]: Power negative GND (-); Terminal Red Wire [2]: Power positive 12V (+); Operation method: Power on/off to open/close lock (each power cycle toggles lock state once); Terminal Blue Wire [3]: Lock detection switch common terminal (COMMON); Terminal White Wire [4]: Lock detection switch normally open terminal (NO);

Product Features

  • A gear-motor drive distinguishes the latch from competitive solenoid driven electromechanical latches with lower power requirements, higher load capacity.
  • High strength & steel construction operates against high mechanical loads; Compact latch housing minimizes space requirements and maintains the clean, concealed exterior look.
  • Internal micro switch for latch open / close output signal, 500,000-time working life; Convenient mechanical override enables manual release during a power failure.
  • Mechanical emergency lever, can be unlocked manually in case of power failure. AWG24 wire with PVC protecting tube.
  • Zinc Alloy, can pass more than 72 hours salt & spray test. Thickness as 6.0mm, not easy to be broken. 304 stainless steel, with good toughness and corrosion resistance. Thickness as 2.0mm, strong enough.
