GINTOOYUN 2 Sets 4 Pin 5.08 mm Terminal, 4-Pin Pluggable Screw Terminal Block Connectors, 4P Through-wall Terminal Connectors 2EDGWB+2EDGKM with Screw Lock Plate Fixed
GINTOOYUN 2 Sets 4 Pin 5.08 mm Terminal, 4-Pin Pluggable Screw Terminal Block Connectors, 4P Through-wall Terminal Connectors 2EDGWB+2EDGKM with Screw Lock Plate Fixed

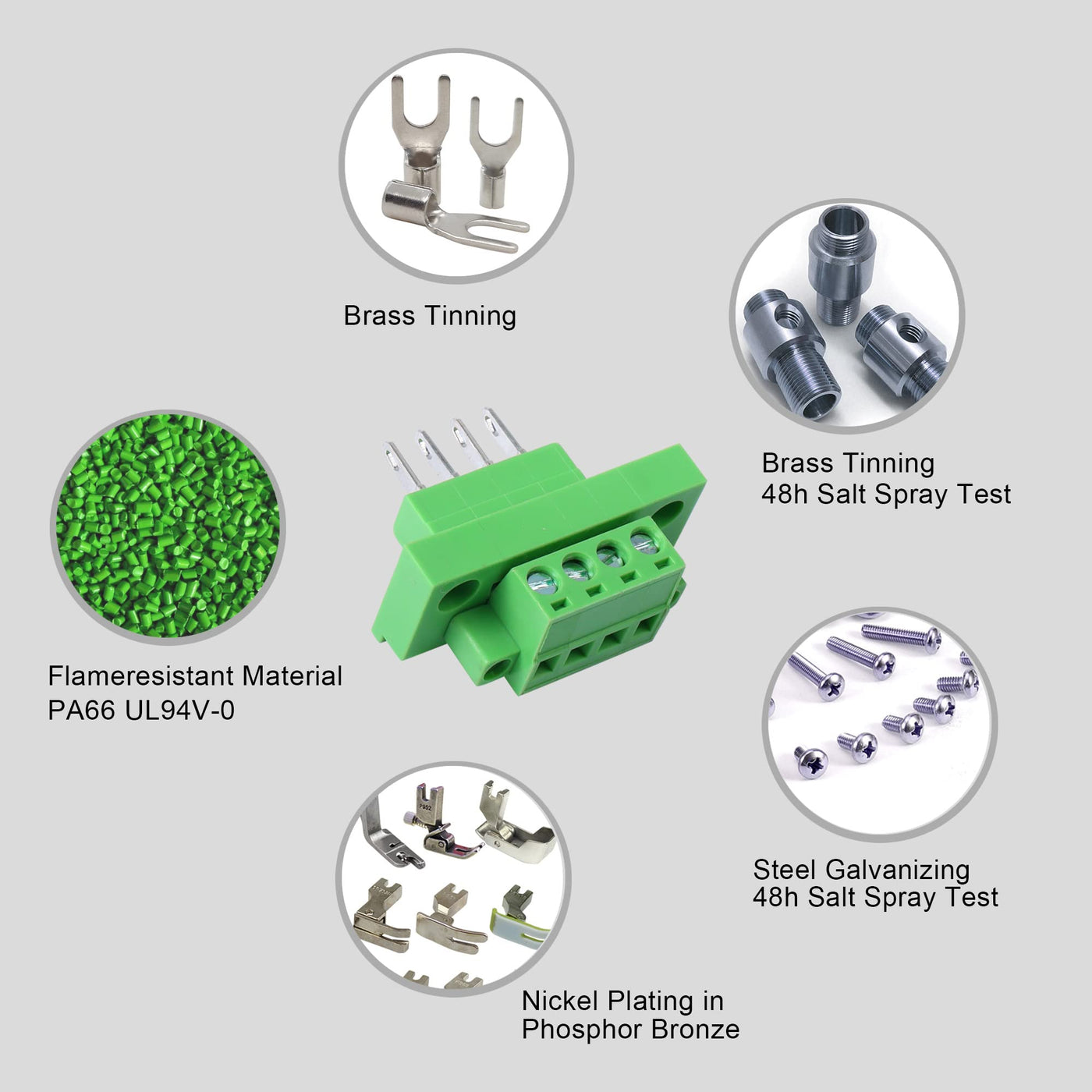

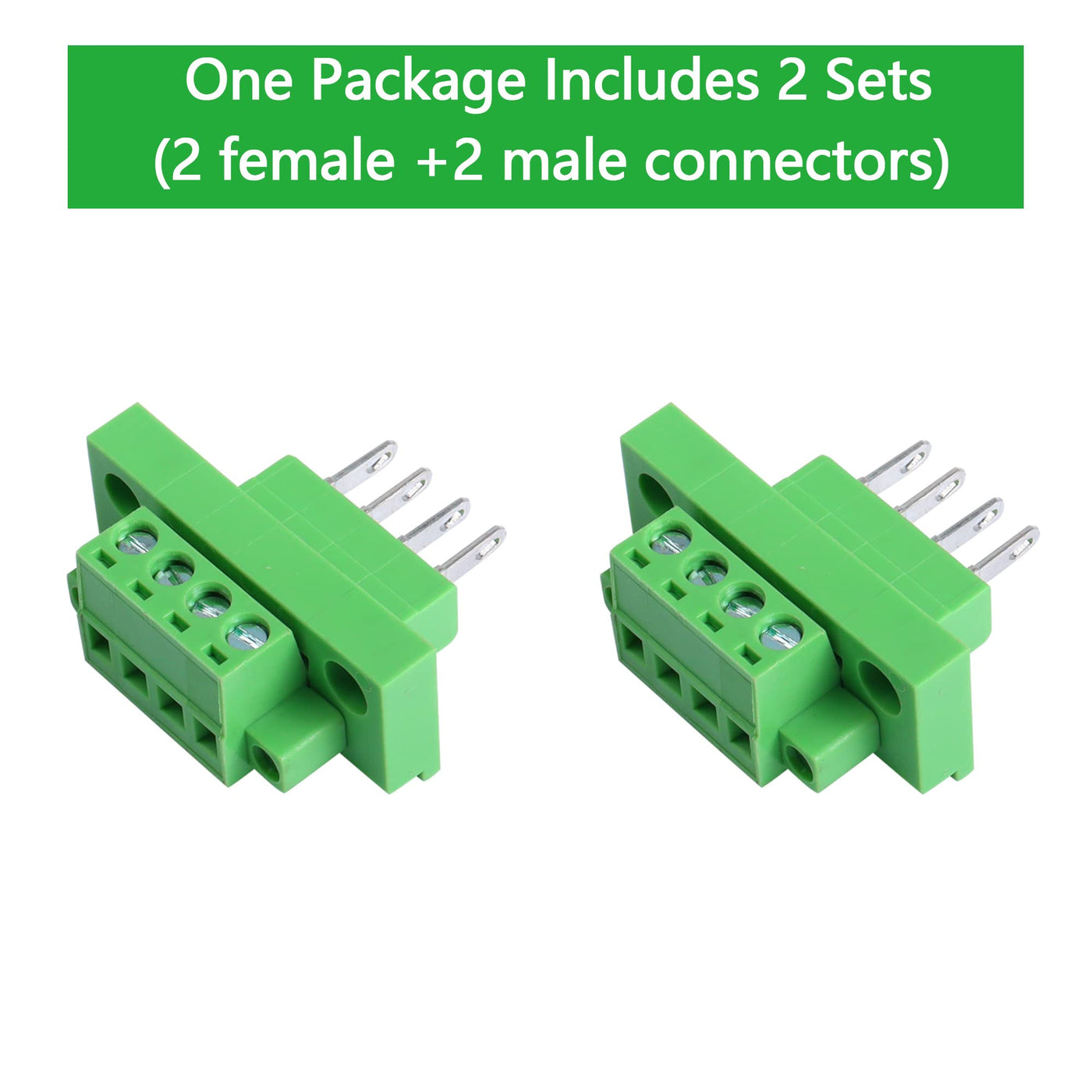

1. 4 Pin 5.08 mm terminals are snap together well, they have a quick release capability. Simple wire connection mode, just need to loosen the screws to land the wires. The quick disconnect connecting block that makes these terminals easy to swap out another device without unscrewing all the wires. 2. Steel screw environmentally friendly electroplating,no slippage. Surface nickel plating treatment,corrosion resistance,high stability. 3. Pitch: 5.08mm 4. Poles: 4P 5. Rated Voltage and Rated Current: 300V 15A 6. Wire Range: 24-12AWG 7. Contact Material: Phosphor bronze,Nickel plating 8. Wire Cage: Brass,Nickel plating 9. Plastic Parts: PA66 UL94V-0 10. Temperature Range: -40℃ - +105℃ 11. Wire Stripping Length: 7-8mm 12. Color: Green 13. Package includes: 2 Sets x 4 Pin 5.08 mm Terminal
Product Features

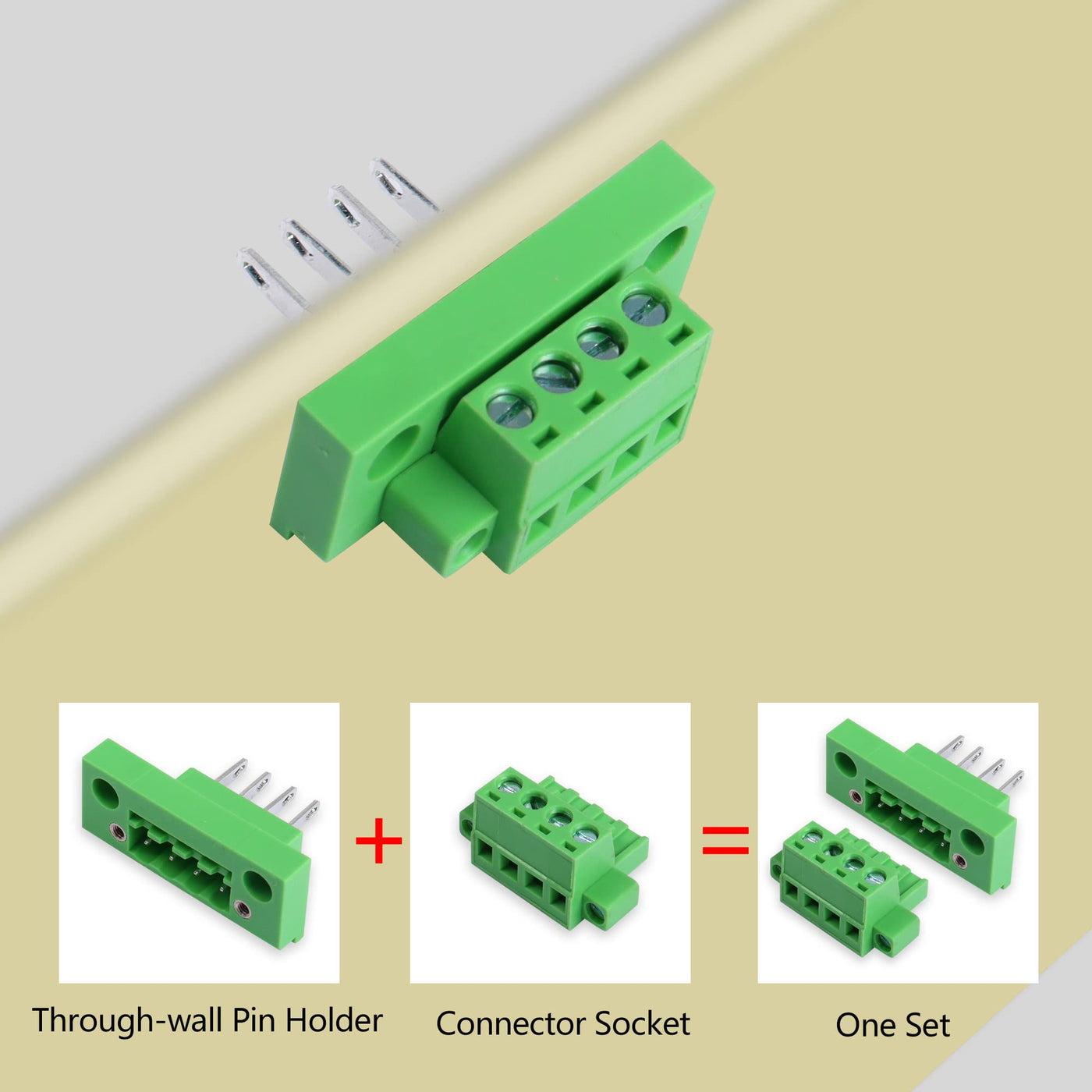

- Function4-Pole terminal pitch: 5.08mm. Through-wall plug-in screw terminal. One set: through-wall pin holder + connector socket. 2 sets/package. Suitable for electrical connection, bid farewell to traditional wiring, bid farewell to dangerous, safe wiring
- Feature Rated voltage and current: 300V 15A. Wire Diameter: 24-12AWG. Use high-quality environmental protection plastic PA66 high temperature resistant V0 flame retardant material, no series of electricity, no leakage

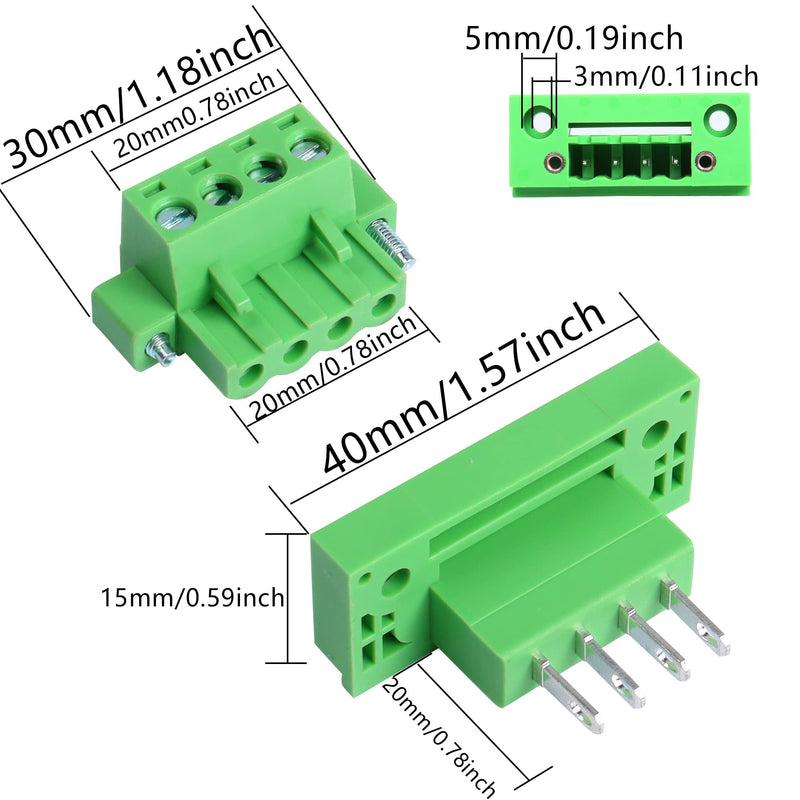

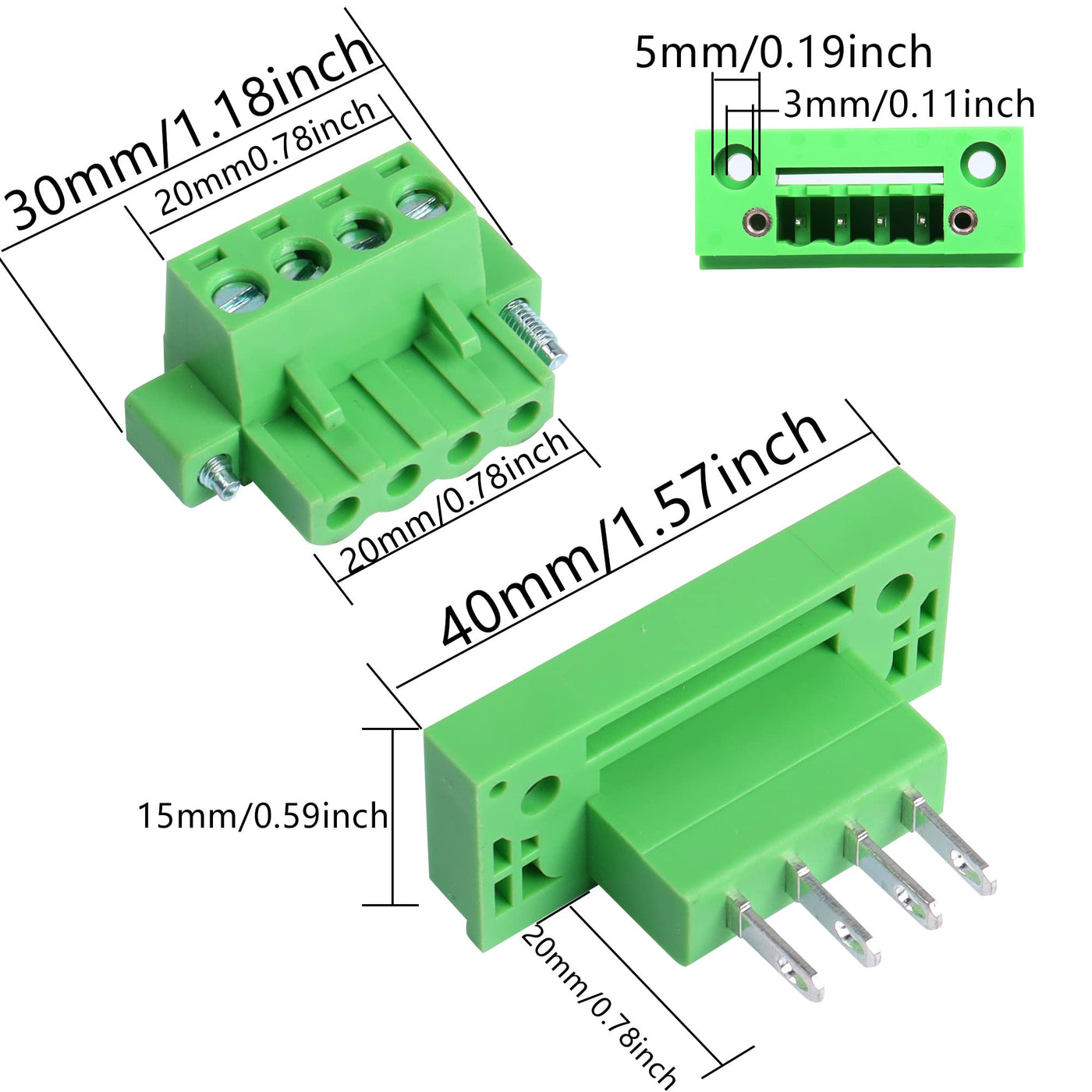

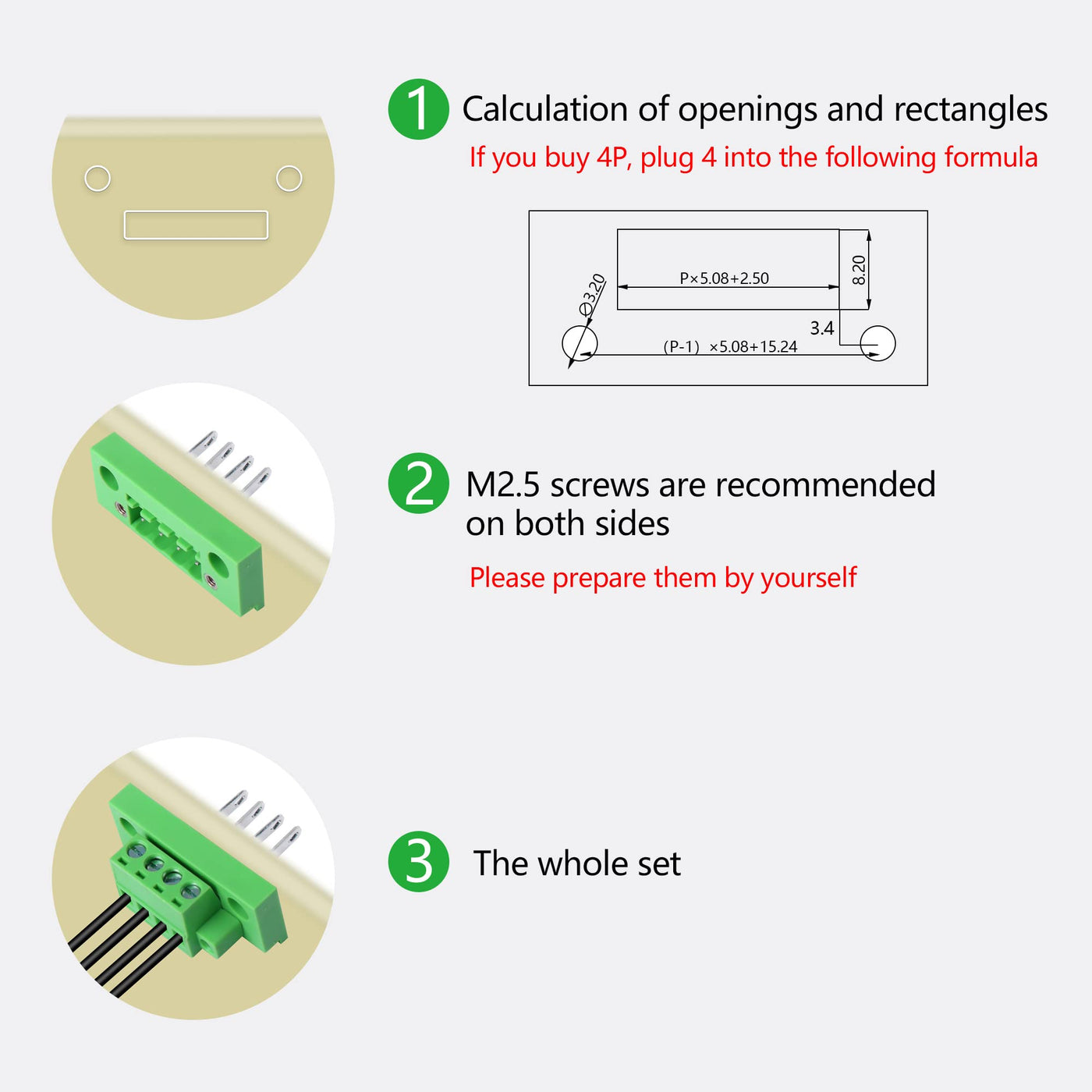

- Note Please refer to the picture for the size of the wall hole. M2.5 screws are required to secure the walls, please prepare them by yourself
- Convenient Simple wire connection mode, just need to loosen the screws to land the wires. The quick disconnect connecting block that makes these terminals easy to swap out another device without unscrewing all the wires
- DesignAnti-vibration design to ensure the long-term airtight connection, low control signal loss, high switching frequency, no mechanical contact jitter, not affected by position and long service life
