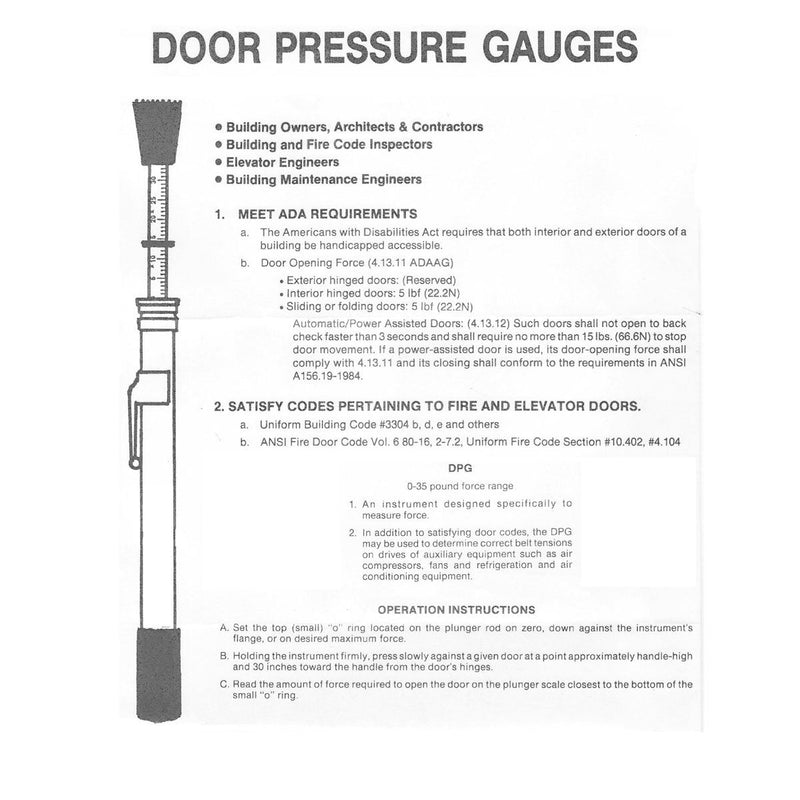

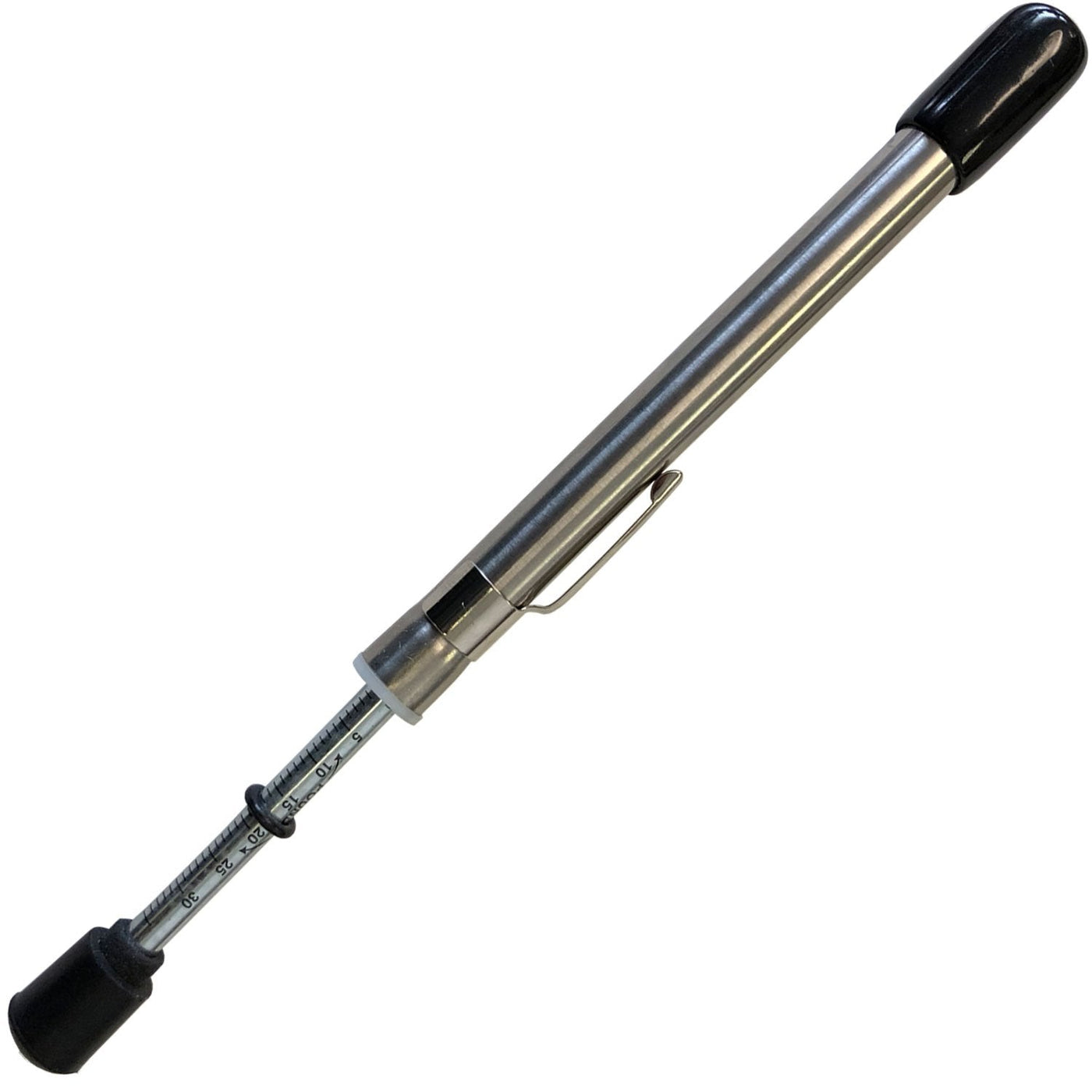

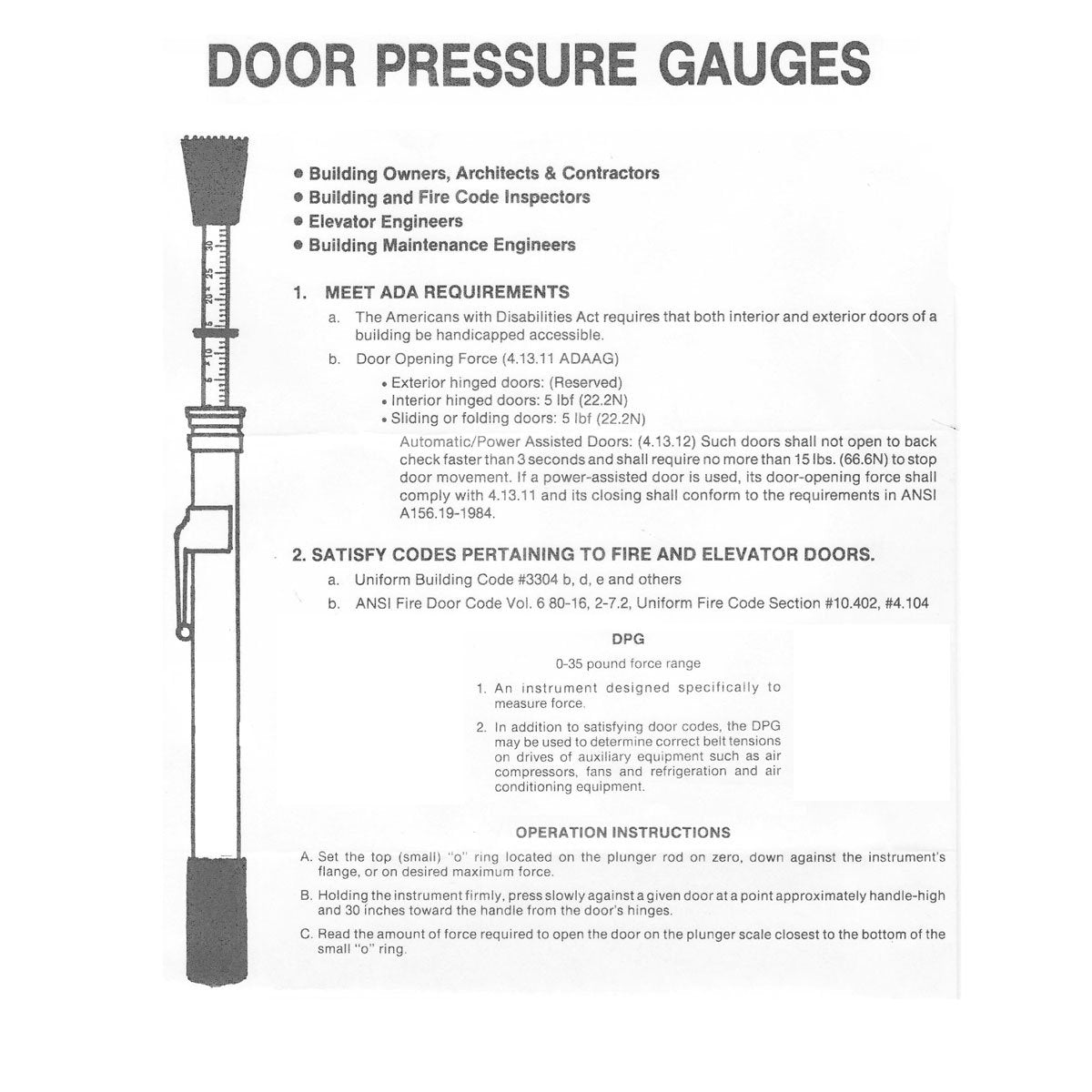

{"id":8754166956183,"title":"Gordon Glass Co. Door Pressure Gauge, 0-35 Lbs | Made in USA","handle":"gordon-glass-co-door-pressure-gauge-0-35-lbs-made-in-usa","description":"\u003ch3\u003eGordon Glass Co. Door Pressure Gauge, 0-35 Lbs | Made in USA\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRange is from 0-35 Pounds Door Pressure Gauge instrument design specifically\nto measure force. OPERATING INSTRUCTIONS: Set the top (small) o-ring located\non the plunger rod on zero, down against the instrument's flange; or set the\no-ring on the desired force. Holding the instrument firmly, press slowly\nagainst the door at a point approximately handle-high, and 30 inches away from\nthe door's hinges. Read the amount of force required to open the door on the\nplunger scale closest to the bottom of the small o-ring. MEET ADA REQUIREMENTS\nThe Americans with Disabilities Act requires that both interior and exterior\ndoors of a building be handicapped accessible. Door Opening Force (4.1311\nADAAG). Exterior hinged doors: (Reserved) Interior hinged doors: 5 lbs (22.2N)\nSliding or folding doors: 5 lbs (22.2N) Automatic\/Power Assisted Doors:\n(4.13.12) Such doors shall not open to back check faster than 3 seconds and\nshall require no more than 15 lbs (66.6N) to stop door movement. If a power\nassisted door is used, its door-opening force shall comply with 4.13.11 and\nits closing shall conform to the requirements in ANSI A156.19-1984.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eRange is from 0-35 Pounds\u003c\/li\u003e\n \u003cli\u003eMEET ADA REQUIREMENTS\u003c\/li\u003e\n \u003cli\u003e+\/- 5% tolerance\u003c\/li\u003e\n \u003cli\u003eMEET ADA REQUIREMENTS The Americans with Disabilities Act requires that both interior and exterior doors of a building be handicapped accessible\u003c\/li\u003e\n \u003cli\u003eExterior hinged doors: (Reserved)\u003c\/li\u003e\n \u003cli\u003eInterior hinged doors: 5 lbs (22.2N)\u003c\/li\u003e\n \u003cli\u003eSliding or folding doors: 5 lbs (22.2N)\u003c\/li\u003e\n \u003cli\u003eAutomatic\/Power Assisted Doors: (4.13.12) Such doors shall not open to back check faster than 3 seconds and shall require no more than 15 lbs (66.6N) to stop door movement. If a power assisted door is used, its door-opening force shall comply with 4.13.11 and its closing shall conform to the requirements in ANSI A156.19-1984\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-01-26T13:43:51+11:00","created_at":"2025-01-25T22:27:27+11:00","vendor":"Gordon Glass Co.","type":"Pressure Gauges","tags":["industrial_best_sellers_Jan2025"],"price":21300,"price_min":21300,"price_max":21300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45077102919831,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0040081UM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gordon Glass Co. Door Pressure Gauge, 0-35 Lbs | Made in USA","public_title":null,"options":["Default Title"],"price":21300,"weight":295,"compare_at_price":null,"inventory_management":"shopify","barcode":"96523014365","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0040081UM.jpg?v=1737850022","\/\/newnestshop.com\/cdn\/shop\/files\/71F5WCQwhOL.jpg?v=1737804450","\/\/newnestshop.com\/cdn\/shop\/files\/51RFZH0grbL.jpg?v=1737804450"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0040081UM.jpg?v=1737850022","options":["Title"],"media":[{"alt":null,"id":36812297142423,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0040081UM.jpg?v=1737850022"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0040081UM.jpg?v=1737850022","width":1500},{"alt":null,"id":36807568621719,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71F5WCQwhOL.jpg?v=1737804450"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71F5WCQwhOL.jpg?v=1737804450","width":1200},{"alt":null,"id":36807568654487,"position":3,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51RFZH0grbL.jpg?v=1737804450"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51RFZH0grbL.jpg?v=1737804450","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eGordon Glass Co. Door Pressure Gauge, 0-35 Lbs | Made in USA\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRange is from 0-35 Pounds Door Pressure Gauge instrument design specifically\nto measure force. OPERATING INSTRUCTIONS: Set the top (small) o-ring located\non the plunger rod on zero, down against the instrument's flange; or set the\no-ring on the desired force. Holding the instrument firmly, press slowly\nagainst the door at a point approximately handle-high, and 30 inches away from\nthe door's hinges. Read the amount of force required to open the door on the\nplunger scale closest to the bottom of the small o-ring. MEET ADA REQUIREMENTS\nThe Americans with Disabilities Act requires that both interior and exterior\ndoors of a building be handicapped accessible. Door Opening Force (4.1311\nADAAG). Exterior hinged doors: (Reserved) Interior hinged doors: 5 lbs (22.2N)\nSliding or folding doors: 5 lbs (22.2N) Automatic\/Power Assisted Doors:\n(4.13.12) Such doors shall not open to back check faster than 3 seconds and\nshall require no more than 15 lbs (66.6N) to stop door movement. If a power\nassisted door is used, its door-opening force shall comply with 4.13.11 and\nits closing shall conform to the requirements in ANSI A156.19-1984.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eRange is from 0-35 Pounds\u003c\/li\u003e\n \u003cli\u003eMEET ADA REQUIREMENTS\u003c\/li\u003e\n \u003cli\u003e+\/- 5% tolerance\u003c\/li\u003e\n \u003cli\u003eMEET ADA REQUIREMENTS The Americans with Disabilities Act requires that both interior and exterior doors of a building be handicapped accessible\u003c\/li\u003e\n \u003cli\u003eExterior hinged doors: (Reserved)\u003c\/li\u003e\n \u003cli\u003eInterior hinged doors: 5 lbs (22.2N)\u003c\/li\u003e\n \u003cli\u003eSliding or folding doors: 5 lbs (22.2N)\u003c\/li\u003e\n \u003cli\u003eAutomatic\/Power Assisted Doors: (4.13.12) Such doors shall not open to back check faster than 3 seconds and shall require no more than 15 lbs (66.6N) to stop door movement. If a power assisted door is used, its door-opening force shall comply with 4.13.11 and its closing shall conform to the requirements in ANSI A156.19-1984\u003c\/li\u003e\n \u003c\/ul\u003e"}
