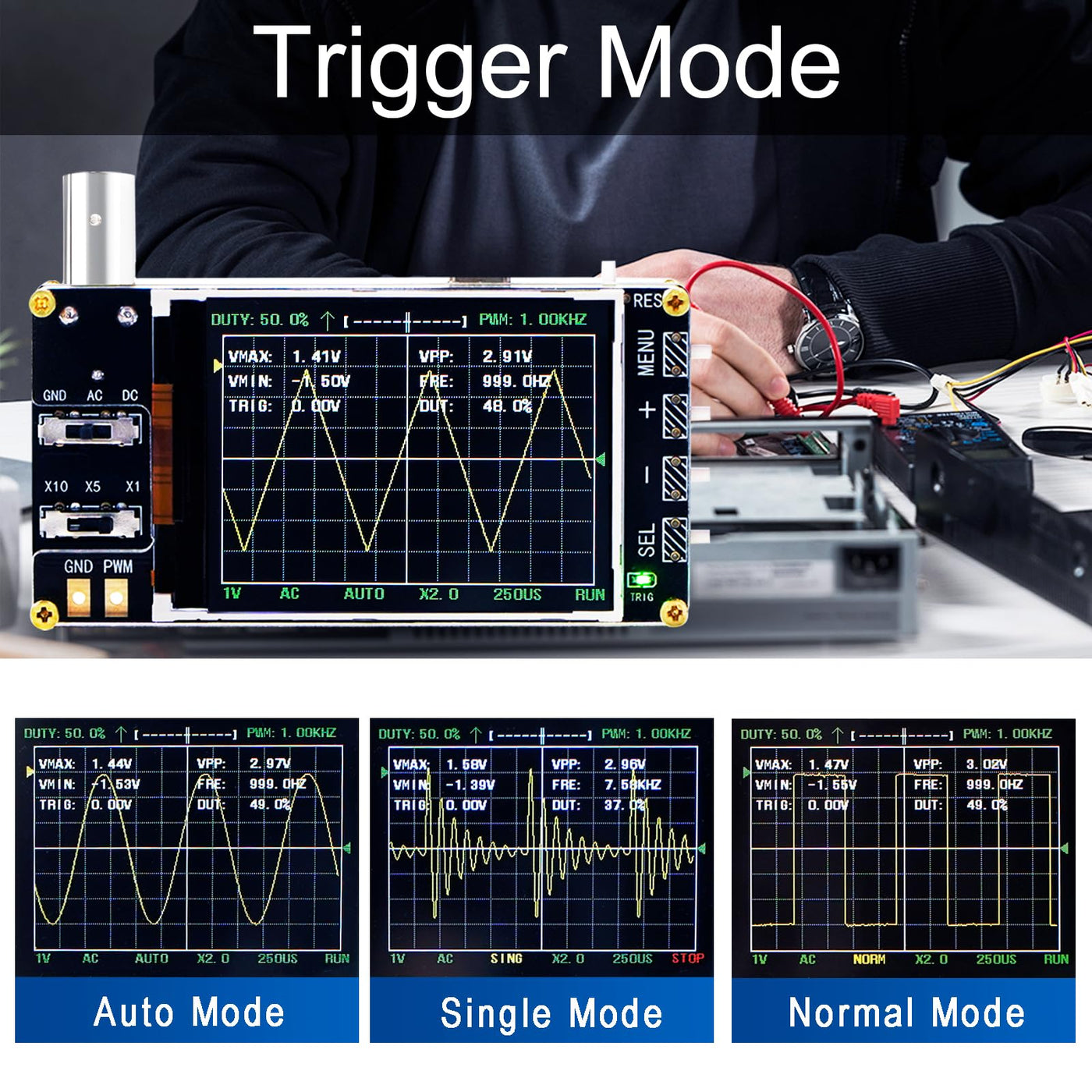

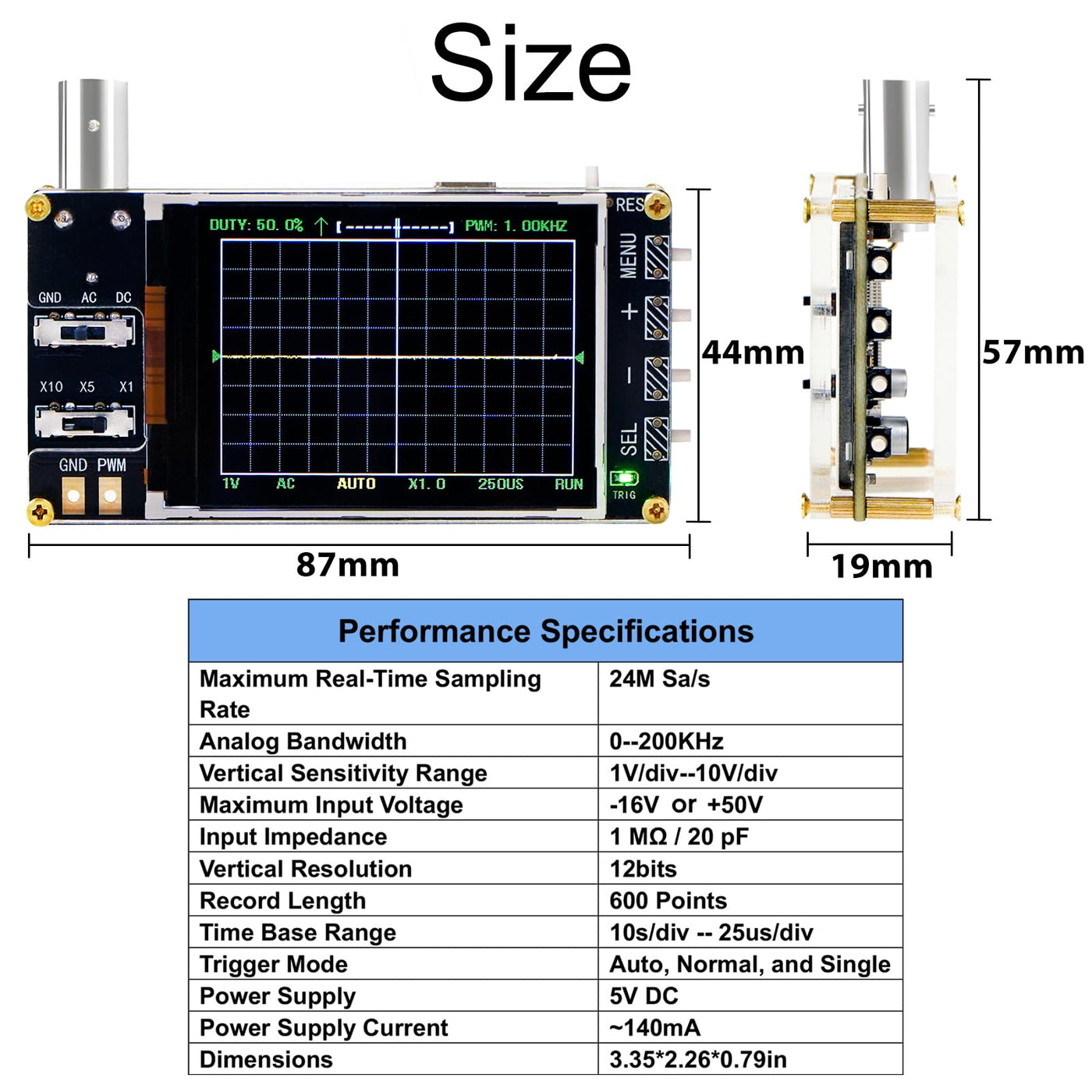

{"id":8764401156247,"title":"Handheld Digital Oscilloscope Kit, 2.4 LCD Screen 1MSa\/s High Sampling Rate, 200KHz Bandwidth,Mini Portable Oscilloscope with Trigger Function Auto\/Normal\/Single，X10\/X5\/X1 Sensitivity","handle":"handheld-digital-oscilloscope-kit-2-4-lcd-screen-1msa-s-high-sampling-rate-200khz-bandwidth-mini-portable-oscilloscope-with-trigger-function-auto-normal-single-x10-x5-x1-sensitivity","description":"\u003ch3\u003eHandheld Digital Oscilloscope Kit, 2.4 LCD Screen 1MSa\/s High Sampling Rate, 200KHz Bandwidth,Mini Portable Oscilloscope with Trigger Function Auto\/Normal\/Single，X10\/X5\/X1 Sensitivity\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Maximum Real-Time Sampling Rate: 1MSa\/s Analog Bandwidth:\n0–200KHz Vertical Sensitivity Range: 1V\/div – 10V\/div Maximum Input Voltage:\n-16V or +50V Input Impedance: 1MΩ\/20pF Vertical Resolution: 12 bits Record\nLength: 600 points Time Base Range: 100ms\/div – 25us\/div Trigger Modes: Auto,\nNormal, and Single Power Supply: 5V DC Power Supply Current: ~140mA\nDimensions: 8557.520mm（3.352.260.79in） Note: : The black end of the BNC\nalligator clip must be connected to the common ground (0V) and must not be\nconnected to positive or negative voltage to prevent damage. The red end\nallows a voltage range of -16V to +50V. Package includes: 1PcsDigital\nOscilloscope 1PcsUSB cable 1PcsBNC alligator clip\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePortable Oscilloscope This portable oscilloscope features a 2.4-inch color TFT display, the size is 3.35*2.26*0.79 inches, easy to carry\u003c\/li\u003e\n \u003cli\u003eHigh Sampling Speed The maximum real-time sampling rate of this small oscilloscope is 24MS\/s, with a bandwidth of 200KHz. The maximum input voltage is -16V or +50V.The resolution is 320*240. Its suitable for electronic competition, electronic experiment , electrical maintenance, sensor output detection and so on\u003c\/li\u003e\n \u003cli\u003eMultiple Trigger ModesThis oscilloscope offers three full trigger modes: automatic, normal and single. It is easy to capture the instantaneous waveform in order to realize the stable display and measurement of the waveform. You can choose to trigger the rising or falling edge\u003c\/li\u003e\n \u003cli\u003eEasy Measurement This oscilloscope can choose GND\/AC\/DC three coupling modes and X10\/X5\/X1 three sensitivity adjustable. Note When using, if you are not sure about the signal voltage, you can first select the gear position of 10V\/div, and then long press [MENU] to enter the detailed information interface for observation, so as not to damage the oscilloscope\u003c\/li\u003e\n \u003cli\u003eSimple OperationPress the \"SEL\" key to select the parameters to be adjusted. Press the Menu key to freeze the waveform and display the parameters clearly. Press and hold MENU to display the information screen, including VPP and frequency. The oscilloscope comes with a detailed manual, making it easy to operate and learn.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-01-29T12:37:46+11:00","created_at":"2025-01-28T22:32:57+11:00","vendor":"Treedix","type":"Oscilloscopes","tags":["industrial_best_sellers_Jan2025"],"price":14100,"price_min":14100,"price_max":14100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45089308868759,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0DM4X5BD3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Handheld Digital Oscilloscope Kit, 2.4 LCD Screen 1MSa\/s High Sampling Rate, 200KHz Bandwidth,Mini Portable Oscilloscope with Trigger Function Auto\/Normal\/Single，X10\/X5\/X1 Sensitivity","public_title":null,"options":["Default Title"],"price":14100,"weight":127,"compare_at_price":null,"inventory_management":"shopify","barcode":"644197777729","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0DM4X5BD3.jpg?v=1775756945","\/\/newnestshop.com\/cdn\/shop\/files\/81i6A5S8xjL.jpg?v=1738063980","\/\/newnestshop.com\/cdn\/shop\/files\/819dL0Hu87L.jpg?v=1738063980","\/\/newnestshop.com\/cdn\/shop\/files\/81p6Zz0ZmgL.jpg?v=1738063980","\/\/newnestshop.com\/cdn\/shop\/files\/81Edn0B789L.jpg?v=1738063980","\/\/newnestshop.com\/cdn\/shop\/files\/71ZmZw1omSL.jpg?v=1738063979","\/\/newnestshop.com\/cdn\/shop\/files\/8179hdcen_L.jpg?v=1738063980","\/\/newnestshop.com\/cdn\/shop\/files\/71MXXAUTUAL.jpg?v=1738063980"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0DM4X5BD3.jpg?v=1775756945","options":["Title"],"media":[{"alt":null,"id":36835512025239,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0DM4X5BD3.jpg?v=1775756945"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0DM4X5BD3.jpg?v=1775756945","width":1600},{"alt":null,"id":36835512058007,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/81i6A5S8xjL.jpg?v=1738063980"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/81i6A5S8xjL.jpg?v=1738063980","width":1600},{"alt":null,"id":36835512090775,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/819dL0Hu87L.jpg?v=1738063980"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/819dL0Hu87L.jpg?v=1738063980","width":1600},{"alt":null,"id":36835512123543,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/81p6Zz0ZmgL.jpg?v=1738063980"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/81p6Zz0ZmgL.jpg?v=1738063980","width":1600},{"alt":null,"id":36835512156311,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/81Edn0B789L.jpg?v=1738063980"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/81Edn0B789L.jpg?v=1738063980","width":1600},{"alt":null,"id":36835512189079,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71ZmZw1omSL.jpg?v=1738063979"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71ZmZw1omSL.jpg?v=1738063979","width":1600},{"alt":null,"id":36835512221847,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/8179hdcen_L.jpg?v=1738063980"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/8179hdcen_L.jpg?v=1738063980","width":1600},{"alt":null,"id":36835512254615,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71MXXAUTUAL.jpg?v=1738063980"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71MXXAUTUAL.jpg?v=1738063980","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHandheld Digital Oscilloscope Kit, 2.4 LCD Screen 1MSa\/s High Sampling Rate, 200KHz Bandwidth,Mini Portable Oscilloscope with Trigger Function Auto\/Normal\/Single，X10\/X5\/X1 Sensitivity\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Maximum Real-Time Sampling Rate: 1MSa\/s Analog Bandwidth:\n0–200KHz Vertical Sensitivity Range: 1V\/div – 10V\/div Maximum Input Voltage:\n-16V or +50V Input Impedance: 1MΩ\/20pF Vertical Resolution: 12 bits Record\nLength: 600 points Time Base Range: 100ms\/div – 25us\/div Trigger Modes: Auto,\nNormal, and Single Power Supply: 5V DC Power Supply Current: ~140mA\nDimensions: 8557.520mm（3.352.260.79in） Note: : The black end of the BNC\nalligator clip must be connected to the common ground (0V) and must not be\nconnected to positive or negative voltage to prevent damage. The red end\nallows a voltage range of -16V to +50V. Package includes: 1PcsDigital\nOscilloscope 1PcsUSB cable 1PcsBNC alligator clip\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePortable Oscilloscope This portable oscilloscope features a 2.4-inch color TFT display, the size is 3.35*2.26*0.79 inches, easy to carry\u003c\/li\u003e\n \u003cli\u003eHigh Sampling Speed The maximum real-time sampling rate of this small oscilloscope is 24MS\/s, with a bandwidth of 200KHz. The maximum input voltage is -16V or +50V.The resolution is 320*240. Its suitable for electronic competition, electronic experiment , electrical maintenance, sensor output detection and so on\u003c\/li\u003e\n \u003cli\u003eMultiple Trigger ModesThis oscilloscope offers three full trigger modes: automatic, normal and single. It is easy to capture the instantaneous waveform in order to realize the stable display and measurement of the waveform. You can choose to trigger the rising or falling edge\u003c\/li\u003e\n \u003cli\u003eEasy Measurement This oscilloscope can choose GND\/AC\/DC three coupling modes and X10\/X5\/X1 three sensitivity adjustable. Note When using, if you are not sure about the signal voltage, you can first select the gear position of 10V\/div, and then long press [MENU] to enter the detailed information interface for observation, so as not to damage the oscilloscope\u003c\/li\u003e\n \u003cli\u003eSimple OperationPress the \"SEL\" key to select the parameters to be adjusted. Press the Menu key to freeze the waveform and display the parameters clearly. Press and hold MENU to display the information screen, including VPP and frequency. The oscilloscope comes with a detailed manual, making it easy to operate and learn.\u003c\/li\u003e\n \u003c\/ul\u003e"}
