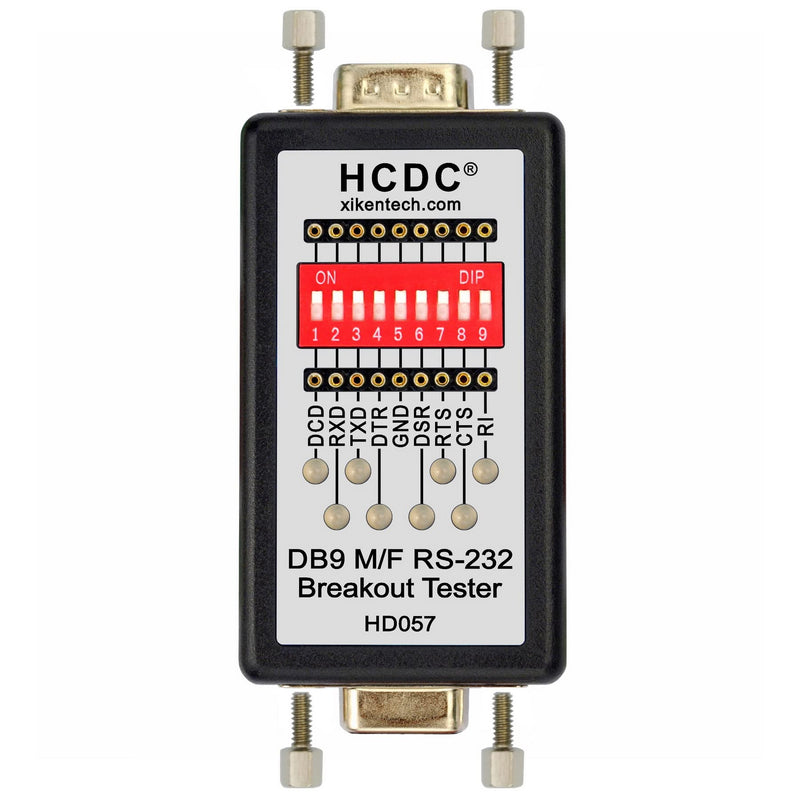

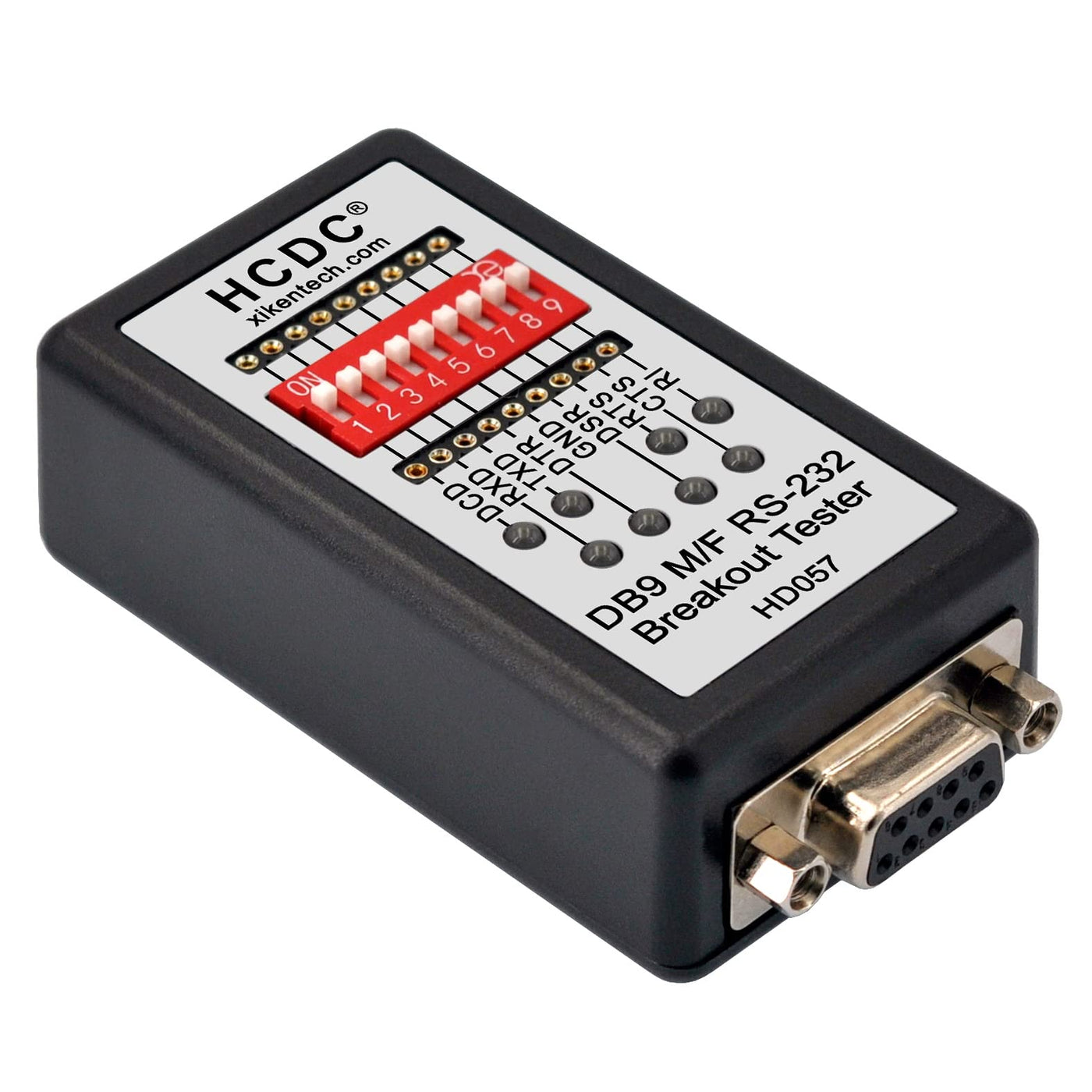

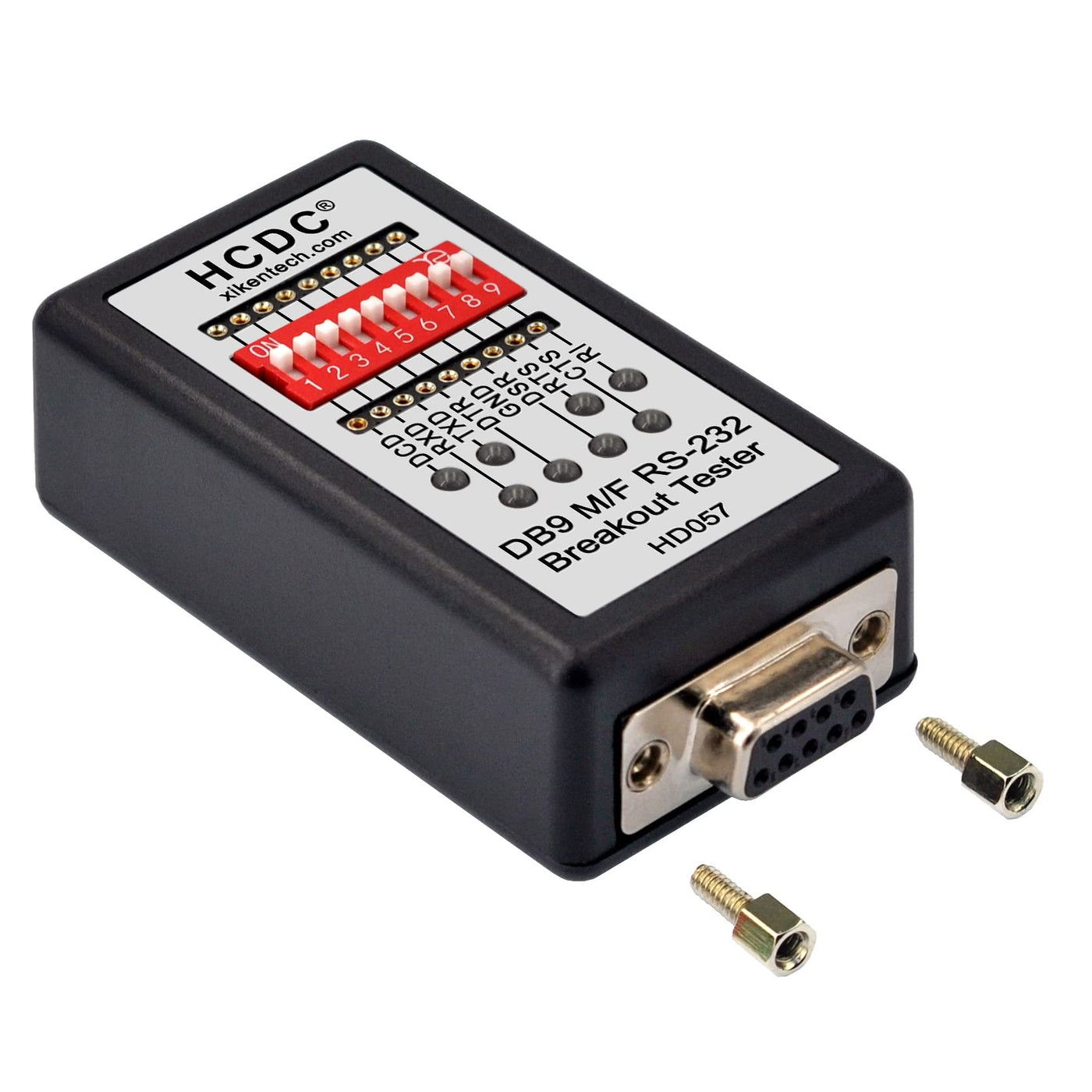

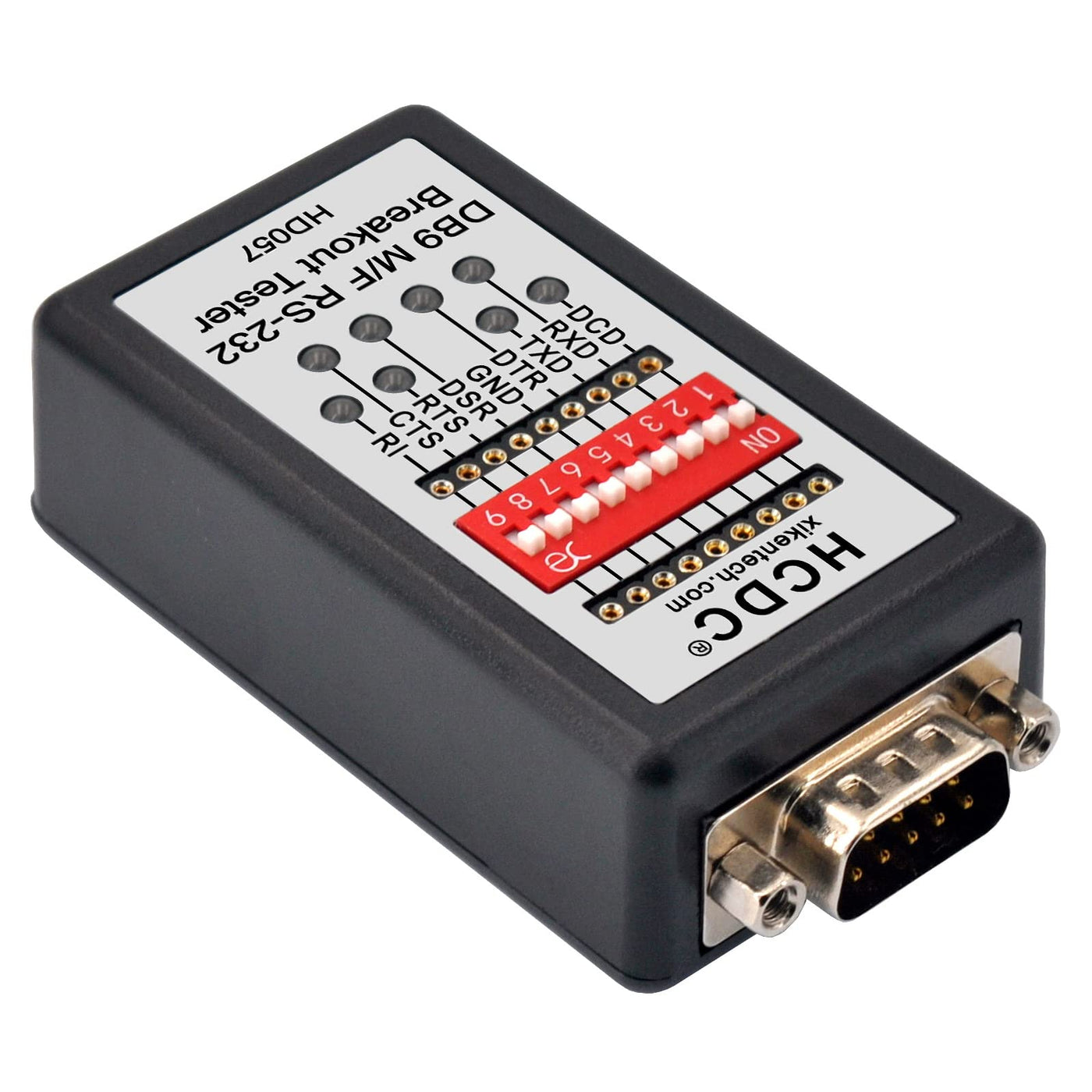

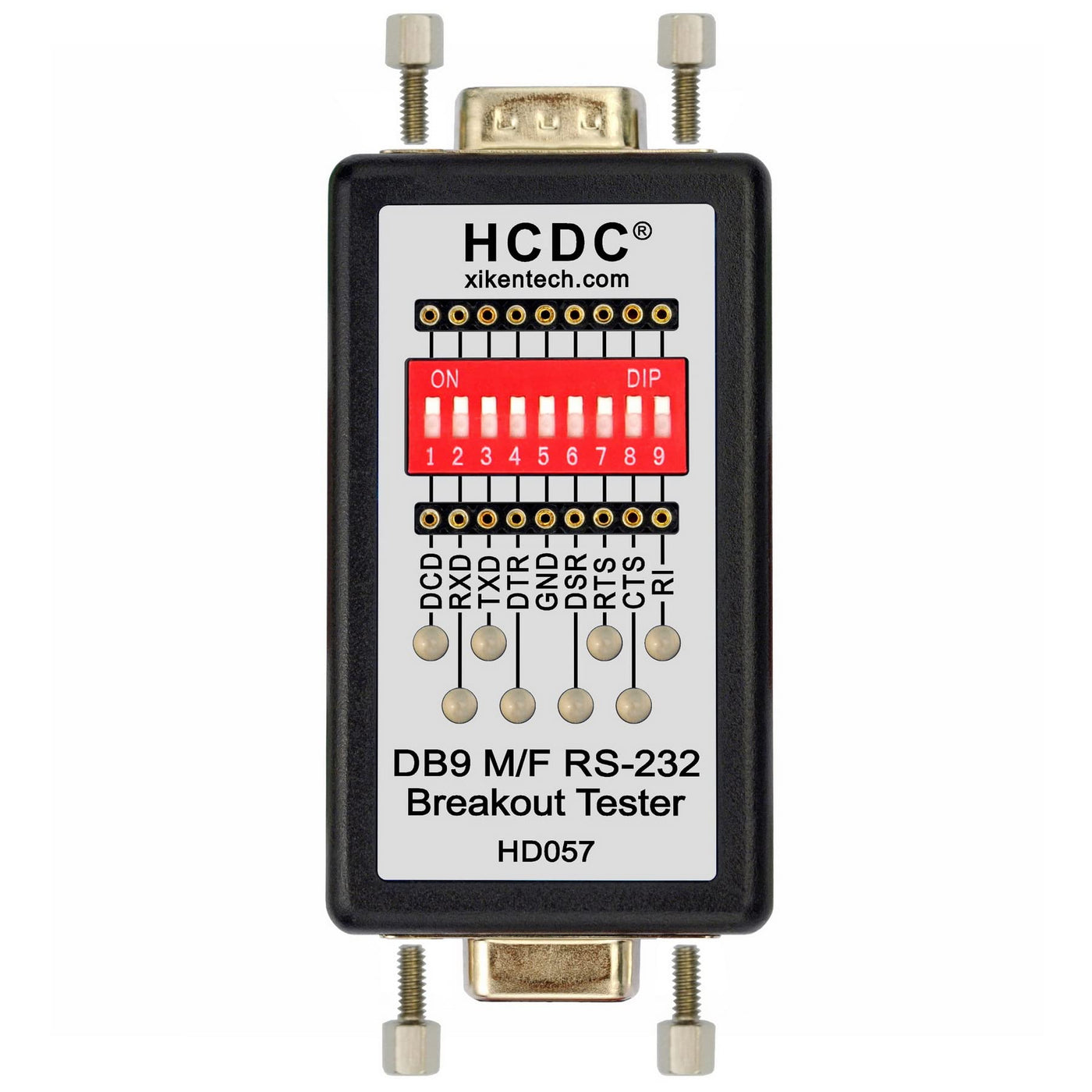

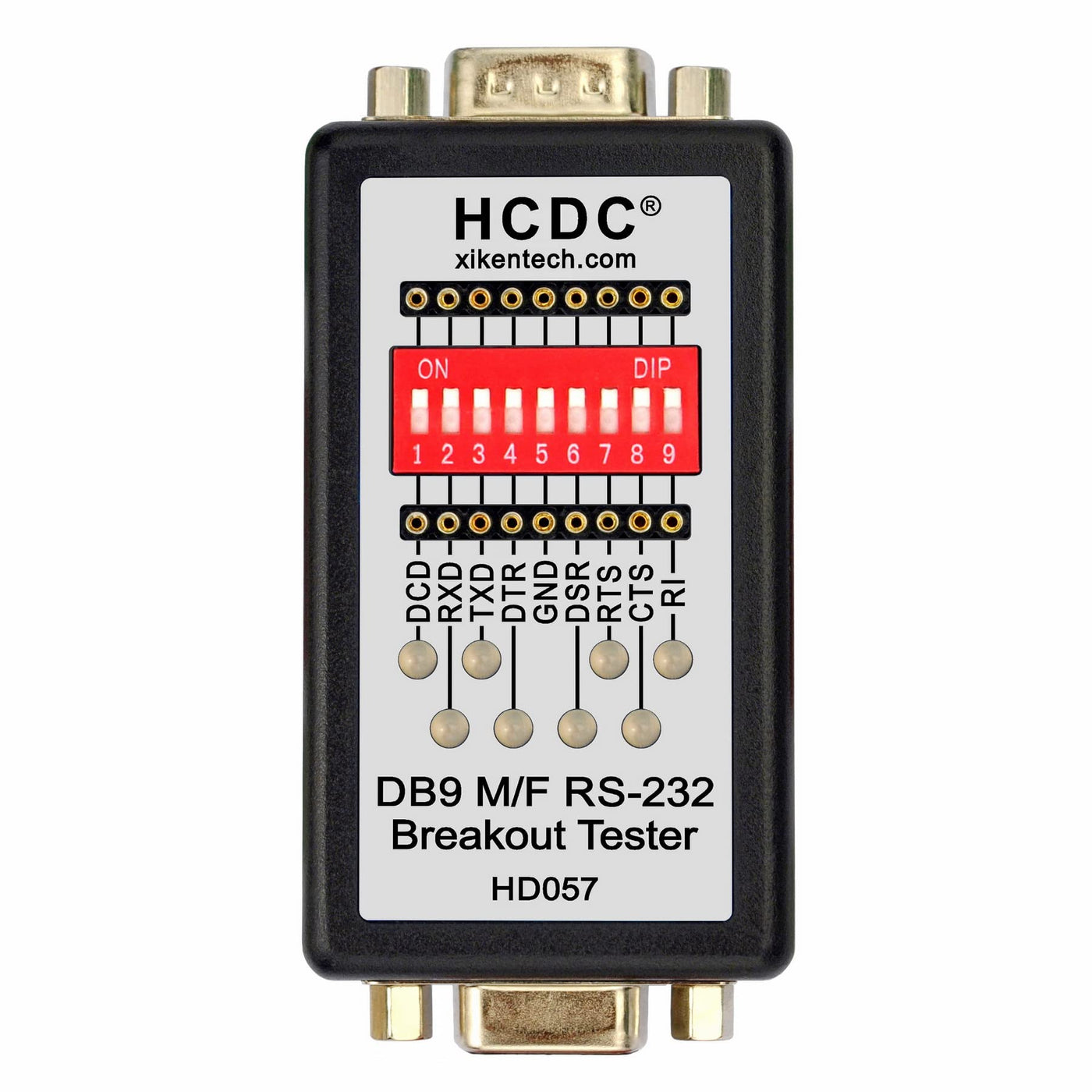

{"id":8768077463703,"title":"HCDC RS232 Breakout Tester LED Monitor, DB9 Male to Female Breakout Module, HD057","handle":"hcdc-rs232-breakout-tester-led-monitor-db9-male-to-female-breakout-module-hd057","description":"\u003ch3\u003eHCDC RS232 Breakout Tester LED Monitor, DB9 Male to Female Breakout Module, HD057\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eConnect in series with any RS-232 interface for testing a serial RS-232 data link. Simple and easy, no oscilloscope is needed. DIP switch can setting disconnect or reconnect any signal, and support external probe test signal from male or female position.\u003c\/li\u003e\n \u003cli\u003e8 double-color (red and green) LEDs indicate the logic states for respective data lines. Green for logic HIGH and red for logic LOW. Full RS232 spec compliant with LEDs for all 8 signals: DCD, RXD, TXD, DTR, DSR, RTS, CTS, RI.\u003c\/li\u003e\n \u003cli\u003eNo external power required. No driver required. Plug and play. Jack sockets(nuts) on the tester can be unscrewed easily(with metal shell held in place) if needed to mate with another connector that has jack sockets.\u003c\/li\u003e\n \u003cli\u003eOS Compatibility: Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, and Windows 8 as well as Linux and Mac OS 10.X, ect.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-04T17:40:07+11:00","created_at":"2025-01-30T22:13:05+11:00","vendor":"HCDC","type":"Logic Analyzers","tags":["industrial_best_sellers_Jan2025"],"price":13000,"price_min":13000,"price_max":13000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45096284160151,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0C2MRGL9P","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HCDC RS232 Breakout Tester LED Monitor, DB9 Male to Female Breakout Module, HD057","public_title":null,"options":["Default Title"],"price":13000,"weight":65,"compare_at_price":null,"inventory_management":"shopify","barcode":"HD057","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0C2MRGL9P.jpg?v=1775758569","\/\/newnestshop.com\/cdn\/shop\/files\/71xkOF93y0L.jpg?v=1738235588","\/\/newnestshop.com\/cdn\/shop\/files\/71GhI1JihFL.jpg?v=1738235588","\/\/newnestshop.com\/cdn\/shop\/files\/71ii-T0tZZL.jpg?v=1738235588","\/\/newnestshop.com\/cdn\/shop\/files\/71HneU_i_FL.jpg?v=1738235588","\/\/newnestshop.com\/cdn\/shop\/files\/71SoYptt9FL.jpg?v=1738235588"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0C2MRGL9P.jpg?v=1775758569","options":["Title"],"media":[{"alt":null,"id":36854612820119,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0C2MRGL9P.jpg?v=1775758569"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0C2MRGL9P.jpg?v=1775758569","width":1800},{"alt":null,"id":36854612852887,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1575,"width":1575,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71xkOF93y0L.jpg?v=1738235588"},"aspect_ratio":1.0,"height":1575,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71xkOF93y0L.jpg?v=1738235588","width":1575},{"alt":null,"id":36854612885655,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1597,"width":1597,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71GhI1JihFL.jpg?v=1738235588"},"aspect_ratio":1.0,"height":1597,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71GhI1JihFL.jpg?v=1738235588","width":1597},{"alt":null,"id":36854612918423,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1674,"width":1674,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71ii-T0tZZL.jpg?v=1738235588"},"aspect_ratio":1.0,"height":1674,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71ii-T0tZZL.jpg?v=1738235588","width":1674},{"alt":null,"id":36854612951191,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71HneU_i_FL.jpg?v=1738235588"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71HneU_i_FL.jpg?v=1738235588","width":1800},{"alt":null,"id":36854612983959,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71SoYptt9FL.jpg?v=1738235588"},"aspect_ratio":1.333,"height":1350,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71SoYptt9FL.jpg?v=1738235588","width":1800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHCDC RS232 Breakout Tester LED Monitor, DB9 Male to Female Breakout Module, HD057\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eConnect in series with any RS-232 interface for testing a serial RS-232 data link. Simple and easy, no oscilloscope is needed. DIP switch can setting disconnect or reconnect any signal, and support external probe test signal from male or female position.\u003c\/li\u003e\n \u003cli\u003e8 double-color (red and green) LEDs indicate the logic states for respective data lines. Green for logic HIGH and red for logic LOW. Full RS232 spec compliant with LEDs for all 8 signals: DCD, RXD, TXD, DTR, DSR, RTS, CTS, RI.\u003c\/li\u003e\n \u003cli\u003eNo external power required. No driver required. Plug and play. Jack sockets(nuts) on the tester can be unscrewed easily(with metal shell held in place) if needed to mate with another connector that has jack sockets.\u003c\/li\u003e\n \u003cli\u003eOS Compatibility: Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, and Windows 8 as well as Linux and Mac OS 10.X, ect.\u003c\/li\u003e\n \u003c\/ul\u003e"}
