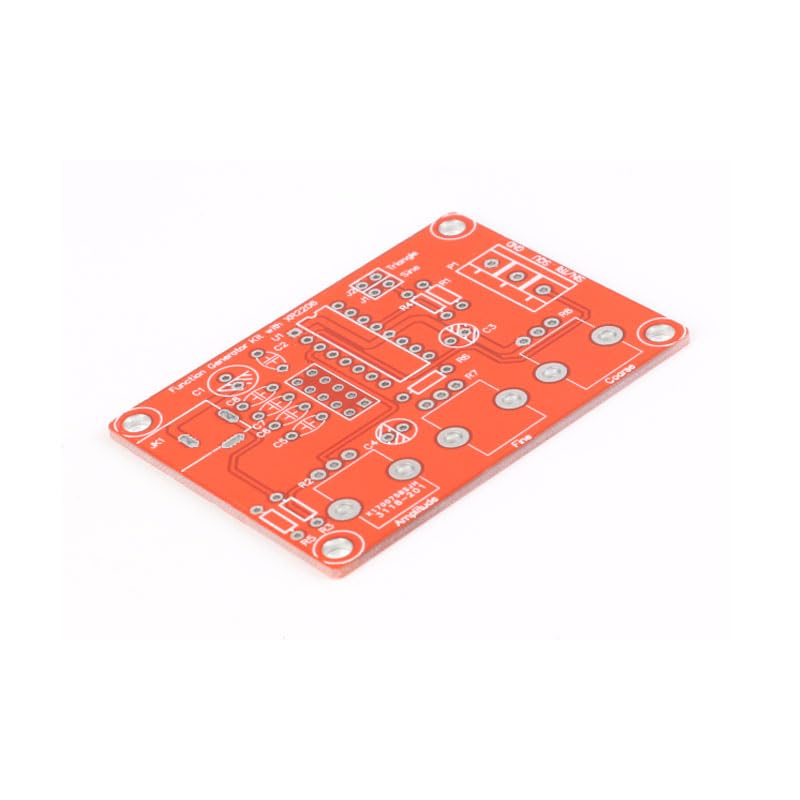

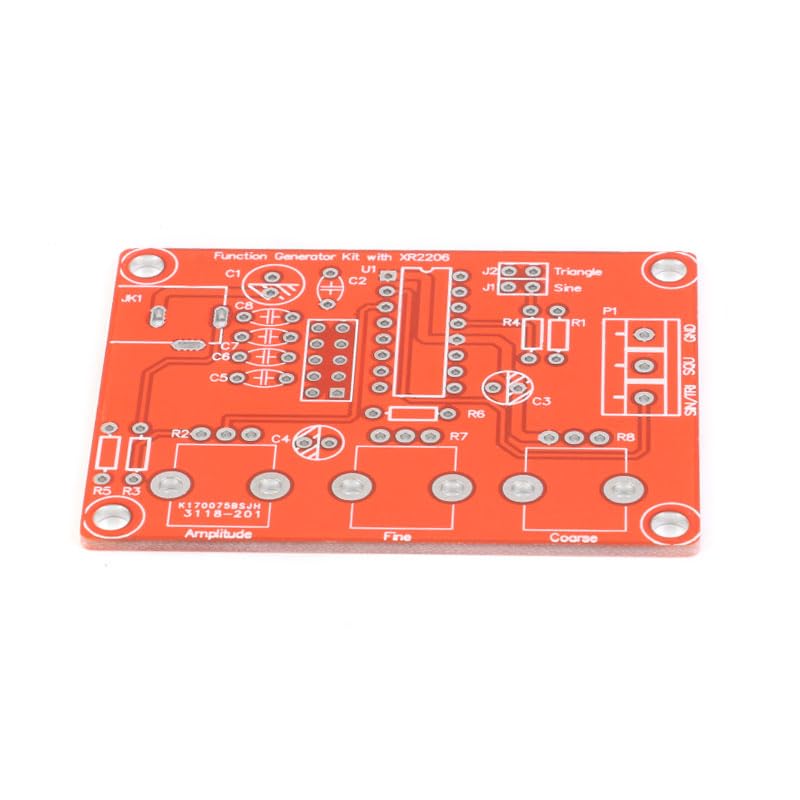

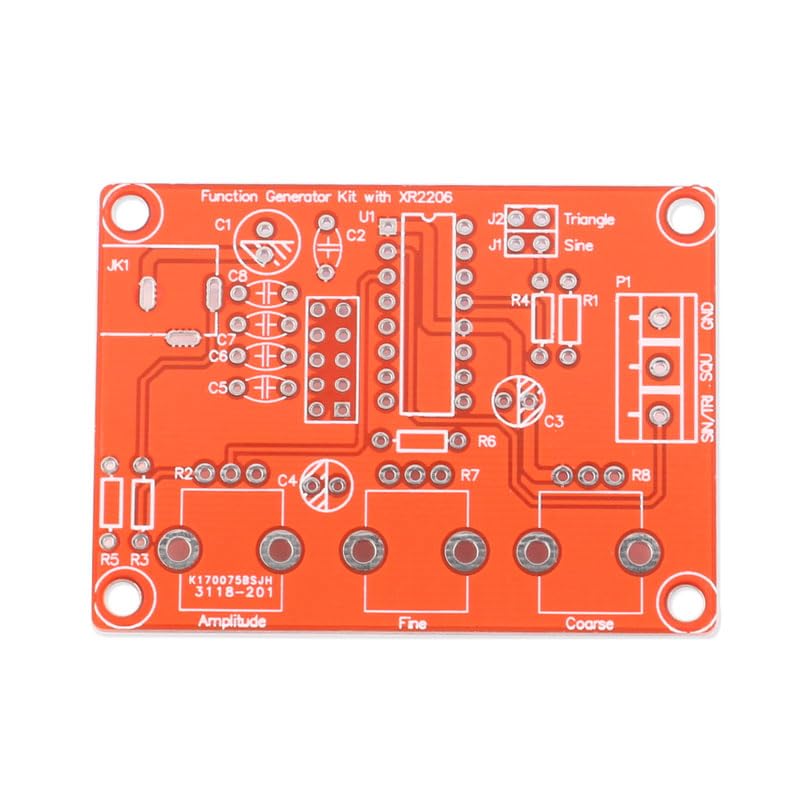

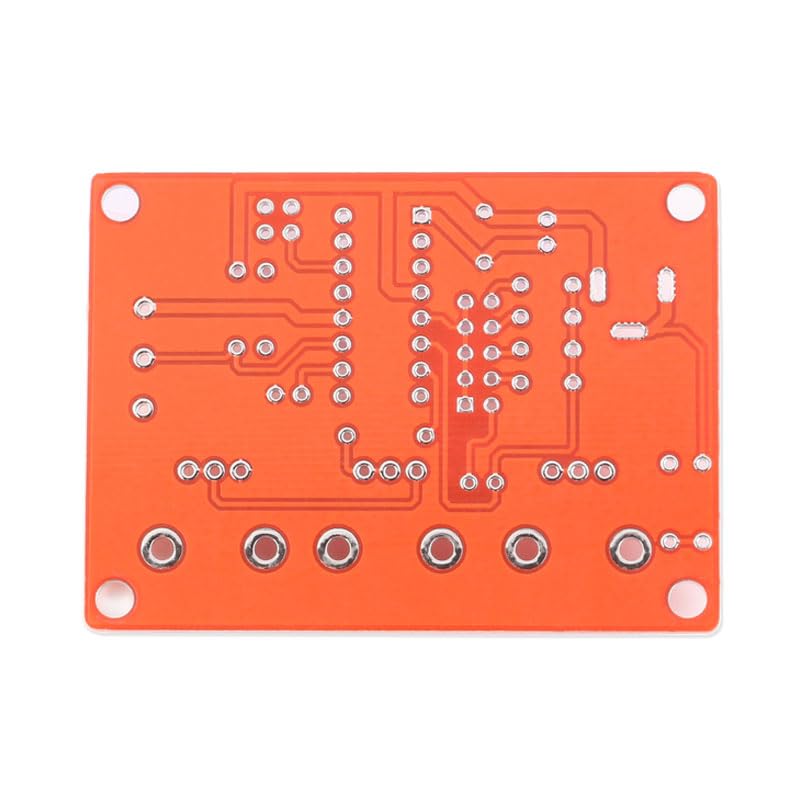

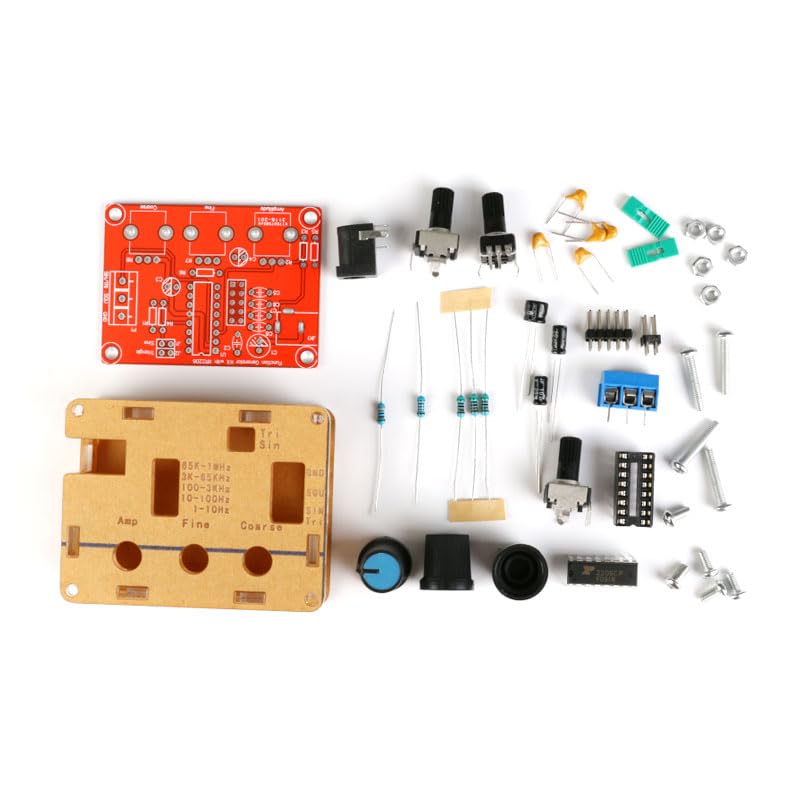

{"id":8826439106711,"title":"High Precision Function Signal Generator DIY Kit XR2206 Adjustable Frequency Amplitude Module Sine Triangle Square Output 1Hz-1MHz DC 9-12V","handle":"high-precision-function-signal-generator-diy-kit-xr2206-adjustable-frequency-amplitude-module-sine-triangle-square-output-1hz-1mhz-dc-9-12v","description":"\u003ch3\u003eHigh Precision Function Signal Generator DIY Kit XR2206 Adjustable Frequency Amplitude Module Sine Triangle Square Output 1Hz-1MHz DC 9-12V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical Specifications: Voltage Supply: 9-12V DC Input Waveforms: Square,\nSine \u0026amp; Triangle Impedance: 600 Ohm + 10% Frequency: 1Hz - 1MHz SINE WAVE\nAmplitude: 0 - 3V at 9V DC input Distortion: Less than 1% (at 1kHz) ?\nFlatness: +0.05dB 1Hz - 100kHz SQUARE WAVE Amplitude: 8V (no load) at 9V DC\ninput Rise Time: Less than 50ns (at 1kHz) Fall Time: Less than 30ns (at 1kHz)\nSymmetry: Less than 5% (at 1kHz) TRIANGLE WAVE Amplitude: 0 - 3V at 9V DC\ninput Linearity: Less than 1% (up to 100kHz) 10mA\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCan generate sine waves, triangular waves, and square waves\u003c\/li\u003e\n \u003cli\u003eThe frequency can range from 1HZ-1MHz; Frequency and amplitude adjustable\u003c\/li\u003e\n \u003cli\u003eFive bit precision resolution; Frequency adjustment has coarse and fine tuning\u003c\/li\u003e\n \u003cli\u003eWide power supply range, can use external power supply 9-12V or 9V batteries\u003c\/li\u003e\n \u003cli\u003eAll direct insertion components have a small number of components and are easy to install and debug.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-18T15:35:41+11:00","created_at":"2025-02-10T19:53:58+11:00","vendor":"EC Buying","type":"Function Generators","tags":["industrial_best_sellers_Jan2025"],"price":9200,"price_min":9200,"price_max":9200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45167979364503,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CPJGL59M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision Function Signal Generator DIY Kit XR2206 Adjustable Frequency Amplitude Module Sine Triangle Square Output 1Hz-1MHz DC 9-12V","public_title":null,"options":["Default Title"],"price":9200,"weight":58,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0CPJGL59M.jpg?v=1775771895","\/\/newnestshop.com\/cdn\/shop\/files\/41k26aDam6L.jpg?v=1739177640","\/\/newnestshop.com\/cdn\/shop\/files\/51elTjG3xoL.jpg?v=1739177640","\/\/newnestshop.com\/cdn\/shop\/files\/51IVQIdU-7L.jpg?v=1739177640","\/\/newnestshop.com\/cdn\/shop\/files\/51ob3tIvMZL.jpg?v=1739177640"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CPJGL59M.jpg?v=1775771895","options":["Title"],"media":[{"alt":null,"id":36978384535703,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CPJGL59M.jpg?v=1775771895"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CPJGL59M.jpg?v=1775771895","width":800},{"alt":null,"id":36978384568471,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41k26aDam6L.jpg?v=1739177640"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41k26aDam6L.jpg?v=1739177640","width":800},{"alt":null,"id":36978384601239,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51elTjG3xoL.jpg?v=1739177640"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51elTjG3xoL.jpg?v=1739177640","width":800},{"alt":null,"id":36978384634007,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51IVQIdU-7L.jpg?v=1739177640"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51IVQIdU-7L.jpg?v=1739177640","width":800},{"alt":null,"id":36978384666775,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51ob3tIvMZL.jpg?v=1739177640"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51ob3tIvMZL.jpg?v=1739177640","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHigh Precision Function Signal Generator DIY Kit XR2206 Adjustable Frequency Amplitude Module Sine Triangle Square Output 1Hz-1MHz DC 9-12V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical Specifications: Voltage Supply: 9-12V DC Input Waveforms: Square,\nSine \u0026amp; Triangle Impedance: 600 Ohm + 10% Frequency: 1Hz - 1MHz SINE WAVE\nAmplitude: 0 - 3V at 9V DC input Distortion: Less than 1% (at 1kHz) ?\nFlatness: +0.05dB 1Hz - 100kHz SQUARE WAVE Amplitude: 8V (no load) at 9V DC\ninput Rise Time: Less than 50ns (at 1kHz) Fall Time: Less than 30ns (at 1kHz)\nSymmetry: Less than 5% (at 1kHz) TRIANGLE WAVE Amplitude: 0 - 3V at 9V DC\ninput Linearity: Less than 1% (up to 100kHz) 10mA\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCan generate sine waves, triangular waves, and square waves\u003c\/li\u003e\n \u003cli\u003eThe frequency can range from 1HZ-1MHz; Frequency and amplitude adjustable\u003c\/li\u003e\n \u003cli\u003eFive bit precision resolution; Frequency adjustment has coarse and fine tuning\u003c\/li\u003e\n \u003cli\u003eWide power supply range, can use external power supply 9-12V or 9V batteries\u003c\/li\u003e\n \u003cli\u003eAll direct insertion components have a small number of components and are easy to install and debug.\u003c\/li\u003e\n \u003c\/ul\u003e"}
